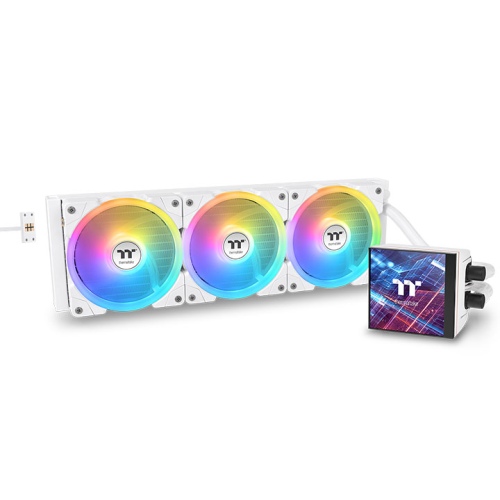

MAGFloe 360 Ultra ARGB Sync AIO Liquid Cooler - Snow Edition

MAGFloe 360 Ultra ARGB Sync AIO Liquid Cooler - Snow Edition

In stock

P/N

CL-W433-PL12SW-A

€245.90 (included VAT)

The MAGFloe 360 Ultra ARGB Sync Snow Edition features a large 3.95” square LCD display that presents clear, vivid visuals and allows for instant customization through the TT PlayLink app on smartphones. This AIO liquid cooler comes with SWAFAN EX White fans, which boast the MAGForce 2.0 Quick Connection Design and Swappable Fan Blade Design, elevating aesthetics by reducing cable clutter and fully showcasing dual-ring RGB lighting in different airflow directions.

Striking Visuals, Peak Performance

Experience superior cooling with the MAGFloe Ultra ARGB Sync, blending sleek design and advanced functionality. Its 3.95” square LCD display offers stunning personalization, while SWAFAN EX fans feature quick magnetic connections and swappable blades for easy installation, tidy cable management, and ideal airflow direction.

Personalize Your LCD Display

The MAGFloe Ultra ARGB Sync Snow Edition features a premium 3.95” Square LCD Display. This impressive-sized LCD screen comes with 480 x 480 resolution, delivering vibrant, clear, and high-quality visuals that enhance the aesthetics of your build.

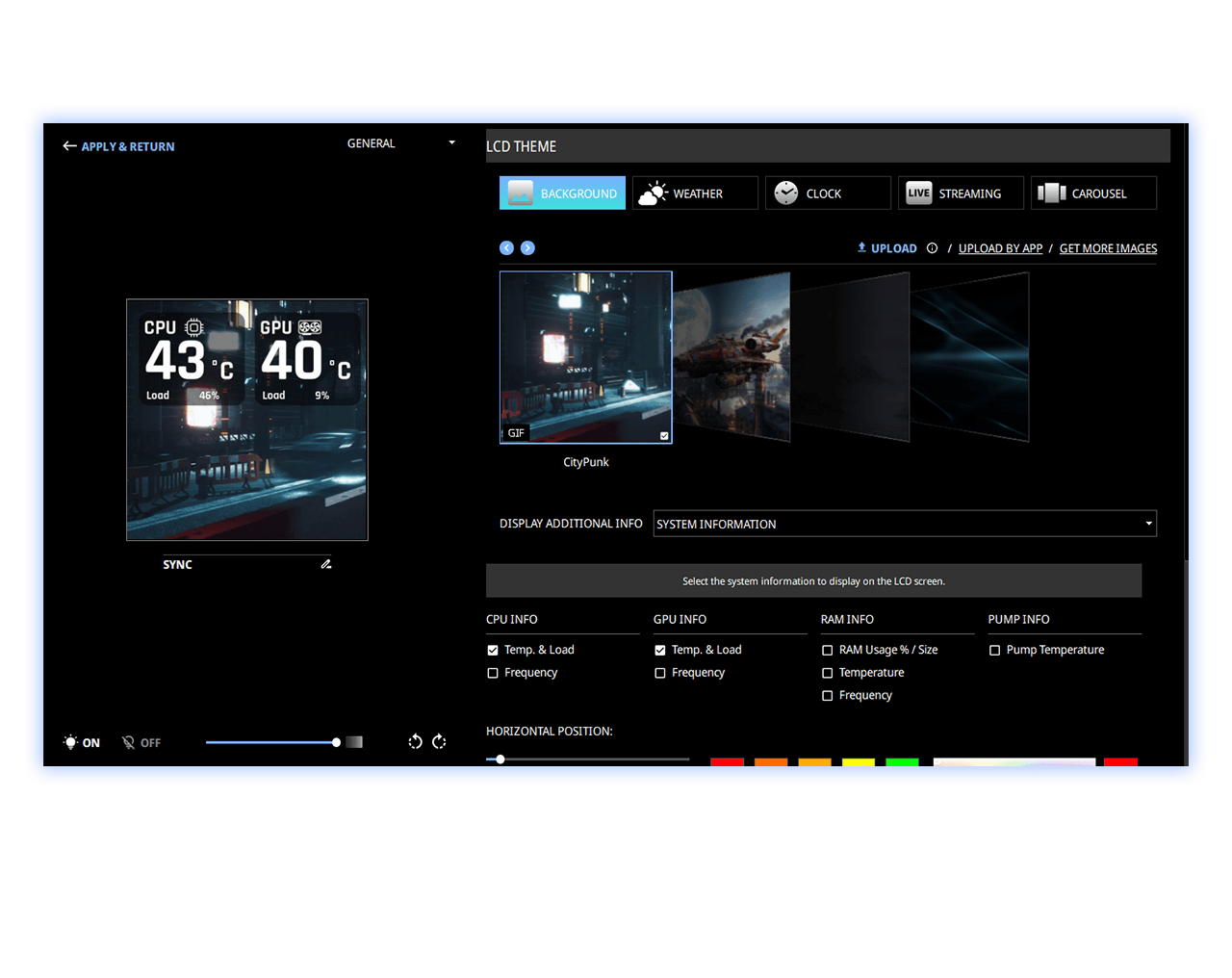

Real-time Information

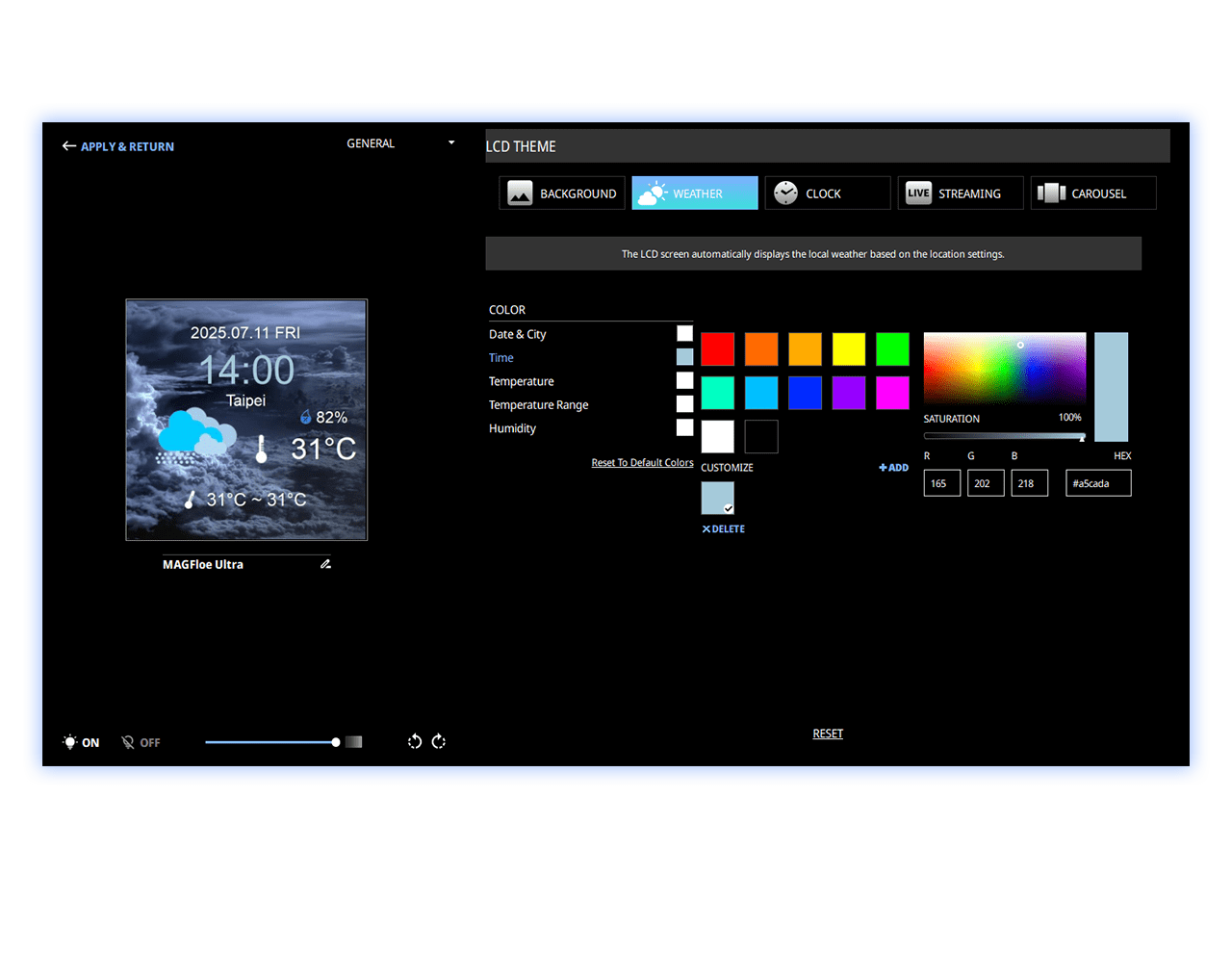

Local Weather & Time

Image & Video

Supports the New TT RGB PLUS 3.0 Software

TT RGB PLUS 3.0 software is designed with an enhanced user interface for smoother and more customizable operation. You can monitor real-time information, present local weather and time, and even upload any images or videos on the 3.95” Square LCD Display. Make your system more dynamic and uniquely yours!

Caution:
The boot/standby animations are restricted to 5 MB.

Check out more animated GIFs for your AIO displays here.

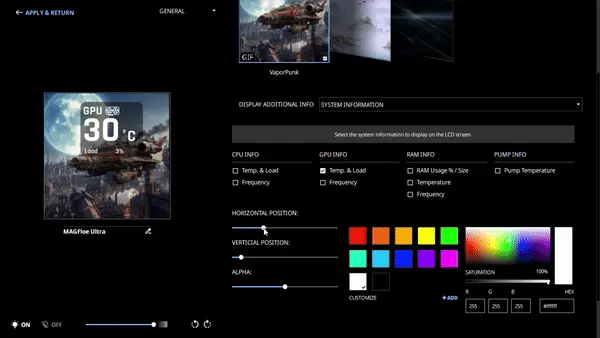

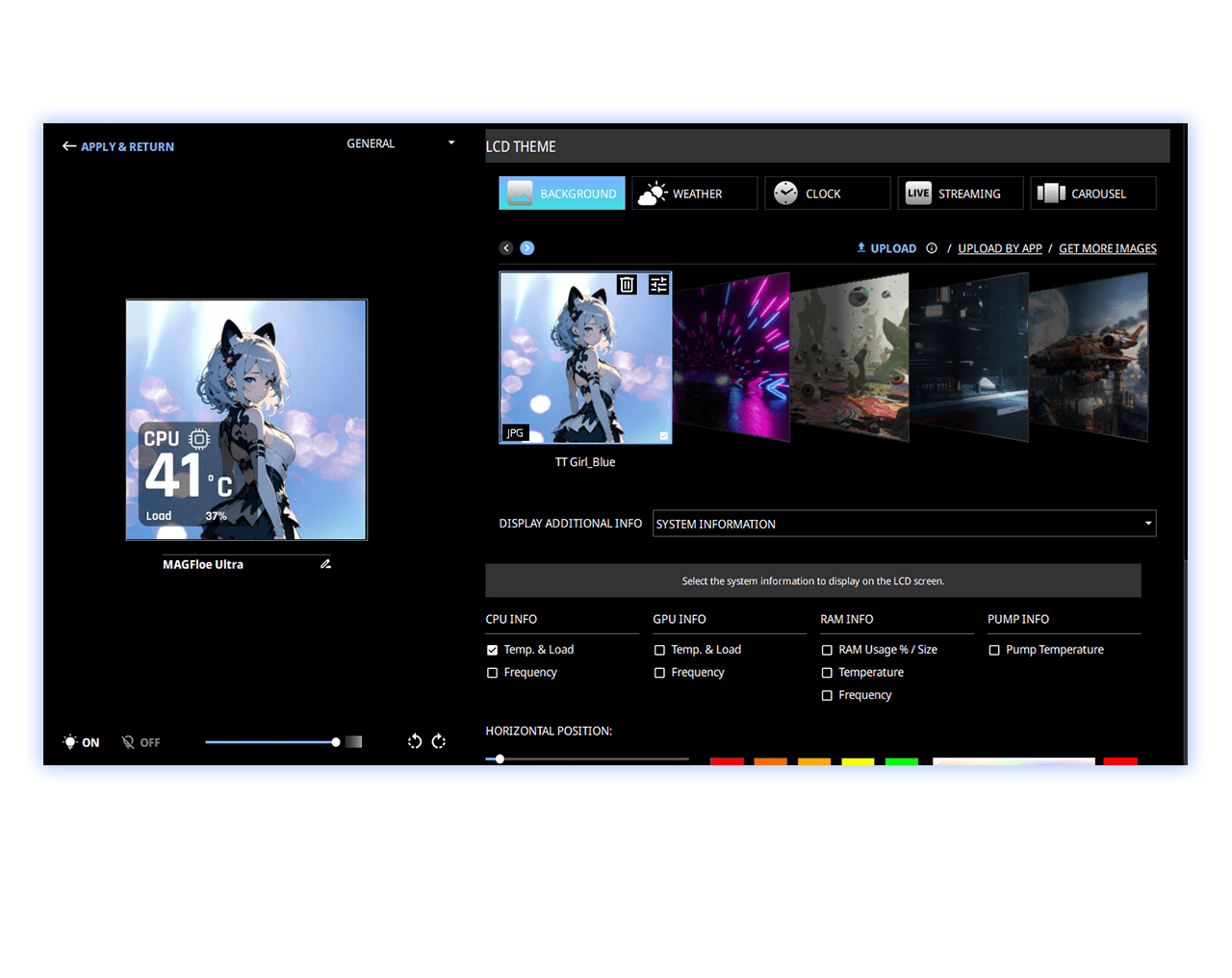

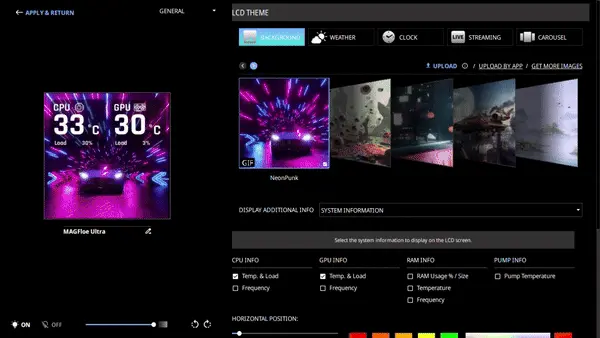

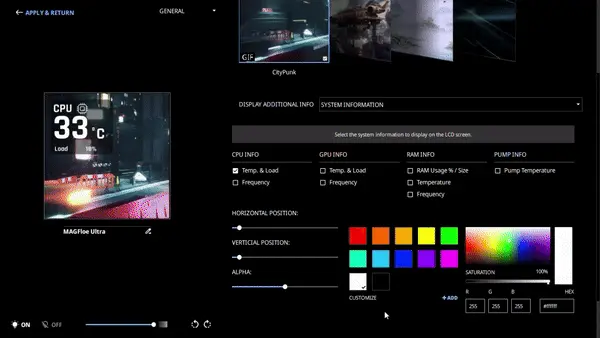

Take Full Control of Your Real-Time Display

TT RGB PLUS 3.0 offers enhanced control over how real-time system information is presented. Freely choose which system information to show, adjust its on-screen position, customize text colors, and select a background that complements your setup. Make your rig truly your own with a visual showcase that’s uniquely tailored to you.

Information Selection

Information Positioning

Text Color Selection

Background Customization

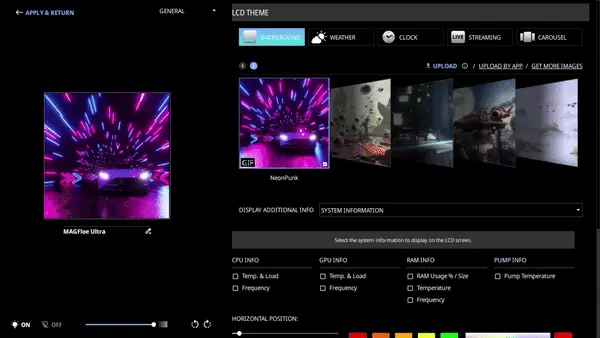

Enhanced Visual Customization

With the TT RGB PLUS 3.0 software, elevate your experience with optimized default visuals in six styles (CityPunk, WeirdCore, VaporPunk, NeonPunk, Chinese Ink Painting, Minimalist). It supports a wide range of formats including JPG, GIF, PNG, MP4, MOV, and AVI. Effortlessly showcase your favorite images or videos, and easily upload trending AI-generated content to unlock creativity with a distinct and personalized visual effect.

CityPunk

WeirdCore

VaporPunk

NeonPunk

Chinese Ink Painting

Minimalist

Quick Upload Visuals with TT PlayLink App

With the TT PlayLink app, customizing your LCD displays is much easier through a smartphone.

Whether uploading pictures and videos from your gallery or capturing live moments with the camera or streaming functions, personalizing your screen is more convenient than ever!

*The video is for reference only.

Steady Connection with MagForce 2.0

The SWAFAN EX fans included in MAGFloe Ultra ARGB Sync are upgraded to the MagForce 2.0 connector, whose Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential faulty alignment, whether you are daisy-chaining fans together or connecting fans with cable, further boosting the installation efficiency and streamlining the building experience.

Caution: Due to safety and motherboard software signal limitations, SWAFAN EX ARGB is only recommended to daisy-chain maximum 5 fans per cable.

Say Goodbye to Excessive Cables

Connect your fans with SWAFAN EX’s MagForce 2.0 Quick Connect Design and be free from messy cables!

Ordinary Fans

SWAFAN EX ARGB Sync Fans

Unlocks the Full Potential of RGB Lighting

With the Swappable Fan Blade Design, the MAGFloe Ultra ARGB Sync Liquid Cooler Snow incorporates three standard blades and reverse blades, effortlessly switching between the airflow direction for intake or exhaust while fully showing lighting effects. No more sacrificing aesthetics for your airflow direction!

Ordinary Fans

Standard Blade
Ordinary Fans

Reverse Blade
Ordinary Fans

Swap the Fan Blades as You Like

Simply pop out the fan blades, switch up the blades and press them back in!

The Ultimate Cooling Performance of an RGB Fan

To achieve optimal cooling efficiency for high-performance systems, the SWAFAN EX12 has a maximum operating speed of 2000 RPM.

Click to see different airflow directions:

Reverse Fan Blades can provide an static pressure of 2.02 mm-H2O (Max) and 56.26 CFM (Max) airflow while maintaining under 32.5 dB-A noise level and can bring air from the back to the front.

The Ultimate Cooling Performance of an RGB Fan

To achieve optimal cooling efficiency for high-performance systems, the SWAFAN EX12 has a maximum operating speed of 2000 RPM.

Click to see different airflow directions:

Standard Fan Blades can provide an static pressure of 2.39 mm-H2O (Max) and 57.11 CFM (Max) airflow while maintaining under 30.6 dB-A noise level and can bring air from the front to the back.

Enhanced Cooling Surface With A Compact Design

The MAGFloe Ultra ARGB Sync series has a 27mm slim radiator with a thickened 20mm copper chamber, ensuring the same easy installation but with even better cooling performance.

Keep it COLD with Copper

The high-performance copper base plate accelerates heat conductivity. The high-quality and reliable pump enables maximum water circulation, keeping the copper plate continuously cool. The low evaporation tube effectively decreases the loss of coolant; therefore, no refill is required.

Cleaning Fans are now Easy and Fun!

Pop and insert, it is that easy.

If you want, you can even rinse the fan blades with water, just make sure you dry them thoroughly and apply the bearing lubricant that is included in the package if needed.

TT RGB PLUS Ecosystem

Light up your system with almost limitless possibilities and synchronize your TT RGB PLUS compatible products to create a RGB ecosystem that is truly unique to you.

TT RGB PLUS Software

The new version of Thermaltake’s patented TT RGB PLUS software provides enhanced lighting effects and PC monitoring functions.

DOWNLOAD NOW DOWNLOAD USER MANUAL

TT PlayLink Mobile App

TT PlayLink is a new mobile application that simplifies the customization of PC LCD screens, enabling quick visual uploads and live streaming from a smartphone.

Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

Aura Addressable Header
ASUS
Digital Pin Header
GIGABYTE
JRAINBOW Header
MSI
Addressable RGB LED Header
ASRock

Category	Caution
Chassis, ARGB Fan, ARGB AIO	The motherboard signal connector only supports a 5V header. Ensure your motherboard software is the latest version.
RGB Memory, VGA Waterblock, Distro Plate	This product can only be used with either the TT RGB PLUS software or the dedicated motherboard software. Having more than two applications open may cause conflicts. The motherboard signal connector only supports a 5V header. Ensure your motherboard software is the latest version.

More Information
P/N	CL-W433-PL12SW-A
Pump	Motor Speed : PWM 1500~3300 RPM Rated Voltage : 12V Rated Current : 0.43A Power Input : 5.16W
CPU Display	Rated Voltage : 5V Rated Current : 0.26A Power Input : 1.3W Display Type : 3.95”TFT-LCD Display Resolution : 480x480 (RGB) px
Display Support	Interface : Micro USB to USB (9PIN) System Compatibility : Windows 10 / 11
Water Block	Material : Copper
Fan	Dimension : 120 x 120 x 25 mm Fan Speed : PWM 500~2000 R.P.M Rated Voltage : 12V/5V Rated Current : 0.27 A & 0.72 A (one fan) Power Input : 3.24 W & 3.6 W (one fan) Air Flow : Standard Fan Blade : 57.11 CFM (one fan) Reverse Fan Blade : 56.26 CFM (one fan) Static Pressure : Standard Fan Blade : 2.39 mm-H2O (one fan) Reverse Fan Blade : 2.02 mm-H2O (one fan) Noise Level : Standard Fan Blade : 30.6 dB-A (one fan) Reverse Fan Blade : 32.5 dB-A (one fan)
Tube	Length : 460mm Material : Rubber
Radiator	Dimension : 396 x 120 x 27 mm Material : Aluminum
Compatibility	Intel LGA 2066/2011-3/2011/1851/1700 1200/1156/1155/1151/1150 AMD AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1

User Manual

File Name
Description
Size
Version
Release Date

MAGFloe 360 Ultra manual
manual
2025-01-22

MAGFloe 360 Ultra Software manual
Software manual
2025-01-22
