WAir CPU Cooler

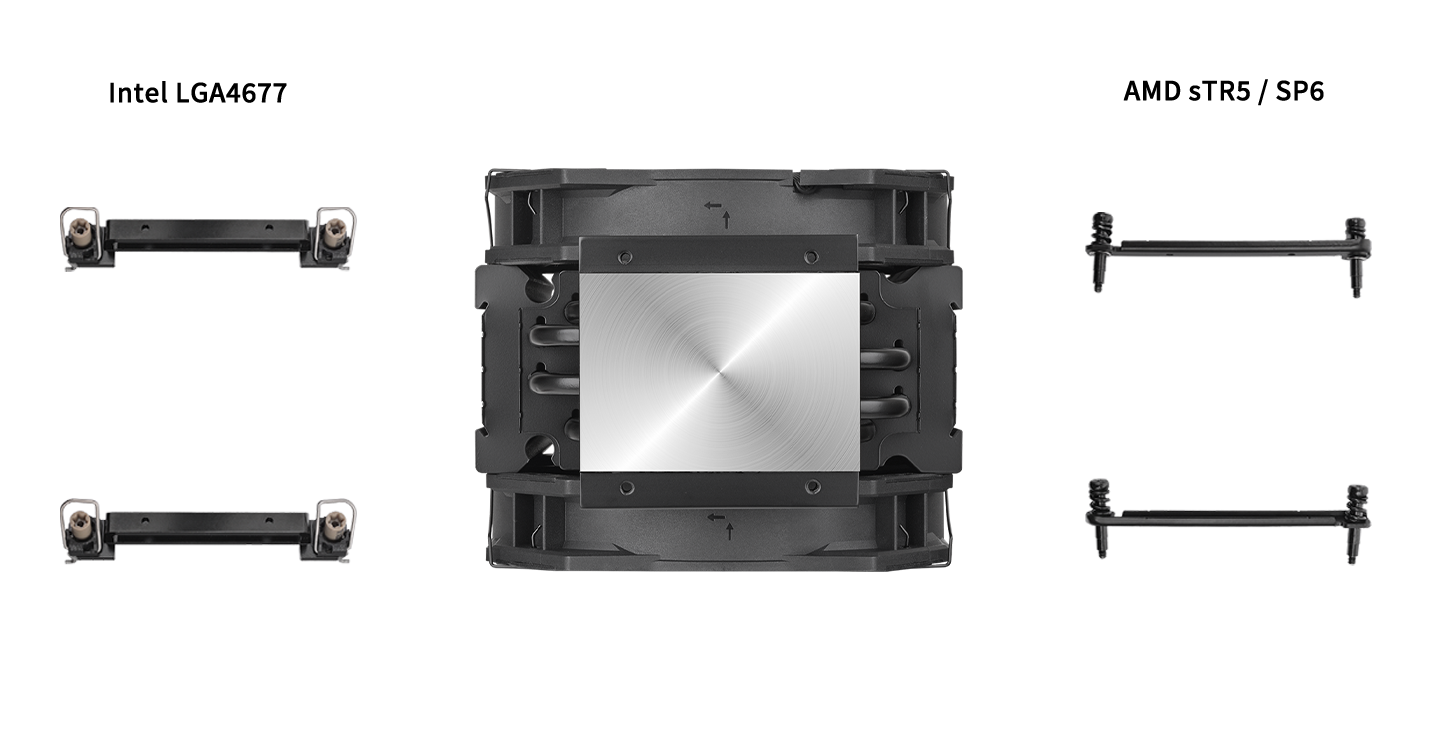

Supports Intel LGA4677 & AMD sTR5 / SP6 Sockets
The WAir CPU Cooler is designed to meet the needs of high-performance workstation setups, providing excellent cooling for demanding workloads such as 3D rendering, AI computing, and big data processing. With support for Intel LGA4677 and AMD sTR5/SP6 sockets, it ensures wide compatibility with the latest workstation processors.
Thermaltake Workstation Ecosystem

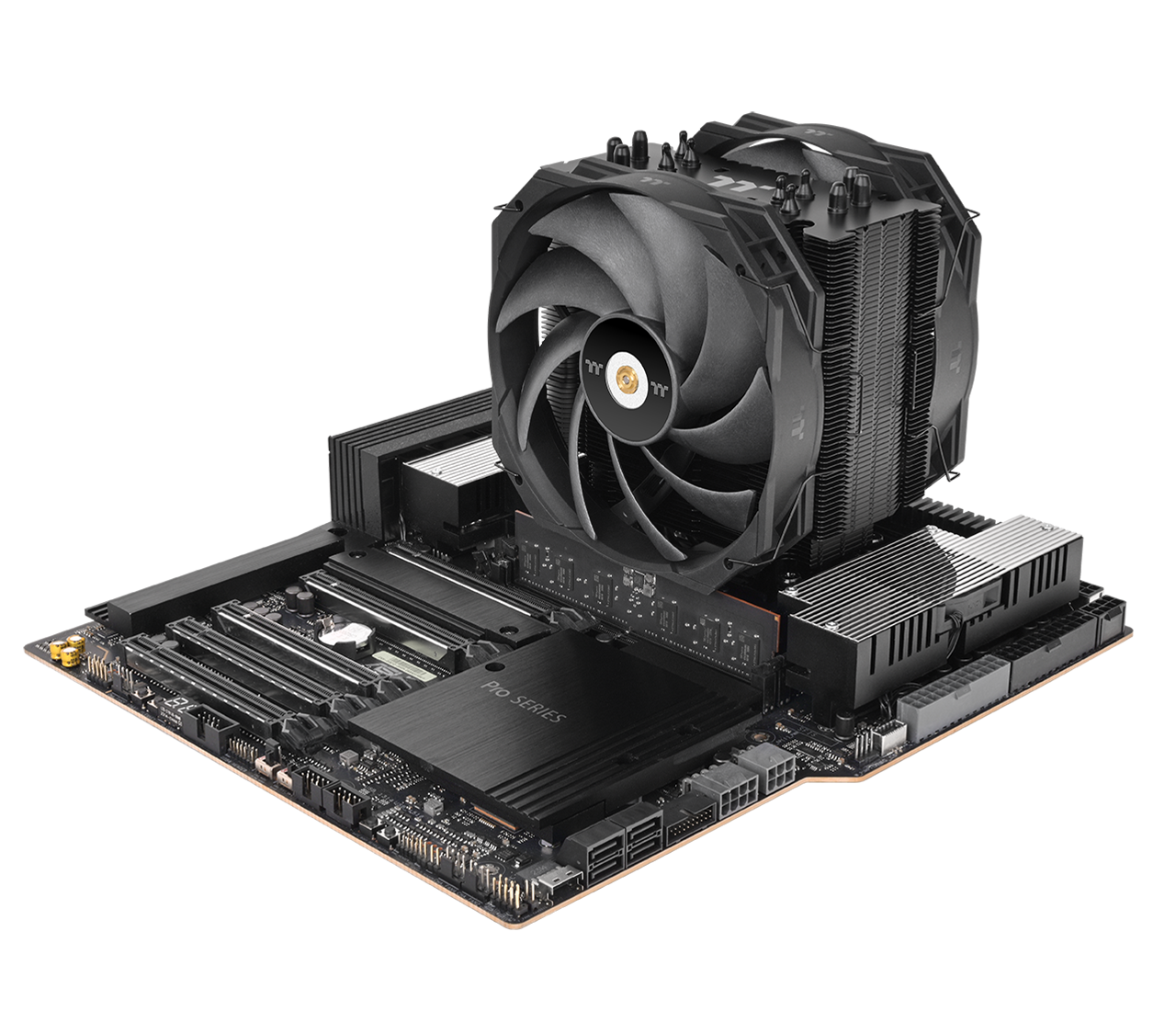

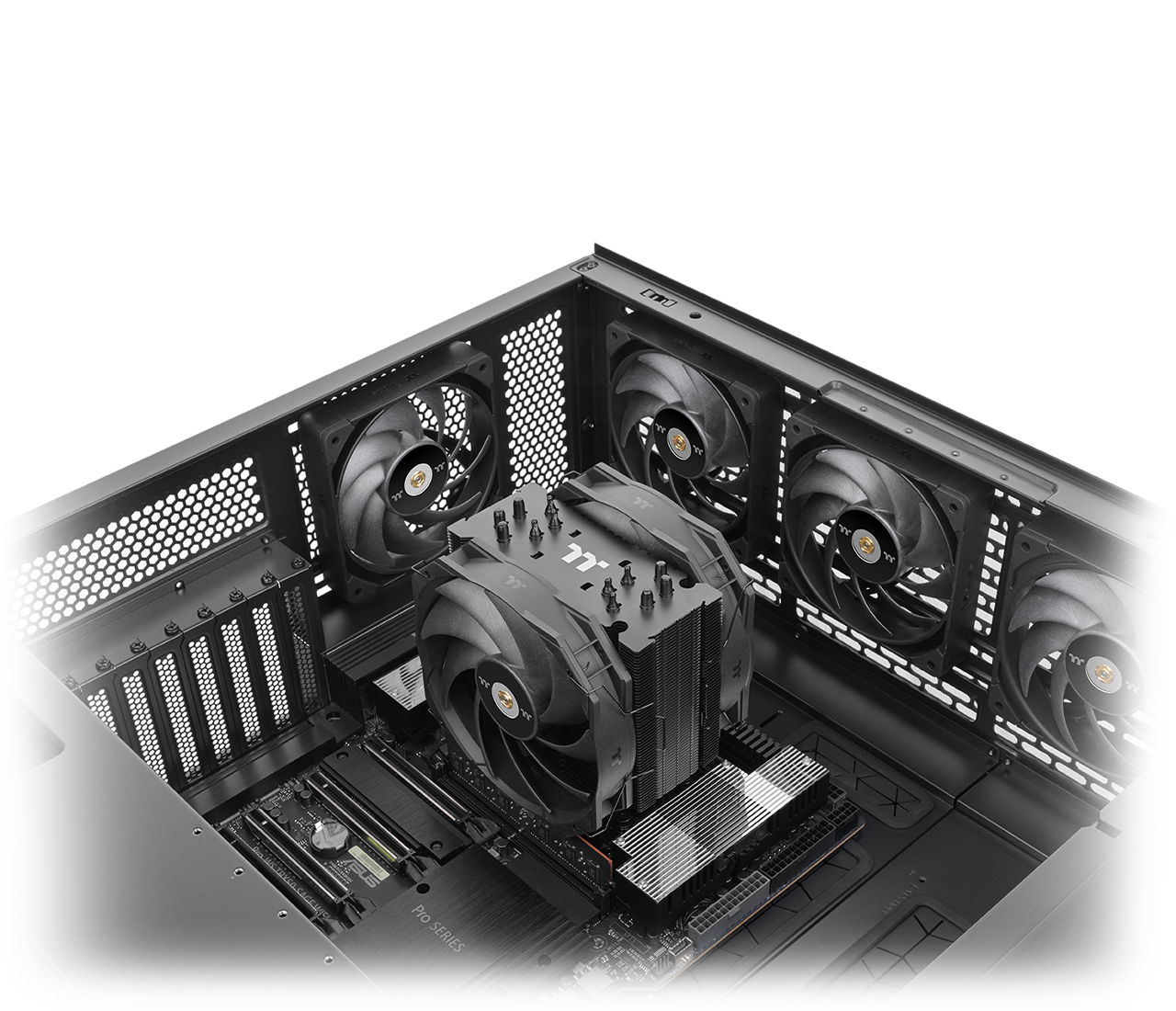

Build a powerful workstation with the WAir CPU Cooler, engineered to keep your system running smoothly under intensive tasks. Pair it with Thermaltake’s new AX Series Chassis, featuring excellent airflow and expandability, to create a stable and optimized setup for professional applications.
The Ultimate Cooling Solution

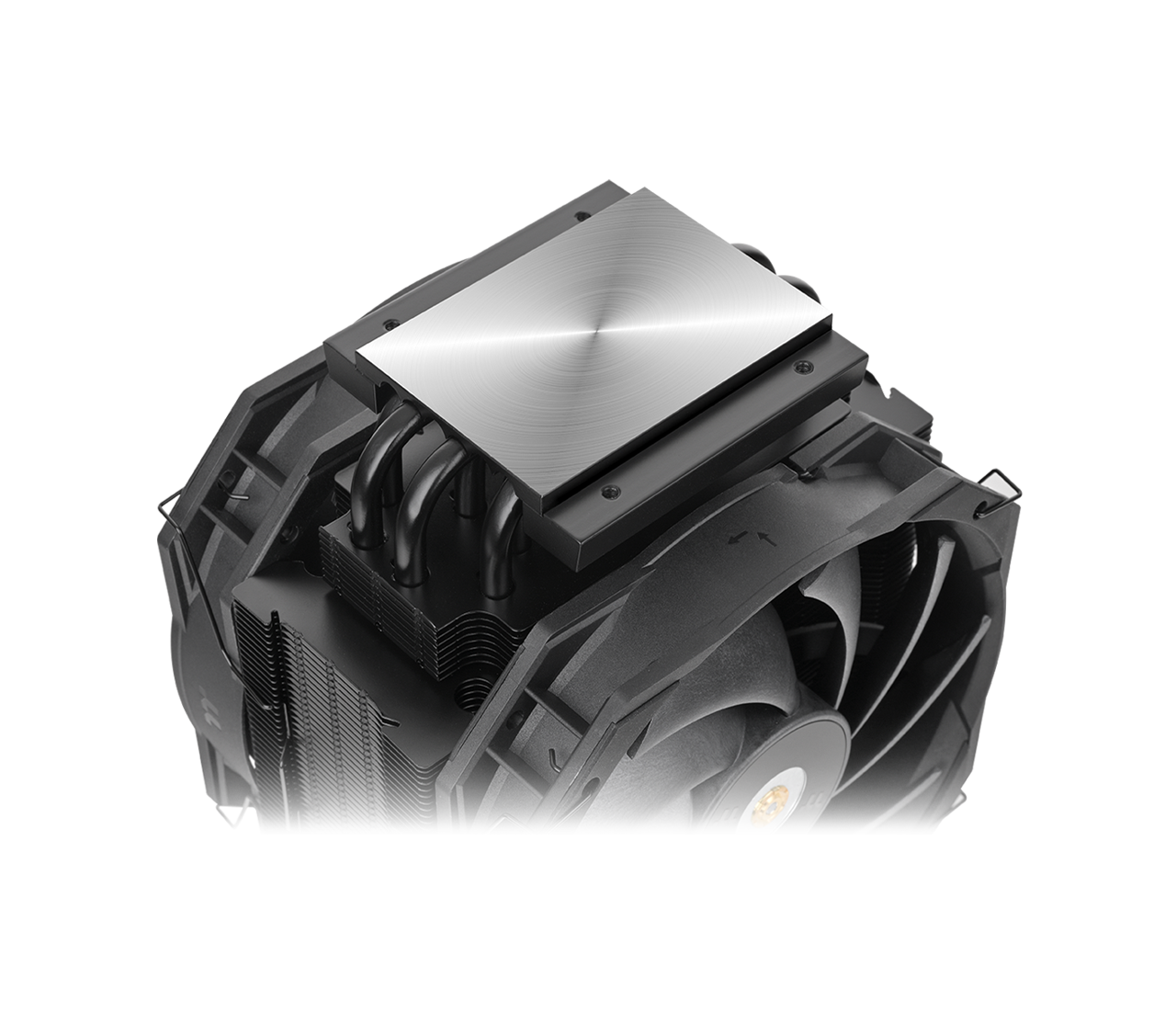

The WAir features a well-structured design to optimize heat dissipation. With a large copper base coated in anti-corrosive nickel plating, it ensures full CPU coverage and delivers exceptional cooling efficiency. Built with six Ø6 mm heat pipes, the WAir offers optimal and rapid heat conduction for workstation systems.

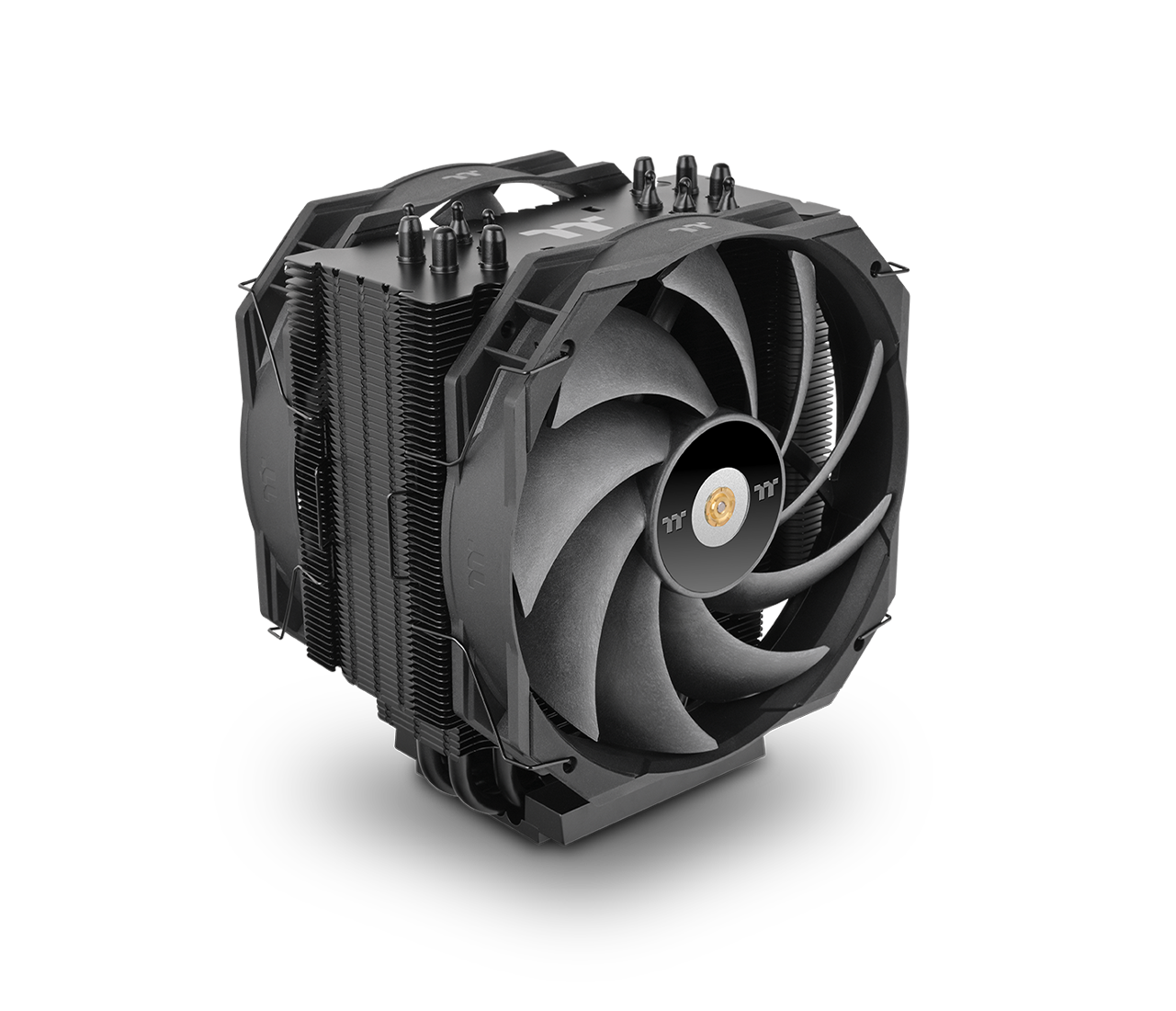

Powerful Fans for Superior Cooling
The WAir comes with a single-tower dual-fan design. With the redesigned TOUGHFAN 14 Pro, its fan blades are made of liquid crystal polymer (LCP), minimizing vibration at full-speed spinning. The fan delivers 83.4 CFM of airflow and 1.86 mm-H2O static pressure while maintaining a 24.4 dB-A noise level, delivering outstanding cooling performance for intensive tasks.
More Stable with Enhanced Bond
The WAir utilizes high-quality solder paste applied between the heat pipes and heat sinks, as well as between the heat pipes and copper base, enhancing their connection and significantly improving thermal efficiency.
Flexible Choice of Pairing Components

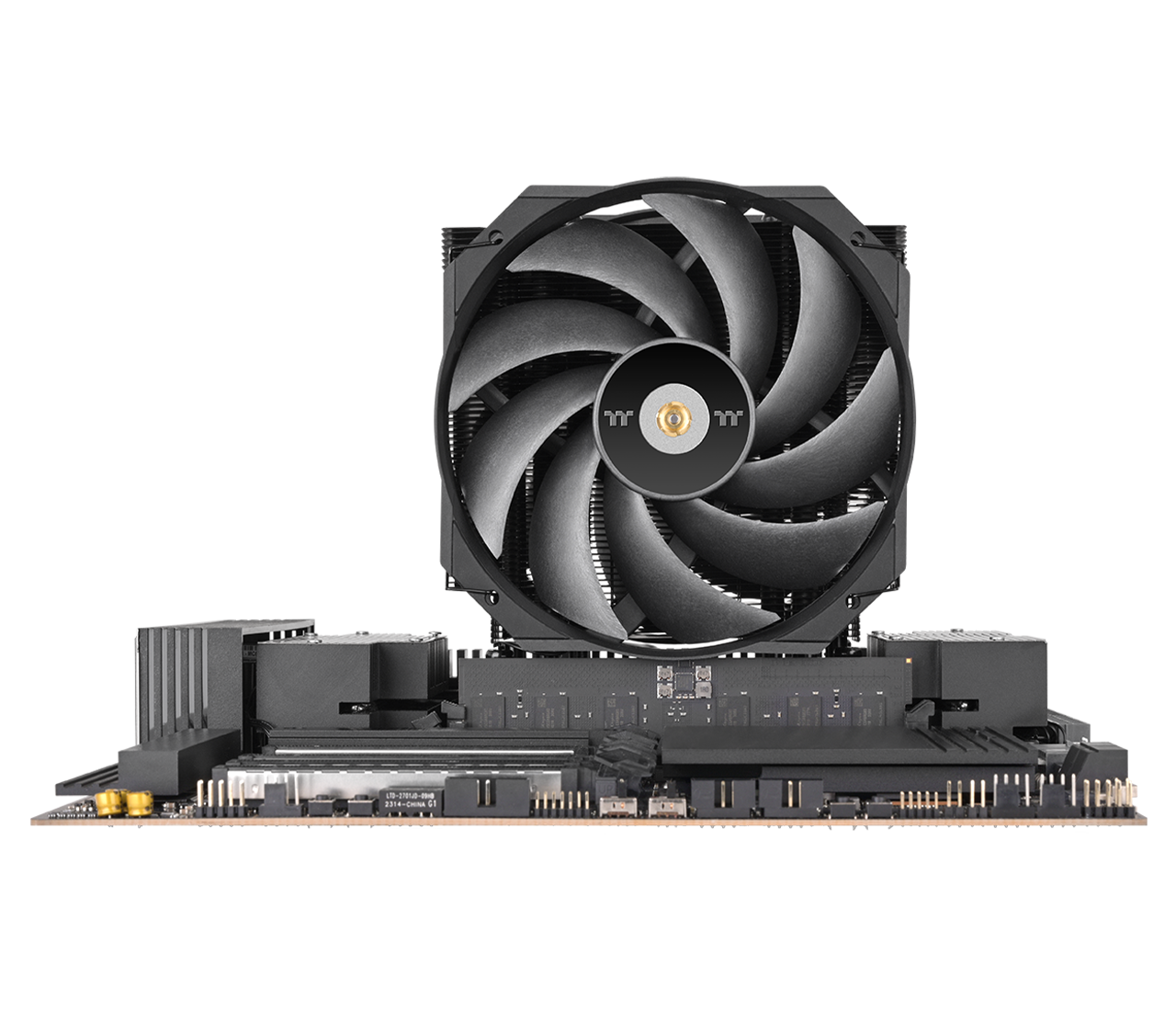

By adjusting the fan position, you can effortlessly match it with the memory height, ensuring compatibility and achieving optimal cooling performance.
Sleek All-Black Design
The WAir CPU Cooler Series features an all-black aesthetic, delivering a modern and sophisticated look. Designed to blend style and performance, making it an ideal choice for enthusiasts seeking both visual appeal and cooling efficiency.
| P/N | CL-P140-CA14BL-A |
|---|---|
| Compatibility | Intel：LGA4677 AMD：sTR5/SP6 |
| Dimensions | 143.2 x 115 x 165 mm ( L x W x H) |
| Heatsink Material | Aluminum Fins & Copper Base |
| Heatpipe | Φ6mm x 6 pcs |
| Fan Dimension | 140.8 x 140.8 x 26.4 mm ( L x W x H ) |
| Fan quantity | 2 pcs |
| Fan Speed | PWM 500 ~ 1500 RPM |
| Rated Voltage | 12 V |
| Start Voltage | 9 V |
| Rated Current | 0.16 A (one fan) |
| Power Input | 1.92 W (one fan) |
| Air Flow | 83.4 CFM (one fan) |
| Static Pressure | 1.86 mm-H2O (one fan) |
| Acoustical Noise | 24.4 dBA (one fan) |
| Life time/Fan Life time | 50,000 hours |
| pin connect | 2510 - 4Pin |
| Cooling Power | 500 W |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
WAir CPU Cooler manual
- user manual
- 2025-06-20
