View 380 XL WS ARGB Mid Tower Chassis

Out of stock

P/N

CA-11E-00M1WN-WS

€179.90 (included VAT)

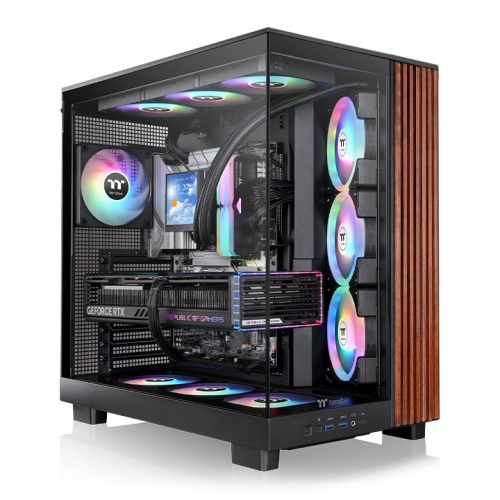

The View 380 XL WS ARGB Mid Tower Chassis is a dual-chamber ATX case, accented with stylish wood elements, featuring Hidden-Connector Motherboard support, three 120mm ARGB Lite Reverse Fan on the motherboard side and one 120mm ARGB Lite Fan at the rear, and space for a 360mm radiator at both the top and motherboard side.

The View 380 XL WS ARGB Mid Tower Chassis

The View 380 XL WS ARGB Mid Tower Chassis is a dual-chamber ATX case accented with stylish wood elements. It supports Hidden-Connector Motherboards, comes with three 120mm ARGB Lite Reverse Fan on the motherboard side and one 120mm ARGB Lite Fan at the rear, and offers space for a 360mm radiator on both the top and motherboard side. With support for up to ten 120mm fans, a built-in GPU holder, convenient front I/O ports, a recessed bottom compartment, and an angled motherboard side design, it provides users with greater flexibility to create their ideal build.

The image is for reference only.

Compatible with Hidden-Connector Motherboards

Created for next-generation motherboards, the View 380 XL WS ARGB Mid Tower Chassis features a special design that support both standard motherboards and hidden-connector motherboards from ASUS, MSI and GIGABYTE.

*Compatible with hidden-connector motherboards:
ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series

The image is for reference only.

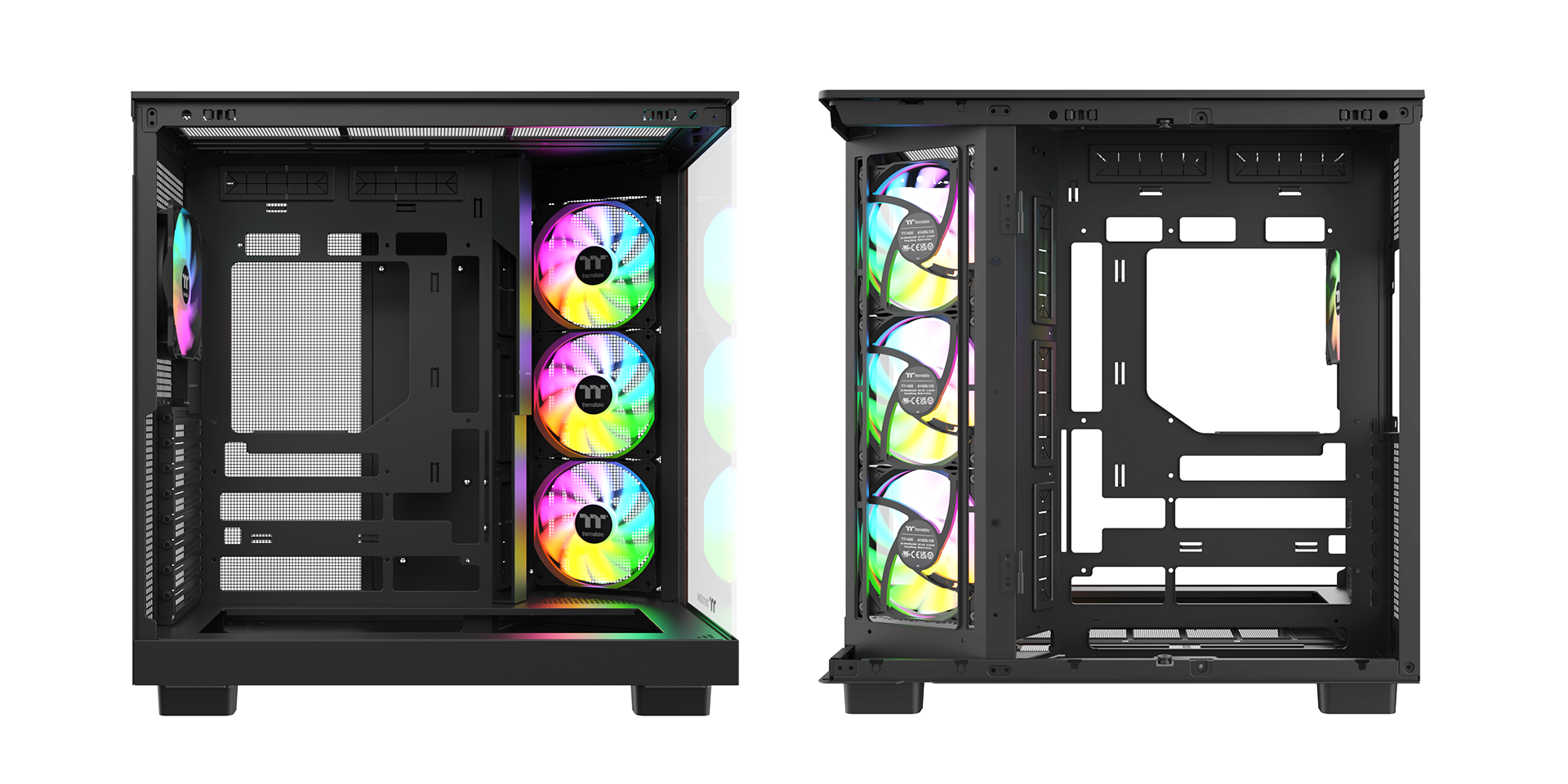

Dual Chamber Design

The dual chamber design provides more build space, better cable management, and improved airflow for better flexibility.

The image is for reference only.

Tempered Glass Front and Left Panels

The View 380 XL WS ARGB Mid Tower Chassis is designed for better visibility, featuring tempered glass front and left panels, allowing users to enjoy their system with a stylish touch.

The image is for reference only.

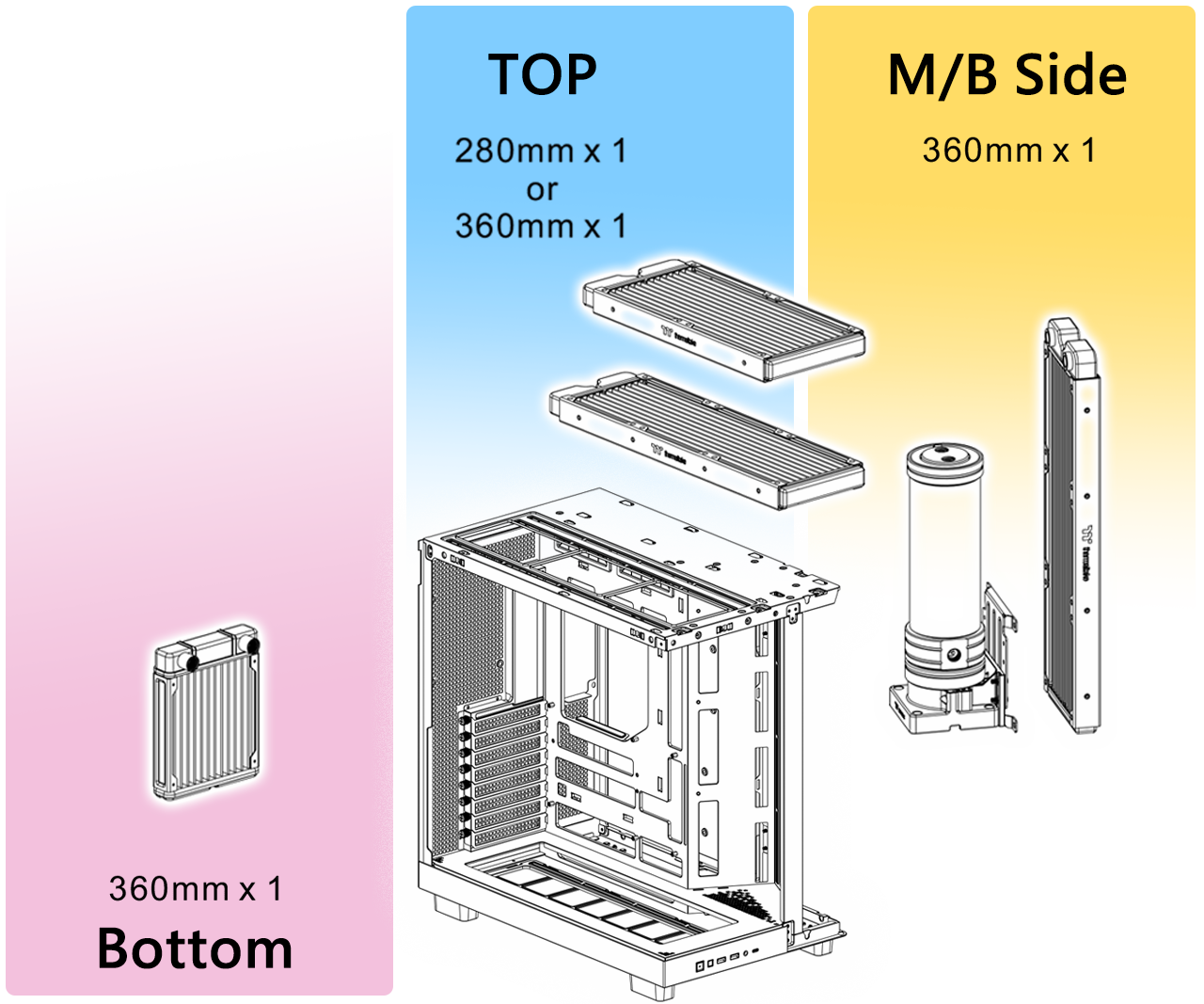

Good Radiator Support

Providing good cooling support, users can choose to place a 360mm/280mm radiator on the top or a 360mm radiator at the right of the View 380 XL WS ARGB Mid Tower Chassis.

The image is for reference only.

Pre-installed Fan System

The View 380 XL WS ARGB Mid Tower Chassis comes with three 120mm ARGB Lite Reverse Fan on the motherboard side and one 120mm ARGB Lite Fan at the rear. It’s fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.

The image is for reference only.

Built-in GPU Holder

The built-in GPU holder prevents graphics card sagging with extra support.

The image is for reference only.

Unify Your Fans with Your Build!

Thermaltake launches brand-new CT series fans, allowing users to choose from black or white, RGB or non-RGB, to match whatever color scheme you have.

Flexibility to Build Your Ideal PC

The View 380 XL WS ARGB Mid Tower Chassis offers good expandability. It can support a CPU cooler with a maximum height of 160mm, GPU placement up to 420mm in length, a power supply up to 180mm in length. Optimized for excellent cooling performance, the case comes with three 120mm ARGB Lite Reverse Fan on the motherboard side and one 120mm ARGB Lite Fan at the rear, and up to ten 120mm fans can be installed. For radiator compatibility, it can support up to a 360mm radiator at the top or the motherboard side, giving more options for high-end expansion!

120mm
140mm

120mm
140mm
240mm
280mm
360mm

The image is for reference only.

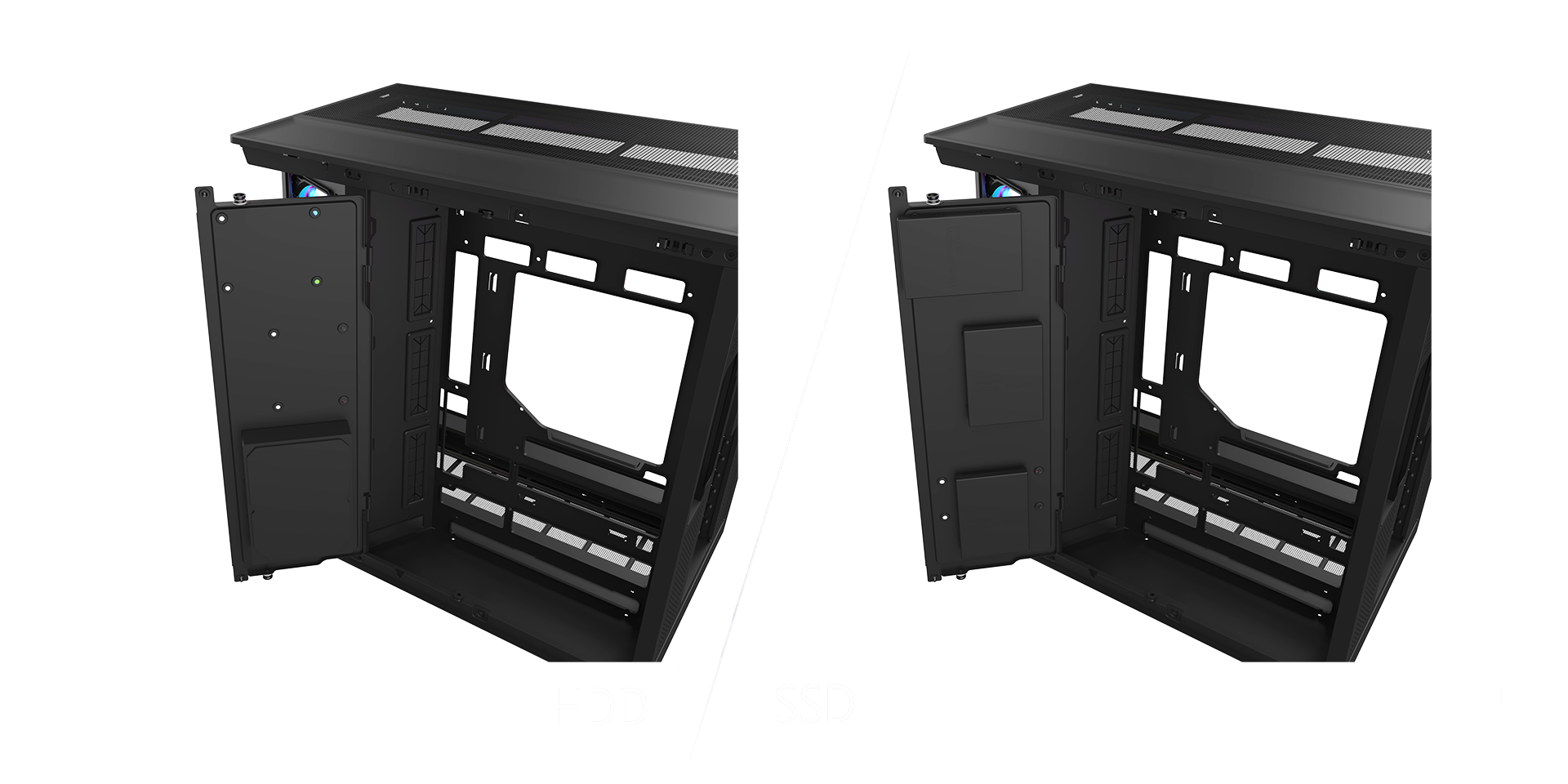

Storage Support

For storage compatibility, the View 380 XL WS ARGB Mid Tower Chassis gives maximum support of up to three 2.5‘’ SSDs or one 3.5‘’ HDD in total.

The image is for reference only.

Handy I/O Ports

Two USB 3.0, one USB 3.2 Gen 2 Type-C and one HD Audio are placed on the top panel to grant direct access when needed.

The image is for reference only.

All-in-One Compatibility List

	120	240	360	140	280	420
Front	-	-	-	-	-	-
Top	●	●	●	●	●	-
Right	●	●	●	-	-	-
Rear	●	-	-	-	-	-
Bottom	-	-	-	-	-	-

DIY Liquid Cooling Compatibility

	120	240	360	140	280	420
Front	-	-	-	-	-	-
Top	●	●	●	●	●	-
Right	●	●	●	-	-	-
Rear	●	-	-	-	-	-
Bottom	-	-	-	-	-	-

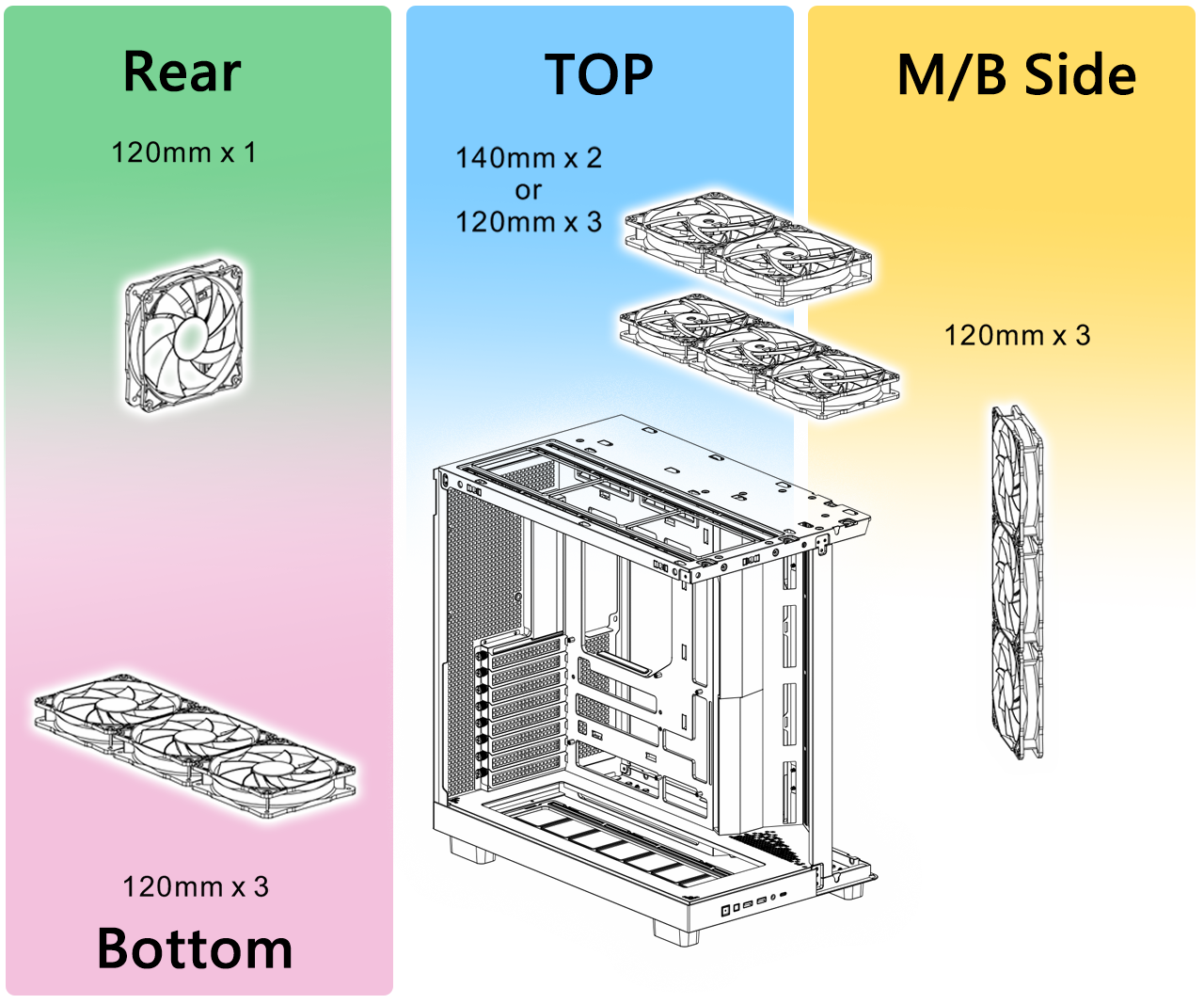

Fan Compatibility List

	120mm	140mm	200mm
Top	3	2	-
Right(M/B Side)	3	-	-
Rear	1	-	-
Power Cover	3	-	-

More Information
P/N	CA-11E-00M1WN-WS
Series	View
Model	View 380 XL WS ARGB
Case Type	Mid Tower
Dimension (H x W x D)	471x 288 x 473 mm (18.54 x 11.34 x 18.62 inch)
Side Panel	4mm Tempered Glass x 2
Color	Black
Material	SPCC
Cooling System	Right(intake): 120 x 120 x 25 mm ARGB Lite Reverse fan (1000rpm, 21.9 dBA) x 3 Rear(exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1
Drive Bays	1 x 3.5”, 2 x 2.5” or 3 x 2.5”
Expansion Slots	8
Motherboards	6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
Hidden-Connector Motherboard	9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O Port	USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU	Standard PS2 PSU (optional)
Fan Support	Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm Right: 3 x 120mm, 2 x 120mm, 1 x 120mm Rear: 1 x 120mm Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm
Radiator Support	Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Right: 1 x 360mm, 1 x 240mm, 1 x 120mm Rear: 1 x 120mm
Clearance	CPU cooler max height: 160mm VGA max length: 420mm PSU max length: 180mm

User Manual

File Name
Description
Size
Version
Release Date

View 380 XL WS ARGB Mid Tower Chassis Manual
User Manual
2025-10-01
