View 380 WS ARGB Mid Tower Chassis
The View 380 WS ARGB Mid Tower Chassis is a dual chamber ATX chassis accented with stylish wood, supporting Hidden-Connector Motherboards from ASUS, MSI, and GIGABYTE, and equipped with three 120mm ARGB Lite Reverse Fan on the motherboard side and one 120mm ARGB Lite Fan at the rear. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to ten 120mm fans can be installed in the chassis, one 360mm radiator on the top and one 280mm/240mm radiator at the right, giving end-users greater flexibility to build their ideal configuration.
- The image is for reference only.
Created for next-generation motherboards, the View 380 WS ARGB Mid Tower Chassis features a special design that support both standard motherboards and hidden-connector motherboards from ASUS, MSI and GIGABYTE.
*Compatible with hidden-connector motherboards:
ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series
- The image is for reference only.
- The image is for reference only.

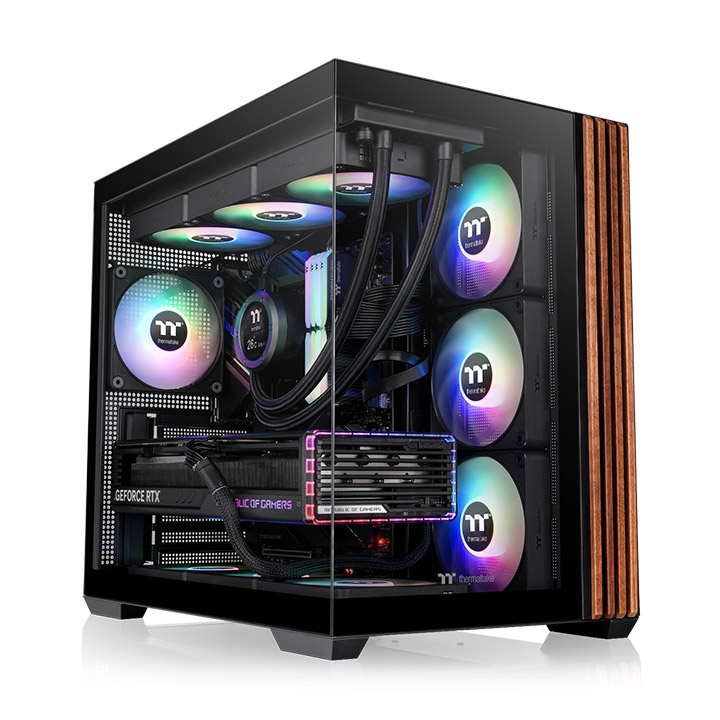

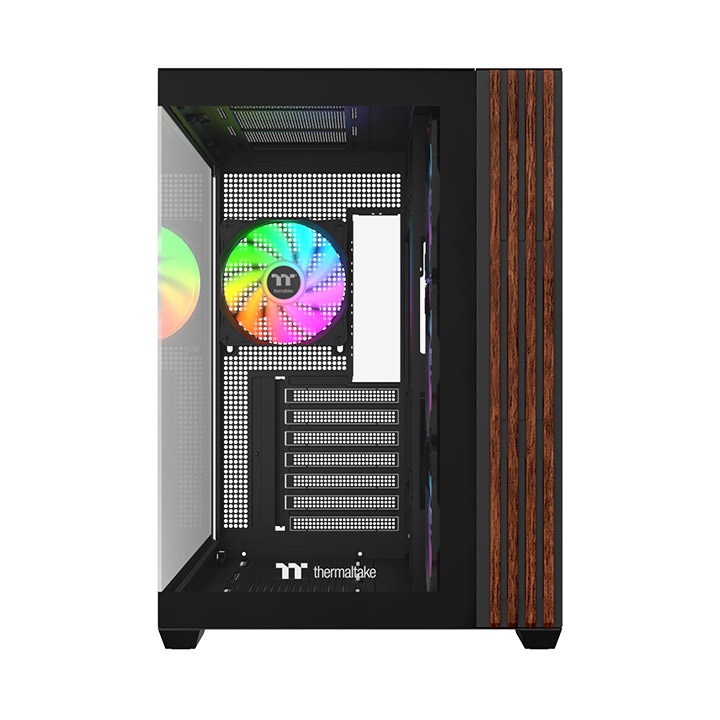

The View 380 WS ARGB Mid Tower Chassis is designed for better visibility, featuring tempered glass front and left panels, allowing users to enjoy their system with a stylish touch.
- The image is for reference only.

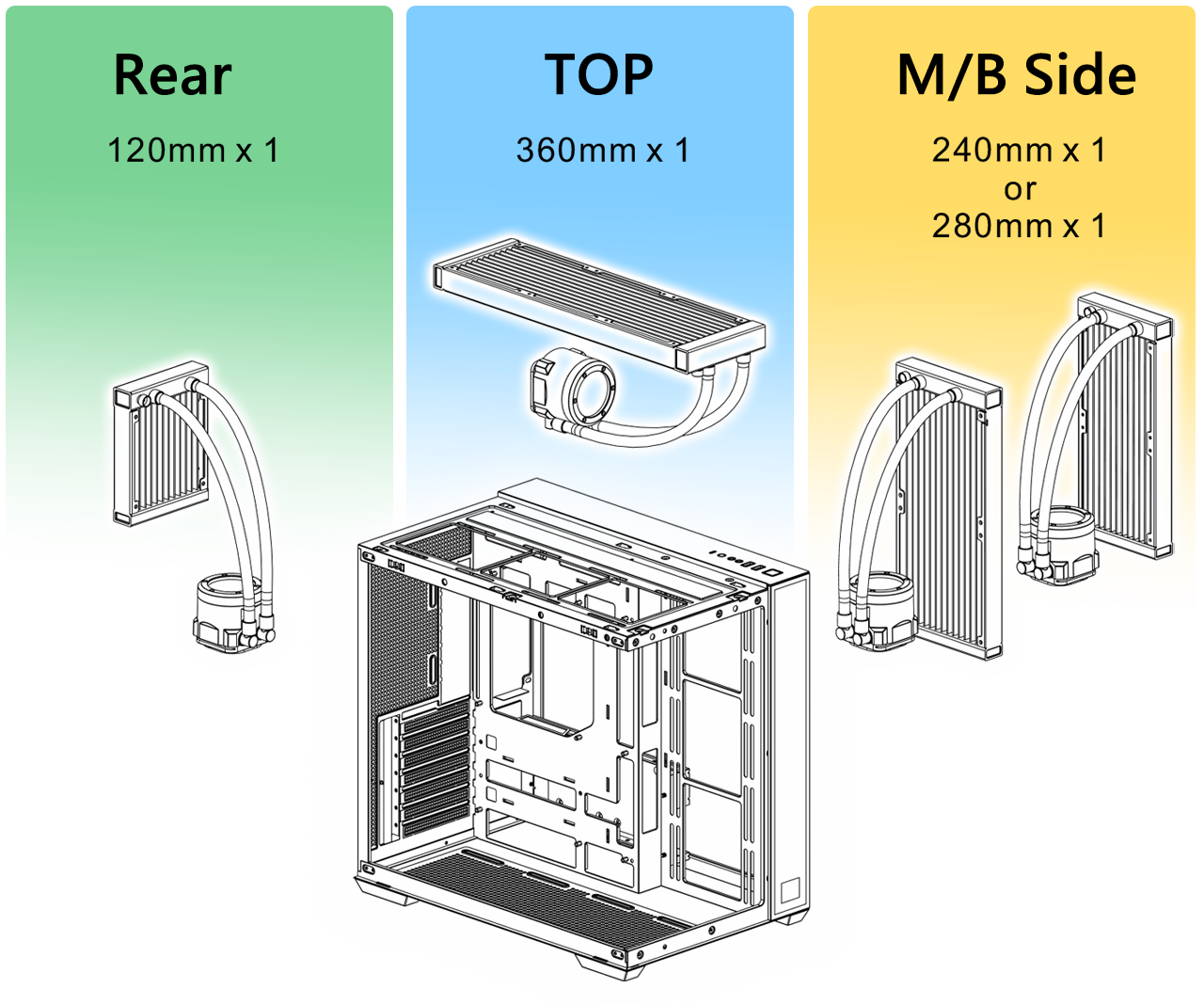

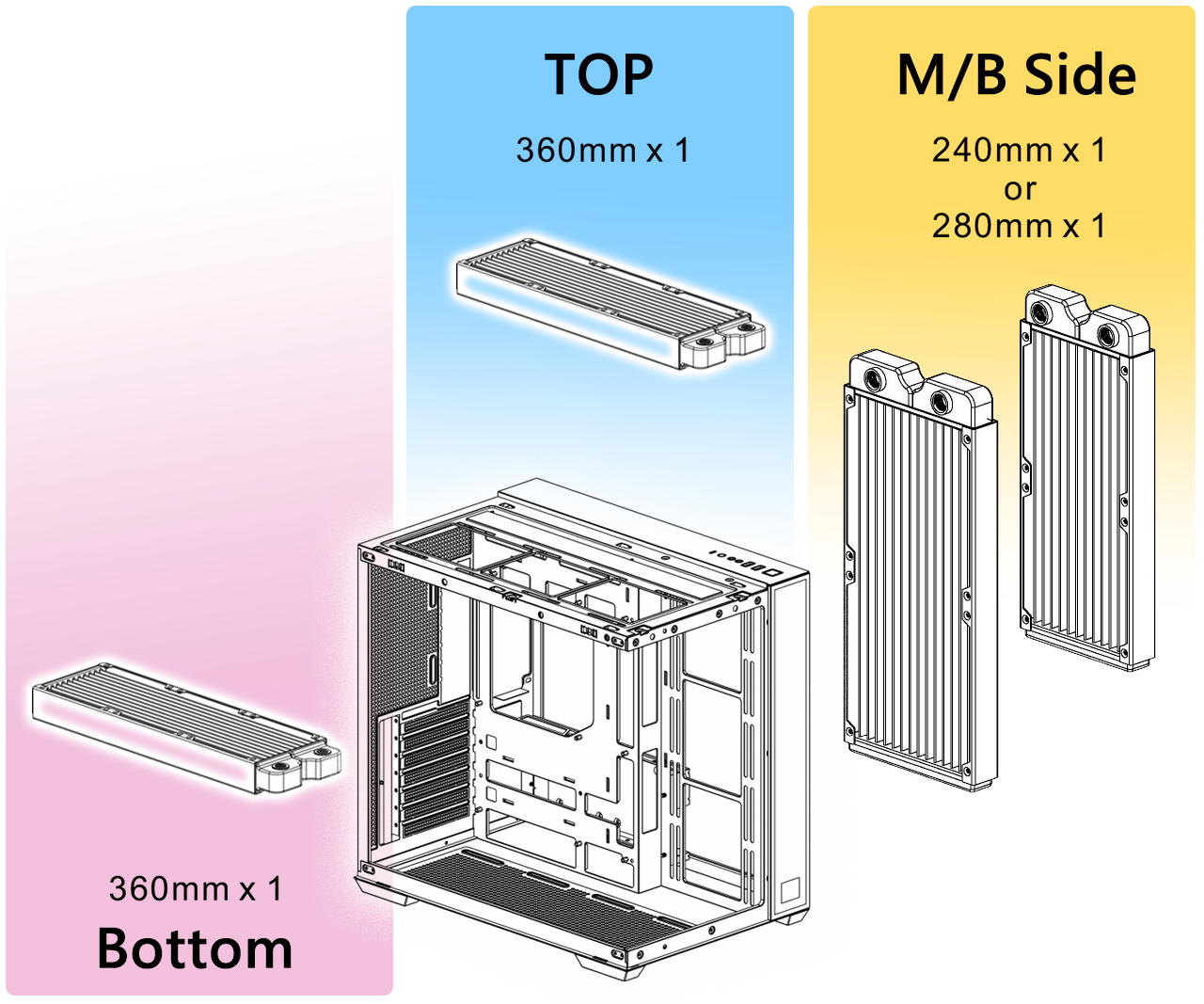

Providing good cooling support, users can choose to place a 360mm radiator on the top or a 280mm/240mm radiator at the right of the View 380 WS ARGB Mid Tower Chassis.
- The image is for reference only.

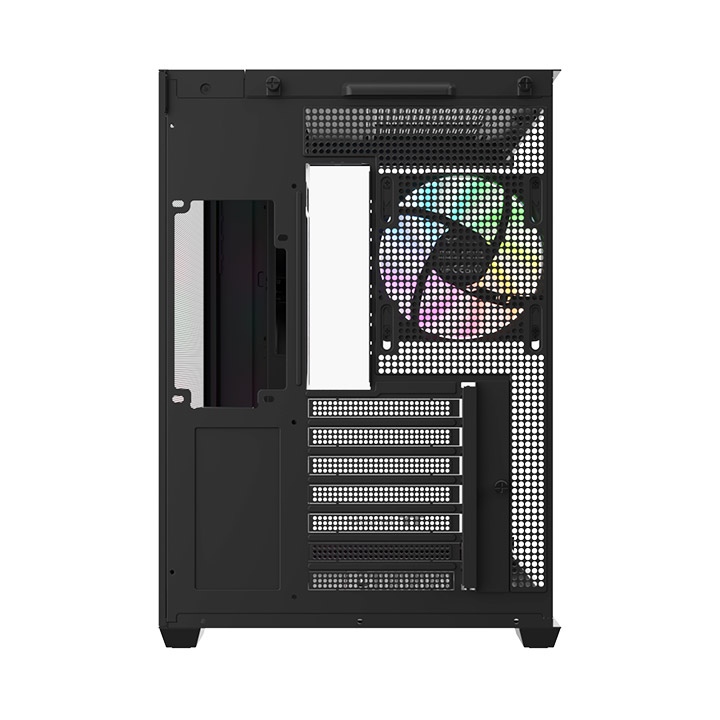

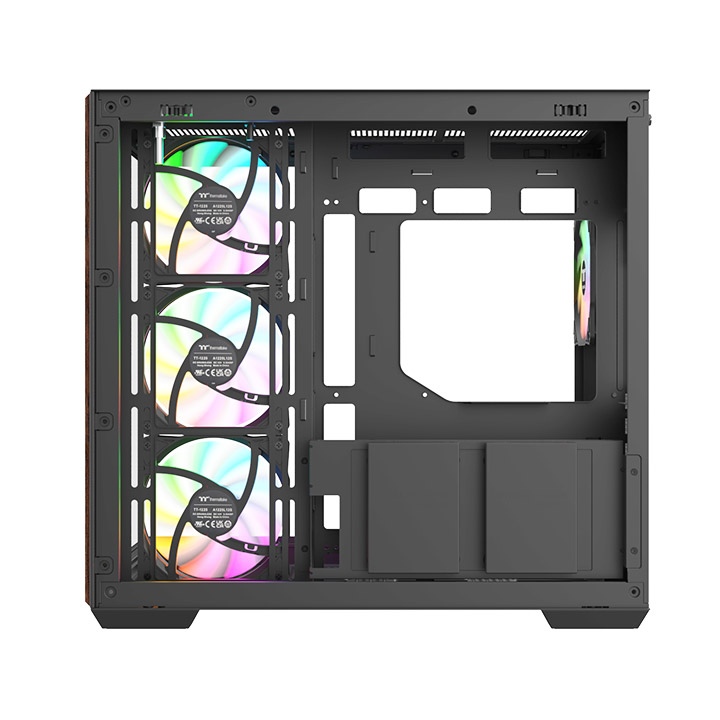

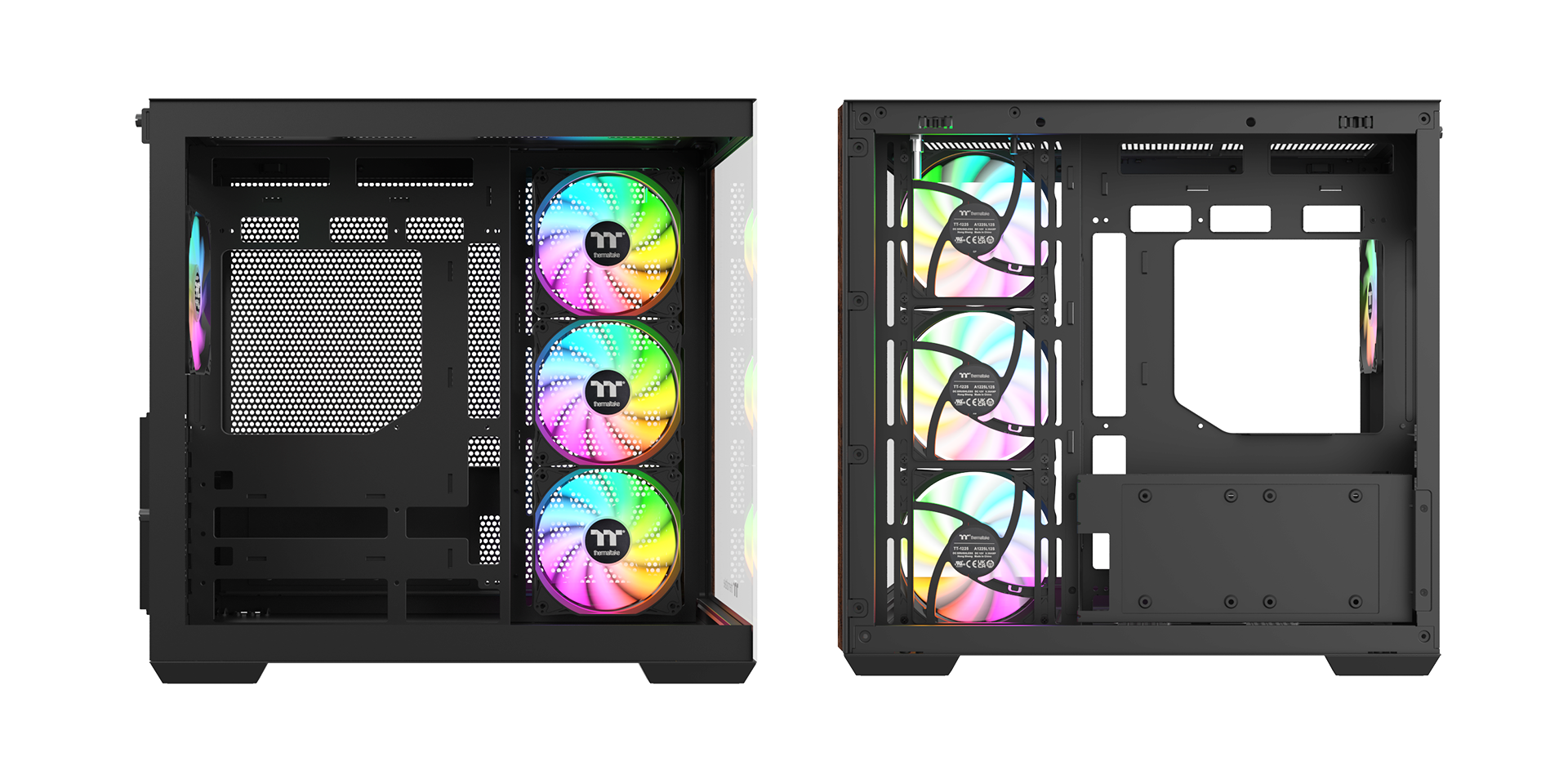

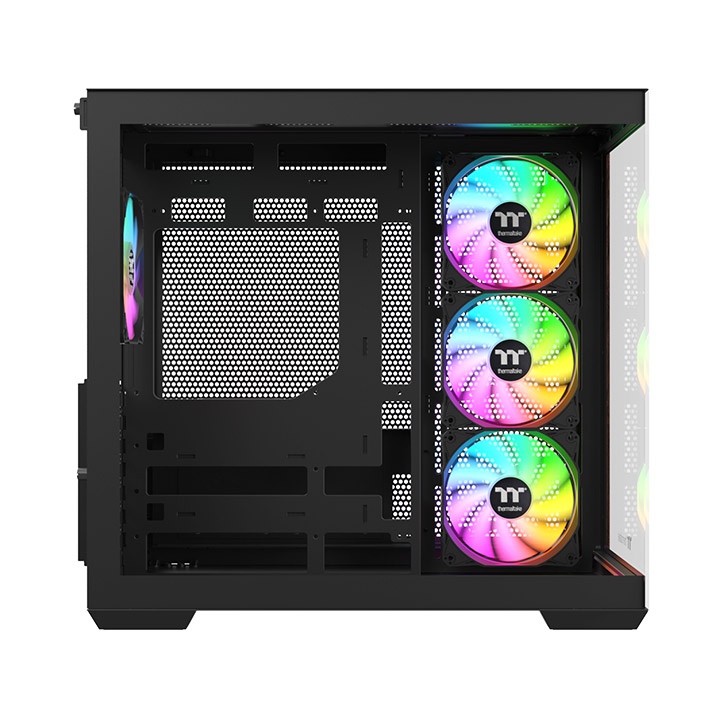

The View 380 WS ARGB Mid Tower Chassis comes with three 120mm ARGB Lite Reverse Fan on the motherboard side and one 120mm ARGB Lite Fan at the rear. It’s fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
- The image is for reference only.
- 120mm
- 140mm
- 120mm
- 140mm
- 240mm
- 280mm
- 360mm
- The image is for reference only.
- The image is for reference only.

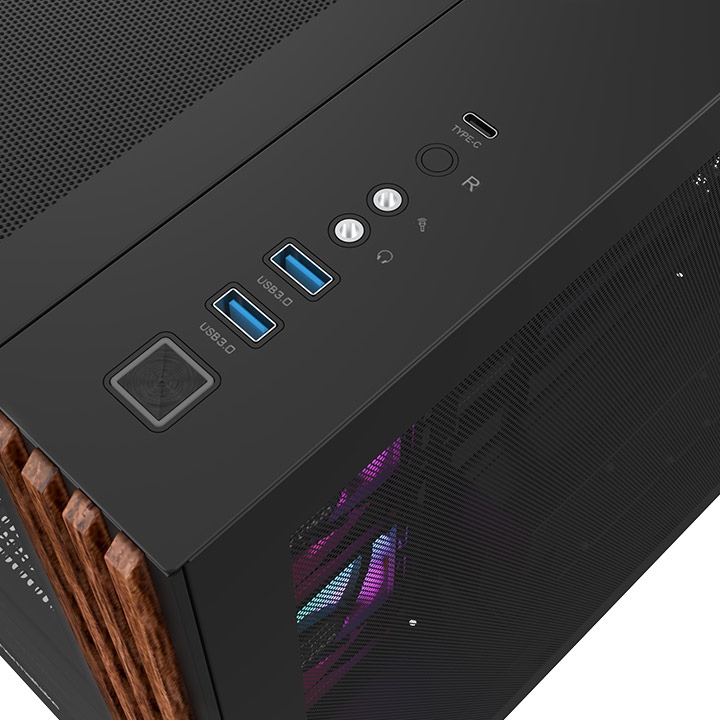

Two USB 3.0, one USB 3.2 Gen 2 Type-C and one HD Audio are placed on the top panel to grant direct access when needed.
- The image is for reference only.
| 120 | 240 | 360 | 140 | 280 | 420 | |
|---|---|---|---|---|---|---|
| Front | - | - | - | - | - | - |
| Top | ● | ● | ● | - | - | - |
| (M/B Side) Right | ● | ● | - | ● | ● | - |
| Rear | ● | - | - | - | - | - |
| Bottom | - | - | - | - | - | - |
| 120 | 240 | 360 | 140 | 280 | 420 | |
|---|---|---|---|---|---|---|
| Front | - | - | - | - | - | - |
| Top | ● | ● | ● | - | - | - |
| (M/B Side) Right | ● | ● | - | ● | ● | - |
| Rear | - | - | - | - | - | - |
| Bottom | ● | ● | ● | - | - | - |

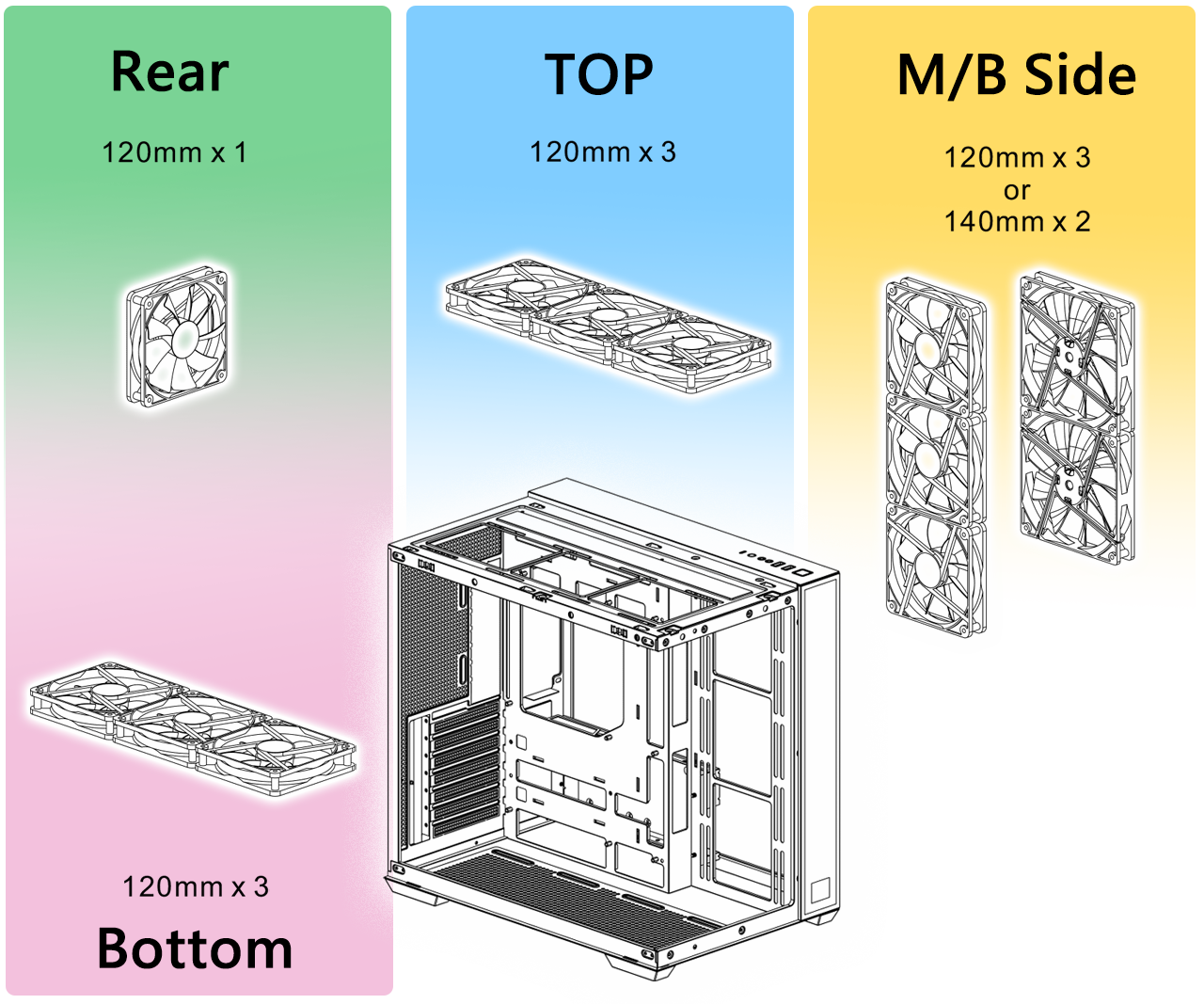

| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Top | 3 | - | - |
| Right(M/B Side) | 3 | 2 | - |
| Rear | 1 | - | - |
| Power Cover | 3 | - | - |
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
-
-
Aura Addressable Header
ASUS -
Digital Pin Header
GIGABYTE -
JRAINBOW Header
MSI -
Addressable RGB LED Header
ASRock
| Category | Caution |
|---|---|
| Chassis, ARGB Fan, ARGB AIO |
|
| RGB Memory, VGA Waterblock, Distro Plate |
|
| P/N | CA-1Z2-00M1WN-WS |
|---|---|
| Series | View |
| Case Type | Mid Tower |
| Dimension (H x W x D) | 411 x 285 x 447 mm (16.18 x 11.22 x 17.6 inch) |
| Side Panel | 3mm Tempered Glass x 2 |
| Color | Black |
| Material | SPCC |
| Cooling System | Right(intake): 120 x 120 x 25 mm ARGB Lite Reverse fan (1000rpm, 21.9 dBA) x 3 Rear(exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1 |
| Expansion Slots | 7 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| Hidden-Connector Motherboard | 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, Right: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Rear: 1 x 120mm Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm |
| Radiator Support | Top: 1 x 360mm, 1 x 240mm, 1 x 120mm Right: 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear: 1 x 120mm Bottom: 1 x 360mm, 1 x 240mm, 1 x 120mm |
| Clearance | CPU cooler max height: 160mm VGA max length: 415mm PSU max length: 200mm |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
View 380 WS ARGB Mid Tower Chassis Manual
- Manual
- 2025-09-08
