  • View 290 TG ARGB Mid Tower Chassis
View 290 TG ARGB Mid Tower Chassis View 290 TG ARGB Mid Tower Chassis View 290 TG ARGB Mid Tower Chassis View 290 TG ARGB Mid Tower Chassis View 290 TG ARGB Mid Tower Chassis View 290 TG ARGB Mid Tower Chassis
View 290 TG ARGB Mid Tower Chassis

View 290 TG ARGB Mid Tower Chassis

Out of stock
P/N
CA-11G-00M1WN-00
€111.90 (included VAT)
Pre-Ordered Product

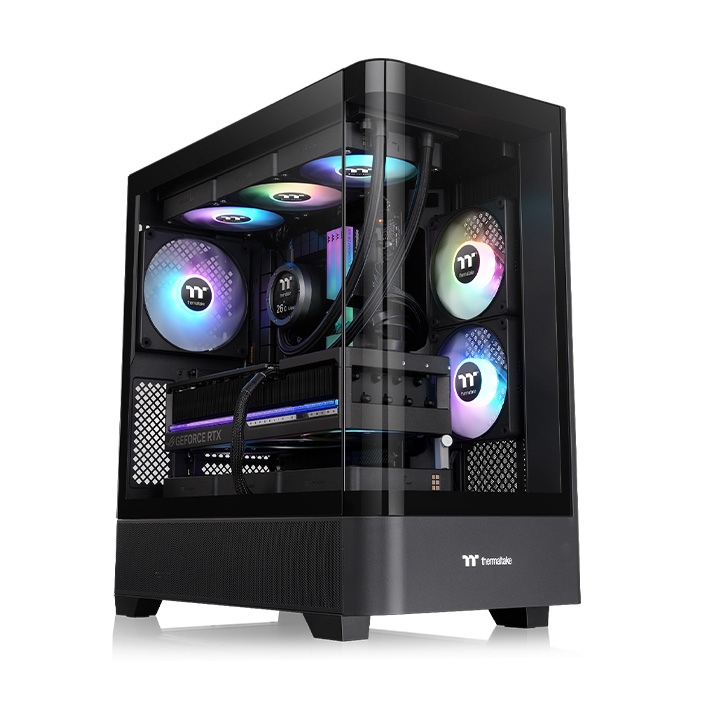

The View 290 TG ARGB Mid Tower Chassis is an ATX case featuring a curved tempered glass front panel, a tempered glass side panel, rotational PCI-E slots, a GPU bracket, and three 120mm ARGB Lite hydraulic bearing fans for stunning aesthetics.

  • The image is for reference only.
    •

  • The image is for reference only.
    •

  • The image is for reference only.
    •

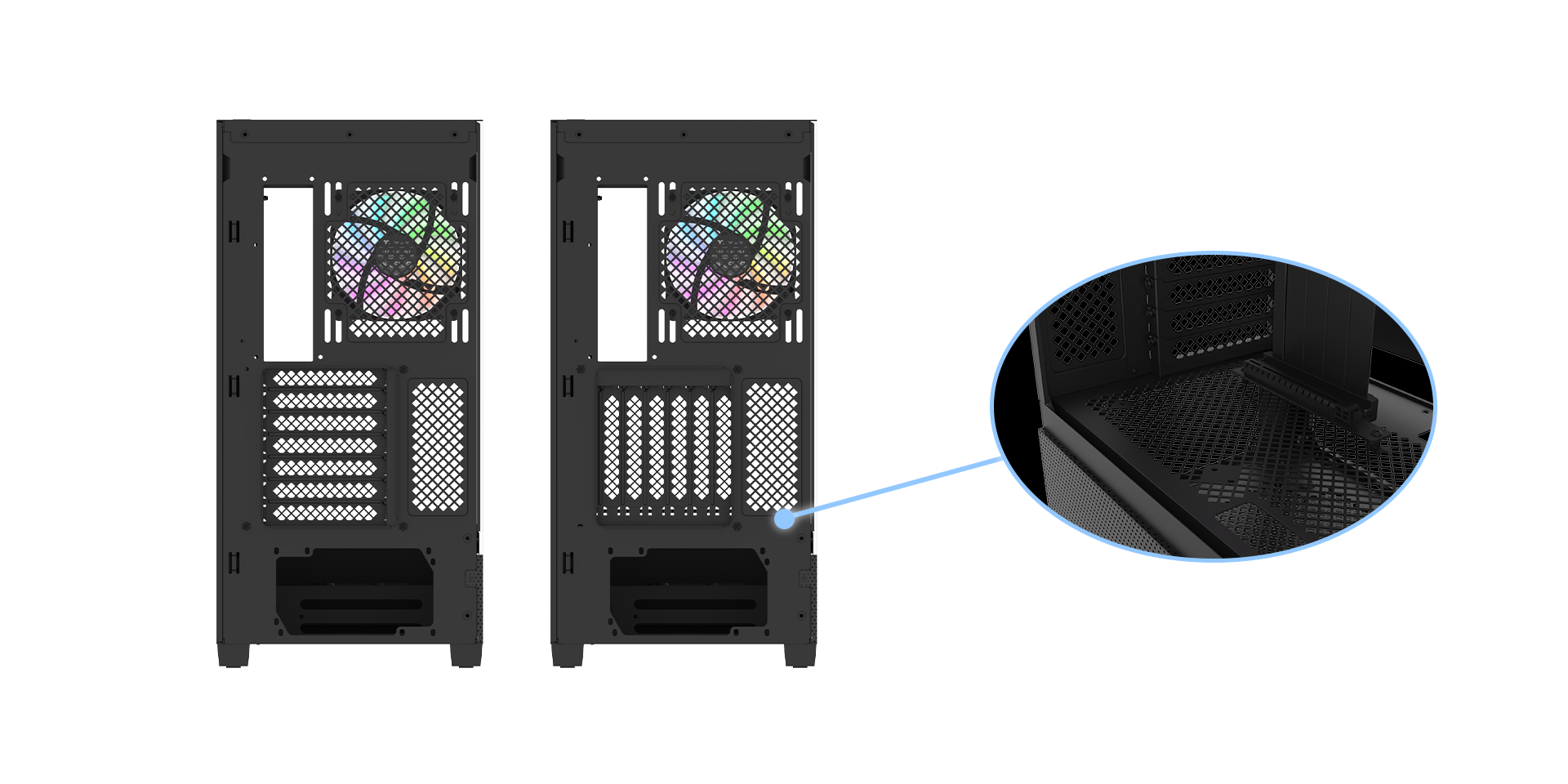

Display It Your Way

Rotational PCI-E slots allow horizontal or vertical GPU mounting, with support for 90-degree riser cable installation via dedicated standoff space.

  • The image is for reference only.
    •
  • The image is for reference only.
    •

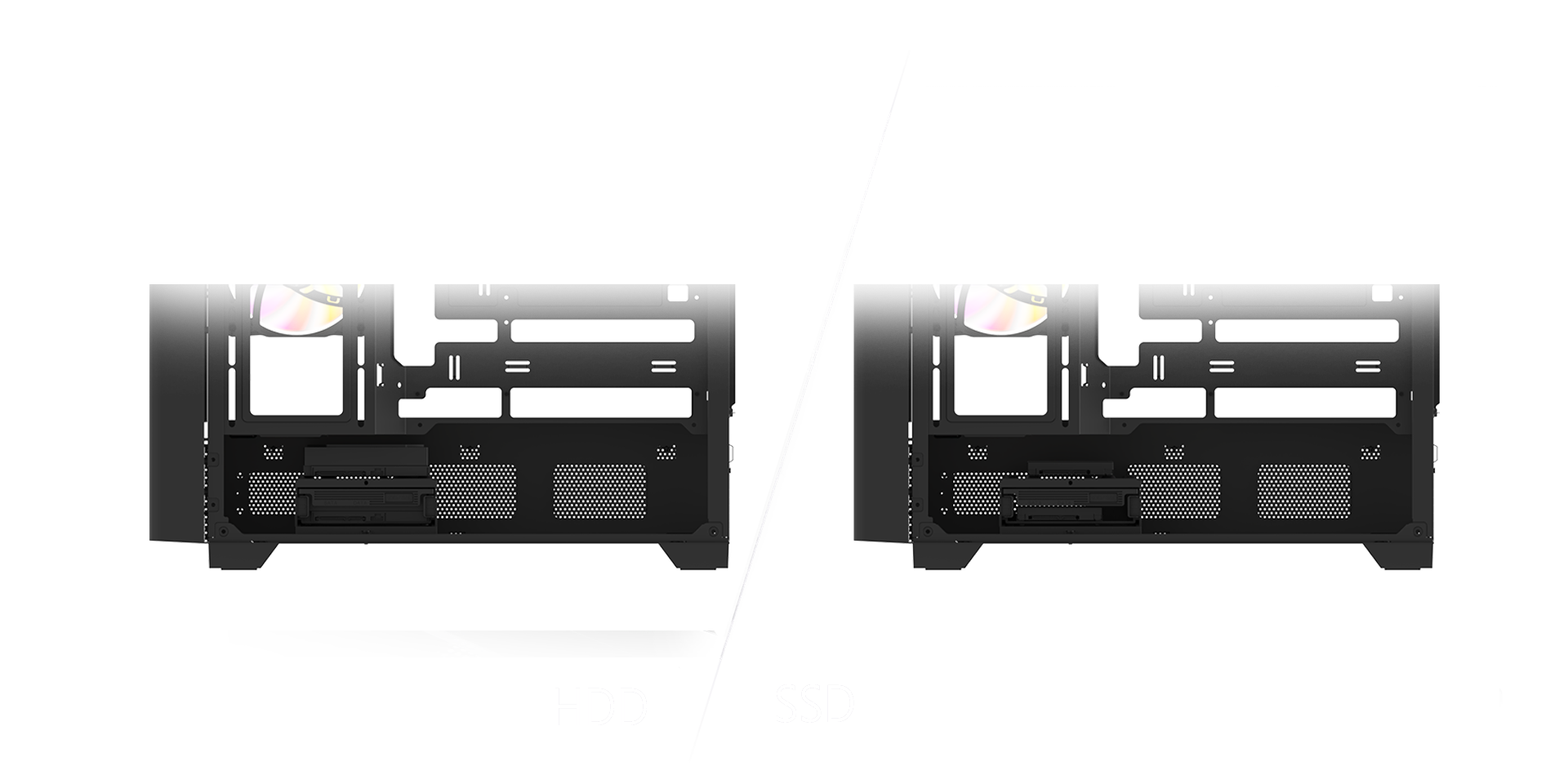

Storage Support
For storage compatibility, the View 290 TG ARGB Mid Tower Chassis gives maximum support of up to two 3.5‘’ HDDs or two 2.5‘’ SSDs in total.
  • The image is for reference only.
    •
  • The image is for reference only.
    •





Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

Category Caution
Chassis, ARGB Fan, ARGB AIO
  • The motherboard signal connector only supports a 5V header.
  • Ensure your motherboard software is the latest version.
RGB Memory, VGA Waterblock, Distro Plate
  • This product can only be used with either the TT RGB PLUS software or the dedicated motherboard software. Having more than two applications open may cause conflicts.
  • The motherboard signal connector only supports a 5V header.
  • Ensure your motherboard software is the latest version.
More Information
P/N CA-11G-00M1WN-00
Series View
Case Type Mid Tower
Dimension (H x W x D) 497 x 242 x 477mm
(19.57x 9.53 x 18.78inch)
Side Panel 4mm Curved TG Front Panel x1 / 3mm Tempered Glass x 1
Material SPCC

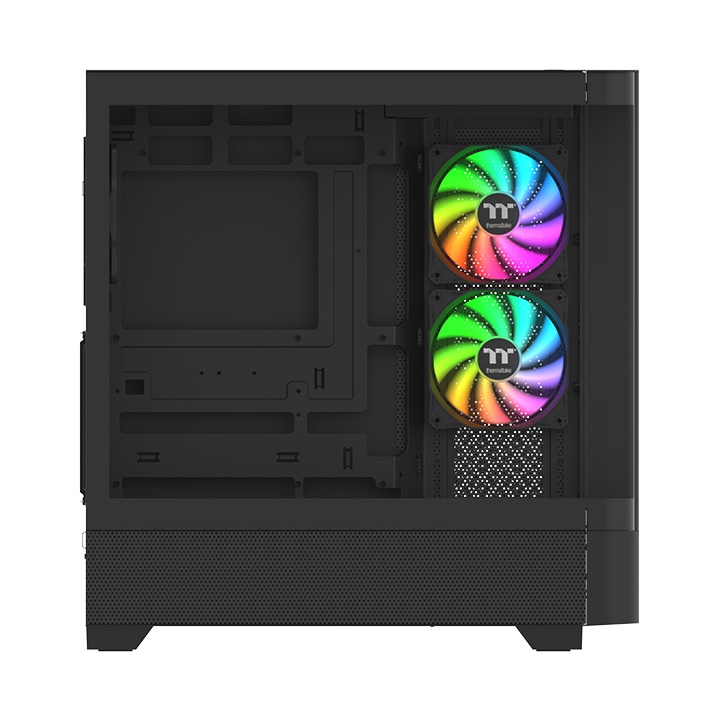

Cooling System Right(intake):
120 x 120 x 25 mm ARGB Lite Reverse fan (1000±200rpm, 21.9 dBA) x 2

Rear(exhaust):
120 x 120 x 25 mm ARGB Lite fan (1000±200rpm, 22.3 dBA) x 1
Drive Bays 2 x 3.5”or 2 x 2.5”

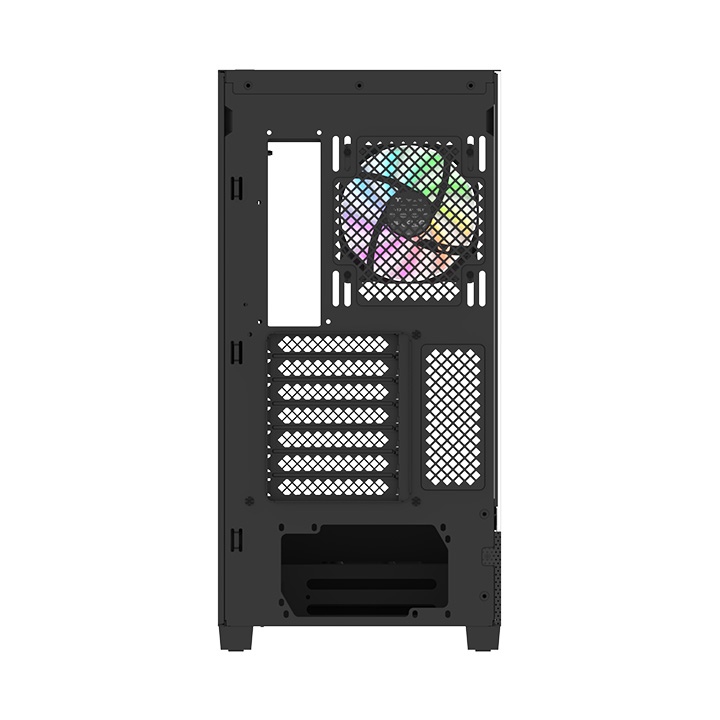

Expansion Slots 7(Rotatable Patented Design)
Motherboards 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
Hidden-Connector Motherboard 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)

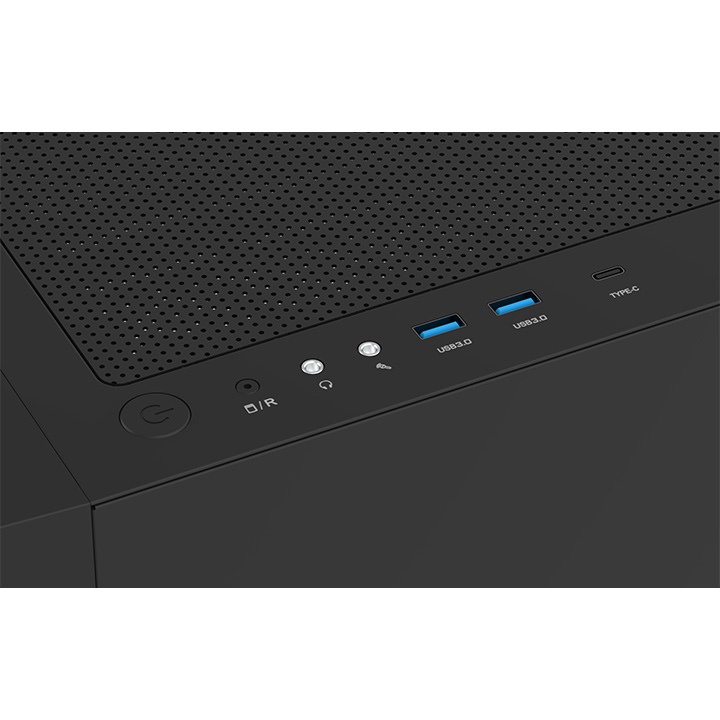

I/O Port USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
Fan Support Top:
3 x 120mm
2 x 140mm

Right:
2 x 120mm

Rear:
1 x 120mm
1 x 140mm

Power Cover:
3 x 120mm
Radiator Support Top Side(AIO) :
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm

Right Side(AIO):
1 x 240mm, 1 x 120mm
Clearance CPU cooler height limitation:
180mm

VGA length limitation:
450mm

PSU length limitation:
200mm
