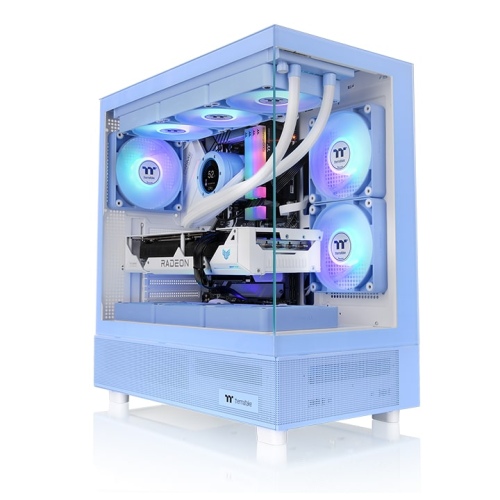

View 270 TG ARGB Hydrangea Blue Mid Tower Chassis
Built for amazing viewing, the View 270 TG ARGB Hydrangea Blue Mid Tower Chassis is an ATX case that features tempered glass front and left panels, and comes with a pre-installed CT140 ARGB Sync PC Cooling Fan White at the rear. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to nine 120mm fans can be installed in the chassis, and up to a 360mm radiator can be placed on the top of the View 270 TG ARGB Hydrangea Blue Mid Tower Chassis.
- The image is for reference only.
The View 270 TG ARGB Hydrangea Blue is designed for better visibility, allowing users to enjoy their system through the tempered glass front and left panels.
- The image is for reference only.
Providing good cooling support, users can choose to place a 360mm radiator on the top of the View 270 TG ARGB Hydrangea Blue.
- The image is for reference only.
The View 270 TG ARGB Hydrangea Blue Mid Tower Chassis comes with a CT140 ARGB Sync PC Cooling Fan White pre-installed at the rear. It's fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
Thermaltake launches brand-new CT series fans, allowing users to choose from black or white, RGB or non-RGB, to match whatever color scheme you have.
The View 270 TG ARGB Hydrangea Blue Mid Tower Chassis features a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.
- 120mm
- 140mm
- 120mm
- 140mm
- 240mm
- 280mm
- 360mm
Two USB 3.0, one USB 3.2 Gen 2 Type C and HD Audio ports are placed on the top panel to grant direct access when needed.
| 120 Series | 240 Series | 360 Series | 140 Series | 280 Series | 420 Series | |
|---|---|---|---|---|---|---|
| Top | ● | ● | ● | - | - | - |
| Rear | ● | - | - | - | - | - |
| 120mm | 140mm | |
|---|---|---|
| Top | 3 | 2 |
| Right(M/B Side) | 2 | - |
| Rear | 1 | 1 |
| Power Cover | 3 | - |
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
-
Aura Addressable Header
ASUS -
Digital Pin Header
GIGABYTE -
JRAINBOW Header
MSI -
Addressable RGB LED Header
ASRock
| Category | Caution |
|---|---|
| Chassis, ARGB Fan, ARGB AIO |
|
| RGB Memory, VGA Waterblock, Distro Plate |
|
| P/N | CA-1Y7-00MFWN-00 |
|---|---|
| Series | View |
| Model | View 270 TG ARGB Hydrangea Blue |
| Dimension (H x W x D) | 456 x 230 x 454 mm (18 x 9.1 x 17.9 inch) |
| Net Weight | 6.3 kg / 13.9 lbs. |
| Side Panel | Tempered Glass x 2 |
| Color | Hydrangea Blue |
| Material | SPCC |
| Cooling System | Rear(exhaust): 140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1 |
| Drive Bays | 2 x 3.5”, 1 x 2.5” or 2 x 2.5” |
| Expansion Slots | 7 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Top: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right (M/B Side): 2 x 120mm, 1 x 120mm Rear: 1 x 120mm, 1 x 140mm Power Cover: 3 x 120mm, 2 x 120mm, 1 x 120mm |
| Radiator Support | Top: 1 x 360mm, 1 x 240mm, 1 x 120mm Rear: 1 x 120mm |
| Clearance | CPU cooler max height: 180mm VGA max length: 420mm PSU max length: 220mm |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
View 270 TG ARGB Manual
- Manual
- 2024-01-26
