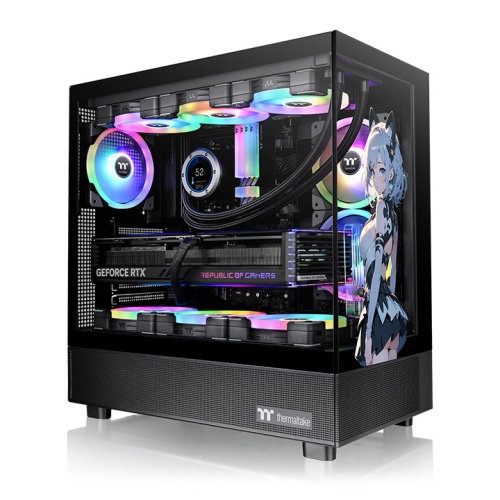

Built for amazing views, the View 270 SP Edition Mid Tower Chassis is an ATX case that features tempered glass front and left panels, and the front panel is covered with specially designed graphics. The case comes with three Hydraulic Bearing 120mm ARGB Lite Fans pre-installed, and its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to nine 120mm fans can be installed inside the chassis, and up to a 360mm radiator can be placed on the top of the View 270 SP Edition Mid Tower Chassis.
- The image is for reference only.
The View 270 SP Edition Mid Tower Chassis is designed for better visibility, allowing users to enjoy their system through the tempered glass front and left panels.
- The image is for reference only.
Providing good cooling support, users can choose to place a 360mm radiator on the top of the View 270 SP Edition Mid Tower Chassis.
- The image is for reference only.
The View 270 SP Edition Mid Tower Chassis comes with three Hydraulic Bearing 120mm ARGB Lite Fans at the motherboard side and the rear. It’s fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
The View 270 SP Edition Mid Tower Chassis features a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.
CPU Cooler
Max height 180mmMotherboard
6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX), 12" x 13" (E-ATX)PSU
Max length220mm (with HDD Cage)
VGA
Length limitation420mm
- 120mm
- 140mm
- 120mm
- 140mm
- 240mm
- 280mm
- 360mm
Two USB 3.0, one USB 3.2 Gen 2 Type C and HD Audio ports are placed on the top panel to grant direct access when needed.
120 Series | 240 Series | 360 Series | 140 Series | 280 Series | 420 Series | |
---|---|---|---|---|---|---|
Top | ● | ● | ● | - | - | - |
Rear | ● | - | - | - | - | - |
120mm | 140mm | |
---|---|---|
Top | 3 | 2 |
Right(M/B Side) | 2 | - |
Rear | 1 | 1 |
Power Cover | 3 | - |
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
-
Aura Addressable Header
ASUS -
Digital Pin Header
GIGABYTE -
JRAINBOW Header
MSI -
Addressable RGB LED Header
ASRock
Category | Caution |
---|---|
Chassis, ARGB Fan, ARGB AIO |
|
RGB Memory, VGA Waterblock, Distro Plate |
|
