  • View 170 WS ARGB Micro Chassis
View 170 WS ARGB Micro Chassis View 170 WS ARGB Micro Chassis View 170 WS ARGB Micro Chassis View 170 WS ARGB Micro Chassis View 170 WS ARGB Micro Chassis View 170 WS ARGB Micro Chassis View 170 WS ARGB Micro Chassis
View 170 WS ARGB Micro Chassis

View 170 WS ARGB Micro Chassis

Out of stock
P/N
CA-1Z4-00M1WN-WS
€94.90 (included VAT)

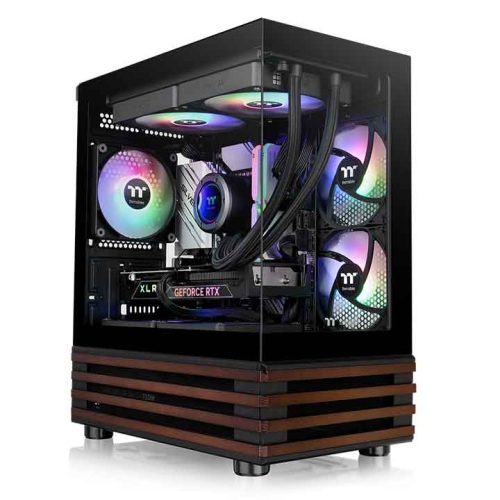

Built for amazing views, the View 170 WS ARGB Micro Chassis is an M-ATX case accented with stylish wood elements, tempered glass front and left panels, and comes with two 120mm ARGB Lite Reverse Fan on motherboard side and one 120mm ARGB Lite Fan at the rear.

  • The image is for reference only.
    •

  • The image is for reference only.
    •

  •

  • The image is for reference only.
    •
Flexibility to Build Your Ideal PC

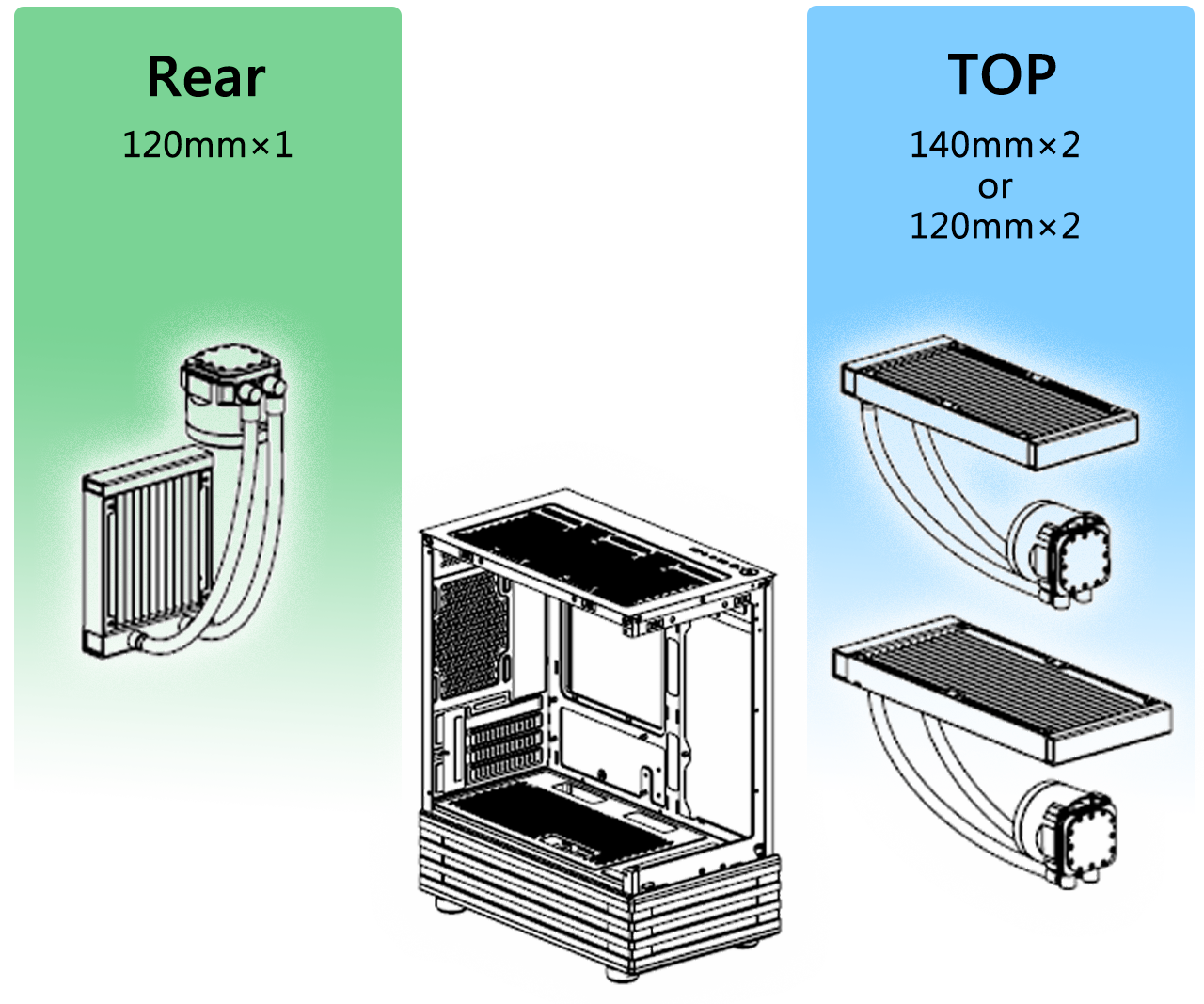

The View 170 WS ARGB Micro Chassis offers good expandability. It can support a CPU cooler with a maximum height of 160mm, GPU placement up to 340mm in length, a power supply up to 180mm in length. Optimized for excellent cooling performance, the case comes with two 120mm ARGB Lite Reverse Fan on motherboard side and one 120mm ARGB Lite Fan at the rear, and up to seven 120mm fans can be installed. For radiator compatibility, it can support up to a 280mm/240mm on top, giving more options for high-end expansion!
  • 120mm
  • 140mm
  • 120mm
  • 140mm
  • 240mm
  • 280mm

How Much Storage Is Totally Up To You

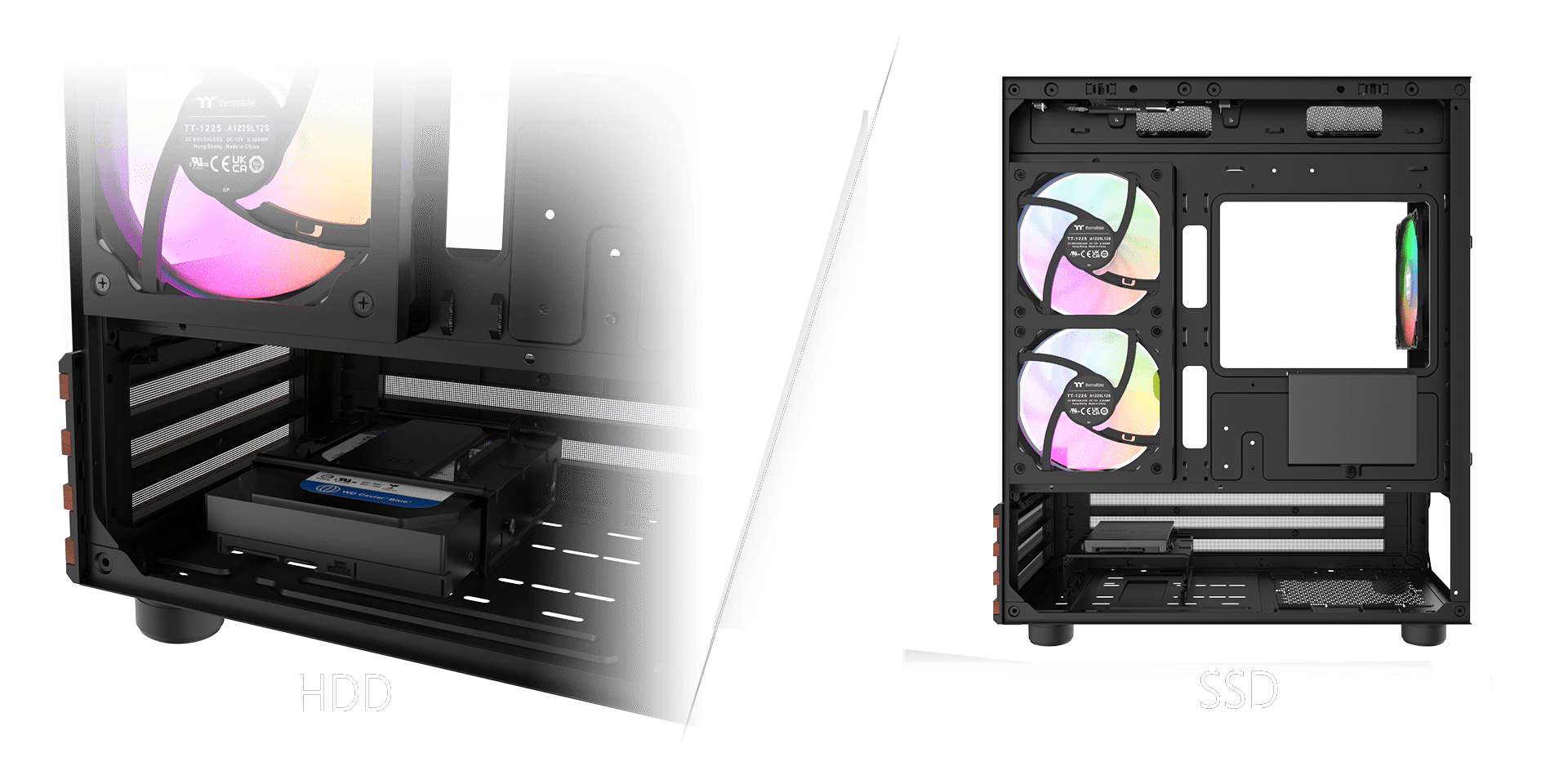

For storage compatibility, the View 170 WS ARGB Micro Chassis gives maximum support of up to two 2.5‘’ SSDs and one 3.5‘’ HDD in total.
  • The image is for reference only.
    •
  • The image is for reference only.
    •





Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

Category Caution
Chassis, ARGB Fan, ARGB AIO
  • The motherboard signal connector only supports a 5V header.
  • Ensure your motherboard software is the latest version.
RGB Memory, VGA Waterblock, Distro Plate
  • This product can only be used with either the TT RGB PLUS software or the dedicated motherboard software. Having more than two applications open may cause conflicts.
  • The motherboard signal connector only supports a 5V header.
  • Ensure your motherboard software is the latest version.
More Information
P/N CA-1Z4-00M1WN-WS
Series View
Model View 170 WS ARGB
Case Type Micro Case
Dimension (H x W x D) 438 x 214 x 381.4 mm
(17.24 x 8.43 x 15.02 inch)
Side Panel 3mm Tempered Glass x 2
Color Black
Material SPCC
Cooling System Right(intake):
120 x 120 x 25 mm ARGB Lite Reverse fan (1000rpm, 21.9 dBA) x 2

Rear(exhaust):
120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1
Expansion Slots 4
Motherboards 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX)
I/O Port USB 3.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
Fan Support Top:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm

Right:
2 x 120mm, 1 x 120mm

Rear: 1 x 120mm

Power Cover:
2 x 120mm, 1 x 120mm
Radiator Support Top:
1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm

Rear:
1 x 120mm
Clearance CPU cooler max height: 160mm
VGA max length: 340mm
PSU max length: 180mm
