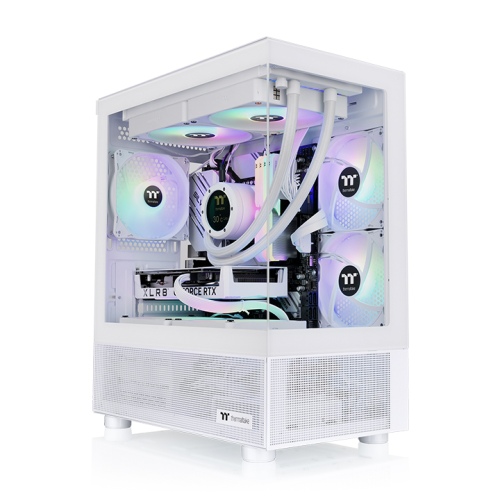

Built for amazing views, the View 170 TG ARGB Snow Micro Chassis is an M-ATX case that features tempered glass front and left panels, and comes with three Hydraulic Bearing 120mm ARGB Lite Fans pre-installed. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to seven 120mm fans can be installed in the chassis, and up to a 280mm/240mm radiator can be placed on the top of the View 170 TG ARGB Snow Micro Chassis.
- The image is for reference only.
The View 170 TG ARGB Snow Micro Chassis is designed for better visibility, allowing users to enjoy their system through the tempered glass front and left panels.
- The image is for reference only.
Providing good cooling support, users can choose to place a 280mm/240mm radiator on the top of the View 170 TG ARGB Snow Micro Chassis.
- The image is for reference only.
The View 170 TG ARGB Snow Micro Chassis comes with three Hydraulic Bearing 120mm ARGB Lite Fans at the motherboard side and the rear. It’s fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
- 120mm
- 140mm
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/db/products/case/commander_g_tg/pic8.png)
- 120mm
- 140mm
- 240mm
- 280mm
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/db/products/case/commander_g_tg/pic8.png)
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/View_170_TG_ARGB_Micro_Chassis_wt/bg_8.png)
Two USB 3.0 ports and an HD audio port are located on the top panel for instant access when needed.
120 Series | 240 Series | 360 Series | 140 Series | 280 Series | 420 Series | |
---|---|---|---|---|---|---|
Top | ● | ● | - | ● | ● | - |
Right | - | - | - | - | - | - |
Rear | ● | - | - | - | - | - |
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/View_170_TG_ARGB_Micro_Chassis/pic_1.png)
120mm | 140mm | |
---|---|---|
Top | 2 | 2 |
Right | 2 | - |
Rear | 1 | - |
Power Cover | 2 | - |
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/View_170_TG_ARGB_Micro_Chassis/pic_2.png)
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
Aura Addressable Header
ASUSDigital Pin Header
GIGABYTE-
JRAINBOW Header
MSI -
Addressable RGB LED Header
ASRock
Category | Caution |
Chassis, ARGB Fan, ARGB AIO |
|
RGB Memory, VGA Waterblock, Distro Plate |
|
P/N | CA-1Z4-00M6WN-00 |
---|---|
Series | View |
Model | View 170 TG ARGB Snow |
Case Type | Micro Case |
Dimension (H x W x D) | 438 x 212 x 377.5 mm (17.24 x 8.35 x 14.86 inch) |
Net Weight | 6.35 kg / 14 lbs. |
Side Panel | 3mm Tempered Glass x 2 |
Color | White |
Material | SPCC |
Cooling System | Right(intake): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 2 Rear(exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1 |
Drive Bays | 1 x 3.5”, 2 x 2.5” |
Expansion Slots | 4 |
Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX) |
I/O Port | USB 3.0 x 2, HD Audio x 1 |
PSU | Standard PS2 PSU (optional) |
Fan Support | Top: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right: 2 x 120mm, 1 x 120mmRear: 1 x 120mm Power Cover: 2 x 120mm, 1 x 120mm |
Radiator Support | Top: 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear: 1 x 120mm |
Clearance | CPU cooler max height: 160mm VGA max length: 340mm PSU max length: 180mm |
