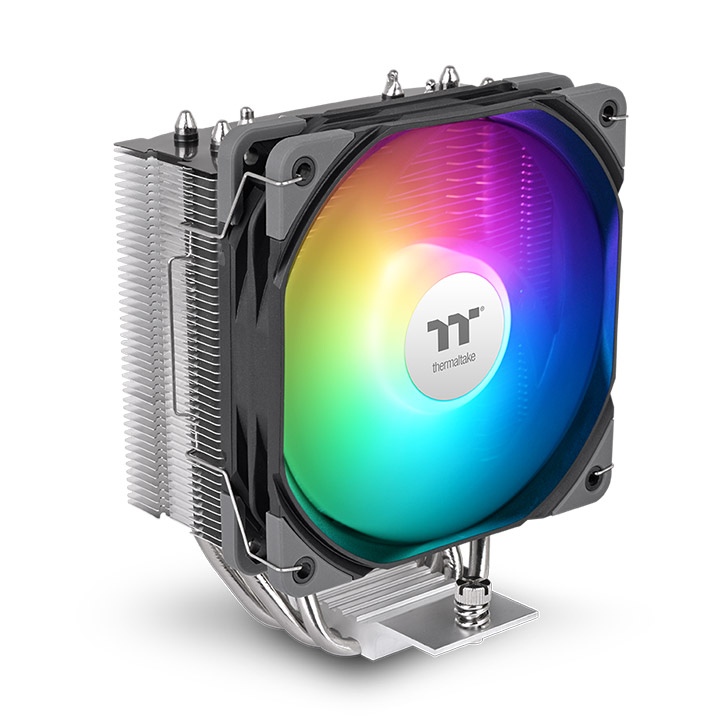

UX400 ARGB Sync CPU Cooler
Spectacular Lighting Effects
The fan of the UX400 ARGB Sync features 9 addressable LEDs, allowing users to create stunning lighting effects with 16.8 million colors. The lighting can be easily customized via 5V motherboard sync software from ASUS, MSI, GIGABYTE, BIOSTAR, and ASROCK.
Note: This product requires motherboard sync for ARGB lighting effects
Efficient Air Cooling Solution

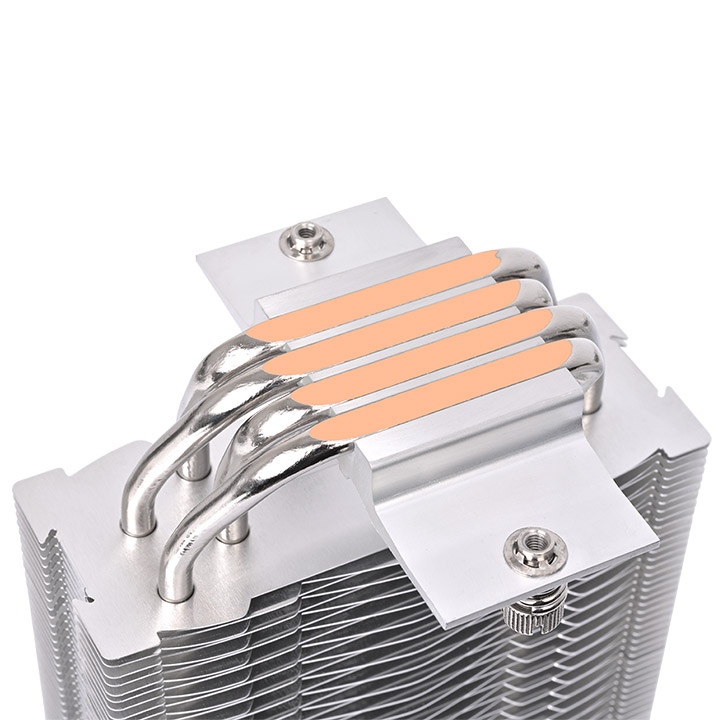

The UX400 ARGB Sync features four Ø6mm U-shaped copper heat pipes in direct contact with the CPU for fast and reliable heat transfer. Its single-tower design, made with high-quality aluminum fins, ensures optimal heat dissipation, keeping your system cool and stable.
High Volume Airflow Design

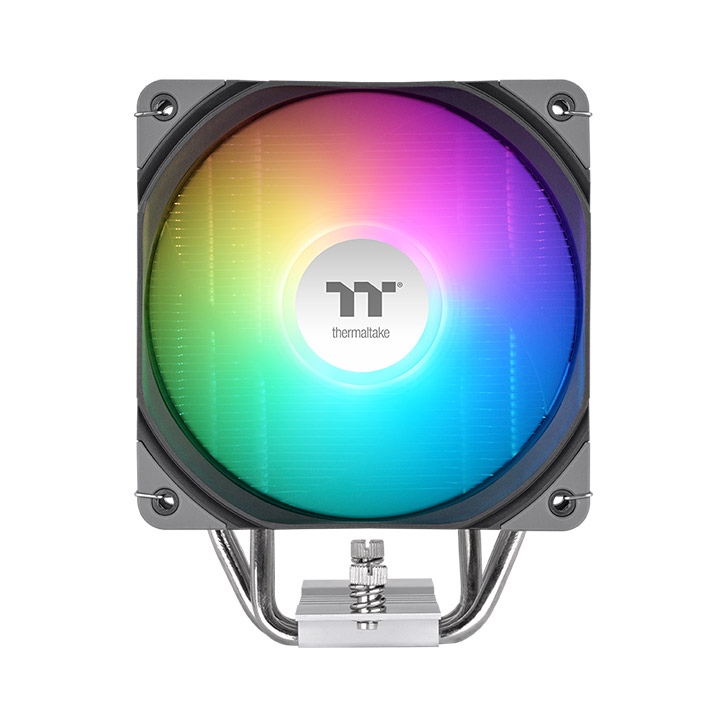

The 120mm high airflow ARGB sync fan provides an airflow of 62.72 CFM and a static pressure of 1.47 mm-H2O, while maintaining a noise level of 25.0 dB-A. It enables a large volume of air to pass through the heat sink, offering exceptional cooling performance.
Reliable Hydraulic Bearing
The hydraulic bearing self-lubricates with a high quality, friction-reducing substance that lowers operation noise and enhance thermal efficiency. The seal cap prevents leakage of the lubricant and extends the lifespan of the unit.
Flexible Choice of Pairing Components

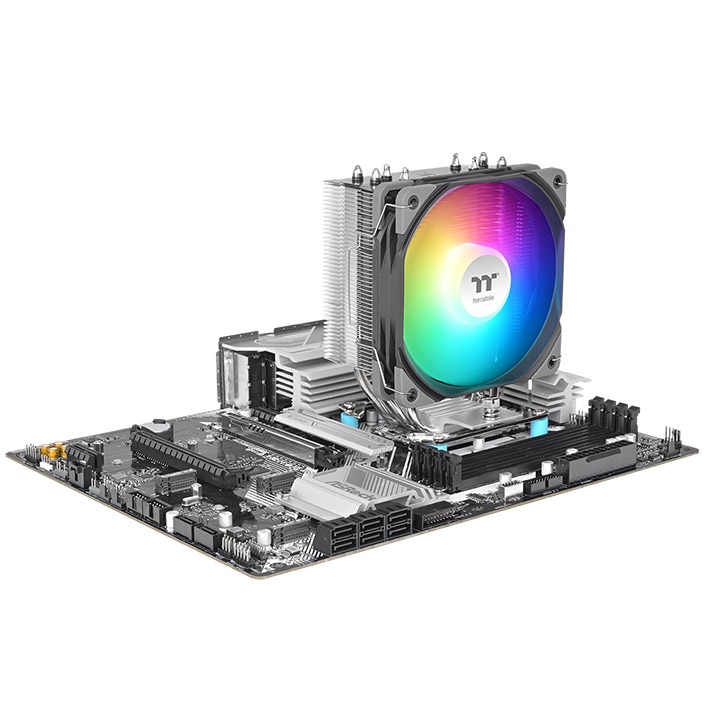

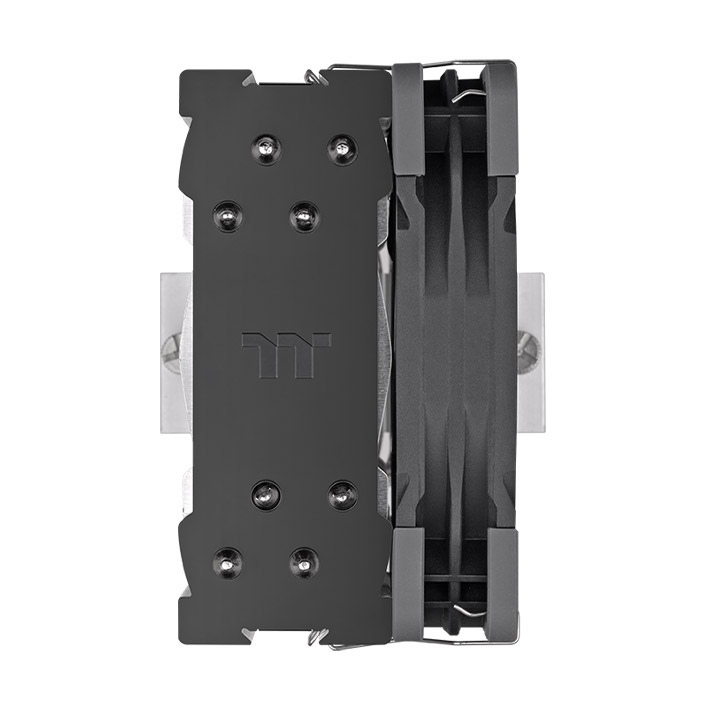

The UX400 ARGB Sync heat pipes and fin stack construction were designed for exceptional RAM compatibility, enabling you to pair with the RAM of your choice.
Universal Socket Compatibility
The UX400 ARGB Sync comes with universal brackets for Intel and AMD CPUs, including the latest LGA1851 and AM5 CPU sockets.
Intel: LGA 1851/1700/1200/1156/1155/1151/1150
AMD: AM5/AM4/FM2/FM1/AM3+/AM3/AM2+/AM2
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
-
Aura Addressable Header
ASUS -
Digital Pin Header
GIGABYTE -
JRAINBOW Header
MSI -
Addressable RGB LED Header
ASRock
| Category | Caution |
|---|---|
| Chassis, ARGB Fan, ARGB AIO |
|
| RGB Memory, VGA Waterblock, Distro Plate |
|
| P/N | CL-P142-AL12SW-A |
|---|---|
| Compatibility | Intel LGA : 1851/1700/1200/1156/1155/1151/1150 AMD : AM5/AM4/FM2/FM1/AM3+/AM3/AM2+/AM2 (CPU Socket) |
| Heatsink Dimension | 125 x 92 x 152 mm ( L x W x H) |
| Heatsink Material | Aluminum Fins Copper Heatpipes |
| Heatpipe | Φ6mm x 4 pcs |
| Fan Dimension | 120 x 120 x 25 mm ( L x W x H) |
| Fan quantity | 1pcs |
| Fan Speed | PWM 700~1800 RPM |
| Rated Voltage | 12V & 5V |
| Start Voltage | 6.0 V |
| Power Input | 3.0W & 1.44W |
| Air Flow | 62.72 CFM |
| Static Pressure | 1.47 mm-H2O |
| Acoustical Noise | 25.0 dBA |
| Life time/Fan Life time | 30,000 hours |
| pin connect | 5V ARGB Header 2510 - 4Pin |
| Cooling Power | 240 W |
| Pin Material | 0 |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
UX400 ARGB Sync Manual
- 2025-03-31
