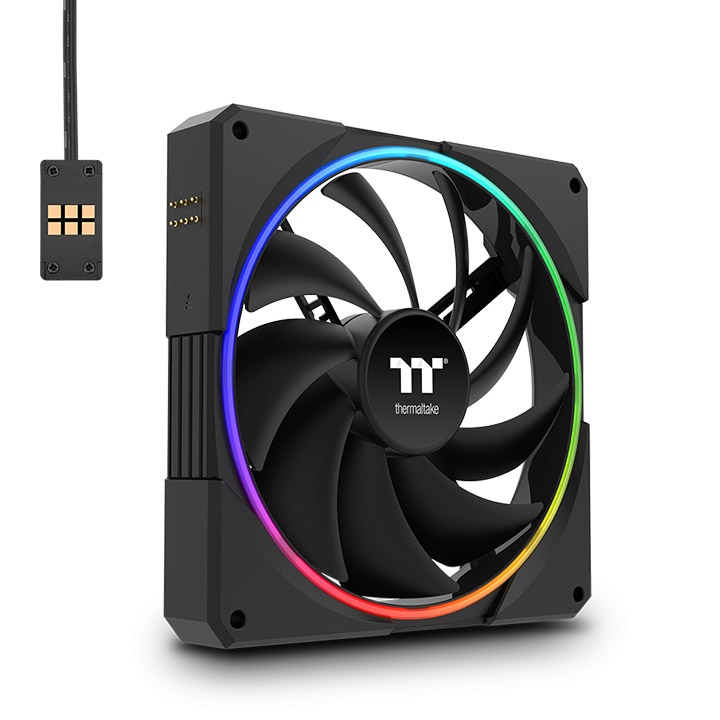

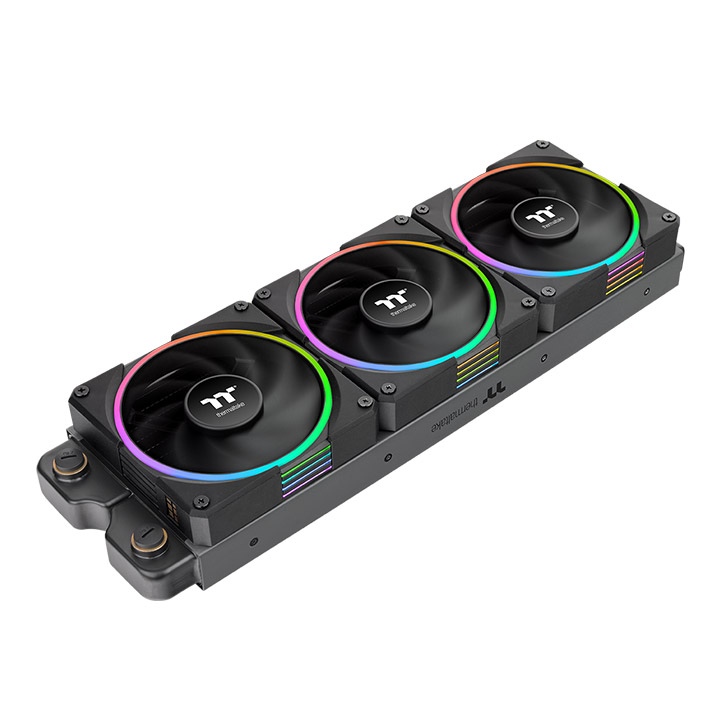

TS140 EX RGB PC Cooling Fan (3-Fan Pack)

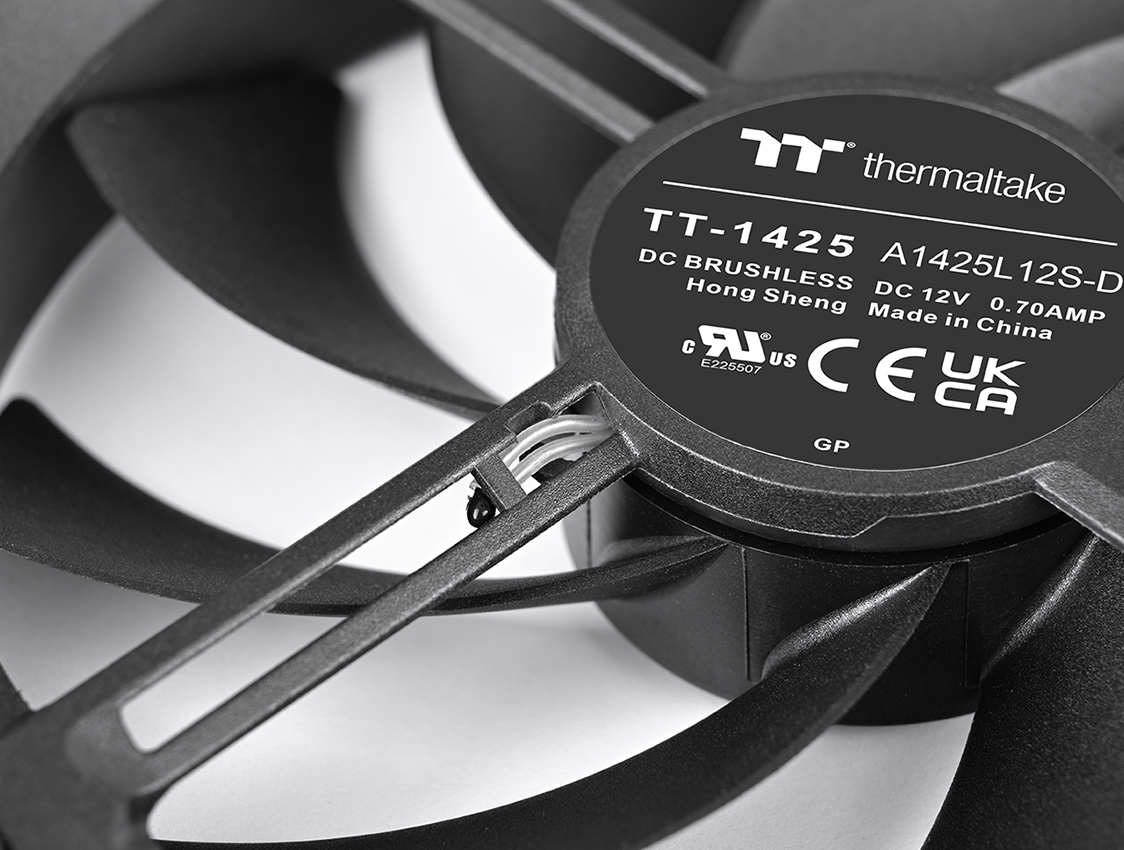

Built-in Temperature Sensor for Real-Time Fan Speed Adjustment

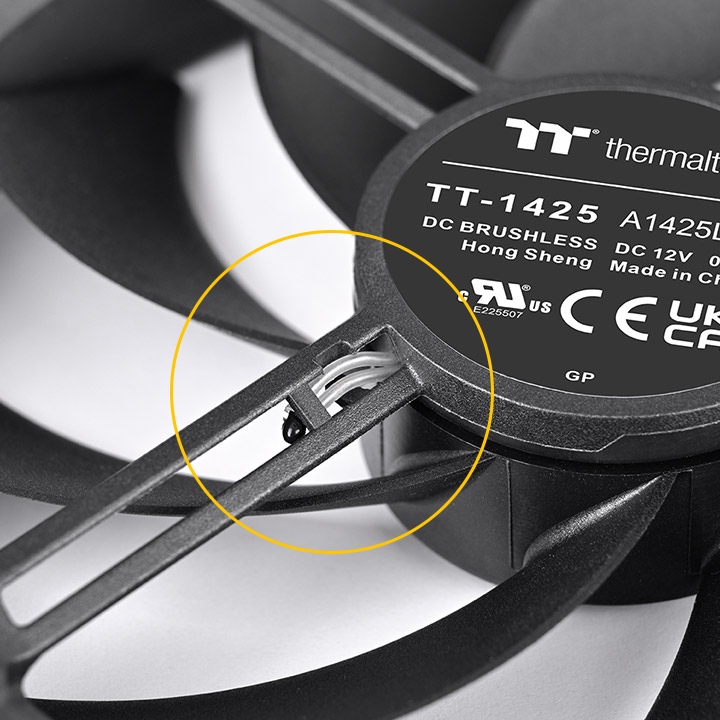

With a temperature sensor at the rear of the fan, the TS EX RGB provides an additional fan speed control. This sensor can monitor the air temperature near fan, enabling dynamic speed management based on localized conditions.

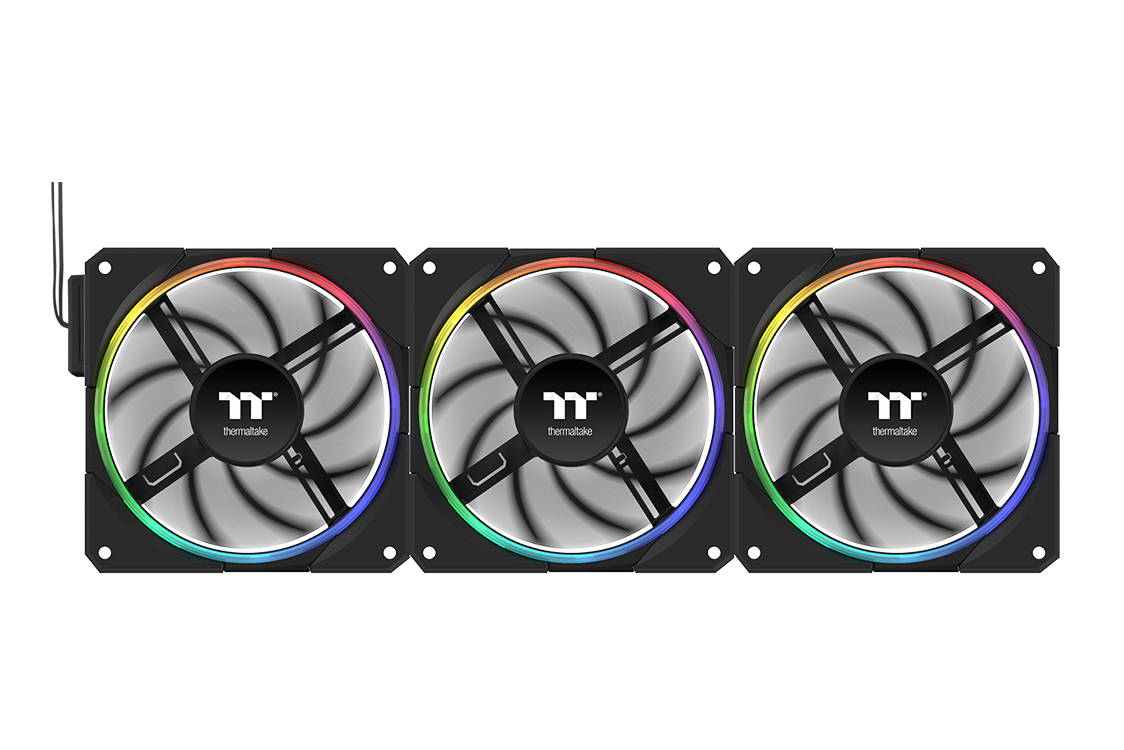

Smart Cooling with Individual Temperature Sensing

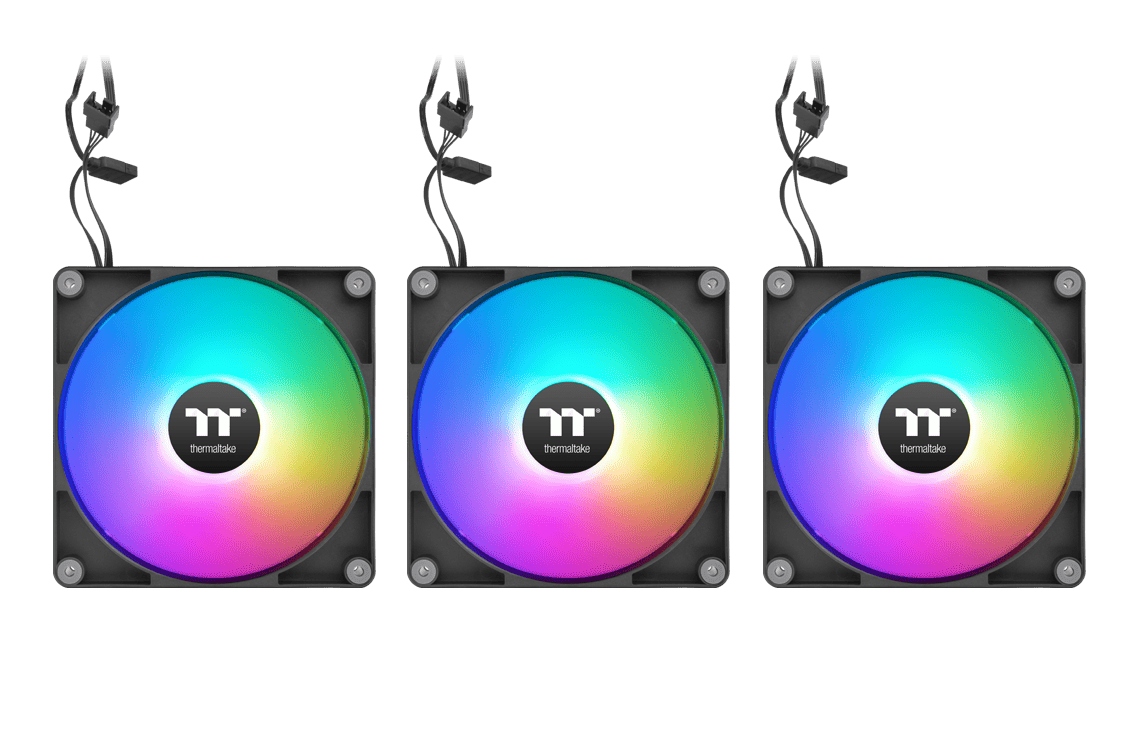

Compared with standard PWM fans that adjust all fan speeds based on only one hotspot, the TS EX RGB fan features an Individual Temperature Sensing, detecting the airflow temperature of each fan to achieve the optimal operating temperature inside the chassis.
Automatically Enhances Cooling & Saves Energy
As the surrounding airflow temperature increases, the fan speed rises accordingly to improve cooling; as the temperature decreases, the fan speed reduces to minimize noise and power consumption. This real-time response ensures efficient performance across workloads.

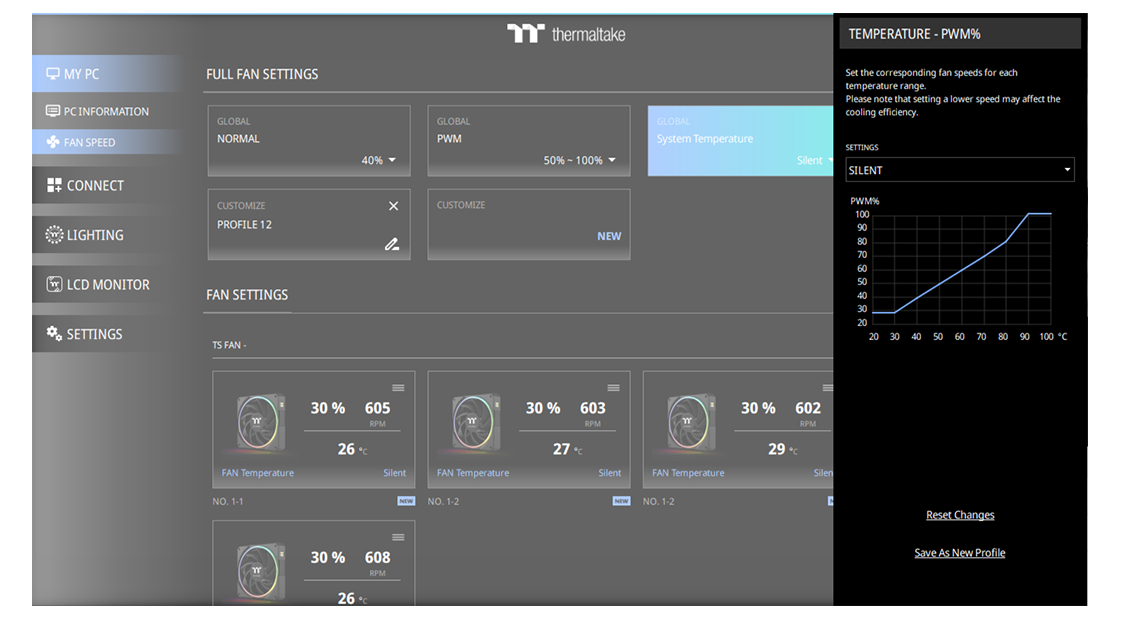

Fan Speed Control with TT RGB PLUS 3.0
Through the new TT RGB PLUS 3.0 software, you can monitor fan speed, PWM %, and real-time temperature. It offers five fan speed control modes, including Silent, Standard, Performance, Full Speed, and Customize. You can also assign different modes to individual fans to meet specific cooling requirements.

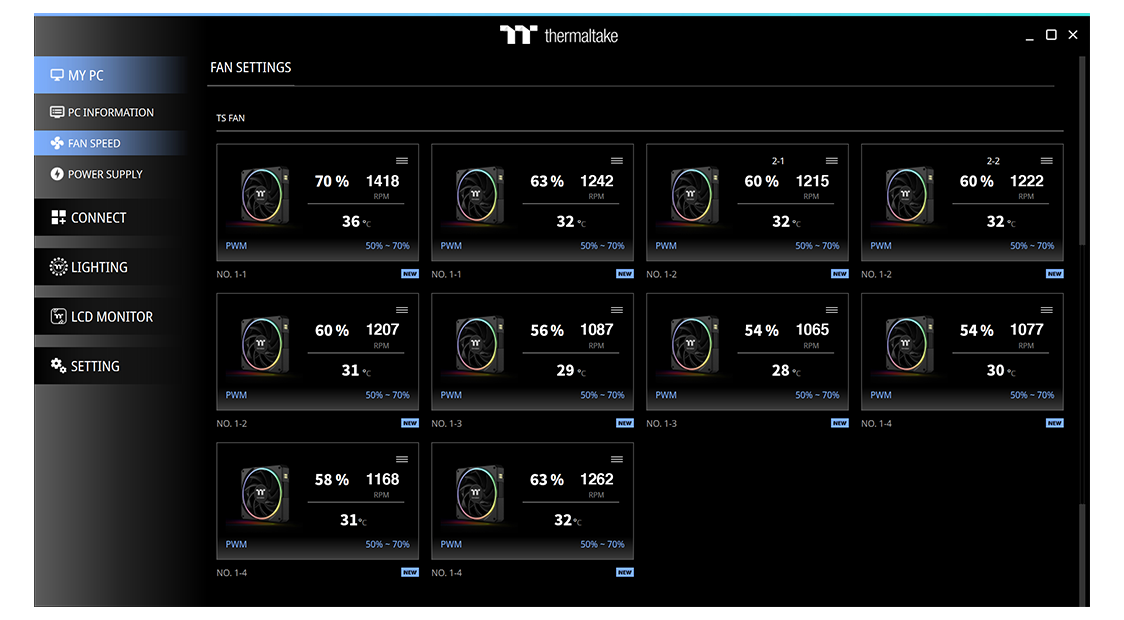

Fan Status Monitoring

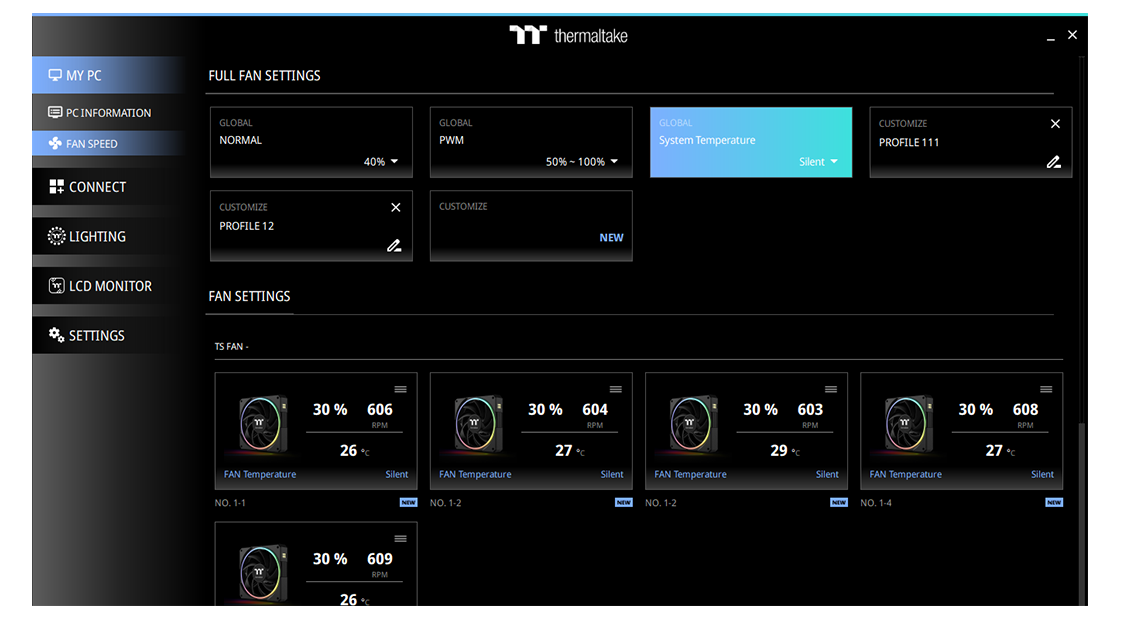

Fan Setting Selection
Fan Speed Control Modes

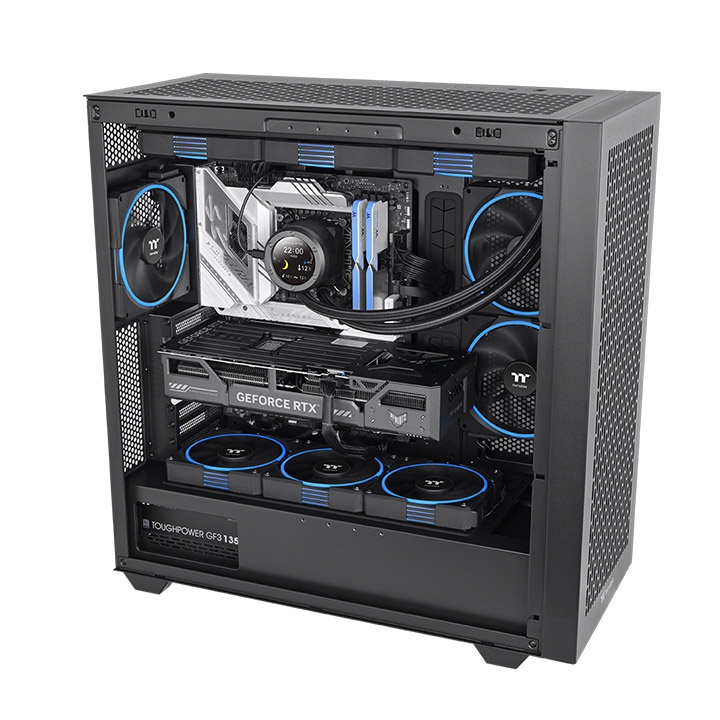

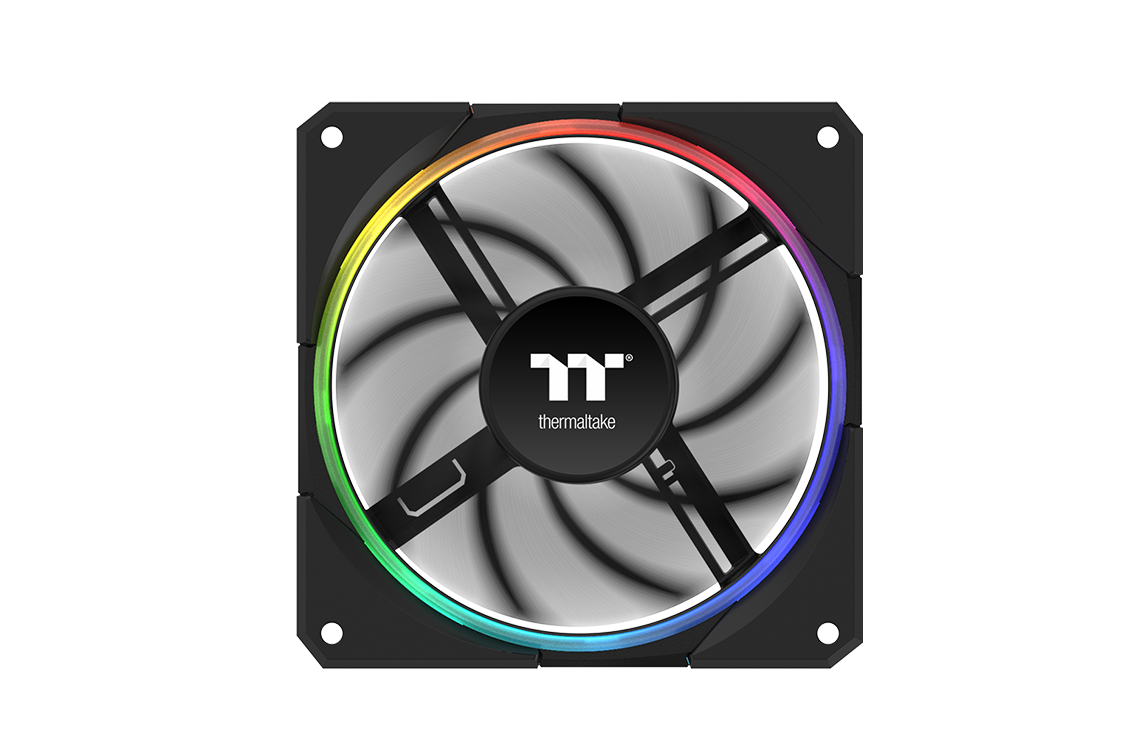

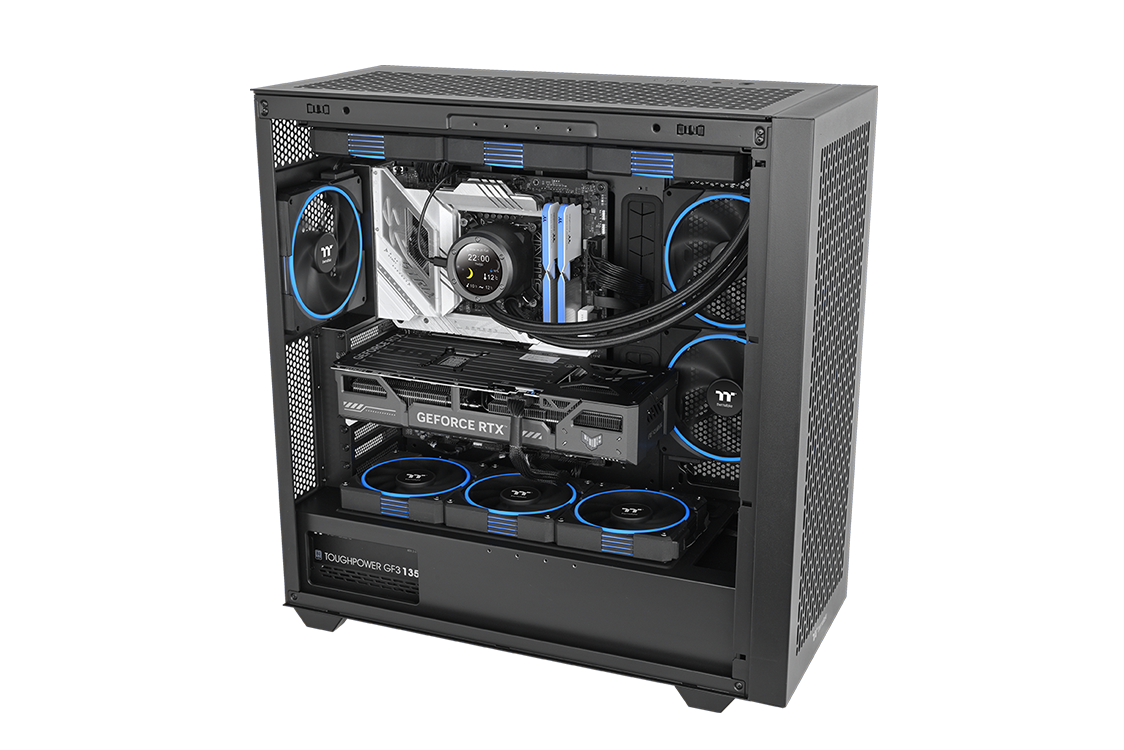

Stylish from Every Angle
The TS EX RGB is designed with visual appeal in mind, featuring vibrant linear RGB lighting on the fan ring and both non-magnetic sides. Every detail is crafted to shine, ensuring it looks stunning from every angle. This fan delivers a dazzling visual experience that elevates your build to extraordinary.

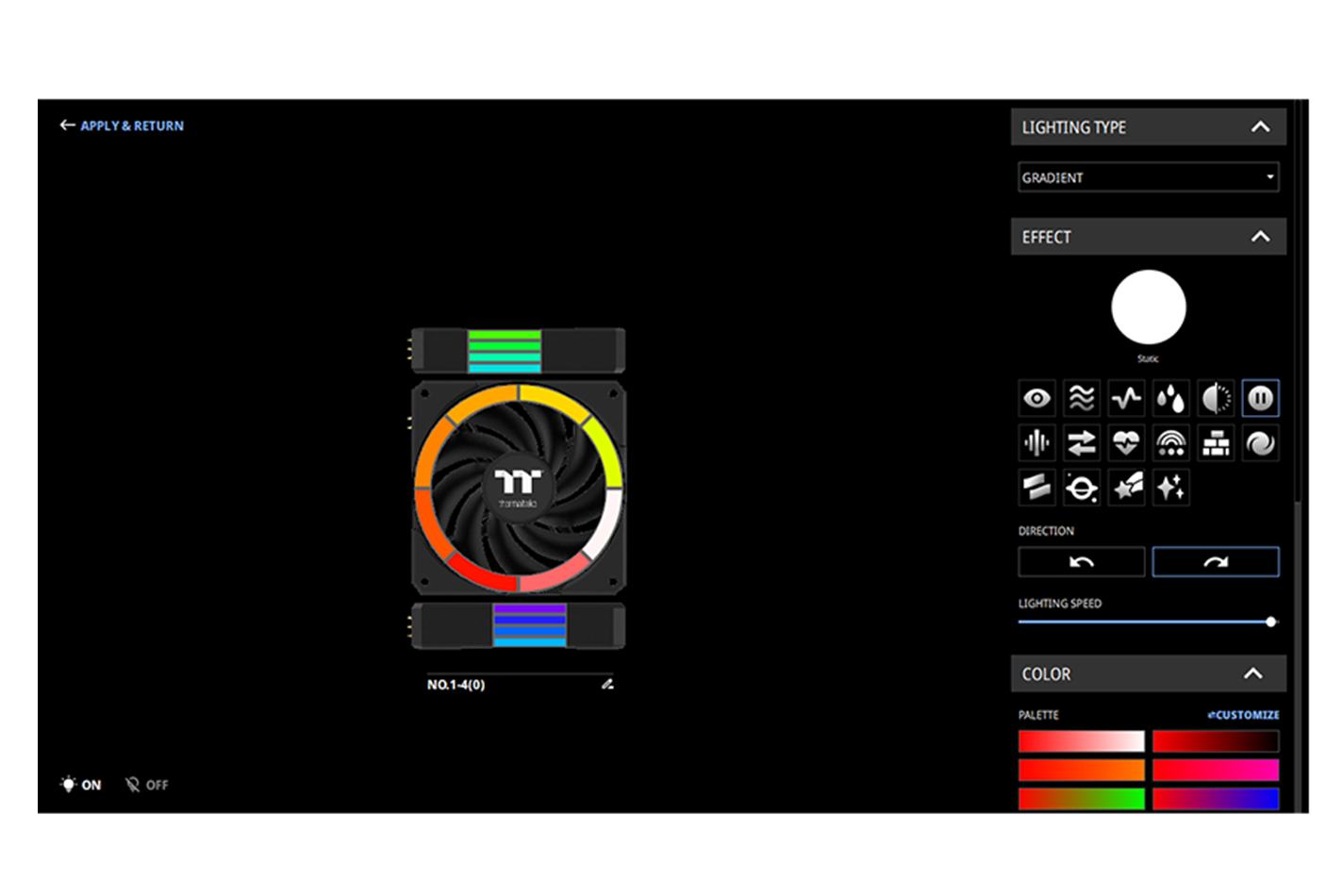

Easily Personalize Lighting Effects
The TS EX RGB fan features
addressable LEDs, each section can be customized
independently through the TT RGB PLUS 3.0 software. Create
striking lighting effects with great coverage of 16.8
million colors, perfectly tailored to complement your unique
PC build.

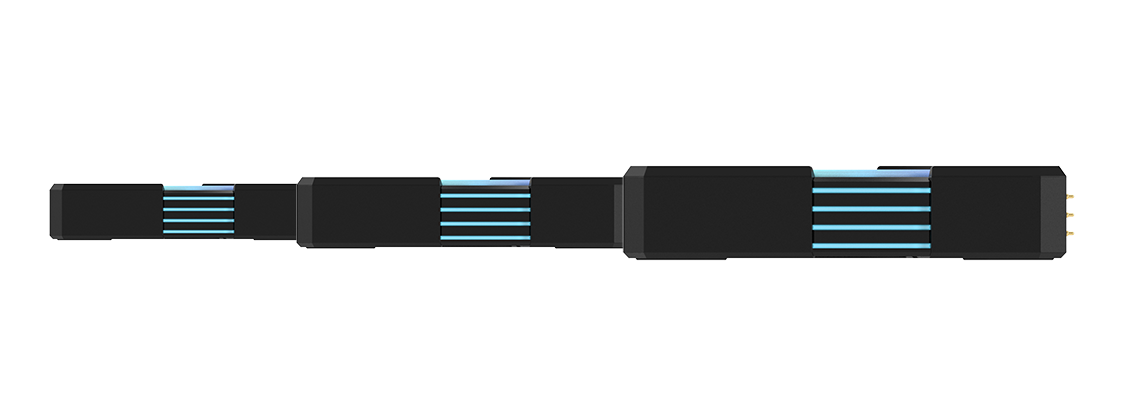

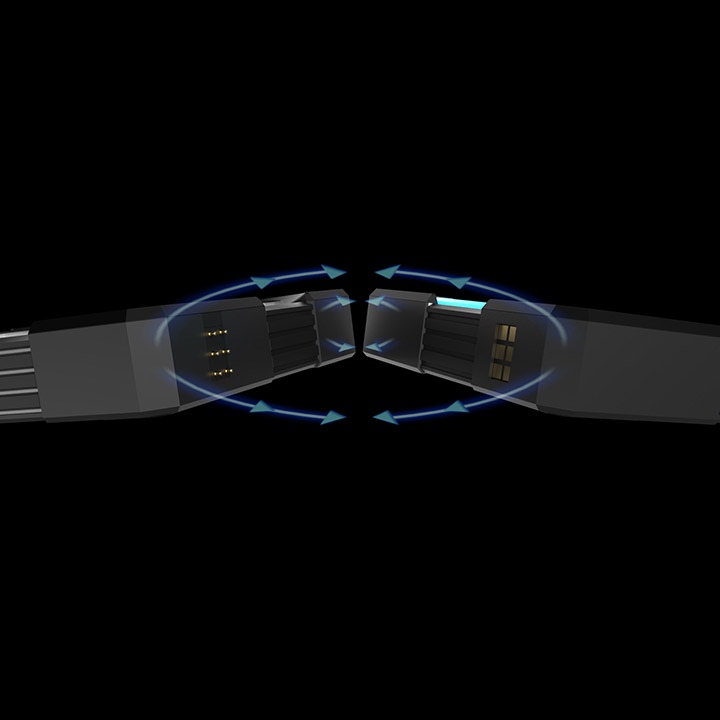

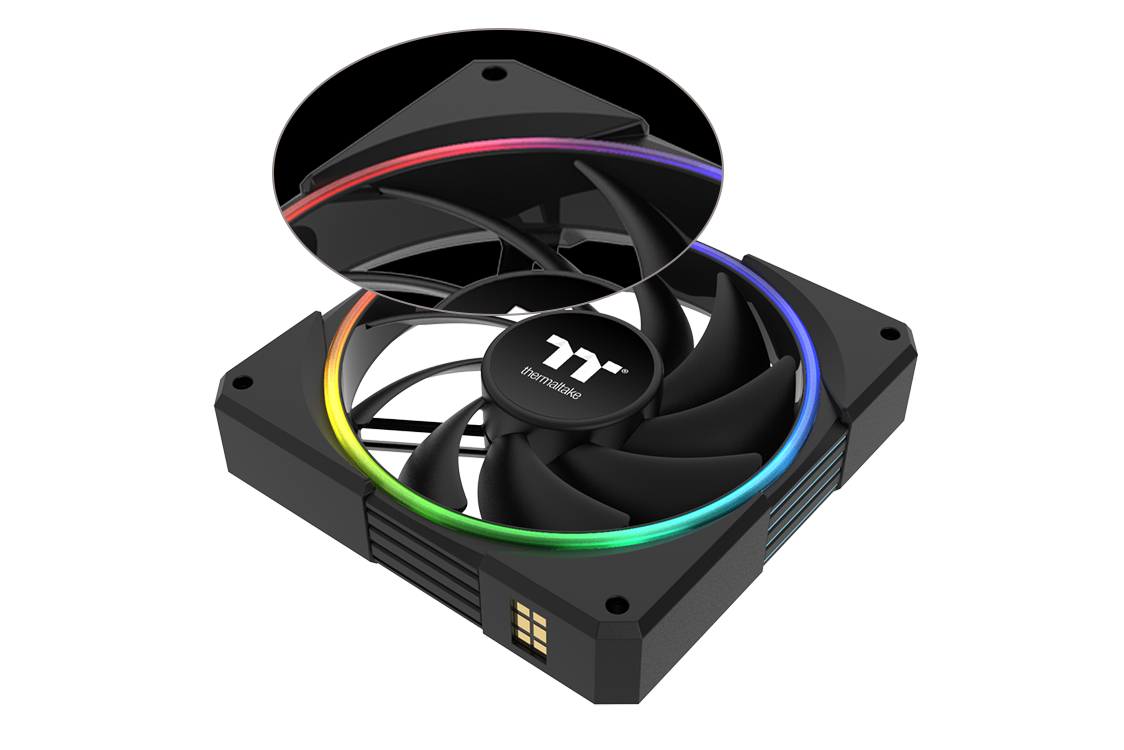

Steady Connection with MagForce 2.0
Evolved from SWAFAN EX’s Magnetic Force Design, the new MagForce 2.0 has the Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential faulty alignment no matter you are daisy-chaining fans together or connecting fans with cable, further boosting the installation efficiency and streamlining the building experience.
Remarkable Cooling Performance
The TS140 EX RGB fan is built to keep your system cool under demanding conditions. The fan delivers an airflow of 93.35 CFM and a static pressure of 3.32 mm- H2O, while maintaining a noise level of 32.1 dB-A, providing optimal thermal efficiency for high-end setups.

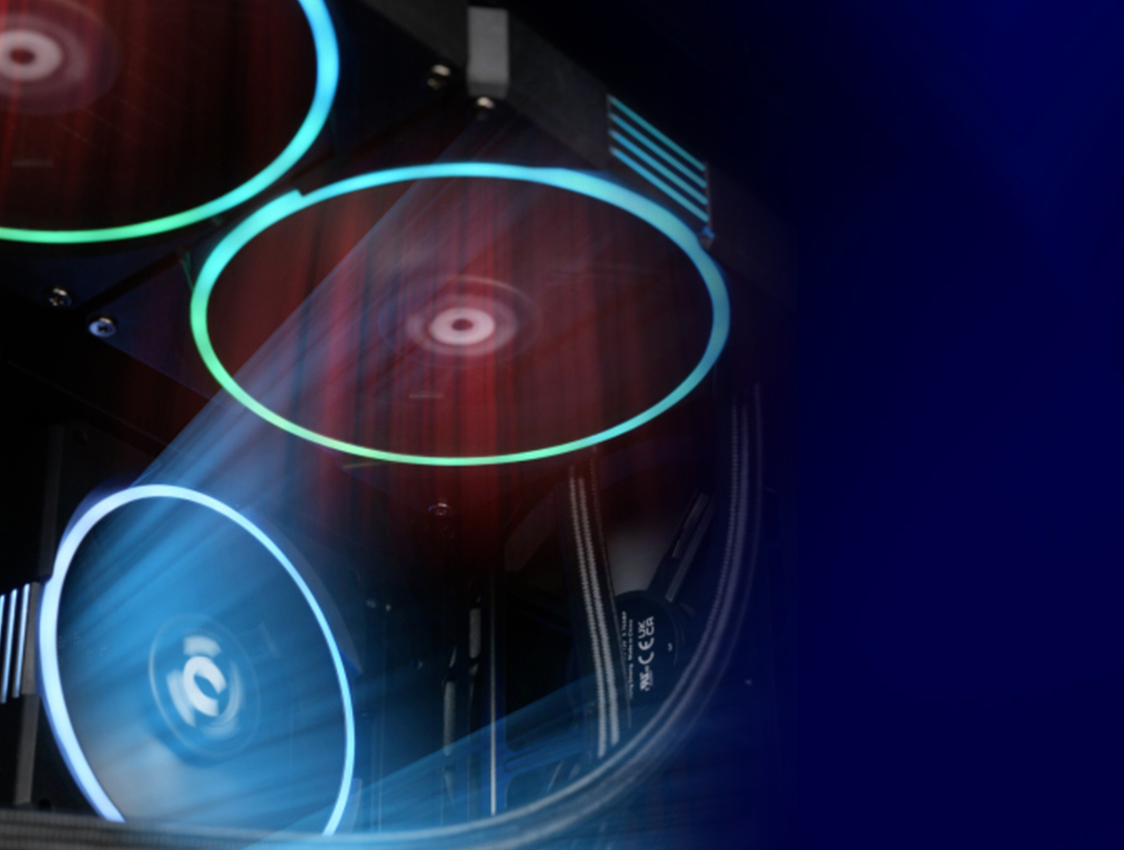

Enhanced Stability with Vibration Reduction
TS EX RGB is equipped with anti-vibration rubber pads on each of the fan’s corners. They are designed to be stable and dampen the fan’s vibration, allowing the fans to spin at a higher speeds under certain noise levels.
TT RGB PLUS Ecosystem
Light up your system with almost limitless possibilities and synchronize your TT RGB PLUS compatible products to create a RGB ecosystem that is truly unique to you.
| P/N | CL-F208-PL14SW-A |
|---|---|
| Fan Dimension | 140 x 140 x 25 mm |
| Interface | POGO PIN – 6 Pin |
| Fan Started Voltage | 5 V |
| Fan Rated Voltage | 12 V & 5 V |
| Rated Current | 0.35 A & 0.4 A (one fan) |
| Power Input | 4.2 W & 2.0 W (one fan) |
| Fan Speed | PWM 500 ~ 2000 R.P.M |
| Static Pressure | 3.32 mm-H2O (one fan) |
| Air Flow | 93.35 CFM (one fan) |
| Noise | 32.1 dB-A(one fan) |
| Bearing Type | Hydraulic Bearing |
| Life Expectation | 40,000 hrs, 25℃ |
| Included ltems | Fan x 3, Cable x 6, Controller x 1 |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
TS120/TS140 EX RGB Manual
- 2025-06-23
-
TS120/TS140 EX RGB Software Manual
- 2025-06-23
