TR100 Snow Mini Tower Chassis
Size Down, Power Up

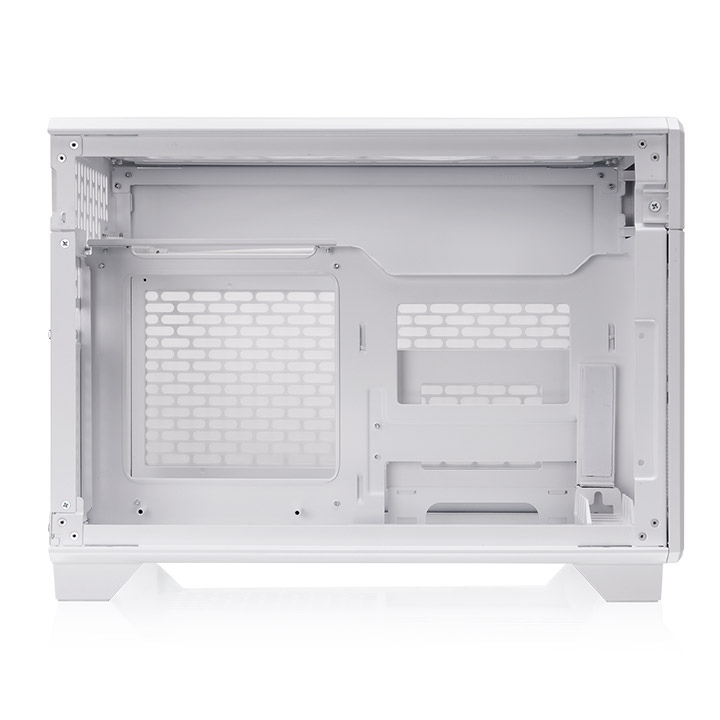

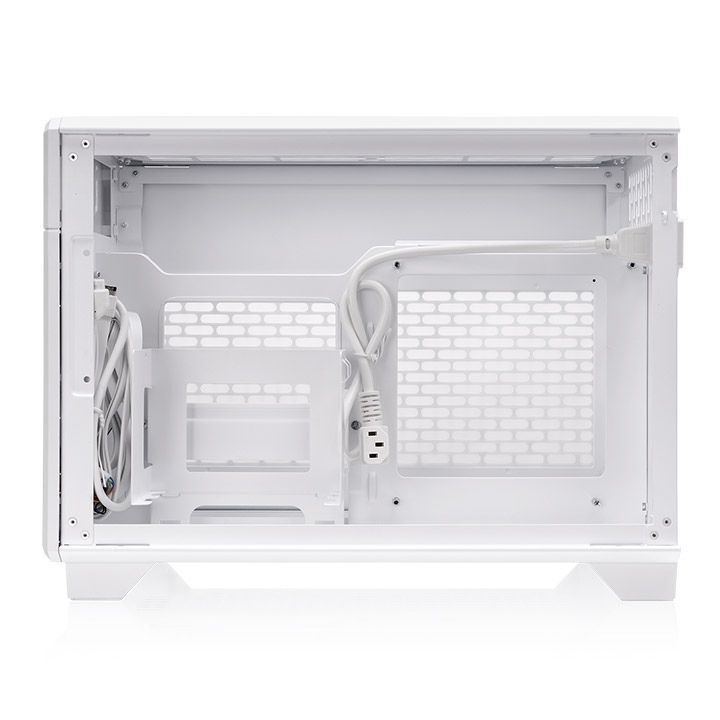

The TR100 Snow Mini Tower Chassis is a compact, dual-chamber, Mini-ITX case that is designed for those who demand performance and portability. The dual-chamber design positions the mini-ITX motherboard and SFX PSU in the right chamber, with the graphics card in the left, connected via a PCIe 4.0 riser cable. It supports two 120mm/140mm top fans and up to a 280mm AIO for cooling, plus two 2.5” SSDs, one in each chamber. All panels are removable and well-ventilated for optimal cooling and an easier build. To make it more visual appealing, a separately sold 3.9" LCD Screen Kit is also an option. Additionally, the separately sold suitcase allows users to carry the PC case and a complete gaming setup with them!
The image is for reference only.
Compact Design
The TR100 Snow is an 18.4-liter SFF (Small Form Factor) chassis that offers a compact footprint, delivering exceptional flexibility for both work and gaming setups.
The image is for reference only.
Superior GPU Support
The TR100 Snow supports graphics cards up to 360mm in length and 70mm in thickness. The detachable rear PCI-E panel and integrated GPU holder make it easy to install and secure large, thick GPUs in a portable gaming system.
The image is for reference only.
Efficient Cooling Solutions
The TR100 Snow supports up to a 240/280mm radiator (max. thickness 53mm) on the top bracket for CPU cooling. For air cooling, it accommodates a CPU cooler up to 68mm in height and two 120/140mm fans on the top.
The image is for reference only.
Redefining Portable Gaming
More than just a case, The TR100 Snow is a complete, travel-ready gaming solution. Whether you're traveling for business or pleasure, editing video or designing graphics, playing games or using VR, there's no need to sacrifice performance or leave your gaming experience behind!
*The suitcase is sold separately.
*The product is coming soon—stay tuned for its release!
The image is for reference only.
TT Travel Trunk for TR100
The lightweight and durable luggage is designed to carry the PC case and a full gaming setup, including a VR headset, portable monitor, keyboard, and mouse.
The image is for reference only.
SFX PSU Support
The TR100 Snow features a removable PSU bracket and two sets of screw holes, supporting both SFX and SFX-L PSUs for higher wattage needs.
Visually Pleasing, Totally Interactive
Maximize your TR100’s visual effects by upgrading it with our LCD Screen Kit.

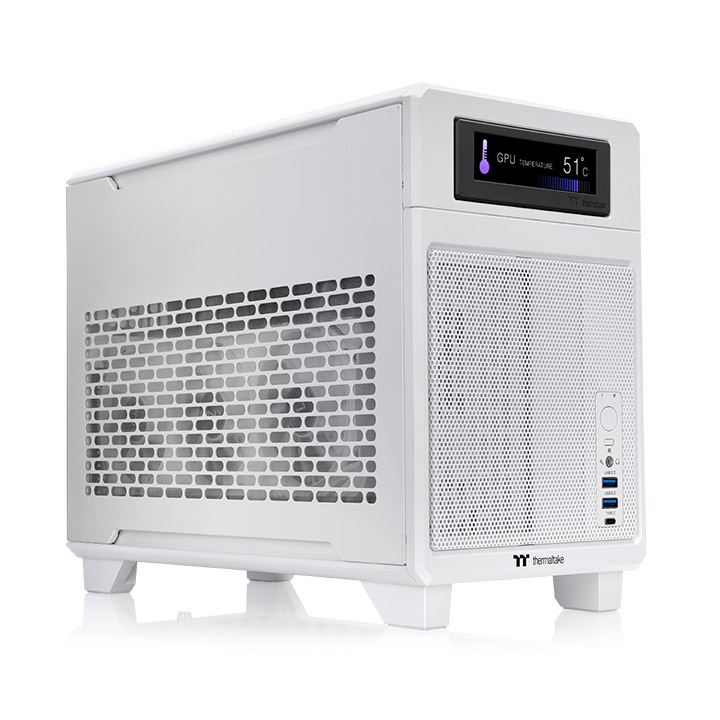

The 3.9” LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the TT RGB Plus software.
The image is for reference only.
Personalize Your LCD Display
Through the TT RGB Plus, the 3.9'' LCD display presents real-time information and plays JPG and GIF files with 128*480 resolution. What’s more is users can even show the time and weather information on the display, bringing great visual aesthetics and highly customizable functions to your build.
Air Intake and Exhaust

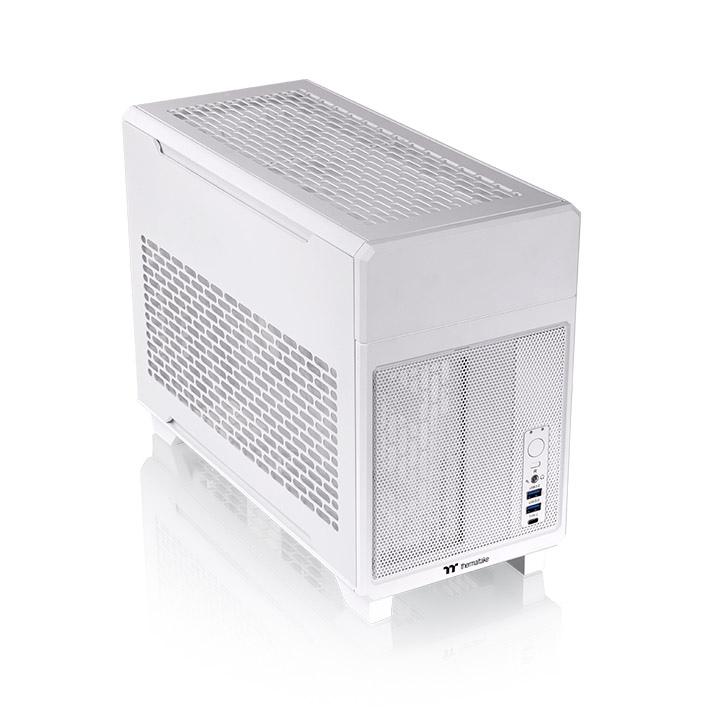

Despite its compact size, The TR100 Snow still has well-designed cold air intakes and hot air exhausts to keep the internal temperature low at all times.
The image is for reference only.
We've Tested Everything, So You Don’t Have To
At Thermaltake, we always stress test our products under harsh conditions to ensure product quality. The TR100 Snow products were tested at 100% full load for 30 minutes, with the most high-end CPU, GPU, and motherboard at the time of test, while paring with a consumer-style setup, allowing us to test how the chassis performs under real-world situations.
Test System
- Chassis：TR100
- Motherboard：ASUS ROG STRIX Z790-i Gaming WIFI
- CPU：Intel® Core™ i9-13900K Processor (TDP 253W)
- GPU：ASUS ROG Strix GeForce RTX® 4090 OC 24GB GDDR6X
- RAM：TOUGHRAM XG RGB D5 DDR5 6200 MT/s 32GB (16G x 2)
- SSD：Seagate SSD 120G
- PSU：Toughpower SFX 1000W- TT Premium Edition
- CPU Cooler：TH280 V2 Ultra EX ARGB Sync
- FANs： AIO:CT EX 140mm x 2
CPU & GPU Thermal Stress Test
TR100
Massive Airflow & Incredible Performance
Thermal images taken during thermal testing. We can see that despite its compact design, The TR100 Snow still guarantees good cooling performance and a low internal temperature while using the highest quality components.
Hardware Support and Cooling Solution
Despite its compact footprint, The TR100 Snow still has good hardware support. It can support a CPU cooler with a maximum height of 68mm, a GPU with a maximum length of 360mm (and up to 70mm in width), a power supply with a length of up to 130mm, and two 2.5" SSDs. For cooling support, up to two 120mm/140mm fans or a 280mm all-in-one CPU cooler can be placed on top of the chassis for effective cooling.
- Dimensions
- Fan
- Radiator
-
PSU
Max 130mm
-
GPU
Max 360mm
-
Motherboard
6.7” x 6.7” (Mini ITX)
-
Top Fan
120 mm x 2,
140 mm x 2
-
Top
1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm

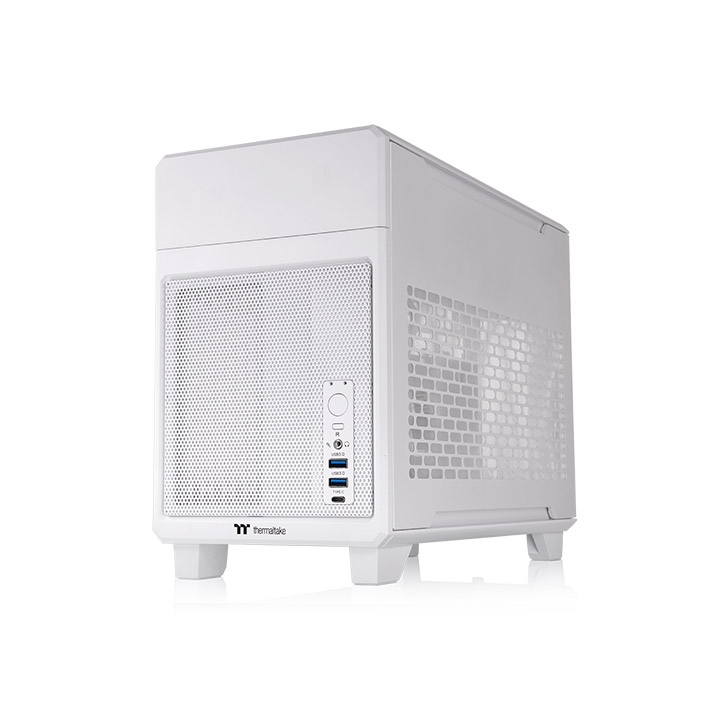

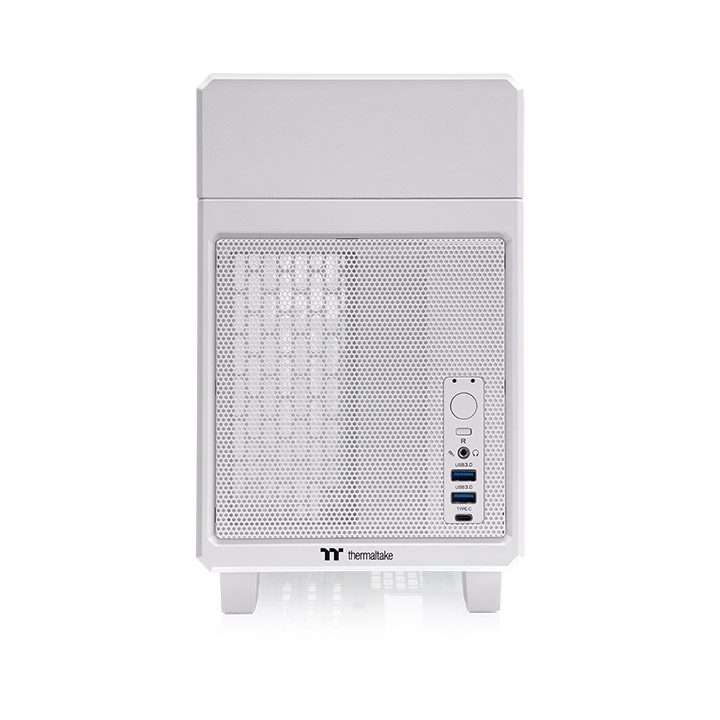

Handy I/O Ports
The front I/O ports consist of:
- Power button
- Reset button
- HD Audio
- 2 x USB 3.0 Type-A
- 1 x USB 3.2 Gen 2 Type-C
DMD: Dismantlable Modular Design
No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.
All-in-One Compatibility List
All-in-One Compatibility List
| 120mm | 240mm | 360mm | 140mm | 280mm | 420mm | |
|---|---|---|---|---|---|---|
| Front | - | - | - | - | - | - |
| Top | ● | ● | - | ● | ● | - |
| Rear | - | - | - | - | - | - |
Fan Support List
Fan Support List
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Front | - | - | - |
| Top | 2 | 2 | - |
| Rear | - | - | - |
| P/N | CA-11A-00S6NN-00 |
|---|---|
| Series | TR100 |
| Case Type | Mini Case |
| Dimension (H x W x D) | 294 x 179 x 391 mm (11.58 x 7.05 x 15.39inch) |
| Side Panel | Steel |
| Color | White |
| Material | SPCC |
| Expansion Slots | 3 |
| Motherboards | 6.7” x 6.7” (Mini ITX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | SFX / SFX-L (optional) |
| Fan Support | Top: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm |
| Radiator Support | Top Side(AIO): 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm |
| Clearance | CPU cooler height limitation: 68mm VGA length limitation: 360mm VGA Width limitation: 70mm PSU length limitation: 130mm |
