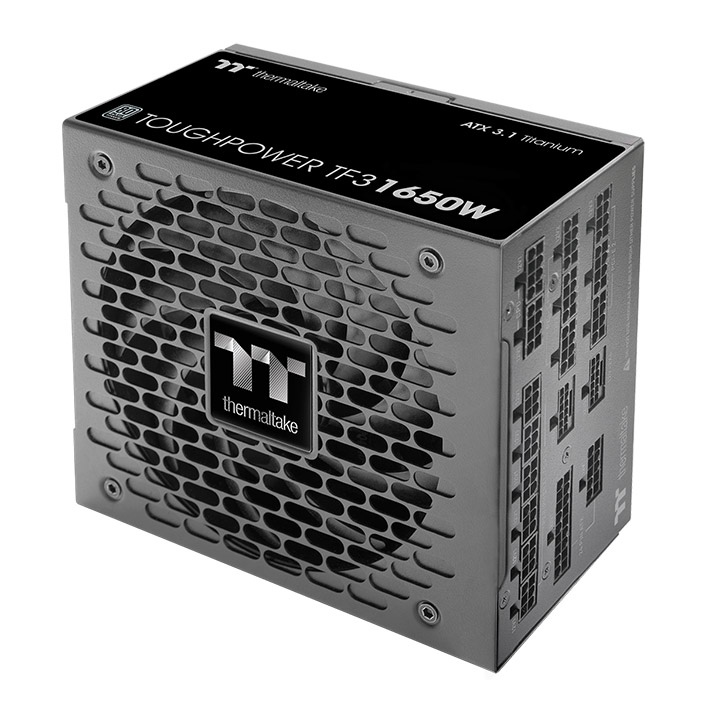

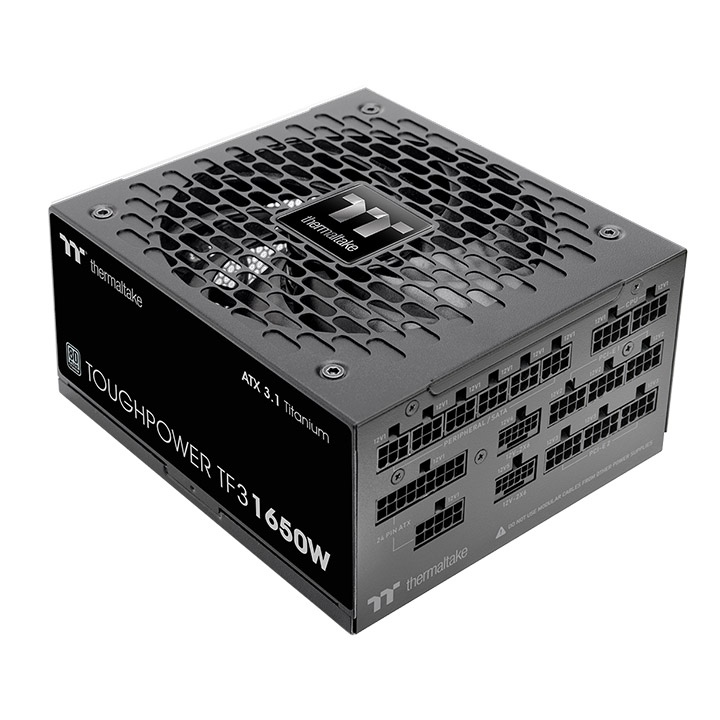

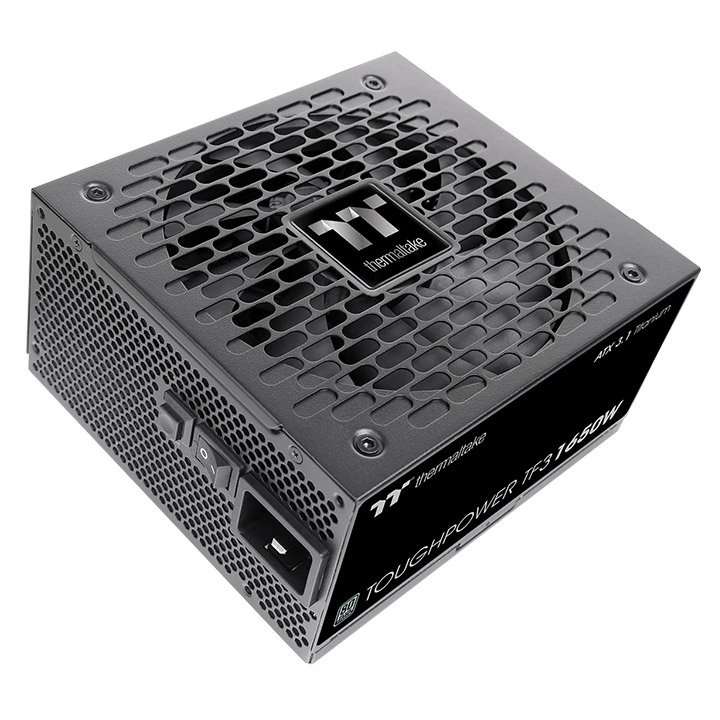

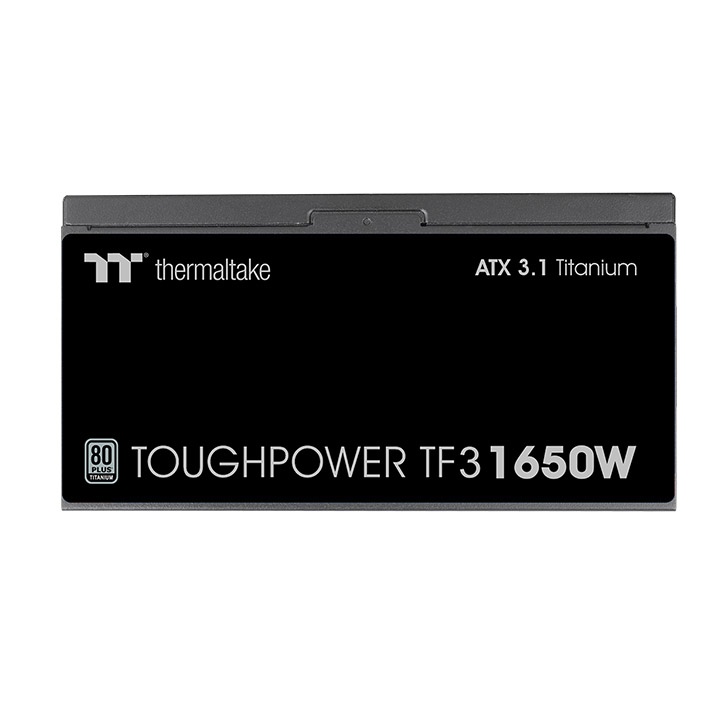

Toughpower TF3 1650W

Out of stock

P/N

PS-TPD-1650FNFATE-1

€464.90 (included VAT)

The Toughpower TF3 1650W is ATX 3.1 compatible, 80 PLUS Titanium certified, and supports native PCIe Gen 5.1 (12+4pin) for next-gen GPU power. Delivers 1650W continuous output at 50°C.

It features 100% Japanese capacitors, a strong single +12V rail, an ultra-quiet 14cm hydraulic bearing fan, and a Zero Cable Platform with low-profile modular cables.

en-GF1_snow_850

Long-Term Durability with Premium Components

Built with 100% high-quality Japanese 105°C electrolytic capacitors, the unit ensures long-term stability and durability, even under high temperatures and continuous heavy loads.

Next-Gen Ready Power

Toughpower TF3 1650W delivers reliable, high-efficiency output with Intel ATX 3.1 and PCIe Gen 5.1 (12V-2x6) support. Its robust +12V rail and advanced DC-DC design ensure next-gen stability and precise power delivery.

Full Modular Layout with Optimized Airflow

Features a fully modular design with low-profile etched black cables for easy installation, better airflow, and a cleaner build.

Built for Intel ATX 3.1 Standard

The Toughpower TF3 1650W Titanium fully complies with Intel ATX 3.1 specifications, supporting Intel C6/C7 low power states and ErP readiness for enhanced energy efficiency. It delivers reliable 1650W continuous power at 50°C, meeting strict power timing standards to ensure system stability and compatibility with modern PC builds.

ATX 3.1

ATX 2.0

Total power excursion

1.3X

Total Power Excursion

GPU Power Excursion

PCIe Gen 5.1 Ready

The Toughpower TF3 1650W features two native PCIe 12V-2x6 connectors and includes two PCIe 12+4 pin cables, providing powerful and stable performance to meet the power demands of next-generation PCIe Gen 5.1 graphics cards.

PCIe 12V-2x6 connector illustration

Note:
1. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
2. Please follow the recommended power requirements from the GPU manufactures before using the 12VHPWR cable.

High-Class Technologies

The DC to DC circuit design provides very stable operation and enhanced voltage regulation.

AC INPUT	Input Voltage: 100-240V~ Input Current: 10 - 20A Frequency: 50 - 60Hz
DC OUTPUT	+3.3V	+5V	+12V1	+12V2	+12V3	+12V4	+12V5	-12V	+5VSB
Max Output Current	20A	20A	50A	50A	50A	50A	50A	0.3A	3.0A
Max Output Power	120W		600W	600W	600W	600W	600W	3.6W	15W
Max Output Power	120W		1650W					3.6W	15W
Total Power	1650W

Thermaltake Customized Cooling Fan

The Toughpower TF3 1650W features the Thermaltake customized cooling fan, it is designed with specially tuned fan blades to push air further.

Industry-Grade Safety Protections

Built-in protections including Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Over Temperature Protection (OTP), and Short Circuit Protection (SCP) safeguard your system against electrical faults, providing peace of mind and reliable operation.

OCP

Over Current Protection
OVP

Over Voltage Protection
UVP

Under Voltage Protection
OPP

Over Power Protection
SCP

Short Circuit Protection
OTP

Over Temperature Protection

Unlock Peak Overclocking Performance

The OCM switch gives you the power to optimize your system's performance with ease. By default, the power supply operates in Multi-Rail mode with Over Current Protection (OCP) to ensure maximum safety for your components. For overclocking enthusiasts, a simple press of the OCM switch transitions the power supply to Single 12V rail mode, unleashing enhanced power delivery when you need it most.

80 PLUS Titanium Efficiency

Certified for 80 PLUS Titanium with up to 94% efficiency, this unit delivers 1650W continuous output at 50°C. It ensures reduced power loss and optimized energy use, ideal for high-performance and energy-conscious builds.

Space-Saving Etched Cable Design

Low-profile etched black cables simplify routing, reduce clutter, and enhance airflow. The fully modular layout and Zero Cable Platform allow for a cleaner, more efficient system build.

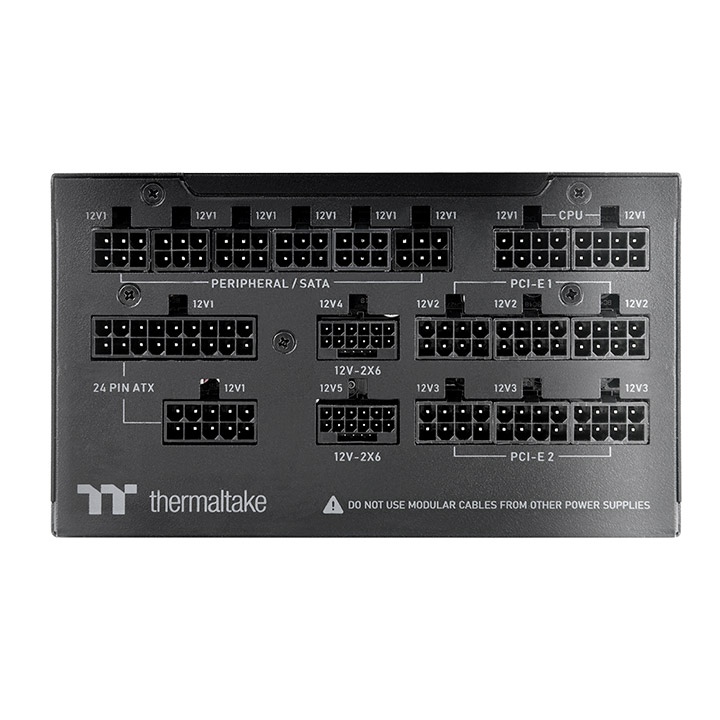

Connector Type	Connector Quantity	Cable Quantity	Cable Length
Main Power (24Pin)	X 1	X 1	600mm
ATX 12V (4+4/8Pin)	X 2	X 1	750mm
ATX 12V (4+4/8Pin)	X 2	X 1	750mm
PCIe (6+2Pin)	X 9	X 3	600mm
PCIe (6+2Pin)	X 9	X 3	600mm+150mm
PCIe (12+4Pin) 600W	X 2	X 2	600mm
SATA (5Pin)	X 16	X 4	600mm+150mm+150mm+150mm
Peripheral (4Pin)	X 8	X 2	600mm+150mm+150mm+150mm

More Information
P/N	PS-TPD-1650FNFATE-1
watts	1650W
Max. Output Capacity	1650W
Color	Black
Dimension ( W / H / D )	150mm(W)x86mm(H)x165mm(D)
PFC (Power Factor Correction)	Active PFC
Power Good Signal	100-150 msec
Hold Up Time	> 17msec at 80% load
Input Current	10 - 20A
Input Frequency Range	50Hz - 60Hz
Input Voltage	100-240V~
Operating Temperature	0°C to +50°C
Operating Humidity	10% to 90%,non-condensing
Storage Temperature	-40°C to +85°C
Storage Humidity	5% to 95%, non-condensing
Cooling System	14cm Hydraulic bearing fan
Efficiency	Meet 80 PLUS® Titanium at 115Vac input.
MTBF	100,000 hrs minimum
Safety Approval	CE/UKCA/ICES/TUV/LVD/RCM/CB/ cTUVus/BSMI/CCC/BIS/S-mark/EAC
PCI-E 6+2pin	9
PCIe 12+4pin	2 (600W)
