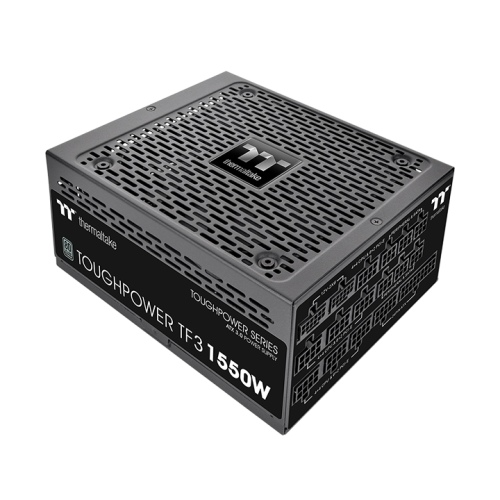

Toughpower TF3 1550W
Designed for overclockers, user’s with high-end system demands, and more, the Toughpower TF3 Titanium 1550W delivers 80 PLUS Titanium efficiency to satisfy their needs. Built for next-gen hardware, the Toughpower TF3 1550W is compatible with Intel ATX 3.0 specifications and comes with two native 12V-2x6 connectors.
Fully Compatible with Intel ATX 3.0 Standards
The Toughpower TF3 1550W is fully compatible with Intel ATX 3.0 specifications which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.
ATX 3.0
ATX 2.0
Total power excursion
Excursion
Excursion
PCIe 12V-2x6 Ready
Toughpower TF3 1550W comes with two native PCIe 12V-2X6 connectors to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.
The wattage marked on the PCIe 12V-2X6’s connector is the recommended wattage. (Ref. Intel design guideline)
The native PCIe 12+4pin (12V-2X6) connector of the TF3 1550W can deliver up to 600W for graphics cards.
-
Note:
- Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
- Please follow the recommended power requirements from the GPU manufactures before using the PCIe 12+4pin (12V-2X6) cable.
Made to Comply with the Latest Graphics Cards
As the power consumption of graphics cards increase, so has their demand for power. The TF3 1550W is designed to support NVIDIA and AMD graphics cards, it supports 8-pin PCIe cables for AMD graphics cards & RTX 40 series graphics cards, it also comes with 2 x PCIe 12V-2X6 connectors for RTX 40 series cards that need a PCIe Gen 5.0 connector, ready to supply the graphics cards according to their different ways of connections.
1 x 8-pin GPU Power Connector
2 x 8-pin GPU Power Connector
3 x 8-pin GPU Power Connector
2 x 12V-2X6 GPU Power Connectors
80 PLUS Titanium Certified
80 PLUS Titanium certification means the Toughpower TF3 converts power efficiently, saves energy through its high efficiency up to 94%, resulting in lower power loss and heat buildup inside the power supply.
Turbo Fan Button
The Turbo Mode button is designed to maximize airflow intake around 2400±10% RPM to cool down the power supply when its at full load. Users can easily push the button behind the PSU panel to use this function.
Extra Jumper Accessory
The Toughpower TF3 Titanium 1550W comes with an extra jumper to provide electricity to the system without connecting to the motherboard. If you need more than one power supply to power up your system, the extra jumper will help a lot.
＜30mV Low Ripple Noise Design
Top-end build quality with low ripple noise. All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.
Intel Specification TF3 1550W
Extremely Strict Voltage Regulation ＜±2%
The voltage regulation is more strict than Intel’s standard +5%,-7% for major rails and ±10% for -12V, is set to no more than ±2% for major rails, providing steady clean power through exceptional voltage stability.
Intel Specification
TF3 1550W
17ms and up Hold Up Time
During a power interruption, your computer might shut down or reboot. We make sure that the TF3 1550W will deliver at least 17ms at 100% workload, without system reboot or resetting.
Low Transient Response
The transient response is a measure of how well the power source can hold its output constant in response to load changes. We make sure that we can keep the results comply with 12V ＜ 1 %, 5V＜ 3%, and 3.3V ＜ 5% to avoid PSU output voltage deviation causing subsequent equipment malfunction or even shut down.
Inrush current ＜ 50 Ampere
Inrush current is the instantaneous high input current drawn by a power supply or electrical equipment when turned-on. This arises because of the high initial current required to charge the capacitors, inductors, or transformers. We make sure that the test results are under 50 ampere to avoid damage to the PSU components.
More Stable than Ever
100% high quality Japanese 105°C/221°F electrolytic capacitors provides great durability as well as offering the highest stability, while remaining reliable.
High Amperage Single +12V Rail & High-Class Technologies
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.
| AC INPUT |
Input Voltage: 100-240V～
|
||||
| DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5VSB |
| Max Output Current |
22.0A |
22.0A |
129.16A |
0.5A |
3.0A |
| Max Output Power |
120W |
1549.92W |
6W |
15W |
|
| Total Power |
1550W (115-240V~) / 1250W (100-115V~) |
||||
Built-in Industrial Grade Protection
To protect the hardware, Toughpower TF3 1550W is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
-
OCP
Over Current Protection
-
OVP
Over Voltage Protection
-
UVP
Under Voltage Protection
-
OPP
Over Power Protection
-
SCP
Short Circuit Protection
-
OTP
Over Temperature Protection
Fully Modular Low-Profile Cables
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile cables make cable management easier, reduces clutter and increases airflow inside the chassis.
| Connector Type | Connector Quantity | Cable Quantity | Cable Length | |
|---|---|---|---|---|
| Main Power (24Pin) |
X 1 |
|
X 1 | 600mm |
| ATX 12V
(4+4Pin/8pin) |
X 2 |
|
X 1 | 700mm |
|
X 1 | |||
| PCIe
((6+2Pin) |
X 9 |
|
X 1 | 500mm |
|
X 4 | 500mm+150mm | ||
| PCIe (12+4Pin) 600W |
X 1 |
|
X 2 | 600mm |
| SATA (5Pin) |
X 16 |
|
X 4 | 500mm+150mm +150mm+150mm |
| Peripheral
(4Pin) |
X 8 |
|
X 2 | 500mm+150mm +150mm+150mm |
| FDD Adapter | X 1 |
|
X 1 | 100mm |
Intel C6/C7 States Ready
Toughpower TF3 1550W has been optimized to work with all generations of Intel’s processors to achieve maximum energy savings.
| P/N | PS-TPD-1550FNFATE-3 |
|---|---|
| watts | 1550W |
| Model | TTP-1550AH3FCT-A |
| Max. Output Capacity | 1550W |
| Dimension ( W / H / D ) | 150mm(W)x86mm(H)x180mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 17msec |
| Input Current | 15.0A |
| Input Frequency Range | 50Hz - 60Hz |
| Input Voltage | 100-240V~ |
| Operating Temperature | 0°C to + 50°C |
| Operating Humidity | 20% to 90%,non-condensing |
| Storage Temperature | -20°C to + 70°C |
| Storage Humidity | 5% to 95%, non-condensing |
| Cooling System | 14cm PWM fan |
| Efficiency | Meet 80 PLUS® Titanium at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus |
| PCI-E 6+2pin | 9 |
| PCIe 12+4pin | 2 |
| Input current | 15.0A |
| Protection | OCP/OVP/UVP/OPP/OTP/SCP |
