Toughpower SFX Platinum 850W - TT Premium Edition Toughpower SFX Platinum 850W - TT Premium Edition Toughpower SFX Platinum 850W - TT Premium Edition Toughpower SFX Platinum 850W - TT Premium Edition Toughpower SFX Platinum 850W - TT Premium Edition Toughpower SFX Platinum 850W - TT Premium Edition

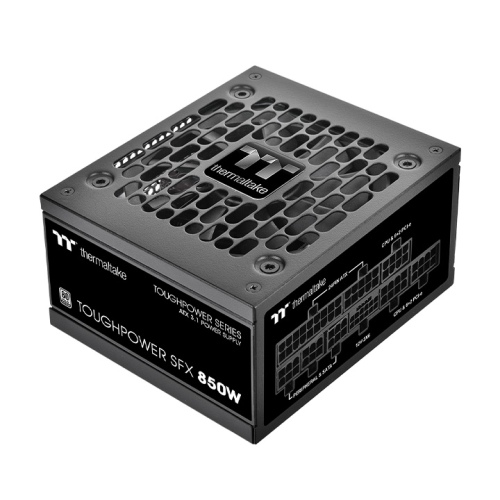

Toughpower SFX Platinum 850W - TT Premium Edition

Toughpower SFX Platinum 850W - TT Premium Edition

Out of stock
P/N
PS-STP-0850FNFAP*-1
€191.90 (included VAT)
Pre-Ordered Product
Toughpower SFX Platinum series is 80 PLUS Platinum certified and compatible with ATX 3.1 specifications. Designed with a native 12V-2x6 connector.

Compact Power, Limitless Performance

The Toughpower SFX Platinum series is built to support next-gen hardware, meeting the latest Intel SFX 12V 4.1 and ATX 12V 3.1 standards. With its native PCIe 12V-2x6 (12+4pin) modular interface, it efficiently powers PCIe 12+4pin graphics cards. This series not only achieves 80 PLUS Platinum efficiency but also guarantees stability, durability, and reliability.

No Matter the Case Size, We've Got You Covered

The dimensions of the Toughpower SFX Platinum measure 125mm(W) x 63.5mm(H) x 103.8mm(D).
It comes with an SFX to ATX adapter bracket as an accessory which gives users more options when choosing the ideal case for the build.

Fully Compatible with ATX 3.1 Standards

Toughpower SFX Platinum series is fully compatible with ATX 3.1 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.

ATX 3.1

ATX 2.0

Total power excursion

2X
1.3X
2X
Total Power
Excursion
3X
GPU Power
Excursion

PCIe Gen 5.1 Ready

Toughpower SFX Platinum series comes with a PCIe 12V-2x6 connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.

The wattage marked on the PCIe 12+4-pin cable connector represents the recommended wattage (Ref. Intel design guideline). The bundled PCIe Gen 5.1 (12+4pin) cable connector of the Toughpower SFX Platinum 850W can deliver up to 450W for PCIe 12+4pin graphics cards.


    Note:
  1. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
  2. Please follow the recommended power requirements from the GPU manufactures before using the PCIe 12+4pin cable.

12+4pin Connector

Made to Comply with the Latest Graphics Cards

Ready to supply graphics cards according to their different ways of connections, the Toughpower SFX Platinum series is designed to support NVIDIA and AMD graphics cards, it supports 8-pin slots for AMD graphics cards & some RTX 40 series graphics cards, it also comes with 1 x 12V-2x6 connector for RTX 40 series cards with a PCIe 12+4pin connector.

1 x 8-pin GPU Power Connector

2 x 8-pin GPU Power Connector

1 x 12V-2x6 pin GPU Power Connector

Be Smart, Stay Quiet

Equipped with a 90mm fluid bearing fan for superior airflow. Plus, the built-in Smart Zero Fan feature keeps it silent until the load hits 30%, reducing unwanted noise.

80 PLUS® Platinum Certified



80 PLUS Platinum certification means the Toughpower SFX Platinum series converts power efficiently, saves energy through its high efficiency up to 92%, resulting in lower power loss and heat buildup inside the power supply.

More Stable than Ever

100% high quality Japanese 105°C/221°F electrolytic capacitors provides great durability as well as offering the highest stability, while remaining reliable.

High Amperage Single +12V
Rail & High-Class Technologies

Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.

AC INPUT

Input Voltage: 100-240V~
Input Current: 15A - 8A
Frequency: 50Hz / 60Hz

DC OUTPUT

+3.3V

+5V

+12V

-12V

+5VSB

Max Output Current

18A

18A

70.83A

0.3A

2.5A

Max Output Power

120W

850W

3.6W

12.5W

Total Power

850W

Fully Modular Low-Profile Cables

Offers cable selection for users while powering the system at an advantageous voltage. Low-profile cables make cable management easier, reduces clutter and increases airflow inside the chassis.

Connector Type Connector Quantity Cable Quantity Cable Length
Main Power
(24Pin)
X 1 X 1 300mm
ATX 12V
(4+4Pin)
X 2 X 2 400mm
PCIe
(6+2Pin)
X 2 X 1 400mm+150mm
PCIe
(12+4Pin)
450W
X 1 X 1 400mm
SATA
(5Pin)
X 8 X 2 300mm+150mm+150mm+150mm
Peripheral (4Pin) x4
+ FDD x1
X 1 300mm+150mm +150mm+150mm +150mm

Built-in Industrial Grade Protection

Built with industry grade protections to protect the hardware: OCP(Over Current Protection), OVP(Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).

  • OCP

    Over Current Protection

  • OVP

    Over Voltage Protection

  • UVP

    Under Voltage Protection

  • OPP

    Over Power Protection

  • SCP

    Short Circuit Protection

  • OTP

    Over Temperature Protection

Intel C6/C7 States Ready



Toughpower SFX Platinum series has been optimized to work with all generations of Intel’s processors to achieve maximum energy savings.

7 Year Warranty



Confidence in the reliability of our Toughpower SFX Platinum series, we proudly offer a 7-year warranty, standing firmly behind the exceptional quality and enduring performance of our product.

More Information
P/N PS-STP-0850FNFAP*-1
watts 850W
Form Factor SFX
Model SFX-0850AH8FLP
Color Black
Dimension ( W / H / D ) 125mm(W)x63.5mm(H)x103.8mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-150 msec
Hold Up Time > 17msec at 80% load
Input Current 15A - 8A
Input Frequency Range 50Hz/60Hz
Input Voltage 100-240V~
Operating Temperature 5°C to + 40°C
Operating Humidity 20% to 85%,non-condensing
Storage Temperature -40°C to + 55°C
Storage Humidity 10% to 95%, non-condensing
Cooling System 9cm FDB Fan
Efficiency Meet 80 PLUS® Platinum at 115Vac input.
MTBF 100,000 hrs minimum
Safety Approval CE/UKCA/FCC/ICES/CB/TUV/cTUVus/LVD/CCC/BSMI/S-MARK/EAC/RCM
PCI-E 6+2pin 2
Smart Zero Fan Fan will not spin until the load exceeds 30%
No physical fan switch
PCIe 12+4pin 1(450W)
