Toughpower PT 1200W

In stock

P/N

PS-TPP-1200FNFAPE-1

€234.90 (included VAT)

The Toughpower PT 1200W Platinum is ATX 3.1 compatible, 80 PLUS Platinum certified, and supports native PCIe Gen 5.1 (12+4pin) for next-gen GPU power. Delivers 1200W continuous output at 40°C.

It features 100% Japanese capacitors, a strong single +12V rail, an ultra-quiet 135mm hydraulic bearing fan, and a Zero Cable Platform with low-profile modular cables.

en-GF1_snow_850

Long-Term Durability with Premium Components

Built with 100% high-quality Japanese 105°C electrolytic capacitors, the unit ensures long-term stability and durability, even under high temperatures and continuous heavy loads.

Next-Gen Ready Power

Toughpower PT 1200W delivers reliable, high-efficiency output with Intel ATX 3.1 and PCIe Gen 5.1 (12V-2x6) support. Its robust +12V rail and advanced DC-DC & LLC design ensure next-gen stability and precise power delivery.

Full Modular Layout with Optimized Airflow

Features a fully modular design with low-profile etched black cables for easy installation, better airflow, and a cleaner build.

Built for Intel ATX 3.1 Standard

The Toughpower PT 1200W Platinum fully complies with Intel ATX 3.1 specifications, supporting Intel C6/C7 low power states and ErP readiness for enhanced energy efficiency. It delivers reliable 1200W continuous power at 40°C, meeting strict power timing standards to ensure system stability and compatibility with modern PC builds.

ATX 3.1

ATX 2.0

Total power excursion

1.3X

Total Power Excursion

GPU Power Excursion

PCIe Gen 5.1 Ready

With a native PCIe Gen 5.1 12+4pin connector and low-profile cables, the Toughpower PT 1200W Platinum ensures better airflow and cable management. Its high amperage +12V rail, Japanese capacitors, and DC-DC plus LLC design deliver stable, efficient power with quiet 135mm fan cooling.

PCIe 12V-2x6 connector illustration

Note:
1. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
2. Please follow the recommended power requirements from the GPU manufactures before using the 12VHPWR cable.

Minimal Noise, Maximum Clarity

A 135mm hydraulic bearing fan delivers quiet, efficient cooling even under load. With fully modular low-profile cables and a Zero Cable Platform, it improves airflow and keeps your build clean and organized.

Enhanced +12V Rail and Superior Circuit Design

The Toughpower PT 1200W Platinum delivers stable 1200W power via a strong single +12V rail. Its advanced DC-DC and LLC circuitry ensure precise voltage regulation and high efficiency.

AC INPUT	Input Voltage: 100-240Vac Input Current: 15 - 10A Frequency: 50 - 60Hz
DC OUTPUT	+3.3V	+5V	+12V	-12V	+5VSB
Max Output Current	20A	20A	100A	0.3A	3.0A
Max Output Power	100W		1200W	3.6W	15W
Total Power	1200W

Enhanced +12V Rail and Superior Circuit Design

Industry-Grade Safety Protections

Built-in protections including Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Over Temperature Protection (OTP), and Short Circuit Protection (SCP) safeguard your system against electrical faults, providing peace of mind and reliable operation.

OCP

Over Current Protection
OVP

Over Voltage Protection
UVP

Under Voltage Protection
OPP

Over Power Protection
SCP

Short Circuit Protection
OTP

Over Temperature Protection

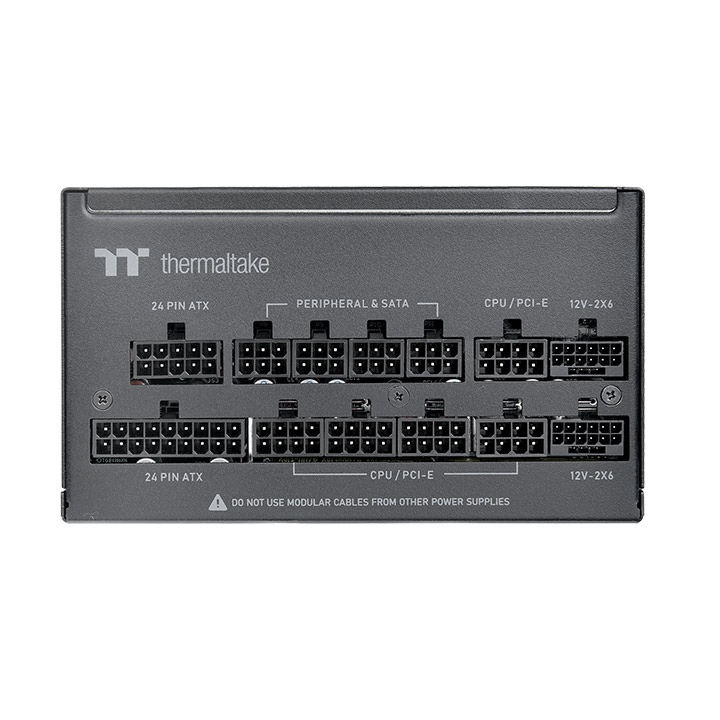

Space-Saving Etched Cable Design

Low-profile etched black cables simplify routing, reduce clutter, and enhance airflow. The fully modular layout and Zero Cable Platform allow for a cleaner, more efficient system build.

Connector Type	Connector Quantity	Cable Quantity	Cable Length
Main Power (24Pin)	X 1	X 1	550mm
ATX 12V (4+4Pin)	X 2	X 2	700mm
PCIe (6+2Pin)	X 5	X 1	600mm
PCIe (6+2Pin)	X 5	X 2	600mm+150mm
PCIe (12+4Pin) 600W	X 2	X 2	600mm
SATA (5Pin)	X 6	X 2	450mm+150mm+150mm
Peripheral (4Pin)	X 4	X 1	450mm+150mm+150mm+150mm

80 PLUS Platinum Certified

Certified for 80 PLUS Platinum with up to 92% efficiency, this unit delivers 1200W continuous output at 40°C. It ensures reduced power loss and optimized energy use, ideal for high-performance and energy-conscious builds.

More Information
P/N	PS-TPP-1200FNFAPE-1
watts	1200W
Max. Output Capacity	1200W
Color	Black
Dimension ( W / H / D )	150mm(W)x86mm(H)x140mm(D)
PFC (Power Factor Correction)	Active PFC
Power Good Signal	100-150 msec
Hold Up Time	> 17msec at 80% load
Input Current	15-10A Max.
Input Frequency Range	50Hz - 60Hz
Input Voltage	100-240V~
Operating Temperature	0°C to + 40°C
Operating Humidity	20% to 90%,non-condensing
Storage Temperature	-20°C to + 70°C
Storage Humidity	5% to 95%, non-condensing
Cooling System	135mm FDB fan
Efficiency	Meet 80 PLUS® Platinum at 115Vac input.
MTBF	100,000 hrs minimum
Safety Approval	CE(UKCA)/FCC/ICES/CB/TUV/cTUVus/CCC/BSMI/LVD/RCM/BIS
PCI-E 6+2pin	5
PCIe 12+4pin	2 (600W)

User Manual

File Name
Description
Size
Version
Release Date

TOUGHPOWER PT 850 1000 1200W Manual
2025-10-02
