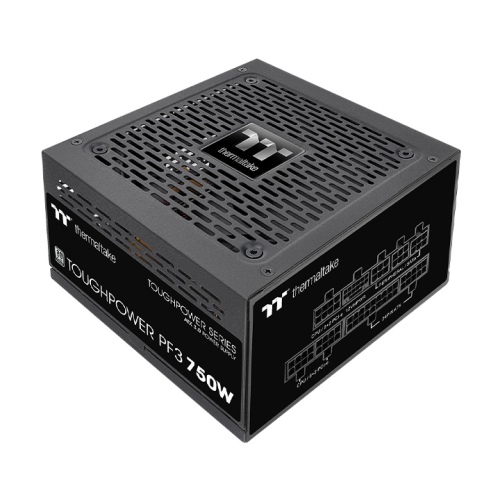

Toughpower PF3 750W Platinum - TT Premium Edition
Toughpower PF3 Platinum
750W / 850W / 1050W / 1200W
ATX 3.0 & PCIe Gen 5 Ready
Power Up Next Generation Hardware
To fully support next-gen hardware, Toughpower PF3 Platinum Series (750W/850W/1050W/1200W) is designed to meet ATX 3.0 standards, including a PCIe Gen 5.0 12VHPWR connector. The PF3 Platinum series delivers 80 PLUS Platinum efficiency, it also offers the highest stability, durability, and reliability.
See ATX 3.0 Test Report
Fully Compatible with Intel ATX 3.0 Standards
Toughpower PF3 Platinum series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.
ATX 3.0
ATX 2.0
Total power excursion
PCIe Gen 5.0 Ready
Toughpower PF3 series comes with a 16pin connector to offer powerful and
stable performance allowing the PSU to natively run next-generation
GPUs.
The wattage marked on the 12VHPWR’s connector is the recommended
wattage. (Ref. Intel design guideline)
The native 16 PIN (12VHPWR) PCIe connector of the PF3 750W can deliver
up to 300W for PCIe 5.0 graphics cards.
Note:
1. Recommended wattage is an estimation of system power demand.
Actual
power demands may vary based on specific components, usage, and many
other factors.
2. Please follow the recommended power requirements from the GPU
manufactures before using the 12VHPWR cable.
Made to Comply with the Latest Graphics Cards
As the power consumption of graphics cards increase, so has their demand for power. The PF3 Platinum series is designed to support NVIDIA and AMD graphics cards, and ready to supply the graphics cards according to their different ways of connections.
1 GPU Power Connector
2 GPU Power Connector
16 pin GPU Power Connector
80 PLUS Platinum Certified
80 Plus Platinum certification means the Toughpower PF3 converts power efficiently, resulting in lower power loss and heat buildup inside the power supply.
Compact Design with 140mm Depth
The Toughower PF3 Plantinum Series is designed to be compact with size of 140mm (D) x 86mm (H) x 150mm (W) which provides ample space for cable management.
Be Smart, Stay Quiet
Featuring a 120mm fluid dynamic bearing fan to create the perfect balance between silence and superior cooling. Furthermore, the Smart Zero Fan will adjust the fan speed and minimizes undesired noise.
＜30mV Low Ripple Noise Design
Top-end build quality with
low ripple noise. All ripples are lower than 30mV on +12V,
+5V or +3.3V from 0% to 100% load to ensure a stable
operation and keep your performance-critical components to
function reliably for longer.
Intel Specification PF3 series
Extremely Strict Voltage Regulation ＜±2%
The voltage regulation is
more strict than Intel’s standard +5%,-7% for major rails
and ±10% for -12V, is set to no more than ±2% for major
rails, providing steady clean power through exceptional
voltage stability.
Intel Specification
PF3 series
17ms and up Hold Up Time
During a power interruption, your computer might shut down
or reboot. We make sure that the PF3 series will deliver at
least 17ms at 100% workload, without system reboot or
resetting.
We make sure the PF3 series will deliver at least 17ms at
100% workload, without system reboot or resetting.
More Stable than Ever
100% high quality Japanese 105°C/221°F electrolytic capacitors provides great durability as well as offering the highest stability, while remaining reliable.
High Amperage Single +12V Rail & High-Class Technologies
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.
| AC Input |
Input Voltage: 100 - 240Vac
|
||||
| DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5VSB |
| Max Output Current |
20A |
20A |
62.5A |
0.3A |
2.5A |
| Max Output Power |
100W |
750W |
3.6W |
12.5W |
|
| Total Power |
750W |
||||
Fully Modular Low-Profile Cables
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile black cables make cable management easier, reduces clutter and increases airflow inside the chassis.
| Wattage | Connector Type | Connector Quantity | Cable Quantity | Cable Length | |
|---|---|---|---|---|---|
| Toughpower PF3 750W | Main Power (24Pin) |
 |
1 | 1 | 600mm |
| ATX 12V (4+4Pin) |
 |
2 | 1 | 650mm+150mm | |
| PCIe
(6+2Pin) |
 |
4 | 2 | 500mm+150mm | |
| PCIe 300W (12+4Pin) |
 |
1 | 1 | 600mm | |
| SATA |  |
8 | 2 | 500mm+150mm+150mm+150mm | |
| Peripheral |  |
4 | 1 | 500mm+150mm+150mm+150mm | |
| FDD Adapter |  |
1 | 1 | 150mm | |
Intel C6/C7 States Ready
The PF3 series has been optimized to work with all generations of Intel processors to achieve maximum energy saving.
| P/N | PS-TPD-0750FNFAPE-3 |
|---|---|
| watts | 750W |
| Model | TPD-750AH2FKP |
| Max. Output Capacity | 750W |
| Color | Black |
| Dimension ( W / H / D ) | 140mm(W)x86mm(H)x150mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-250 msec |
| Hold Up Time | > 17msec |
| Input Current | 10A |
| Input Frequency Range | 50/60Hz |
| Input Voltage | 100 - 240Vac |
| Operating Temperature | 0°C to + 40°C |
| Operating Humidity | 5% to 85%,non-condensing |
| Storage Temperature | -40°C to + 70°C |
| Storage Humidity | 5% to 95%, non-condensing |
| Cooling System | 12cm FDB Fan |
| Efficiency | Meet 80 PLUS® Platinum at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI |
| PCI-E 6+2pin | 4 |
| PCIe 12+4pin | 1 |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
Toughpower PF3 750w/850w/1050w/1200W_Manual
- Manual
- 2022-11-30
