Toughpower PF1 1200W - TT Premium Edition
Coming in a higher wattage, the Toughpower PF1 1050W/1200W
Platinum - TT Premium Edition delivers 80 PLUS Platinum efficiency and levels up in
cooling performance by featuring a 120mm High Static Pressure Fan which can perform at a
maximum operating speed of up to 2500 RPM. The second-generation hydraulic bearing,
exceptional fan blades, and anti-vibration mounting system of the fan also helps to
offer superb cooling performance. With a small footprint of 140mm (D) x 86mm (H) x 150mm
(L), the PF1 provides ample space for cable management.

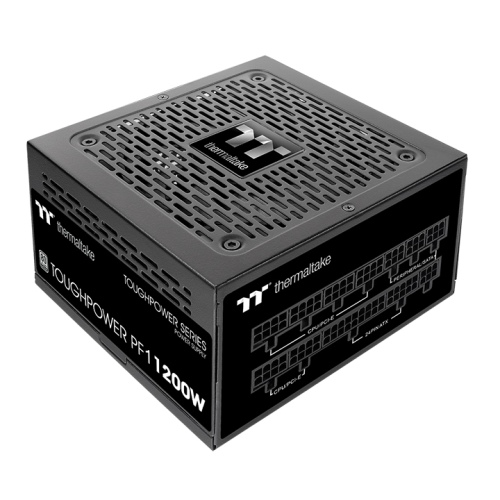

※The photo is for reference.
-
Durable Chassis
-
Concentrated Compression Fan Blade
-
DC to DC Design
-
Modular Cable Management
-
Side Ventilation Design
-
Anti-Vibration Mounting System
-
100% High Quality Japanese 105°C / 221°F Capacitors
Compact Design with 140mm Depth
The Toughower PF1 Plainum Series is designed to be compact with a size of 140mm (D) x 86mm (H) x 150mm (L) providing ample space for cable management
120mm High Static Pressure Fan
Toughpower PF1 1050W/1200W Platinum features a High Static Pressure Fan with a maximum
fan speed of up to 2500 RPM, ensuring superb cooling performance. The 2nd Generation
Hydraulic Bearing incorporates a new shaft design with inside etches, and an Exceptional
Blade Design to guarantee that the fan blades are very tensile in strength, and the
Anti-Vibration Mounting System is to provide protection and silent operation.
Smart Zero Fan
Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of
the power supply, minimizing the fan noise.
＜30mV Low Ripple Noise
All ripples are lower than 30mV on +12V, +5V or +3.3V
from 0% to 100% load to ensure a stable operation and keeps your performance-critical
components functioning more reliable for longer.
Intel Specification
Toughpower PF1 Series
Extremely Strict Voltage Regulation ＜±2%
The voltage regulation is stricter than Intel’s
standard of ±5% for major rails and ±10% for -12V, its set to no more than ±2% for major
rails to meet the highest performance.
Intel Specification
Toughpower PF1 Series
Fully Modular Low-Profile Flat Cable
Offers cable selection for users while
powering the system at an advantageous voltage. Low-profile flat black cable makes cable
management easier, reduces clutter and increases airflow inside the chassis.
One set of 24Pin Main connector (600mm) x 1
Two set of ATX 12V 8pin connector (650mm) x 1
Three sets of SATA connectors (500mm + 150mm + 150mm + 150mm) x 4
Four sets of PCI-E 6+2Pin connectors (500mm + 150mm) x 2
Two set of Peripheral connectors (500mm + 150mm + 150mm + 150mm) x 4
One set of Peripheral to Floppy adapter cable (150mm) x 1
Premium Japanese 105°C/221°F Capacitors
Providing great durability as well as offering the
highest
stability, while
remaining reliable.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable
supply to other PC components.
80 PLUS Platinum Certified and Intel C6/C7 States Ready
Toughpower PF1 Platinum series saves energy through its high energy efficiency up to 92% and is certified to 80 PLUS® Platinum. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
| P/N | PS-TPD-1200FNFAPE-1 |
|---|---|
| watts | 1200W |
| Model | TTP-1200AH2FLP |
| Max. Output Capacity | 1200W |
| Peak Output Capacity | 1400W |
| Color | Black |
| Dimension ( W / H / D ) | 150mm(W) x 86mm(H) x 140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 16msec at 100% of full load |
| Input Current | 20A ~ 8A |
| Input Frequency Range | 50Hz / 60Hz |
| Input Voltage | 100V ~ 240V |
| Operating Temperature | 5°C to + 50°C |
| Operating Humidity | 20% to 85%,non-condensing |
| Storage Temperature | -40°C to + 55°C |
| Storage Humidity | 10% to 95%, non-condensing |
| Cooling System | 12cm TOUGHFAN |
| Efficiency | Meet 80PLUS®Platinum at 115Vac input. |
| MTBF | 120,000 hrs minimum |
| Safety Approval | CE/UL/TÜV/FCC/CB |
| PCI-E 6+2pin | 8 |
| Protection | OCP, OVP, UVP, OPP, SCP, OTP |
