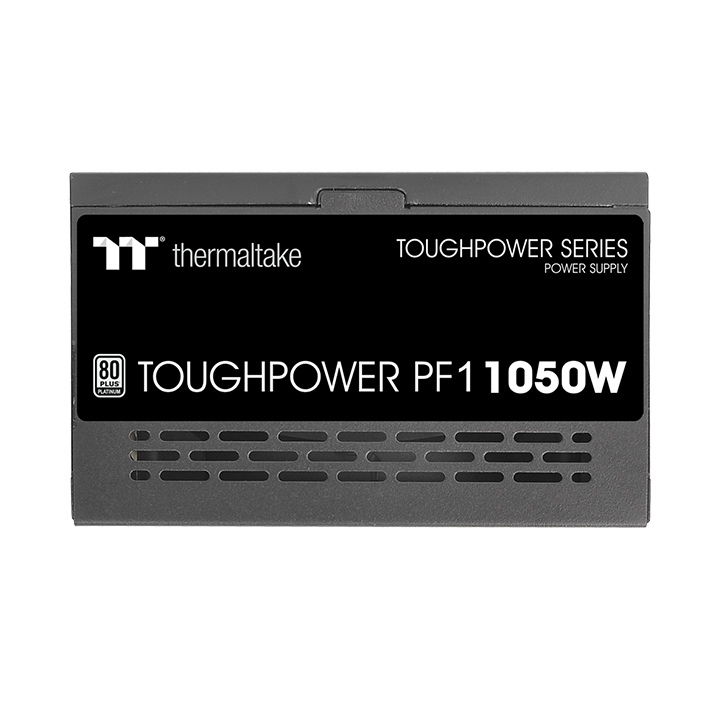

Toughpower PF1 1050W Platinum - TT Premium Edition

Toughpower PF1 1050W Platinum - TT Premium Edition

Out of stock
P/N
PS-TPD-1050FNFAPE-1
€276.90 (included VAT)
80 PLUS Platinum certified fully modular PSU with a 120mm High Static Pressure Fan
PF1

Toughpower PF1 1050W - TT Premium Edition

Coming in a higher wattage, the Toughpower PF1 1050W/1200W Platinum - TT Premium Edition delivers 80 PLUS Platinum efficiency and levels up in cooling performance by featuring a 120mm High Static Pressure Fan which can perform at a maximum operating speed of up to 2500 RPM. The second-generation hydraulic bearing, exceptional fan blades, and anti-vibration mounting system of the fan also helps to offer superb cooling performance. With a small footprint of 140mm (D) x 86mm (H) x 150mm (L), the PF1 provides ample space for cable management.

※The photo is for reference.

  • Durable Chassis

  • Anti-Vibration Mounting System

  • DC to DC Design

  • Modular Cable Management

  • Side Ventilation Design

  • Concentrated Compression Fan Blade

  • 100% High Quality Japanese 105°C / 221°F Capacitors

Compact Design with 140mm Depth

The Toughower PF1 Plainum Series is designed to be compact with a size of 140mm (D) x 86mm (H) x 150mm (L) providing ample space for cable management

120mm High Static Pressure Fan

Toughpower PF1 1050W/1200W Platinum features a High Static Pressure Fan with a maximum fan speed of up to 2500 RPM, ensuring superb cooling performance. The 2nd Generation Hydraulic Bearing incorporates a new shaft design with inside etches, and an Exceptional Blade Design to guarantee that the fan blades are very tensile in strength, and the Anti-Vibration Mounting System is to provide protection and silent operation.

Smart Zero Fan

Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise.

<30mV Low Ripple Noise

All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keeps your performance-critical components functioning more reliable for longer.

+12V Rail
120 mV
30 mV
+5V Rail
50 mV
30 mV
+3.3V Rail
50 mV
30 mV


Intel Specification Toughpower PF1 Series

Extremely Strict Voltage Regulation <±2%

The voltage regulation is stricter than Intel’s standard of ±5% for major rails and ±10% for -12V, its set to no more than ±2% for major rails to meet the highest performance.

+12V, +5V, +3.3V Voltage Regulation
±5 %
±2 %


Intel Specification Toughpower PF1 Series

Fully Modular Low-Profile Flat Cable

Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.

Main Power Connector (24Pin)
One set of 24Pin Main connector (600mm) x 1
ATX 12V (4+4Pin)
Two set of ATX 12V 8pin connector (650mm) x 1
SATA (5Pin)
Three sets of SATA connectors (500mm + 150mm + 150mm + 150mm) x 4
PCI-E (6+2Pin)
Four sets of PCI-E 6+2Pin connectors (500mm + 150mm) x 2
Peripheral (4Pin)
Two set of Peripheral connectors (500mm + 150mm + 150mm + 150mm) x 4
Floppy Adapter
One set of Peripheral to Floppy adapter cable (150mm) x 1

Premium Japanese 105°C/221°F Capacitors

Providing great durability as well as offering the highest stability, while remaining reliable.

High Amperage Single +12V Rail

Powerful single +12V rail ensures a stable and reliable supply to other PC components.

80 PLUS Platinum Certified and Intel C6/C7 States Ready

Toughpower PF1 Platinum series saves energy through its high energy efficiency up to 92% and is certified to 80 PLUS® Platinum. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

More Information
P/N PS-TPD-1050FNFAPE-1
watts 1050W
Form Factor ATX
Model TTP-1050AH2FLP
Max. Output Capacity 1050W
Peak Output Capacity 1260W
Color Black
Dimension ( W / H / D ) 150mm(W) x 86mm(H) x 140mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time > 16msec at 100% of full load
Input Current 16A ~ 8A
Input Frequency Range 50Hz / 60Hz
Input Voltage 100V ~ 240V
Operating Temperature 5°C to + 50°C
Operating Humidity 20% to 85%,non-condensing
Storage Temperature -40°C to + 55°C
Storage Humidity 10% to 95%, non-condensing
Cooling System 12cm TOUGHFAN
Efficiency Meet 80PLUS®Platinum at 115Vac input.
MTBF 120,000 hrs minimum
Safety Approval CE/UL/TÜV/FCC/CB
PCI-E 6+2pin 8
Protection OCP, OVP, UVP, OPP, SCP, OTP
