Thermaltake Toughpower iRGB PLUS 1250W Titanium - TT Premium Edition
Thermaltake Toughpower iRGB PLUS Titanium Series features a patented 16.8 million colors RGB fan, 12 addressable single LEDs and high-tech components. With the support for three Thermaltake’s intelligent platforms – DPS G PC APP, DPS G Smart Power Management (SPM) Cloud and DPS G Mobile APP– Toughpower iRGB PLUS Platinum Series becomes the world’s first voice controllable digital power supply that enables users to access power supply’s current status, CPU/VGA/RAM key parameters, control over RGB fan lighting mode and fan speed , along with the real-time alerts covering major PSU abnormalities, and eventually save energy and reduce CO2 emission.
What is Smart Power Management (SPM)?
What is Smart Power Management (SPM)? Smart Power Management (SPM) is a cloud-based software that seamlessly integrates three intelligent platforms – DPS G PC APP 3.0, DPS G Smart Power Management Cloud 1.0 and DPS G Mobile APP 1.0 – and compiles key statistics about your PC into detailed charts and breakdowns for your instant PC status view and management. With easy access to SPM through your PC or mobile devices, whether you are outside or indoors, enjoy taking full control of your build anytime, anywhere!
The SPM platform comes with real-time warning alert function, which will appear on your DPS G Mobile APP/DPS G Smart Power Management Cloud and also your email when fan failure, PSU over temperature (over 140℉/60℃), or abnormal voltage level (over/under 5% of normal level) occurs. Then users can shut down their PC remotely to avoid further damage.
Save PC energy and electricity cost by scheduling your PC to shutdown at any time you want through DPS G Mobile APP or DPS G Smart Power Management Cloud.
※The photo is for reference.
Shimmering Your Build From Color to Color
The Toughpower iRGB PLUS Platinum Series is the best idea for users to go with when they are looking for an RGB PSU
with remarkable functionality and aesthetics in all cases.
Patented 16.8 Million Colors Riing PLUS 14 RGB Fan
The first iRGB PSU series introduced by Thermaltake install with a patented circular16.8
million multi-colored 140mm fan. Users can freely adjust fan speed and customize the lighting effects with DPS G
Taiwan Patent: 105218791
US Patent Applied
China Patent Applied
100% High Quality Japanese Capacitors
The Toughpower iRGB PLUS 1250W Titanium features 100% high quality Japanese brand capacitors, which greatly
improves the durability and offers the highest stability and reliability.
Fully Modular Cable Design
Fully modular power supply offers cable selection for users while powering the system at an advantageous voltage. Individually sleeved cable and flat cable can make cable management easier, reduce clutter and increase airflow inside the chassis.
Core Component: MCU
Toughpower iRGB PLUS 1250W Titanium Series comes with a 32Bit Microcontroller Unit (MCU) from Microchip Technology. The 32Bit MCU is a small computer on a single integrated circuit containing a processor core, memory, and programmable input/output peripherals. MCU can digitally control devices and processes, such as automobile engine control systems and office machines.
Digital Control Board
Digital power supplies sport high-efficiency switching transistors that perform only necessary steps and waste less energy given off as heat. In short, digital power supplies do not dissipate power, which creates waste, and incorporate smaller, lighter transistors. Using smaller parts that work more efficiently enables Thermaltake to craft smaller and lighter power supplies, typically one of the bulkiest components in any PC.
Massive and Dedicated +12V Output
Toughpower iRGB PLUS 1250W Titanium is equipped with a powerful single +12V
rail, please see the output specification below:
Input Voltage: 100V - 240V
|Max Output Current||20A||
|Max Output Power||
80 PLUS Titanium-Certified and Kaby lake-Ready
Toughpower iRGB 1250W Titanium Power Supply with DPS G software delivers up to 94% efficiency under real-world load conditions, promising the lowest power losses. Additionally, Toughpower iRGB PLUS 1250W Titanium has been optimized to work with Intel’s new, seventh-generatio Kaby lake processors to achieve maximum energy savings.
TT Power VR Ready
Toughpower i Series power supplies offer stable and sufficient output voltage for multiple VGA cards and high Capability of different VGA cards for VR system.

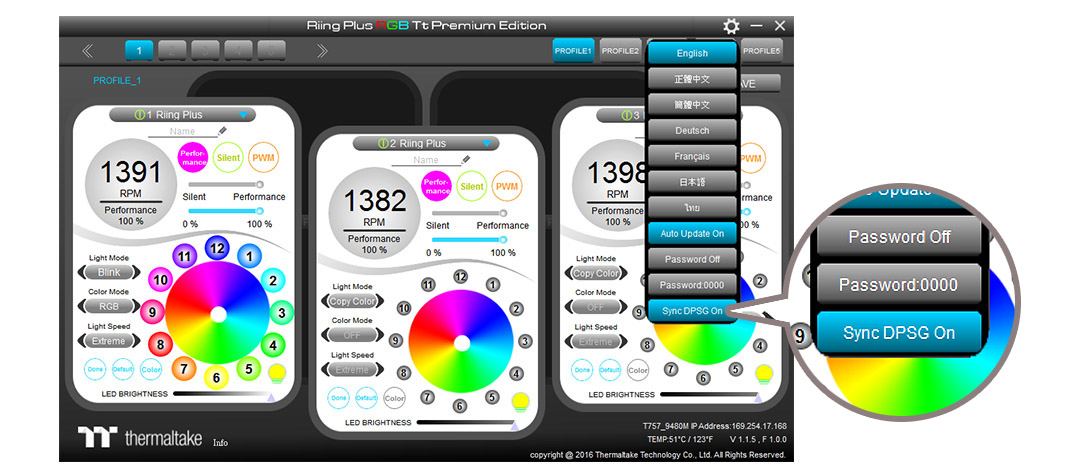

TT RGB PLUS Software
2.0 - New version of Thermaltake’s TT RGB PLUS patented software, providing more lighting effects and PC monitoring functions.
1.0 - Thermaltake’s patented software to synchronize TT RGB PLUS products with addressable LEDs.
Caution: TT RGB PLUS 2.0 and TT RGB PLUS 1.0 will overwrite one another; users can only install one version of TT RGB PLUS.
2.0 DOWNLOAD NOW
2.0 USER MANUAL
1.0 DOWNLOAD NOW LEARN MORE
Sync with Razer Chroma Lighting
All Thermaltake TT RGB PLUS products are able to connect into the Razer Chroma ecosystem, Razer Synapse 3. Users can experience synchronized gaming and RGB lighting effects on their TT RGB PLUS liquid cooling system and Razer gaming gear!
Works with Amazon Alexa
All Thermaltake TT RGB PLUS products support Amazon Alexa Voice Service, allowing you to give voice commands to the Alexa-enabled devices.
|Type||Intel ATX 12V 2.31 & SSI EPS 12V 2.92|
|Max. Output Capacity||1250W|
|Peak Output Capacity||1500W|
|Dimension ( W / H / D )||150mm(W) x 86mm(H) x 200mm(D)|
|PFC (Power Factor Correction)||Active PFC|
|Power Good Signal||100-500 msec|
|Hold Up Time||> 16msec at 100% of full load (115Vac/ 230Vac input)|
|Input Frequency Range||47Hz - 63Hz|
|Input Voltage||100V - 240V|
|Operating Temperature||0 ℃ to +50℃|
|Operating Humidity||20% to 90%,non-condensing|
|Storage Temperature||-20 ℃ to +70 ℃|
|Storage Humidity||5% to 95%, non-condensing|
|Cooling System||14cm Riing PLUS Fan|
|Efficiency||MEET 80 Plus Titanium at 115Vac input.|
|MTBF||120,000 hrs minimum|
|Safety Approval||CE/FCC/UL/ TUV/EAC|
|Protection||OPP, OVP, UVP, OCP, OTP, SCP|
