TOUGHPOWER GT Snow 1000W

In stock

P/N

PS-TPT-1000FNFAGE-W

€179.90 (included VAT)

80 PLUS Gold certified, fully modular PSU, compatible with ATX 3.1 specifications, and equipped with a native 12V-2x6 connector.

Toughpower GT Series

The fully modular Toughpower GT Snow series is designed to deliver 80 PLUS Gold efficiency and is compatible with ATX 3.1 standards. Its native PCIe 12V-2x6 (12+4 pin) modular interface efficiently powers PCIe 12+4 pin graphics cards. Backed by an extensive 5-year warranty, the Toughpower GT Snow series meets the needs of value-oriented users seeking a new power supply with reliable performance.

ATX 3.1 Ready

Toughpower GT Snow series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% efficiency at low load and complies with required power supply timing standards.

ATX 3.1

ATX 2.0

Total power excursion

1.3X

Total Power Excursion

GPU Power Excursion

PCIe Gen 5.1 Ready

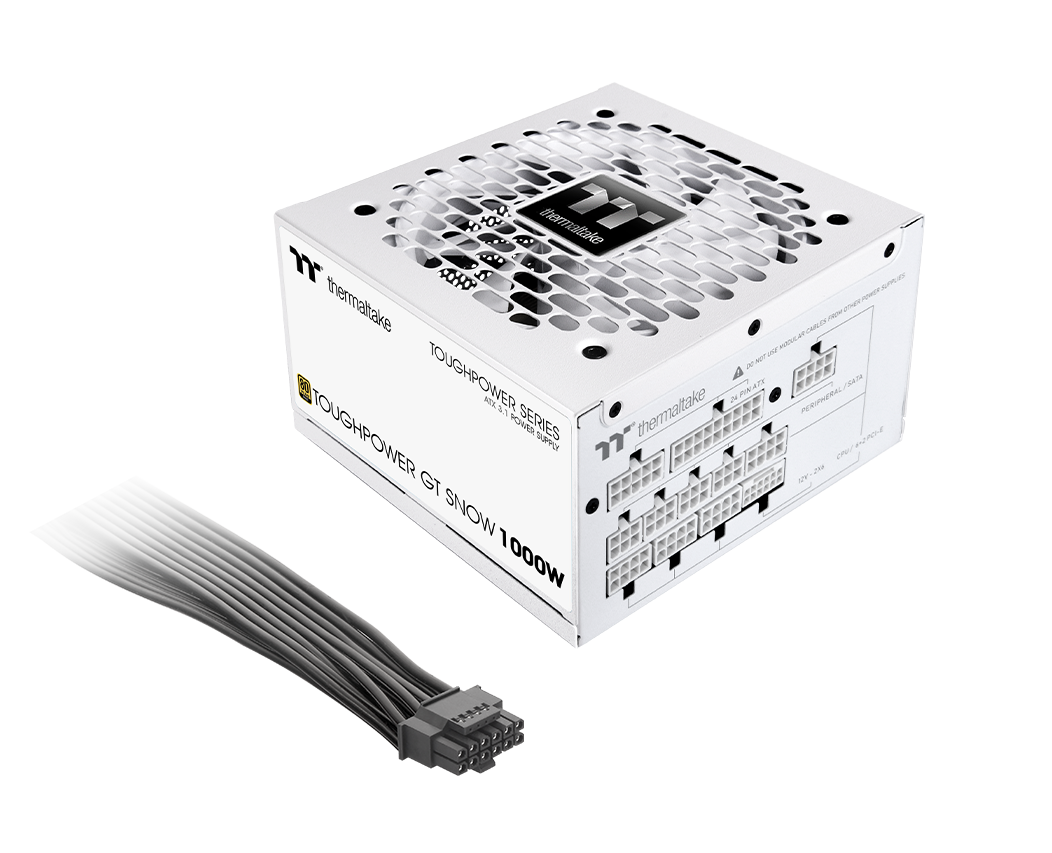

Toughpower GT Snow series comes with a PCIe 12V-2x6 connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.

The wattage marked on the PCIe 12+4-pin cable connector represents the recommended wattage (Ref. Intel design guideline). The bundled PCIe Gen 5.1 (12+4pin) cable connector of the Toughpower GT Snow 1000W can deliver up to 600W for PCIe 12+4pin graphics cards.

Note:
1. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
2. Please follow the recommended power requirements from the GPU manufactures before using the PCIe 12+4pin cable.

12+4pin Connector

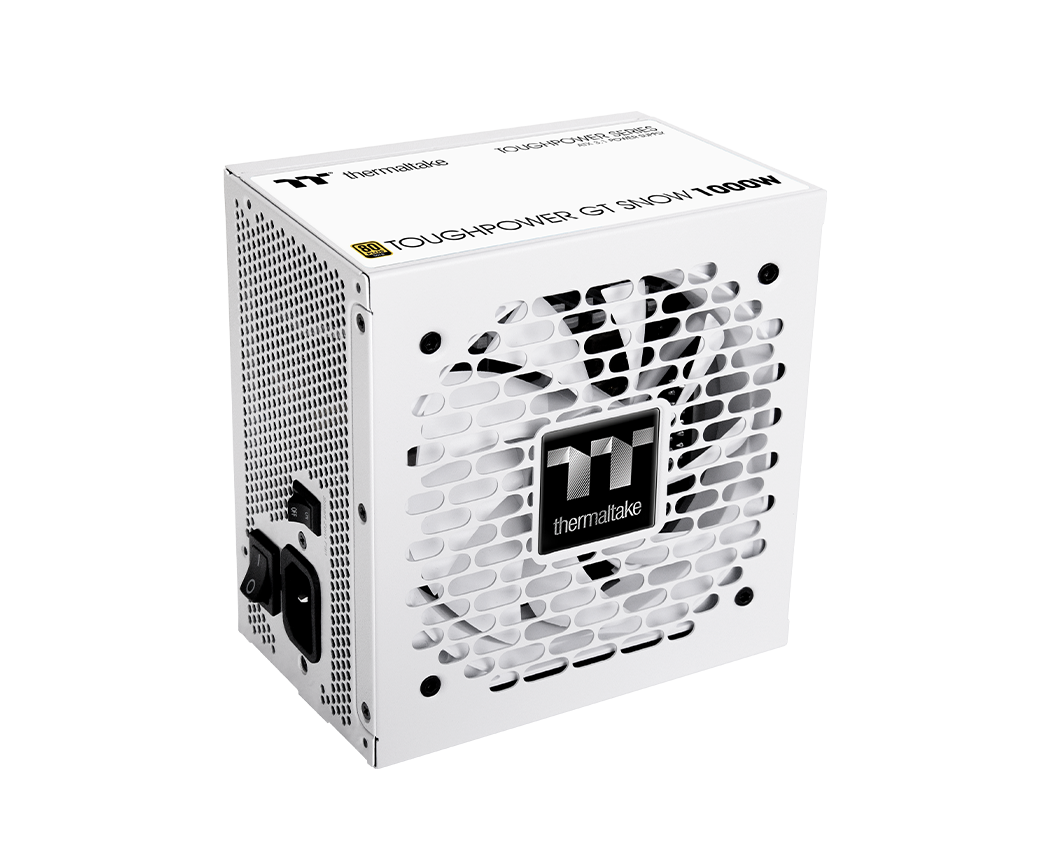

Ultra Quiet 120mm Hydraulic Bearing Fan with Smart Zero Fan

Featuring an 120mm Hydraulic Bearing Fan to keep friction at really low level. Designed with our Smart Zero Fan to adjust the fan speed and minimizes undesired noise.

High Amperage Single +12V Rail & High-Class Technologies

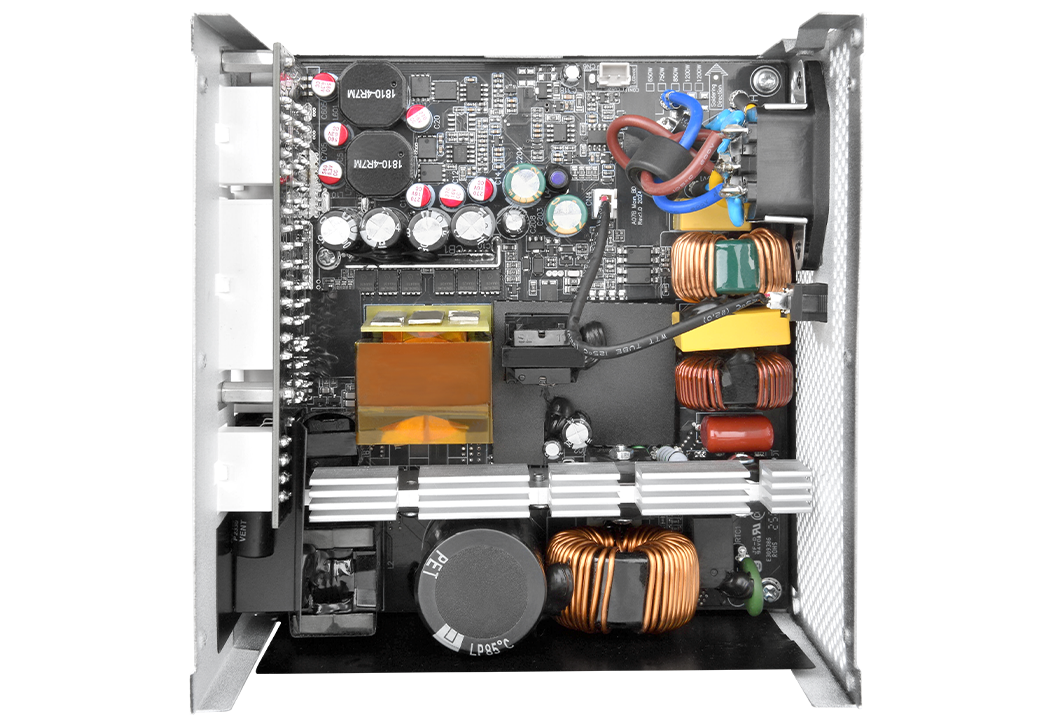

Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.

AC INPUT	Input Voltage: 100 - 240V~ Input Current: 15-10A Frequency: 50Hz-60Hz
DC OUTPUT	+3.3V	+5V	+12V	-12V	+5VSB
Max Output Current	20A	20A	83.3A	0.3A	3A
Max Output Power	100W		999.6W	3.6W	15W
Total Power	1000W

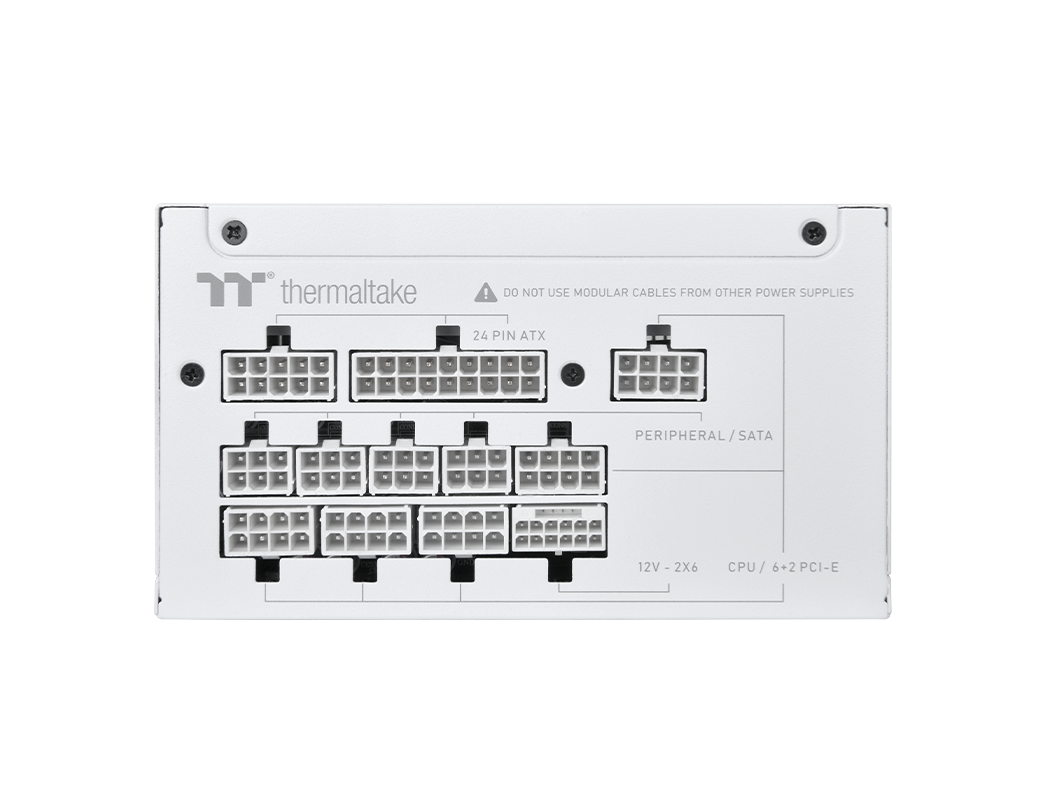

Fully Modular Low-Profile Cables

Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat white cables make cable management easier, reduces clutter and increases airflow inside the chassis.

Connector Type	Connector Quantity	Cable Quantity	Cable Length
Main Power (24Pin)	X 1	X 1	550mm
ATX 12V (4+4Pin)	X 2	X 2	700mm
PCIe (6+2Pin)	X 5	X 1	600mm
PCIe (6+2Pin)	X 5	X 2	600mm+150mm
PCIe (12+4Pin) 600W	X 1	X 1	600mm
SATA (5Pin)	X 6	X 2	450mm+150mm+150mm
Peripheral(4Pin)	X 4	X 1	400mm+150mm +150mm+150mm

Built-in Industrial Grade Protection

To protect the hardware, Toughpower GT Snow series is built with industrial grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).

OCP

Over Current Protection
OVP

Over Voltage Protection
UVP

Under Voltage Protection
OPP

Over Power Protection
SCP

Short Circuit Protection
OTP

Over Temperature Protection

80 PLUS Gold Certified

Toughpower GT Snow series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold.

More Information
P/N	PS-TPT-1000FNFAGE-W
watts	1000W
Model	TPD-1000AH2FXG-3
Max. Output Capacity	1000W
Color	Snow
Dimension ( W / H / D )	150mm(W)x86mm(H)x140mm(D)
PFC (Power Factor Correction)	Active PFC
Power Good Signal	100-250 msec
Hold Up Time	> 17msec at 80% load
Input Current	15-10A
Input Frequency Range	50Hz-60Hz
Input Voltage	100-240V～
Operating Temperature	0°C to + 40°C
Operating Humidity	5% to 85%,non-condensing
Storage Temperature	-40°C to + 70°C
Cooling System	12cm Hydraulic bearing fan
Efficiency	Meet 80 PLUS® Gold at 115Vac input.
MTBF	100,000 hrs minimum
Safety Approval	CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK/EAC
PCI-E 6+2pin	5
PCIe 12+4pin	1
Protection	OVP/UVP/OCP/OPP/OTP/SCP

User Manual

File Name
Description
Size
Version
Release Date

TOUGHPOWER GT 1000.1200W Manual
User Manual
2025-04-21
