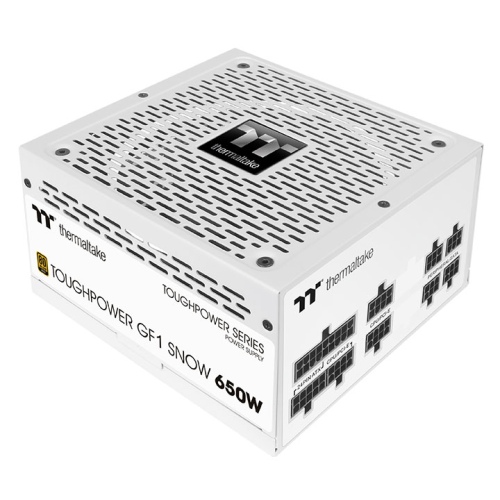

Toughpower GF1 650W Snow - TT Premium Edition
The fully modular Toughpower GF1 Snow Edition series comes in 650W and built to deliver 80 PLUS Gold efficiency. Toughpower GF1 Snow 650W features flat white cables, a 140mm hydraulic bearing fan, Japanese capacitors and other premium components to help deliver a continuous and stable power with an ambient temperature up to 50°C, while near silent operation and reliable performance are guaranteed. With an ample 10-year warranty, the Toughpower GF1 650W Snow Gold can satisfy PC enthusiasts who are looking for a white premium power supply with all the latest features. For users who crave for a pure white build, this power supply can defenitely meet their demand.
Zero Cable Platform
Farewell to messy cables! We have connected the back panel and the PCB with a copper plate for better heat dissipation and impressive output power quality.
Ultra Quiet 140mm Hydraulic Bearing Fan
Featuring a 140mm hydraulic bearing fan with
controls to help
guarantee superior cooling performance and near silent operation.
Smart Zero Fan
Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise.
Fully Modular Low-Profile Flat Cable
Fully modular low-profile flat cables offer cable selection while powering the system at an advantageous voltage. By only connecting the cables your system needs, cable management is easier, clutter is reduced, and the airflow inside the chassis is increased. Additionally, the white flat cables can enrich the users' PC build experience depending on their build style.
One set of 24pin Main connector (600mm) x 1
One set of ATX 12V 4+4pin connector (650mm+150mm) x 1
Three sets of SATA connectors (500mm + 150mm + 150mm) x 3
Two sets of PCI-E 6+2pin connectors (500mm + 150mm) x 2
One set of Peripheral connectors (500mm + 150mm + 150mm + 150mm) x 4
One set of Peripheral to Floppy adapter cable (150mm) x 1
Premium Japanese 105°C/221°F Capacitors.
Providing great durability as well as offering the highest stability, while remaining reliable.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.
80 PLUS Gold Certified and Intel C6/C7 States Ready
Toughpower GF1 Snow series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
|Max. Output Capacity||650W|
|Peak Output Capacity||780W|
|Dimension ( W / H / D )||150mm(W) x 86mm(H) x 160mm(D)|
|PFC (Power Factor Correction)||Active PFC|
|Power Good Signal||100-500 msec|
|Hold Up Time||> 16msec at 100% of full load|
|Input Frequency Range||47Hz - 63Hz|
|Input Voltage||100V – 240V~|
|Operating Temperature||0°C to + 50°C|
|Operating Humidity||20% to 90%,non-condensing|
|Storage Temperature||-20°C to + 70°C|
|Storage Humidity||5% to 95%, non-condensing|
|Cooling System||14cm hydraulic bearing fan|
|Efficiency||Meet 80 PLUS®Gold at 115Vac input.|
|MTBF||120,000 hrs minimum|
|Protection||OCP, OVP, UVP, OPP, SCP, OTP|
