TOUGHLIQUID Ultra 420 RGB All-In-One Liquid Cooler
New 420mm Model for Next Generation CPUs
A new generation CPU means higher demands for your CPU cooling devices, and if you’re looking for some fancy AIO for your build, the TOUGHLIQUID Ultra 420 RGB is the one you should go for. This 420mm all-in-one liquid cooler has a 2.1 rotational LCD Display for distributing video and photos; its three gorgeous TOUGHFAN 14 RGB with a maximum fan speed of 2000 RPM guarantees the best cooling performance while showing off beautiful RGB lighting of the fans.

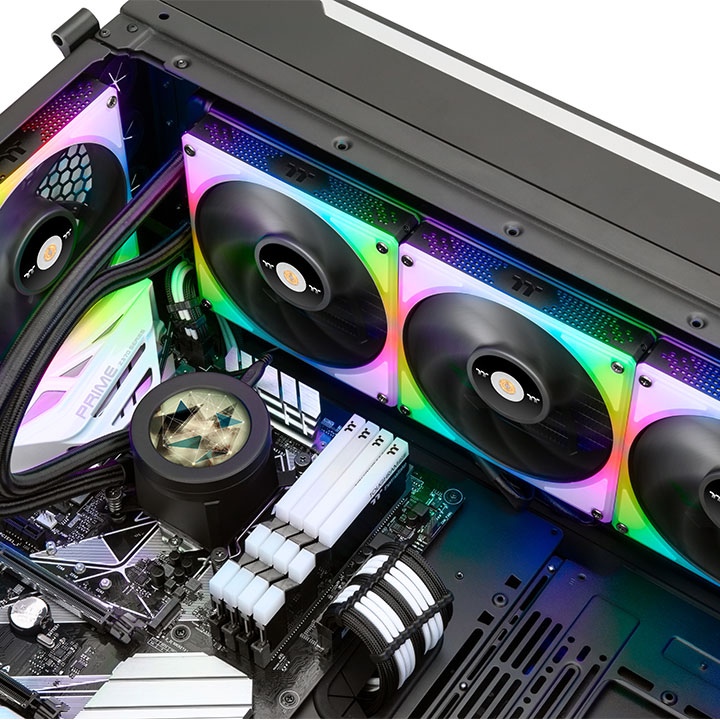

Pair with our Ceres 500 Mid-Tower Chassis
Want to build a nice PC with this TOUGHLIQUID Ultra 420 RGB AIO but don’t want to use a bulky-size chassis?
Are you concerned if a smaller chassis will fit a 420mm AIO?
Go with our Ceres 500 Mid-Tower Chassis and build a PC with great cooling performance and remain synchronized!
*The image is for reference only
Personalize Your LCD Display
2.1 Inch Rotational LCD display presents real-time information and plays JPG, GIF, PNG, MP4, MOV and AVI files with 480*480 resolution. What’s more is users can even show the time and weather information on the display, bringing great visual aesthetics and highly customizable functions to your build.
Caution: The cap can only rotate from 0 to 270 degrees.
(See here)
Get the Right Material to Get Extra Cool

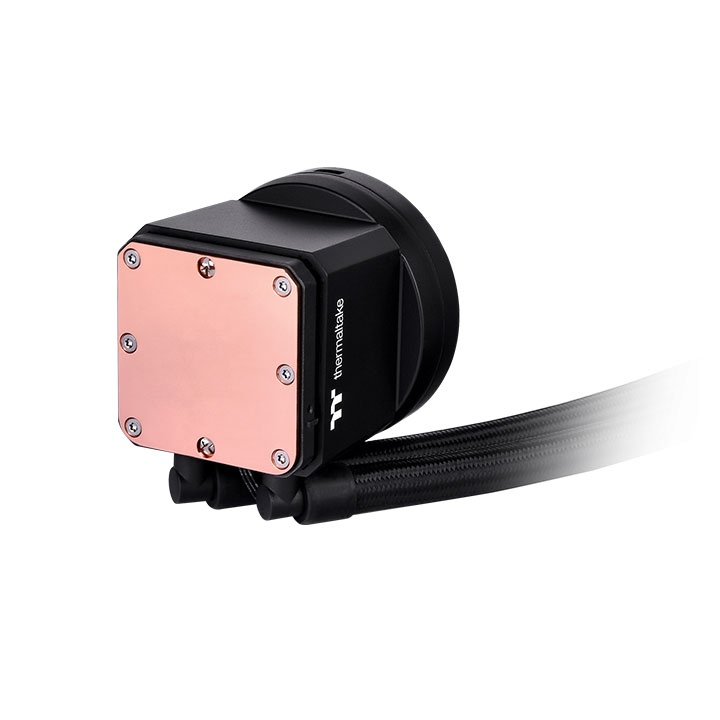

The high-performance copper base plate accelerates heat conductivity. The high-quality and reliable pump enables maximum water circulation, keeping the copper plate continuously cool. The low evaporation tube effectively decreases the loss of coolant; therefore, no refill is required.
Gorgeous Lighting, Powerful, Silent
TOUGHFAN 14 RGB is specially designed with a unique luminous fan frame with 24 addressable 16.8 million color LEDs evenly distributed within its frame. It can perform at a maximum operating speed of up to 2000 RPM, producing a consistent airflow of 107 CFM with 3.04 mm-H2O static pressure and maintaining a low audio noise level of 30.7 dB-A, providing excellent cooling performance and more personalization option for your build.

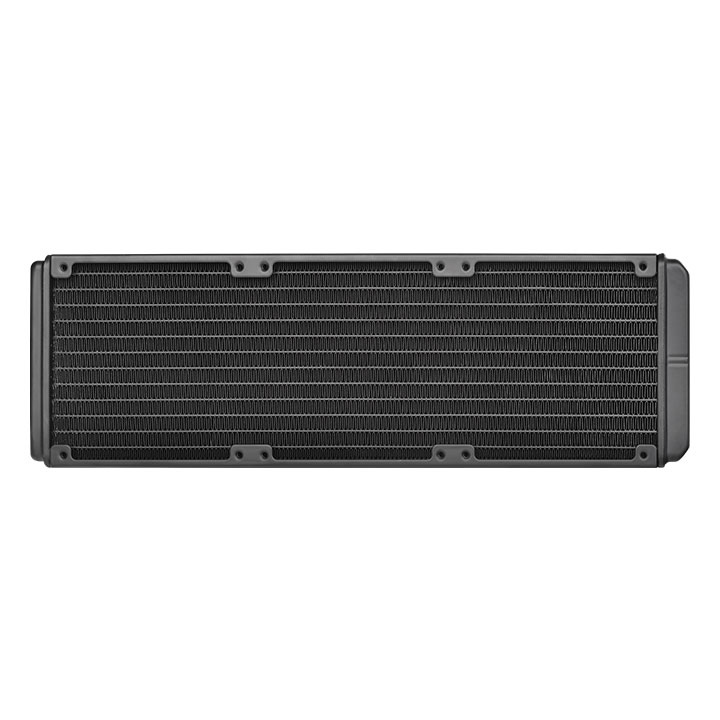

Larger Radiator Higher Efficiency
Specially designed 420mm large surface radiator increases surface, delivering exceptional heat dissipation.
Fully Customizable with TT RGB Plus 2.0
Get complete control of this TOUGHLIQUID Ultra 420 RGB AIO. You get to monitor your PC’s frequency and real-time temperature directly from our 2.1-inch LCD Display. You can choose weather mode to display local weather, choose time mode to show time, or even upload images or videos to add an extra flair to your build with the TT RGB Plus 2.0 software. Speed up, tone down your fan speed, or choose the lighting effects you want to display on your build.
Caution: The Ultra Series products are only supported by the TT RGB Plus 2.0. Software.
Check out more animated GIFs for your AIO displays here.
Start-up & Standby Screen Setting
Any CPU Can Be the Right CPU
The package includes brackets for the latest Intel and AMD CPU sockets to be compatible with the most modern CPU platforms, including the latest Intel LGA1700 and AMD AM5 CPUs.
Compatibility list:
Intel: LGA 2066/2011-3/2011/1851/1700/1200/1156/1155/1151/1150
AMD: AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1
TT RGB PLUS Software
2.0 - New version of Thermaltake’s patented TT RGB PLUS software, providing more lighting effects and PC monitoring functions.
1.0 - Thermaltake’s patented software to synchronize TT RGB PLUS products with addressable LEDs.
Caution: TT RGB PLUS 2.0 and TT RGB PLUS 1.0 will overwrite one another; users can only install one version of TT RGB PLUS.
2.0 DOWNLOAD NOW
2.0 USER MANUAL
1.0 DOWNLOAD NOW
LEARN MORE
NeonMaker
The NeonMaker is a new and innovative approach to adjusting the RGB lighting on some of our products, allowing users to customize lighting profiles and orchestrate their own light shows.
Personalize Riing Quad Fans, Riing Trio Fans, Distro Case, Floe DX RGB AIO, and TOUGHRAM RGB with NeonMaker!
Works with Amazon Alexa
All Thermaltake TT RGB PLUS products support Amazon Alexa Voice Service, allowing you to give voice commands to Alexa-enabled devices.
TT AI Voice Control
Gain full control over your TT RGB PLUS products with your voice. Just say “Sync ALL” and “Hello TT.”
Note: TT AI Voice Control and Amazon Alexa require at least one TT RGB PLUS software-enabled product to function.
| P/N | CL-W370-PL14SW-A |
|---|---|
| Pump | Motor Speed : 3500 RPM Rated Voltage : 12V Rated Current : 0.42A Power Input : 5.04W |
| CPU Display | Rated Voltage : 5 V Power Input : 1.15 W Display Type : 2.1” TFT-LCD (IPS) Display Resolution : 480x480 (RGB) px Rotation Angle : 0°~270° |
| Display Support | Interface : Micro USB to USB (9PIN) System Compatibility : Windows 10/11 |
| Water Block | Material : Copper |
| Fan | Dimension : 140 x 140 x 25 mm Speed : PWM 500~2000 R.P.M Noise Level : 30.7 dB-A (one fan) Power Input : 12V-3.48W , 5V-4.4W (one fan) Rated Voltage : 12 V & 5V Rated Current : 12V- 0.29A , 5V- 0.88A (one fan) Max. Air Flow : 107 CFM (one fan) Max. Pressure : 3.04 mm-H2O (one fan) |
| Tube | Length : 460 mm Material : Rubber |
| Radiator | Dimension : 456 x 140 x 27 mm Material : Aluminum |
| Compatibility | Intel: LGA 2066/2011-3/2011/1851/1700/1200/1156/1155/1151/1150 AMD: AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1 |
