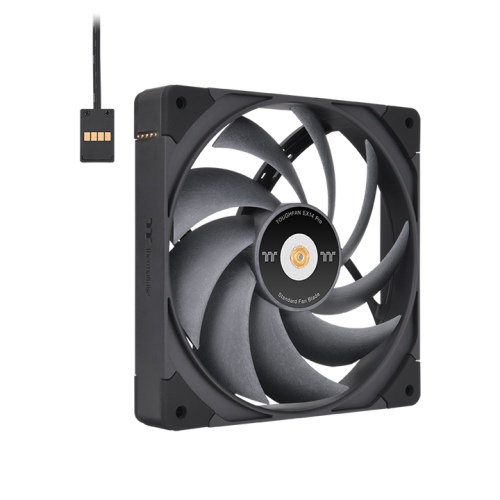

TOUGHFAN EX14 Pro High Static Pressure PC Cooling Fan – Swappable Edition (3-Fan Pack) TOUGHFAN EX14 Pro High Static Pressure PC Cooling Fan – Swappable Edition (3-Fan Pack) TOUGHFAN EX14 Pro High Static Pressure PC Cooling Fan – Swappable Edition (3-Fan Pack) TOUGHFAN EX14 Pro High Static Pressure PC Cooling Fan – Swappable Edition (3-Fan Pack) TOUGHFAN EX14 Pro High Static Pressure PC Cooling Fan – Swappable Edition (3-Fan Pack) TOUGHFAN EX14 Pro High Static Pressure PC Cooling Fan – Swappable Edition (3-Fan Pack)
TOUGHFAN EX14 Pro High Static Pressure PC Cooling Fan – Swappable Edition (3-Fan Pack)

TOUGHFAN EX14 Pro High Static Pressure PC Cooling Fan – Swappable Edition (3-Fan Pack)

In stock
P/N
CL-F172-PL14BL-A
€86.90 (included VAT)
By adding the MagForce 2.0 and swappable fan blade design to the powerful TOUGFHAN Pro, the new TOUGHFAN EX Pro can provide supreme cooling performance with a quick magnetic connection, allowing you to swap the fan blades to fit installation preferences.

Steady Connection with MagForce 2.0

Evolved from SWAFAN EX’s Magnetic Force Design, the new MagForce 2.0 has the Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential faulty alignment no matter you are daisy-chaining fans together or connecting fans with cable, further boosting the installation efficiency and streamlining the building experience.

Say Goodbye to Excessive Cables

Connect your fans with TOUGHFAN EX Pro’s MagForce 2.0 Quick Connect Design and be free from messy cables!

Click to see the difference:


L
o
a
d

Improved Structure for Superior Performance

The TOUGHFAN EX Pro is designed with a square fan frame featuring a new outline that prevents air leakage effectively while installed on a chassis or radiator during operation.

Beveled Edge
With Swappable Fan Blade Design

No Swappable Fan Blade Design


Anti-vibration Mounting System

The TOUGHFAN EX Pro is designed with 80% coverage for all corners, with the in-mold injection anti-vibration rubber pads dampening the fan’s vibration, allowing the fan to spin at a higher level while maintaining a low noise level.

More Information
P/N CL-F172-PL14BL-A
Fan Dimension 140 x 140 x 25 mm
Interface 2510-4P
Started Voltage 6 V
Rated Current 0.3 A
Rated Voltage 12 V
Power Input 3.6 W
Fan Speed PWM 500~2000 R.P.M
Max. Air Pressure Standard Fan Blade : 3.57 mm-H2O(one fan)
Reverse Fan Blade : 2.95 mm-H2O(one fan)
Air Flow Standard Fan Blade : 119.6 CFM(one fan)
Reverse Fan Blade : 102.3 CFM(one fan)
Noise Standard Fan Blade : 31.6 dB-A(one fan)
Reverse Fan Blade : 34.1 dB-A(one fan)
Bearing Type Hydraulic Bearing
Life Expectation 40,000 hrs,25℃
Included ltems Fan Frames x 3
Standard Fan Blade x 3 (Pre-installed)
Reverse Fan Blade x 3
Cable x 3

User Manual
