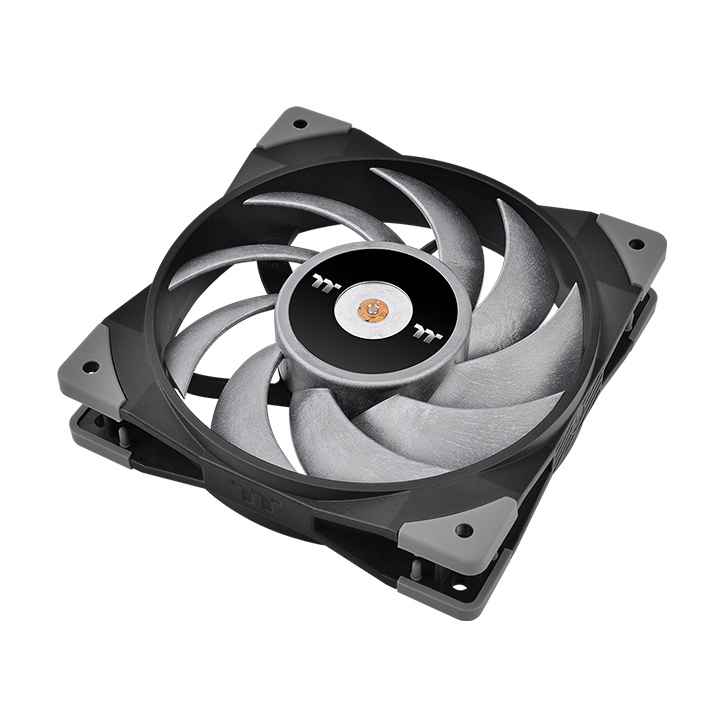

TOUGHFAN 12 Turbo High Static Pressure Radiator Fan (Single Fan Pack)

TOUGHFAN 12 Turbo High Static Pressure Radiator Fan (Single Fan Pack)

In stock
P/N
CL-F121-PL12GM-A
€27.90 (included VAT)
Thermaltake TOUGHFAN Turbo is a PWM controlled high static pressure fan with a maximum operating speed of up to 2500 RPM, fulfilling users’ high-end cooling needs.

ToughFan Series

Superb Cooling Performance at 2500 RPM

TOUGHFAN Turbo is a PWM controlled fan with a maximum operating speed of up to 2500 RPM, bringing our users the ultimate cooling experience.

Exceptional Grey Fan Blades

Featuring high tensile strength and low thermal expansion coefficient material, the THOUGHFAN Turbo is designed with grey colored liquid crystal polymer (LCP) made fan blades, minimizing vibration when the fan operates at full speed.

Metal-Reinforced Motor Hub

The TOUGHFAN’s center is constructed with a full steel motor hub providing enhanced stability and durability.

Full Steel Motor Hub

Second Generation Hydraulic Bearing

2nd Generation Hydraulic Bearing

The 2nd generation hydraulic bearing incorporates a new shaft design with inside etches allowing preservation of lubricant on both sides whilst reducing noise during operation. Lowering audible levels and extending lifespan.

High Air Pressure and High Airflow

TOUGHFAN Series is designed to produce high static pressure and airflow, providing users impeccable cooling results.

TOUGHFAN 12 Turbo – 72.69 CFM/ 500~2500 R.P.M/ 3.78 mm-H2O
TOUGHFAN 14 – 119.1 cfm/ 500-2000 R.P.M/ 3.54 mm-H2O
TOUGHFAN 12 – 58.35 cfm / 500-2000 R.P.M/ 2.41 mm-H2O

Anti-Vibration Mounting System

The in-mold injection anti-vibration rubber pads dampen the vibration of the fan allowing the fan to spin at higher levels without compromising noise levels. The fan is designed with 80% coverage for all corners, maintaining low noise levels when in operation.

More Information
P/N CL-F121-PL12GM-A
Fan Dimension 120 x 120 x 25 mm
Fan Started Voltage 9.0 V
Fan Rated Voltage 12 V
Rated Current 0.23 A
Power Input 2.76 W
Fan Speed PWM 500~2500 R.P.M
MAX. STATIC PRESSURE 3.78 mm-H2O
Max Air Flow 72.69 CFM
Noise 28.1 dB-A
Bearing Type Hydraulic Bearing Gen.2
Life Expectation 40,000 hrs,25℃
Connector 4 PIN PWM
Weight 217.7 g
