Being the new mid tower chassis of The Tower Series, The Tower 600 Light-Year Green is an ATX case with a classic vertical case design and comes in an octagonal prism shape that is compatible with the latest hidden-connector motherboards. It supports up to a 420mm AIO radiator on the right side and a 360mm AIO radiator on the left side, and it can accommodate up to thirteen 120mm fans or nine 140mm fans. If you want to make The Tower 600 Light-Year Green more visually appealing, you can purchase the separately sold 3.9" LCD Screen Kit and Chassis Stand Kit to upgrade the build; the former to display real-time component information and the latter for a unique view with a special horizontal placement. With its unique design and ample space, The Tower 600 Light-Year Green is ready to unlock the full potential of your configuration.
The image is for reference only.
The Tower 600 Light-Year Green retains the iconic contours of its predecessors with a vertical body design, but in an octagonal prism shape that provides flexibility and minimizes obstructions to your gaming and workspace.
The image is for reference only.
With the optional chassis stand kit, which includes a bottom cover panel and a display stand for horizontal case placement, The Tower 600 Light-Year Green allows for easy customization of the case for a unique viewing experience.
How to install:
1. Unscrew the original feet located on the base of the chassis
2. Install the new bottom cover of the chassis and carefully place The Tower 600 Light-Year Green on the stand
*Note: It is recommended to position the radiator higher than the AIO pump.
The image is for reference only.

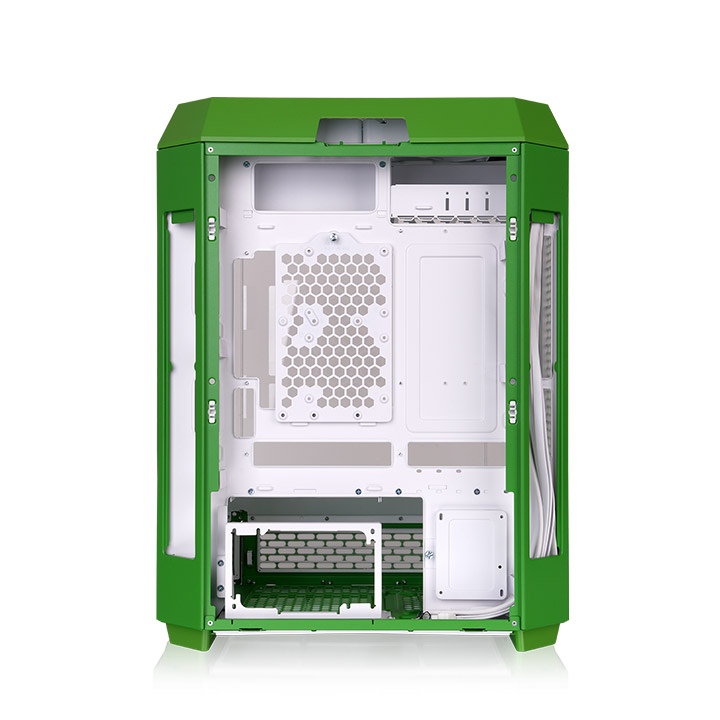

Created for next-generation motherboards, The Tower 600 Light-Year Green features a special design that enables support for both standard motherboards and hidden-connector motherboards. Moreover, there are two removable panels on the both left and right sides of the rear side for easy access to cable routing.
*Compatible with hidden-connector
motherboards:
ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series
The Tower 600 Light-Year Green provides excellent cooling by supporting up to a 420mm radiator on the right side and a 360mm radiator on the left side, effectively reducing the temperature inside the chassis and maintaining optimal system performance.
The image is for reference only.

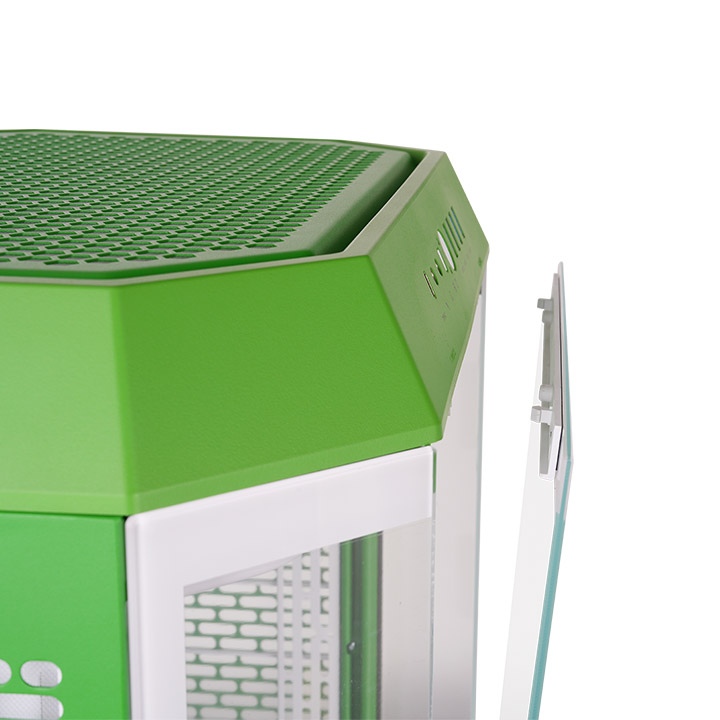

The Tower 600 Light-Year Green features three 3mm tempered glass panels on the front and two perforated panels on each side. All are easily removable without tools.
The image is for reference only.
Thermaltake launches brand-new CT series fans, allowing users to choose from black or white, RGB or non-RGB, to match whatever color scheme you have.
Maximize your Tower 600’s visual effects by upgrading it with our LCD Screen Kit.
The 3.9” LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the TT RGB Plus software. It also allows you to interact with the cooling components that feature the same LCD displays. The latest version includes weather mode and time mode for users to expand the usage of our LCD displays.
The image is for reference only.
Through the TT RGB Plus, the 3.9'' LCD display presents real-time information and plays JPG and GIF files with 128*480 resolution. What’s more is users can even show the time and weather information on the display, bringing great visual aesthetics and highly customizable functions to your build.
Featuring the brackets on the top, left and right side, The Tower 600 Light-Year Green has the capacity to support up to a 420mm AIO radiator on the right side and a 360mm AIO radiator on the left side, and it can accommodate up to thirteen 120mm fans or nine 140mm fans. Installation is a breeze thanks to the removable fan bracket that simplifies the process.
Featuring a vertical chassis design, The Tower 600 Light-Year Green still has well-designed cold air intakes and hot air exhausts to keep the internal temperature low at all times.
The image is for reference only.
At Thermaltake, we always stress test our products under harsh conditions to ensure product quality. The Tower 600 products were tested at 100% full load for 30 minutes, with the most high-end CPU, GPU, and motherboard at the time of test, while paring with a consumer-style setup, allowing us to test how the chassis performs under real-world situations.
The Tower 600
Thermal images were taken during thermal testing. Thanks to two CT140 PC Cooling Fans pre-installed, we were able to ensure that The Tower 600 has massive airflow, which ensures amazing cooling performance and a low internal temperature while using the most upscale components.
The Tower 600 Light-Year Green has well-designed filters on the top, rear, inner sides, and inner bottom layer to protect the system from dust.
The Tower 600 Light-Year Green offers excellent hardware support. It can support a CPU cooler with a maximum height of 210mm, a GPU with a maximum length of 400mm (without power cover), a power supply with a length of up to 220mm, three 2.5‘’ SSDs or a total of one 3.5‘’ HDD. Two CT140 fans are pre-installed on the top of the case to improve thermal efficiency. Additionally, three 120mm or two 140mm fans can be installed on top, and up to thirteen 120mm fans or nine 140mm fans can be placed in total. It also supports up to one 420mm AIO radiator on the right side and one 360mm AIO radiator on the left side of the chassis for maximum cooling performance.
Motherboard
6.7” x 6.7” (Mini ITX),
GPU
280mm
PSU
Max 220 mm
Top Fan
120 mm x 3,
PSU Cover Fan
120 mm x 1,
Rear Fan
120 mm x 2,
Left Side Radiator
1 x 360mm, 1 x 240mm, 1 x 120mm
Right Side Radiator
1 x 360mm, 1 x 240mm, 1 x 120mm
The Tower 600 Light-Year Green provides effective cable management with its spacious space and two sets of cable clips in the rear chamber, plus Velcro straps and cable ties in the accessory box for a neat and organized setup.
Top-located I/O ports consist of following functions:
No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.
All-in-One Compatibility List
| 120mm | 240mm | 360mm | 140mm | 280mm | 420mm | |
|---|---|---|---|---|---|---|
| Top | - | - | - | - | - | - |
| Right Side | ● | ● | ● | ● | ● | ● |
| Left Side | ● | ● | ● | - | - | - |
| Rear | - | - | - | - | - | - |
Fan Support List
| 120mm | 140mm | |
|---|---|---|
| Top | 3 | 2 |
| Right Side | 3 | 3 |
| Left Side | 3 | - |
| Rear | 2 | 2 |
| PSU Cover | 1 | 1 |
| Bottom | 1 | 1 |
| P/N | CA-1Z1-00MOWN-00 |
|---|---|
| Series | The Tower |
| Case Type | Mid Tower |
| Dimension (H x W x D) | 550 x 420 x 286.4 mm (21.65 x 16.54 x 11.28 inch) |
| Side Panel | 3mm Tempered Glass x 3 |
| Color | Light-Year Green |
| Material | SPCC |
| Cooling System | Top(exhaust): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 2 |
| Expansion Slots | 7 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 4, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Top: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Left: 3 x 120mm, 2 x 120mm, 1 x 120mm Rear: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Power Cover: 1 x 120mm, 1 x 140mm Bottom: 1 x 120mm, 1 x 140mm |
| Radiator Support | Right Side(AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm Left Side(AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm |
| Clearance | CPU cooler height limitation: 210mm VGA length limitation: 280mm(With power cover) 400mm(Without power cover) PSU length limitation: 220mm |
