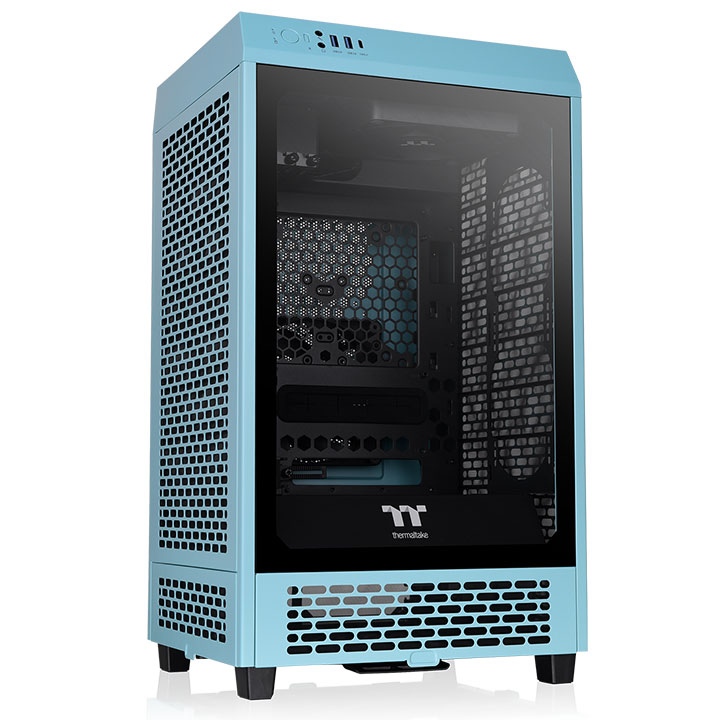

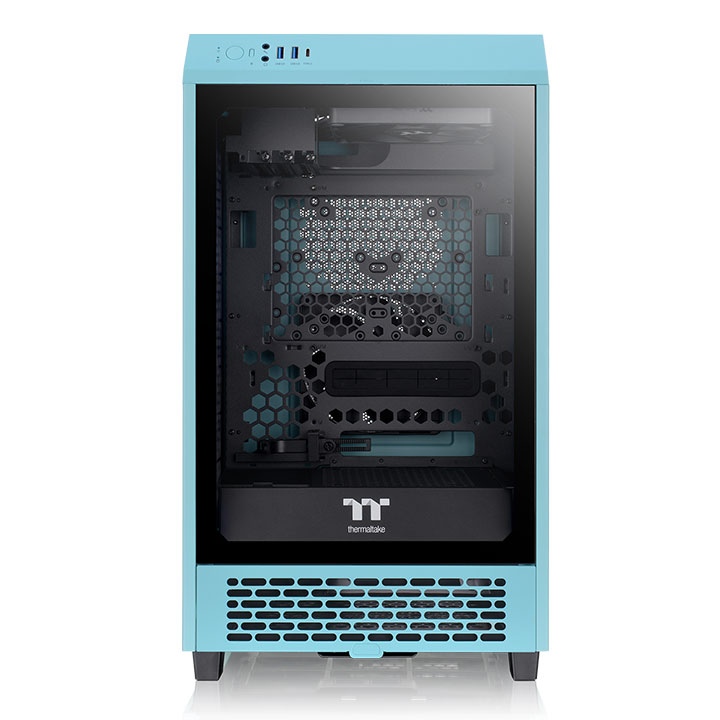

The Tower 200 Turquoise is fully equipped to accommodate all of your essential components, including the latest high-performance graphics cards such as the 4090 GPU. Besides, it can support graphics cards up to 380mm in length, providing you with the flexibility to choose the best graphics card for your needs. Rest assured that The Tower 200 Turquoise has got you covered, no matter what GPU you decide to use.
The Tower 200 Turquoise retains the iconic contours of its predecessors, with a vertical body design that allows the chassis to have a smaller footprint, providing flexibility and minimizing obstructions to your gaming and workspace.
Despite its small size, The Tower 200 Turquoise delivers exceptional cooling performance without any compromise. It supports up to a 280mm radiator on the right side, which effectively reduces the temperature inside the chassis and maintains optimal system performance.
Find out more about our 280mm AIO
The Tower 200 Turquoise features two 140mm PWM fans, one on the top and the other on the rear, to provide good cooling performance.
Thermaltake launches brand-new CT series fans, allowing users to choose from black or white, RGB or non-RGB, to match whatever color scheme you have.

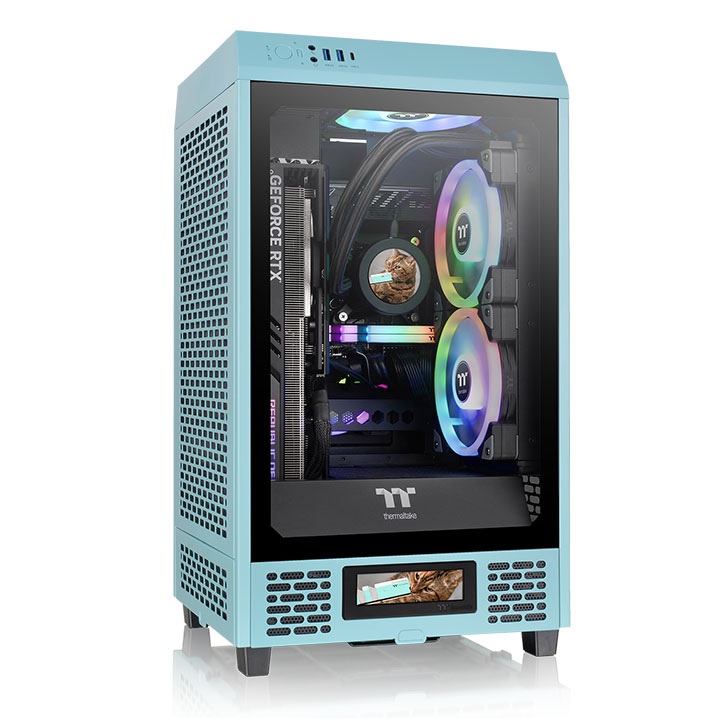

Maximize your Tower 200’s visual effects by upgrading it with our optimal LCD Panel Kit.
The 3.9” LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the TT RGB Plus 2.0 software. It also allows you to interact with the cooling components that feature the same LCD displays. The latest version includes weather mode and time mode for users to expand the usage of our LCD displays.
The Tower 200 Turquoise features a GPU stabilizer to ensure the GPU doesn't wobble during use or transport.

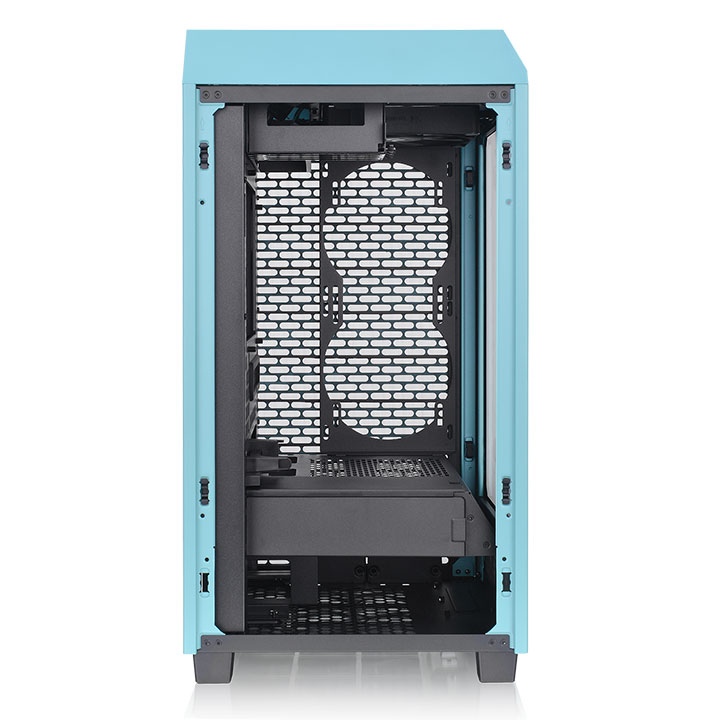

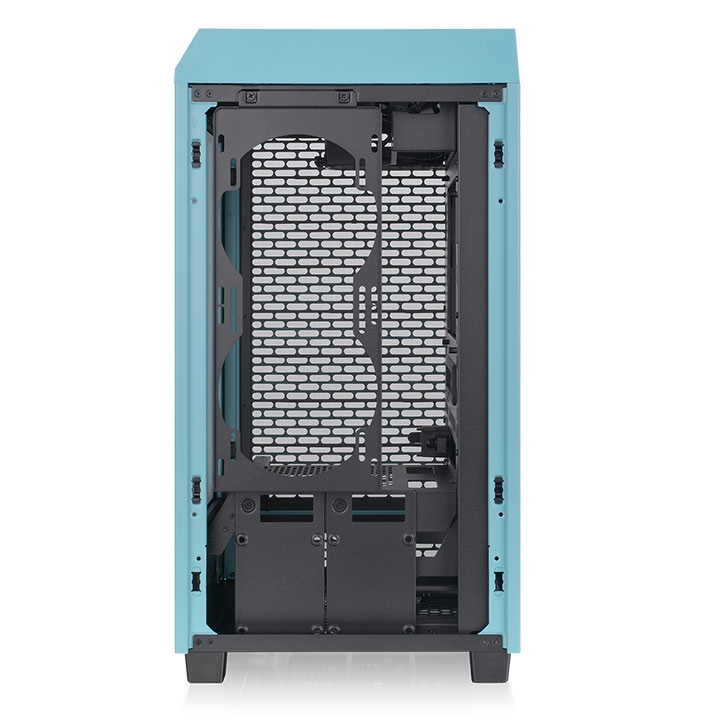

On the right side, The Tower 200 Turquoise has the capacity to support either two 120/140mm fans or a 280mm radiator. Installation is a breeze thanks to the removable fan bracket, which simplifies the process.
People may have concerns about the cooling performance of a mini-ITX chassis. However, our The Tower 200 Turquoise has well-designed cold air intakes and hot air exhausts to keep the internal temperature low at all times.
At Thermaltake, we always stress test our products under harsh conditions to ensure
product quality.
The Tower 200 products were tested at 100% full load for 30 minutes, with the most
high-end CPU, GPU,
and motherboard at the time of test, while paring with a consumer-style setup, allowing
us to test how the chassis performs under real-world situations.
| Component | Model |
| Chassis | THE TOWER 200 |
| Motherboard | ASUS ROG STRIX Z790-i |
| CPU | Intel® Core™ i9-13900K Processor (TDP 253W) |
| GPU | ASUS ROG Strix GeForce RTX® 4090 OC 24GB GDDR6X |
| RAM | TOUGHRAM XG RGB DDR5 32G (16G x 2) |
| SSD | Seagate SSD 120G |
| PSU | Toughpower PF3 1200W - TT Premium Edition |
| CPU Cooler | TOUGHLIQUID Ultra 280 AIO Liquid Cooler |
| Fans | AIO:TOUGHFAN
140mm x 2 (2000rpm) Chassis: CT 140mm x 3 (1500 rpm) (Top x 1 , Rear x 2 ) |
Thermal images were taken during thermal testing. Thanks to two CT140 PC Cooling Fans pre-installed, we were able to ensure that The Tower 200 comes with massive airflow, which guarantees amazing cooling performance and a low interior temperature while using the most upscale components.

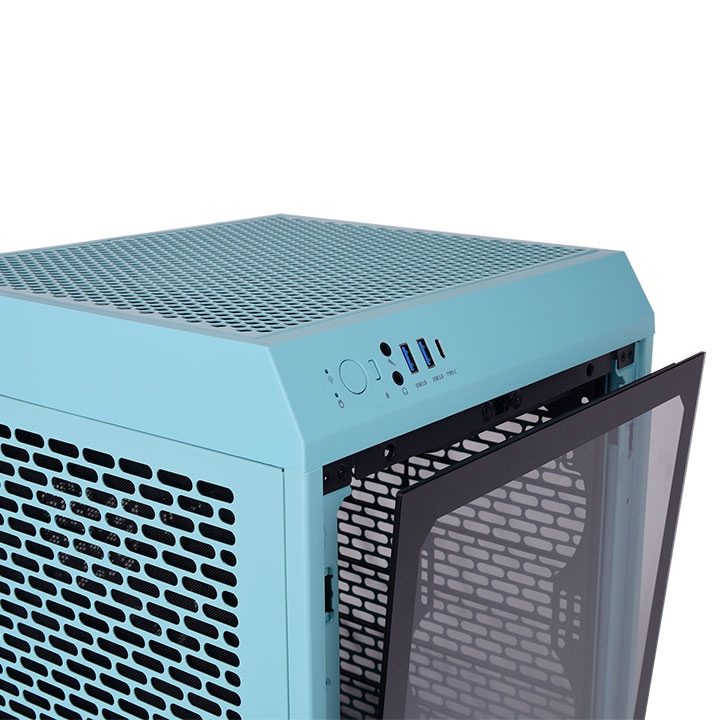

The Tower 200 Turquoise has well-designed removable fan filters on the rear, inner two sides, and inner bottom layer. The removable filters provide excellent dust protection to ensure a dust-free environment.
One USB 3.2 (Gen 2) Type-C and two USB 3.0 ports are placed on the top panel to grant direct access when needed.
Fan Compatibility List
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Top | 1 | 1 | - |
| Right Side | 2 | 2 | - |
| Rear | 2 | 2 | - |
| PSU Cover | 1 | 1 | - |
All-in-One Compatibility List
| 120mm | 240mm | 360mm | 140mm | 280mm | 420mm | |
|---|---|---|---|---|---|---|
| Top | ● | - | - | ● | - | - |
| Right Side | ● | ● | - | ● | ● | - |
| Rear | - | - | - | - | - | - |
| P/N | CA-1X9-00SBWN-00 |
|---|---|
| Series | The Tower |
| Model | The Tower 200 |
| Case Type | Mini Tower |
| Dimension (H x W x D) | 537 x 300 x 280 mm (21.14 x 11.8 x 11 inch) |
| Net Weight | 7.7 kg / 16.98 lbs. |
| Side Panel | 3mm Tempered Glass x 1 |
| Color | Turquoise |
| Material | SPCC |
| Cooling System | Top(exhaust): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1 Rear(exhaust): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1 |
| Drive Bays | 2 x 3.5”, 2 x 2.5” or 4 x 2.5” |
| Expansion Slots | 3 |
| Motherboards | 6.7" x 6.7" (Mini ITX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Top: 1 x 120mm 1 x 140mm Right Side: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Rear: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Power Cover: 1 x 120mm 1 x 140mm |
| Radiator Support | Top: 1 x 120mm 1 x 140mm Right Side(AIO): 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm |
| Clearance | CPU cooler height limitation: 200mm VGA length limitation: 280mm(With power cover) 380mm(Without power cover) PSU length limitation: 220mm |
