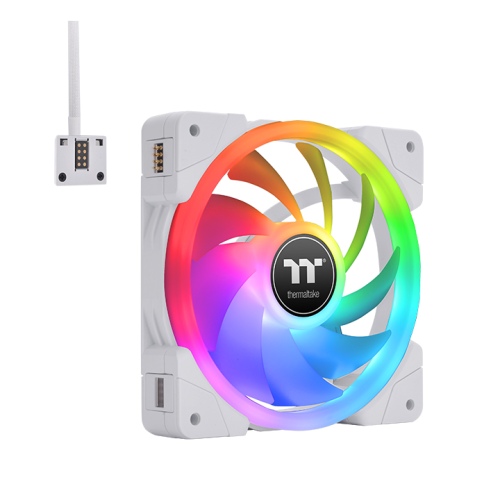

SWAFAN EX12 RGB PC Cooling Fan White TT Premium Edition (3-Fan Pack)

Quick Connect with Magnetic Force Design

The magnetic force design is used on the 12V cable core and the fans to achieve quick connection. Simply placing the cable to the fan or having the fans lying side by side, the magnet connectors will instantly draw the fan frames together while keeping them in place, thus powering and lighting up the fans by daisy-chaining them. This design keeps the assembly process simple while reducing installation time, making this fan more user-friendly and bringing extra fun while building your PC.

Caution: Due to safety and software limitations, SWAFAN EX is only recommended to daisy-chain 3 fans per cable.

Say Goodbye to Most of Your Cables

Eliminate cable usage and stray away from crazy cable management by using this Magnetic Force Quick Connect Design fan. You only need to connect one cable to power up three fans at once, making PC building even faster and easier.

Click to see the difference:

L

o

a

d

Swap the Fan Blades as You Like

by Simply Popping Out the Fan Blades and Pressing the Fan Blades Back In!

The Ultimate Cooling Performance of an RGB Fan

The design guarantees optimal cooling performance under different conditions, like installing fans on thick radiators or air coolers or even a chassis with multiple filters that are difficult to have air naturally pass through.

Click to see different airflow directions:

Reverse Fan Blades has an air pressure of 2.02 mmH2O (Max) and airflow of 56.26 CFM (Max), and can bring air from back to the front.

The Ultimate Cooling Performance of an RGB Fan

The design guarantees optimal cooling performance under different conditions, like installing fans on thick radiators or air coolers or even a chassis with multiple filters that are difficult to have air naturally pass through.

Click to see different airflow directions:

Standard Fan Blades has an air pressure of 2.39 mmH2O (Max) and airflow of 57.11 CFM (Max), and can bring air from front to the back.

Cleaning Fans are now Easy and Fun!

Pop and insert, it is that easy.

If you want, you can even rinse the fan blades with water, just make sure you dry them thoroughly and apply bearing lubricant that is include in the package if needed.

Unlocks the Full Potential of RGB Lighting

No more sacrificing aesthetics for your airflow direction; SWAFAN EX can now do both!

With SWAFAN EX

Without SWAFAN EX

Easily Show off Your RGB Lighting

Two independent LED rings with 20 LEDs allows you to create your own lighting patterns with the TT RGB PLUS 2.0 software.

TT RGB Plus 2.0 Can Do It All

Control up to 60 RGB lighting at once!

To accommodate our new daisy-chain-designed SWAFAN EX, we’ve modified our TT RGB Plus software to control more LED lights than ever. Syncing up all TT RGB Plus products and show off your lighting show and even LCD screen effects with the latest TT RGB Plus 2.0 software.

Caution: Due to voltage limitation, it is recommended not to connect more than 6 SWAFAN EX fans to a single controller.

TT RGB PLUS Ecosystem

Light up your system with almost limitless possibilities and synchronize your TT RGB PLUS compatible products to create a RGB ecosystem that is truly unique to you.

TT RGB PLUS 2.0 Software

The new version of Thermaltake’s patented TT RGB PLUS software provides enhanced lighting effects and PC monitoring functions.

Caution:
TT RGB PLUS 2.0 and TT RGB PLUS 1.0 will overwrite each other; users can only install one version of TT RGB PLUS.

DOWNLOAD NOW DOWNLOAD USER MANUAL

NeonMaker

The NeonMaker is a new and innovative approach to adjusting the RGB lighting on some of our products, allowing users to customize lighting profiles and orchestrate their own light shows.
Personalize Riing Quad Fans, Riing Trio Fans, Distro Case, Floe DX RGB AIO, and TOUGHRAM RGB with NeonMaker!

NEONMAKER MICROSITE DOWNLOAD NEONMAKER

More Information
P/N	CL-F161-PL12SW-A
Fan Dimension	120 x 120 x 25 mm
Interface	USB 2.0 connectors (9 Pin)
System compatibility	Windows 10 /11
Fan Started Voltage	9.0 V
Fan Rated Voltage	12 V & 5V
Rated Current	12 V - 0.23 A , 5 V – 0.72 A (one fan)
Power Input	12 V – 2.76 W , 5 V – 3.6 W (one fan)
Fan Speed	500 ~ 2000 R.P.M
Max. Air Pressure	Standard Fan Blade : 2.39 mm-H2O (one fan) Reverse Fan Blade : 2.02 mm-H2O (one fan)
Max Air Flow	Standard Fan Blade : 57.11 CFM (one fan) Reverse Fan Blade 2 : 56.26 CFM (one fan)
Noise	Standard Fan Blade : 30.6 dB-A (one fan) Reverse Fan Blade : 32.5 dB-A (one fan)
Bearing Type	Hydraulic Bearing
Life Expectation	40,000 hrs,25℃
Included ltems	Fan Frames x 3 Standard Fan Blade x 3 (Pre-installed) Reverse Fan Blade x 3 Controller x 1
