  • SWAFAN EX12 ARGB Sync PC Cooling Fan White TT Premium Edition (3-Fan Pack)
SWAFAN EX12 ARGB Sync PC Cooling Fan White TT Premium Edition (3-Fan Pack) magnet connectors (POGO Pin & Goldfinger) SWAFAN EX12 ARGB Sync PC Cooling Fan White TT Premium Edition (3-Fan Pack) SWAFAN EX12 ARGB Sync PC Cooling Fan White TT Premium Edition (3-Fan Pack) SWAFAN EX12 ARGB Sync PC Cooling Fan White TT Premium Edition (3-Fan Pack) SWAFAN EX12 ARGB Sync PC Cooling Fan White TT Premium Edition (3-Fan Pack)
SWAFAN EX12 ARGB Sync PC Cooling Fan White TT Premium Edition (3-Fan Pack)

SWAFAN EX12 ARGB Sync PC Cooling Fan White TT Premium Edition (3-Fan Pack)

In stock
P/N
CL-F169-PL12SW-A
€79.90 (included VAT)

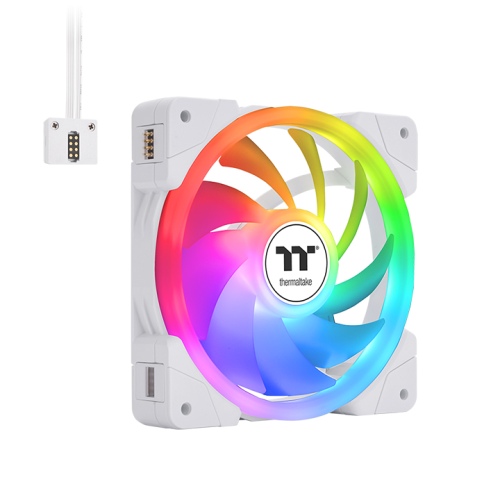

SWAFAN EX12 ARGB White brings magnetic force design to ARGB fans while keeping the iconic swappable fan blade design. Daisy-chaining up to 3 fans per cable improves fan connection efficiency and convenience while enhancing cable management for PC building.

Quick Connect with Magnetic Force Design

Our magnetic force design ARGB version enables the connection of both the 12V PWM cable and the 5V ARGB lighting cable to a single magnetic connector; simply placing the fans side by side, the magnet connectors will instantly draw the fan frames together while keeping them in place, thus powering and lighting up the fans by daisy-chaining them. This design keeps the assembly process simple while reducing installation time, making this fan more user-friendly and bringing extra fun while building your PC.

Caution: Due to safety and motherboard software signal limitations, SWAFAN EX ARGB is only recommended to daisy-chain maximum 5 fans per cable.

Say Goodbye to Excessive Cables

Connect your fans with SWAFAN EX’s Magnetic Force Quick Connect Design and be free from messy cables!

Click to see the difference:


L
o
a
d
With SWAFAN EX

Without SWAFAN EX


Great Lighting Effects with 16.8M Colors

Two independent LED rings with 20 LEDs (Inner ring: 6, Outer ring: 14) allows you to explore different build themes with 5V motherboard sync lighting software.

Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

Category Caution
Chassis, ARGB Fan, ARGB AIO
  • The motherboard signal connector only supports a 5V header.
  • Ensure your motherboard software is the latest version.
RGB Memory, VGA Waterblock, Distro Plate
  • This product can only be used with either the TT RGB PLUS software or the dedicated motherboard software. Having more than two applications open may cause conflicts.
  • The motherboard signal connector only supports a 5V header.
  • Ensure your motherboard software is the latest version.
More Information
P/N CL-F169-PL12SW-A
Fan Dimension 120 x 120 x 25 mm
Interface 2510-4 PIN PWM, 5V ARGB header-3PIN
Fan Started Voltage 9.0 V
Fan Rated Voltage 12 V & 5V
Rated Current 12 V - 0.27 A , 5 V – 0.72 A (one fan)
Power Input 12 V – 3.24 W , 5 V – 3.6 W (one fan)
Fan Speed PWM 500 ~ 2000 R.P.M
Max. Air Pressure Standard Fan Blade : 2.39 mm-H2O (one fan)
Reverse Fan Blade : 2.02 mm-H2O (one fan)
Max Air Flow Standard Fan Blade : 57.11 CFM (one fan)
Reverse Fan Blade : 56.26 CFM (one fan)
Noise Standard Fan Blade : 30.6 dB-A (one fan)
Reverse Fan Blade : 32.5 dB-A (one fan)
Bearing Type Hydraulic Bearing
Life Expectation 40,000 hrs,25℃
Included ltems Fan Frames x 3
Standard Fan Blade x 3 (Pre-installed)
Reverse Fan Blade x 3
Cable x 3

User Manual
