Black Labeled Standard Fan Blades can be used for air intake.

Silver Labeled Reverse Fan Blades can be switched out for air exhaust

SWAFAN 12 RGB Radiator Fan (3-Fan Pack)

In stock

P/N

CL-F137-PL12SW-A

€108.90 (included VAT)

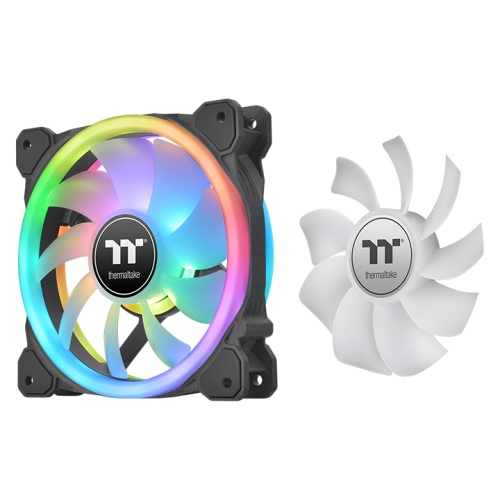

SWAFAN 12 RGB features a swappable fan blade design that allows you to switch between 2 types of fan blades included in the package, so you can create the ideal airflow for your chassis without compromising the aesthetics of its RGB lighting.

The image is for reference only.

Thermaltake's First Swappable
Fan Blade Designed Fan

You Can Create the Ideal Airflow for Your PC Build.
Package includes 3 Black Labeled Standard Fan Blades pre-installed on the fan frames, and 3 additional Sliver Labeled Reverse Fan Blades.

Swap the Fan Blades as You Like
by Simply Popping Out the Fan Blades and Pressing the Fan Blades Back In!

Silver Labeled Reverse Fan Blades
brings Air from the Back to the Front, and can be Switched Out for Air Exhaust.

Click to see different airflow directions:

Black Labeled Standard Fan Blades
brings Air from the Front to the Back, and can be Used for Air Intake.

Click to see different airflow directions:

Take a Good Look of this Super Cool Fan!

Guarantees optimal cooling performance under different conditions like installing fans on thick radiators or air coolers, or even a chassis with multiple filters that are difficult to have air naturally pass through.

The Black Labeled Standard Fan Blade has an air pressure of 2.58 mmH2O (Max) and airflow of 53.02 CFM (Max).

The Silver Labeled Reverse Fan Blade has an air pressure of 2.19 mmH2O (Max) and airflow of 54.85 CFM (Max).

Cleaning Fans are now Easy and Fun!

Pop and insert, it is that easy.

If you want, you can even rinse the fan blades with water, just make sure you dry them thoroughly and apply bearing lubricant that is include in the package if needed.

Unlocks the Full Potential of RGB Lighting,

so no more sacrificing aesthetics for your airflow direction; SWAFAN can now do both!

With SWAFAN

Without SWAFAN

Showcase your RGB Lighting Like Nothing Else

Three independent LED rings with 30 LEDs allows you to create your own lighting patterns with the TT RGB PLUS 2.0 software.

Better User Experience and Better Lighting Effects

SWAFAN adopts an all new 4th generation software controller that can increase connection stability while syncing up TT RGB Plus supported products, allowing 16.8M RGB color lighting effects to match with any theme you wish.

Caution: Due to voltage limitation, it is recommended not to connect more than 3 SWAFAN/Riing Quad/Riing Trio fans to a single controller. You can only add a maximum of 6 SWAFAN/Riing Quad/Riing Trio fans with 2 controllers by a single 4pin molex cable.

TT RGB PLUS Ecosystem

Light up your system with almost limitless possibilities and synchronize your TT RGB PLUS compatible products to create a RGB ecosystem that is truly unique to you.

TT RGB PLUS 2.0 Software

The new version of Thermaltake’s patented TT RGB PLUS software provides enhanced lighting effects and PC monitoring functions.

Caution:
TT RGB PLUS 2.0 and TT RGB PLUS 1.0 will overwrite each other; users can only install one version of TT RGB PLUS.

DOWNLOAD NOW DOWNLOAD USER MANUAL

NeonMaker

The NeonMaker is a new and innovative approach to adjusting the RGB lighting on some of our products, allowing users to customize lighting profiles and orchestrate their own light shows.
Personalize Riing Quad Fans, Riing Trio Fans, Distro Case, Floe DX RGB AIO, and TOUGHRAM RGB with NeonMaker!

NEONMAKER MICROSITE DOWNLOAD NEONMAKER

Works with Amazon Alexa

All Thermaltake TT RGB PLUS products support Amazon Alexa Voice Service, allowing you to give voice commands to Alexa-enabled devices.

LEARN MORE

TT AI Voice Control

Gain full control over your TT RGB PLUS products with your voice. Just say “Sync ALL” and “Hello TT.”

Note: TT AI Voice Control and Amazon Alexa require at least one TT RGB PLUS software-enabled product to function.

More Information
P/N	CL-F137-PL12SW-A
Fan Dimension	120 x 120 x 25 mm
Interface	USB 2.0 connectors (9 Pin)
System compatibility	Windows 10 /11
Started Voltage	Windows 10 /11
Fan Started Voltage	9.0 V
Fan Rated Voltage	12 V
Rated Current	0.27A (only one fan)
Power Input	3.24 W (only one fan)
Fan Speed	500 ~ 2000 R.P.M
Max. Air Pressure	Fan Blade 1 : 2.58 mm-H2O (only one fan) Fan Blade 2 : 2.19 mm-H2O (only one fan)
Max Air Flow	Fan Blade 1 : 53.02 CFM (only one fan) Fan Blade 2 : 54.85 CFM (only one fan)
Noise	Fan Blade 1 : 30.5 dB-A (only one fan) Fan Blade 2 : 36.5 dB-A (only one fan)
Bearing Type	Hydraulic Bearing
Life Expectation	40,000 hrs,25℃
Included ltems	Fan Frames x 3 Fan Blade 1 (Black Labeled) x 3 (Pre-installed) Fan Blade 2 (Silver Labeled) x 3 Controller x 1
