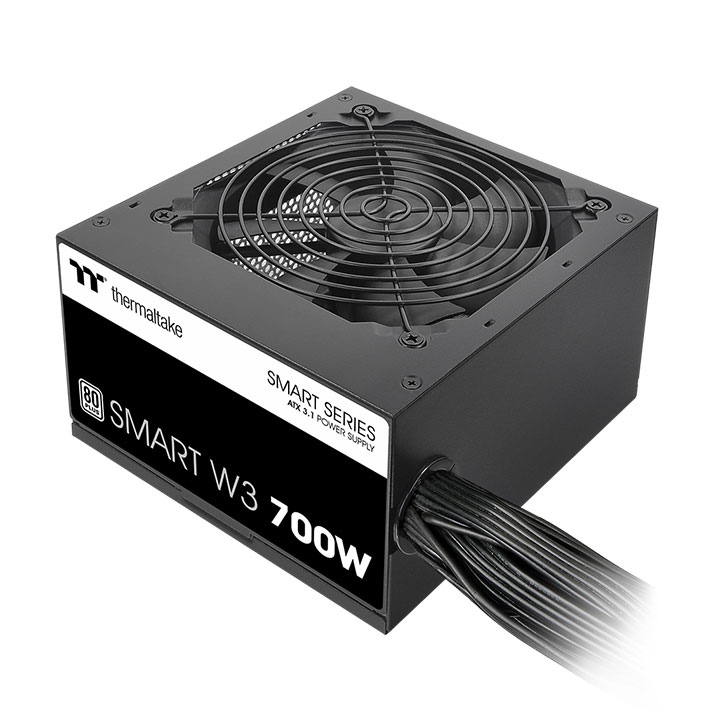

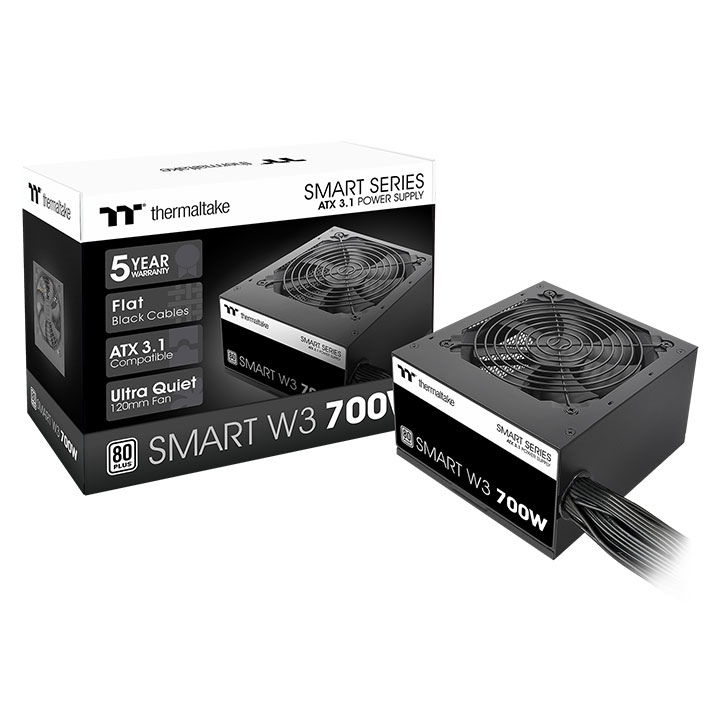

SMART W3 700W

SMART W3 700W

In stock
P/N
PS-SPW-0700NNFAWE-1
€62.90 (included VAT)
80 PLUS certified, non-modular PSU built to ATX 3.1 specifications and supported by a 5-year warranty.

Power up with Efficiency and Stability

The Smart W3 series is certified by 80 PLUS efficiency and designed to meet ATX 3.1 standards, offering 500W, 600W, and 700W options. It's perfect for budget-conscious users seeking an efficient and reliable entry-level power supply, backed by a solid 5-year warranty.

ATX 3.1 Ready

Smart W3 series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.

ATX 3.1

ATX 2.0

Total power excursion

2X
1.3X
2X
Total Power
Excursion
3X
GPU Power
Excursion

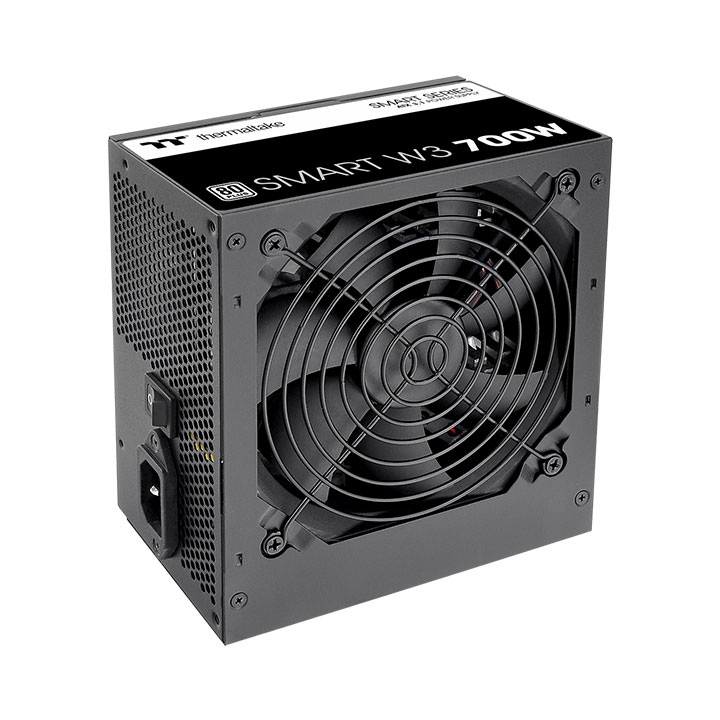

Silent Cooling

Ultra-quiet 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.

High Quality 105°C/221°F Main Capacitor

High quality main capacitor greatly improves the power supplies durability and ensures the Smart W3 series is stable and reliable.

High Amperage Single +12V Rail & DC to DC Design

Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.

AC INPUT

Input Voltage: 100-240V~
Input Current: 12A - 6A
Frequency: 50Hz / 60Hz

DC OUTPUT

+3.3V

+5V

+12V

-12V

+5VSB

Max Output Current

18A

18A

58.33A

0.3A

3A

Max Output Power

110W

700W

3.6W

15W

Total Power

700W

Built-in Industrial Grade Protection

To protect the hardware, Smart W3 is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).

  • OCP

    Over Current Protection

  • OVP

    Over Voltage Protection

  • UVP

    Under Voltage Protection

  • OPP

    Over Power Protection

  • SCP

    Short Circuit Protection

  • OTP

    Over Temperature Protection

Non-Modular Soft Cable Design

Smart W3 series comes with soft black cables, designed to make cable installation an easy task while fully powering the system at optimal voltages.

Connector Type Connector Quantity Cable Quantity Cable Length
Main Power
(24Pin)
X 1 X 1 600mm
ATX 12V
(4+4Pin)
X 2 X 1 600mm+150mm
PCIe
(6+2Pin)
X 2 X 1 500mm+150mm
SATA
(5Pin)
X 4 X 1 500mm+150mm+150mm+150mm
Peripheral (4Pin) X 4 X 1 500mm+150mm +150mm+150mm

80 PLUS Certified and Intel C6/C7 States Ready

Smart W3 series saves energy through its high energy efficiency up to 80% and is certified to 80 PLUS®. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

More Information
P/N PS-SPW-0700NNFAWE-1
watts 700W
Model SP3-700AH2NLW
Max. Output Capacity 700W
Color Black
Dimension ( W / H / D ) 150mm(W)x86mm(H)x140mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-150 msec
Hold Up Time > 17msec at 80% load
Input Current 12A - 6A
Input Frequency Range 50Hz/60Hz
Input Voltage 100-240V~
Operating Temperature 5°C to + 40°C
Operating Humidity 20% to 85%,non-condensing
Storage Temperature -40°C to + 55°C
Storage Humidity 10% to 95%, non-condensing
Cooling System 12cm FDB Fan
Efficiency Meet 80 PLUS® at 115Vac input.
MTBF 100,000 hrs minimum
Safety Approval CB/FCC/cTUVus/ICES
PCI-E 6+2pin 2
Protection OCP/OVP/UVP/OPP/OTP/SCP
