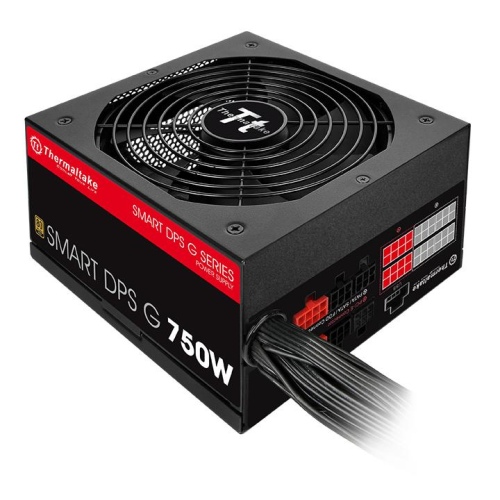

Smart DPS G 750W Gold
The Thermaltake SMART DPS G Gold Series are smart power supply units that
incorporate various high-tech components, leading technology and Eco-friendly commendations, featuring 80 PLUS
Gold certification with a semi-modular that always accommodate any mainstream build under any circumstance.
The combination of Smart DPS G Gold and three intelligent platforms – DPS G PC APP 3.0, DPS G Smart Power
Management (SPM) Cloud 1.0, and DPS G Mobile APP 1.0 helps users not just monitor smart power supply units,
but also save the energy, reduce CO2 emission, and eventually protect the Earth.
What is Smart Power Management (SPM)?
Smart Power Management (SPM) is a cloud-based software that seamlessly integrates three intelligent platforms – DPS G PC APP 3.0, DPS G Smart Power Management Cloud 1.0 and DPS G Mobile APP 1.0 – and compiles key statistics about your PC into detailed charts and breakdowns for your instant PC status view and management. With easy access to SPM through your PC or mobile devices, whether you are outside or indoors, enjoy taking full control of your build anytime, anywhere!
Warning Alert
The SPM platform comes with real-time warning alert function, which will appear on your DPS G Mobile APP/DPS G Smart Power Management Cloud and also your email when fan failure, PSU over temperature (over 140℉/60℃), or abnormal voltage level (over/under 5% of normal level) occurs. Then users can shut down their PC remotely to avoid further damage.
Schedule Shutdown
Save PC energy and electricity cost by scheduling your PC to shutdown at any time you want through DPS G Mobile APP or DPS G Smart Power Management Cloud.
100% High Quality Japanese Capacitors
The Smart DPS G Gold Series features Japanese brand capacitors, which greatly improves the durability and offers
the highest stability and reliability. No more capacitor explosion and leakage.
Flat Modular Cables
Smart DPS G Gold Series is semi-modular power supply that offers cable selection for users while powering the system at an advantageous voltage. All new low-profile flat modular cables enhance the airflow as well as improve the thermal performance of the chassis. Moreover, flat cables are softer which make cable routing easier to install.
Core Component: MCU
Smart DPS G Series comes with a 32Bit Microcontroller Unit (MCU) from Microchip Technology. The 32Bit Microcontroller Unit is a small computer on a single integrated circuit containing a processor core, memory, and programmable input/output peripherals. MCU can digitally control devices and processes, such as automobile engine control systems and office machines.
High Current Single +12V Rail
Smart DPS G Bronze Series is equipped with a powerful single +12V rail,
please see the output specification below:
| AC INPUT |
Input Voltage: 100V - 240V |
||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 22A |
22A |
62A |
0.3A |
2.5A |
| Max Output Power |
120W |
744W |
3.6W |
12.5W |
|
| Continuous Power |
750W |
||||
80 PLUS Bronze-certified and Kaby Lake-Ready
Smart DPS G Power Supply with DPS G software delivers up to 91% efficiency under real-world load conditions, promising the lowest power losses. Additionally, Smart DPS G Gold Series has been optimized to work with Intel’s new, Seventh-generation Kaby Lake processors to achieve maximum energy savings.
TT RGB PLUS Software
2.0 - New version of Thermaltake’s patented TT RGB PLUS software, providing more lighting effects and PC monitoring functions.
1.0 - Thermaltake’s patented software to synchronize TT RGB PLUS products with addressable LEDs.
Caution: TT RGB PLUS 2.0 and TT RGB PLUS 1.0 will overwrite one another; users can only install one version of TT RGB PLUS.
2.0 DOWNLOAD NOW
2.0 USER MANUAL
1.0 DOWNLOAD NOW
LEARN MORE
| P/N | PS-SPG-0750DPCGEU-G |
|---|---|
| watts | 750W |
| RGB Fan | No |
| Form Factor | ATX |
| Model | SPG-750DH3CCG |
| Type | Intel ATX 12V 2.31 & SSI EPS 12V 2.92 |
| Max. Output Capacity | 750W |
| Peak Output Capacity | 900W |
| Color | Black |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 10msec at 80% of full load (230Vac input) |
| Input Current | 10A |
| Input Frequency Range | 47Hz - 63Hz |
| Input Voltage | 100V - 240V |
| Operating Temperature | 0 ℃ to +40℃ |
| Operating Humidity | 20% to 90%, non-condensing |
| Storage Temperature | -20 ℃ to +70 ℃ |
| Storage Humidity | 5% to 95%, non-condensing |
| Cooling System | 14cm dual ball bearing fan |
| Efficiency | MEET 80 Plus Gold at 115Vac input. |
| MTBF | 120,000 hrs minimum |
| Safety Approval | CE/FCC/cTUVus/CB/EAC/BSMI |
| PCI-E 6+2pin | PCI-E 6+2pin X 4 |
| Protection | OPP, OVP, UVP,OTP |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
Hardware Manual
- Multi-language
- 1.8 MB
- 1.0
- 2015-08-18
-
Smart Power Management Manual
- English
- 4.8 MB
- 1.0
- 2016-03-16
-
DPS G PC APP PSU Software Manual
- Manual
- 717.9 KB
- 2019-06-25
-
DPS G PC APP PSU 軟體使用說明書
- 說明書
- 569 KB
- 2019-06-25
Drivers & Software
- File Name
- Description
- Size
- Version
- Release Date
-
TT DPS G APP
- 1.Made minor bug fixes and system performance improvements.
- V3.3.3
- 2024-03-19
