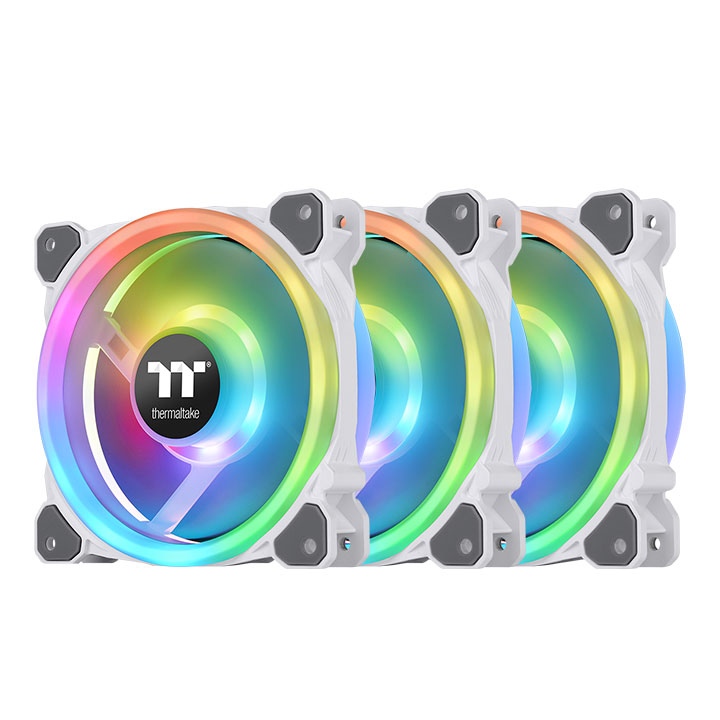

Riing Trio 12 RGB Radiator Fan White TT Premium Edition (3-Fan Pack)
Thermaltake
Riing Trio Series
The World’s 1st Three Independent 16.8 Million Color LED Ring Design
Featuring 30 addressable LEDs in total (Front: 12; Middle: 6; Back: 12) with great light coverage in uniform color and brightness, the built-in LED ring can light up your build with 16.8 million colors.
Digital Lighting Controller
The controller is designed with a DIP switch on the back to set up a number for each controller easily. You can add up
to 5 devices to one lighting controller and up to 16 controllers to the software.
*Caution: Due to voltage limitation, it is recommended not to connect more than 3 RGB fans to a single controller. You can only add a maximum of 6 fans with 2 controllers by a single 4pin molex cable.
*DO NOT connect Riing Trio fans to other TT RGB PLUS controllers.
For Fan Cable
For Fan Cable
For Power Cable
111
Hydraulic Bearing with Low-Noise Design
The hydraulic bearing design can self-lubricate with a high-quality, friction-reducing substance, lowering operation
noise while improving thermal efficiency. The seal cap prevents lubricant leakage and extends the lifespan of the unit.
Anti-Vibration Mounting System
The In-mold injection anti-vibration rubber pads dampen the fan's vibration, allowing the fan to spin at higher levels without compromising noise levels. The fan is designed with 80% coverage for all corners, maintaining low noise levels when in operation.
Immerse yourself with 100’s of Downloadable
Profiles by Creators from
around
the world.
TT RGB PLUS Ecosystem
Light up your system with almost limitless possibilities and synchronize your TT RGB PLUS compatible products to create a RGB ecosystem that is truly unique to you.
TT RGB PLUS Software
2.0 - New version of Thermaltake’s patented TT RGB PLUS software, providing more lighting effects and PC monitoring functions.
1.0 - Thermaltake’s patented software to synchronize TT RGB PLUS products with addressable LEDs.
Caution: TT RGB PLUS 2.0 and TT RGB PLUS 1.0 will overwrite one another; users can only install one version of TT RGB PLUS.
2.0 DOWNLOAD NOW
2.0 USER MANUAL
1.0 DOWNLOAD NOW
LEARN MORE
Sync with Razer Chroma Lighting
All Thermaltake TT RGB PLUS products can connect to the Razer Chroma ecosystem via Razer Synapse 3. Users can experience synchronized gaming and RGB lighting effects on their TT RGB PLUS liquid cooling systems and Razer gaming gear!
Works with Amazon Alexa
All Thermaltake TT RGB PLUS products support Amazon Alexa Voice Service, allowing you to give voice commands to Alexa-enabled devices.
TT AI Voice Control
Gain full control over your TT RGB PLUS products with your voice. Just say “Sync ALL” and “Hello TT.”
Note: TT AI Voice Control and Amazon Alexa require at least one TT RGB PLUS software-enabled product to function.
| P/N | CL-F126-PL12SW-A |
|---|---|
| Fan Dimension | 120 x 120 x 25 mm |
| Interface | USB 2.0 connectors (9 Pin) |
| System compatibility | Windows 7 / 8 / 8.1 / 10 |
| Fan Started Voltage | 9.0 V |
| Fan Rated Voltage | 12 V & 5V |
| Rated Current | 12V- 0.12 A , 5v – 1.03A (only one fan) |
| Power Input | 12V – 4.32 W . 5V – 15.4 W (Fan*3) |
| Fan Speed | 500 ~ 1500 R.P.M |
| Max. Air Pressure | 1. 4mm-H2O |
| Max Air Flow | 41.13 CFM |
| Noise | 25.2 dB-A |
| Bearing Type | Hydraulic Bearing |
| Life Expectation | 40,000 hrs,25℃ |
| Weight | 168 g |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
Voice Input Command List
- en
- 2018-01-29
-
Manual
- Multi-language
- 1.2 MB
- 2018-06-25
-
TT RGB PLUS Alexa Skill Settings SOP
- English
- 2019-07-09
-
TT RGB Plus x Razer Chroma Synchronization Guide
- English
- 864.9 KB
- 2019-05-14
-
TT RGB PLUS 2.0 User Manual
- TT RGB PLUS 2.0 User Manual
- 4.2 MB
- 2021-07-12
Drivers & Software
- File Name
- Description
- Size
- Version
- Release Date
-
TT RGB PLUS Software
-
1.Fixed the LCD monitor font size issue.
2.Made minor bug fixes and system performance improvements.
- V2.1.8
- 2024-09-25
