  • Germanium Pro RGB 750W
Germanium Pro RGB 750W Germanium Pro RGB 750W Germanium Pro RGB 750W Germanium Pro RGB 750W Germanium Pro RGB 750W Germanium Pro RGB 750W
Germanium Pro RGB 750W

Germanium Pro RGB 750W

Out of stock
P/N
WG0750RE
€124.90 (included VAT)

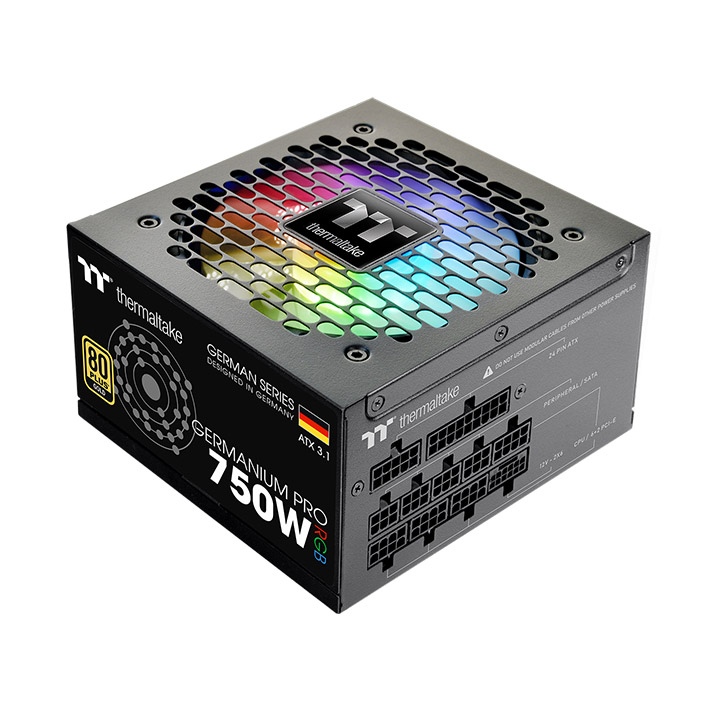

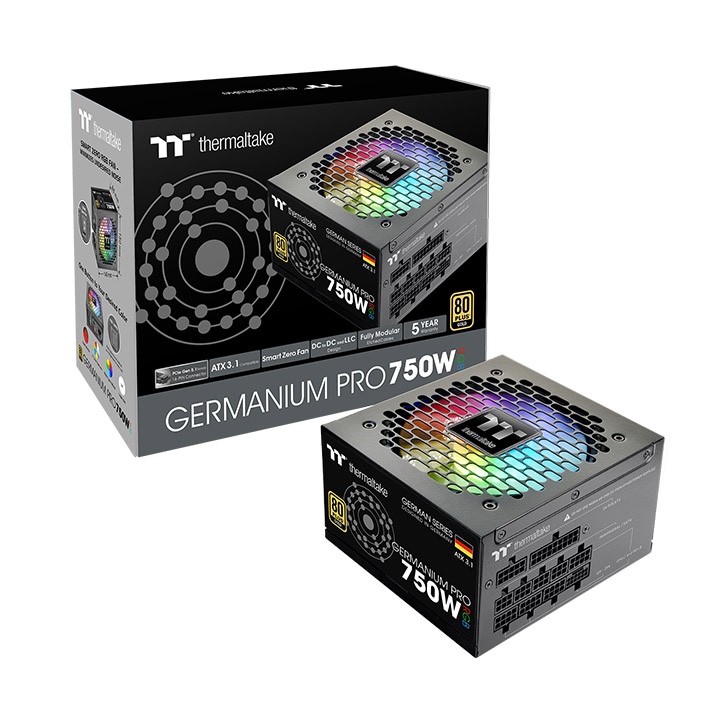

Germanium Pro RGB 750W is an 80 PLUS Gold certified PSU, fully compatible with ATX 3.1 specifications and designed with a native PCIe Gen 5.1 12+4pin connector to ensure powerful and stable performance with next-generation graphics cards.
en-GF1_snow_850

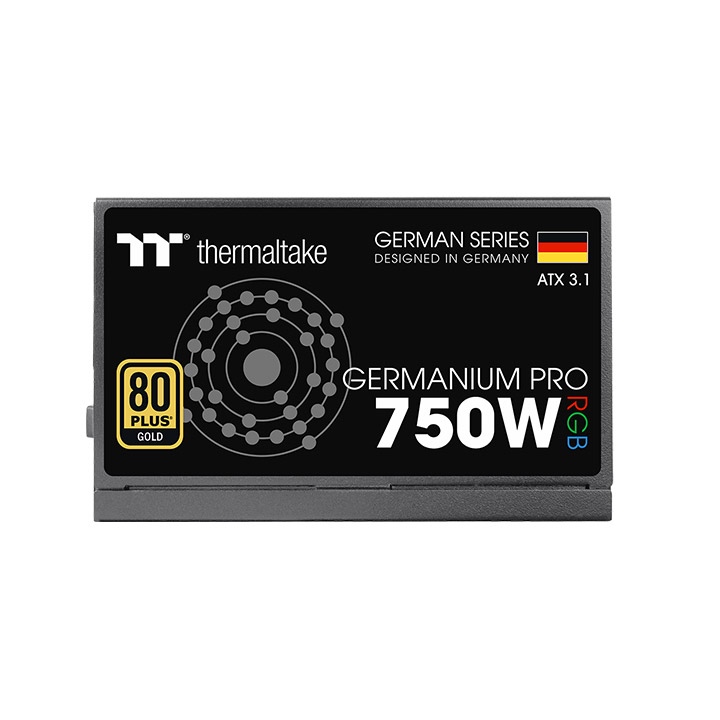

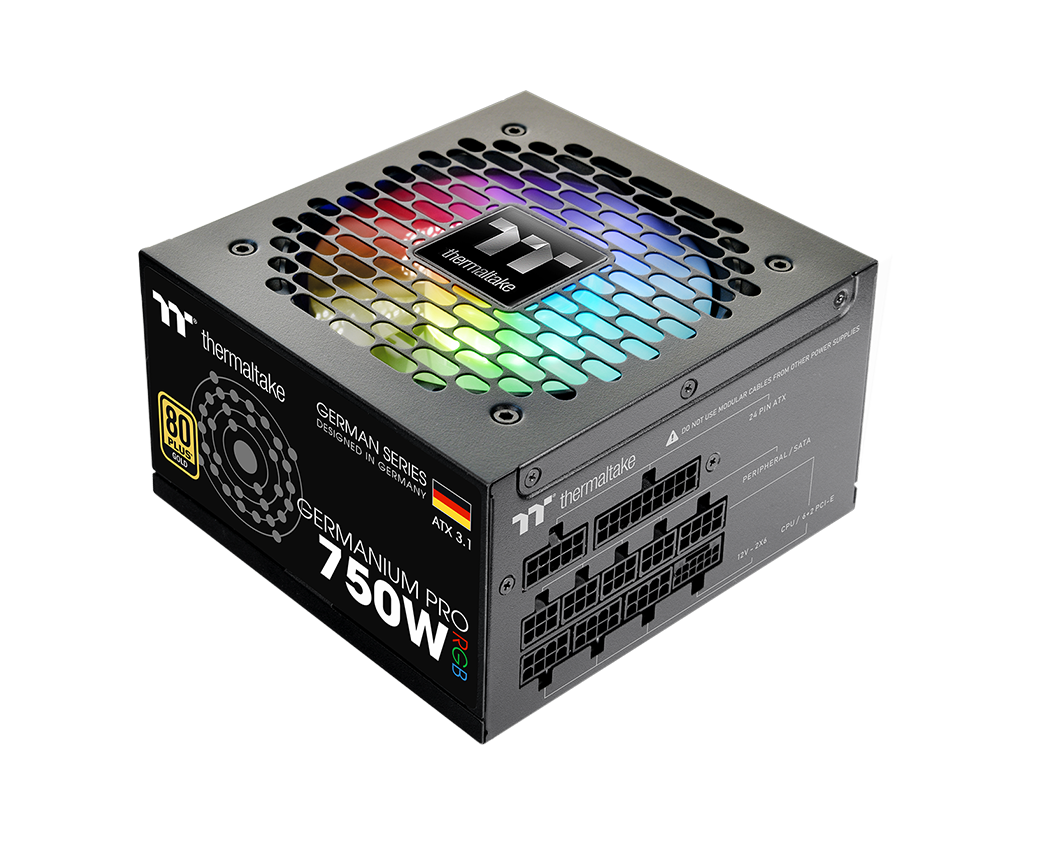

Germanium Pro RGB 750W Gold Fully Modular

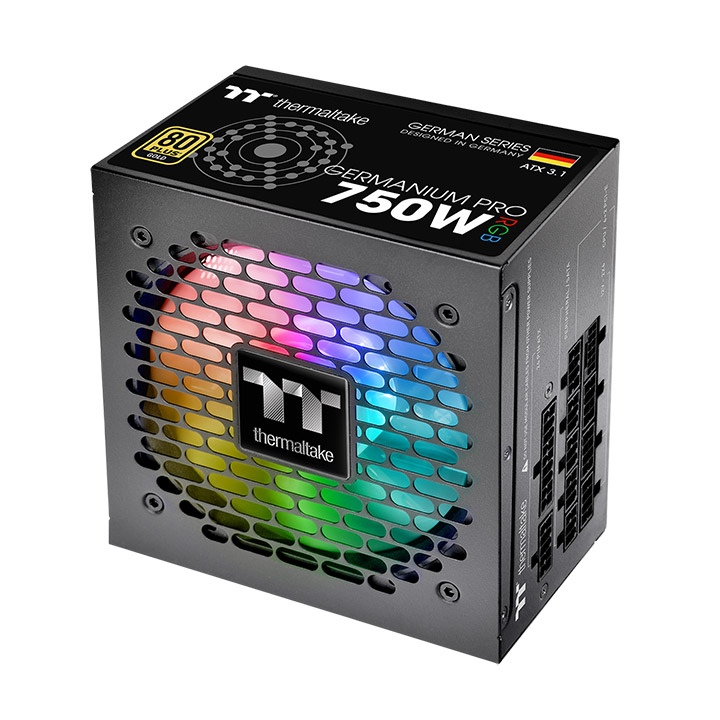

The Germanium Pro RGB Gold Series features a high airflow patented RGB fan with seven color options, a 256 color cycle, and a memory function. With 750W output, 80 PLUS Gold certification, and fully modular low profile cables, it provides stable and efficient power while offering customizable aesthetics for any build.

Germanium Pro RGB 750W Gold Fully Modular

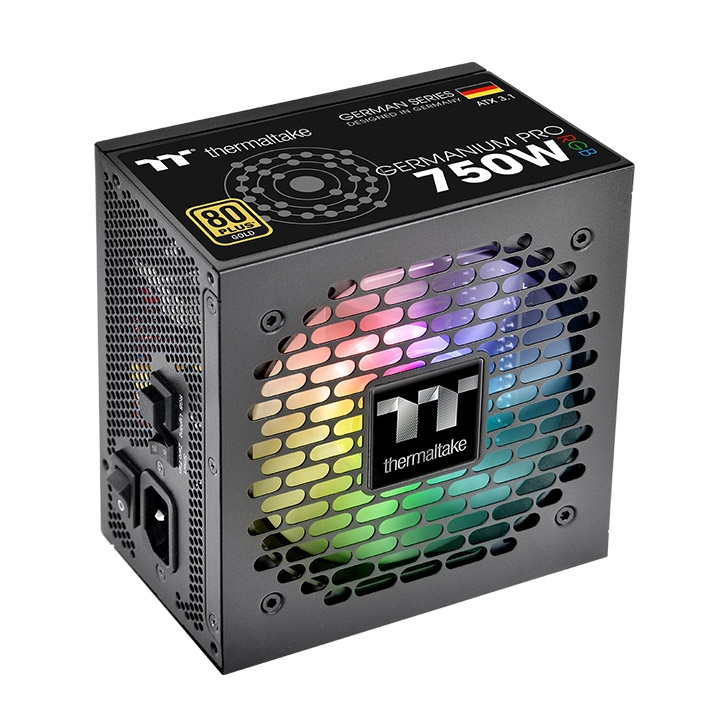

Ultra Quiet Smart Zero Fan

Equipped with Smart Zero Fan technology and an ultra quiet 120mm hydraulic bearing fan, the Germanium Pro RGB 750W delivers excellent cooling performance while minimizing unwanted noise. Enjoy stable power with silent operation.

Ultra Quiet Smart Zero Fan

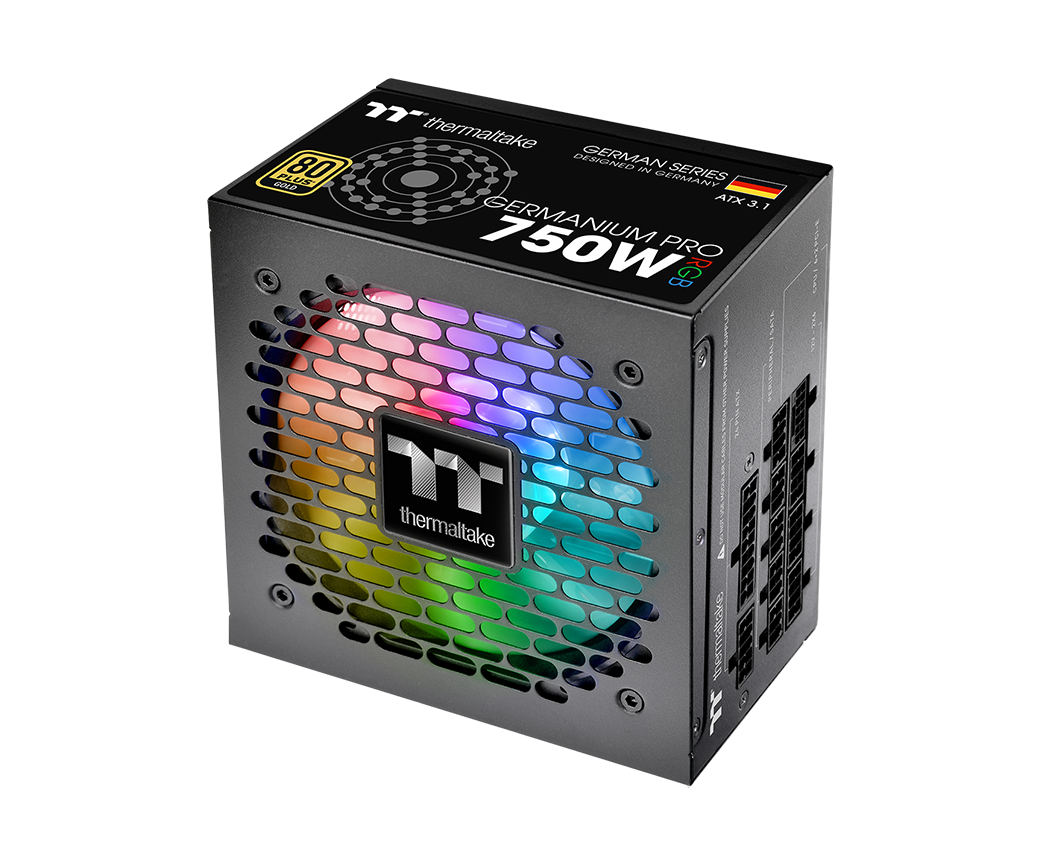

Color at Your Fingertips

Germanium Pro RGB comes with multiple lighting effects with 7 color options: Red, Green, Blue, Yellow, Purple, Light Blue, White, and 256 colors RGB cycle. (LED off mode available)

Smart BM3 Bronze Power Supply featuring Smart Zero Fan function Color at Your Fingertips

ATX 3.1 Ready

Germanium Pro RGB 750W is fully compatible with Intel ATX 3.1 specifications, supporting up to 200% power excursion, reaching 60% efficiency at low load, and meeting all required power supply timing standards.

ATX 3.1

ATX 2.0

Total power excursion

2X
1.3X
2X
Total Power Excursion
3X
GPU Power Excursion
ATX 3.1 Ready

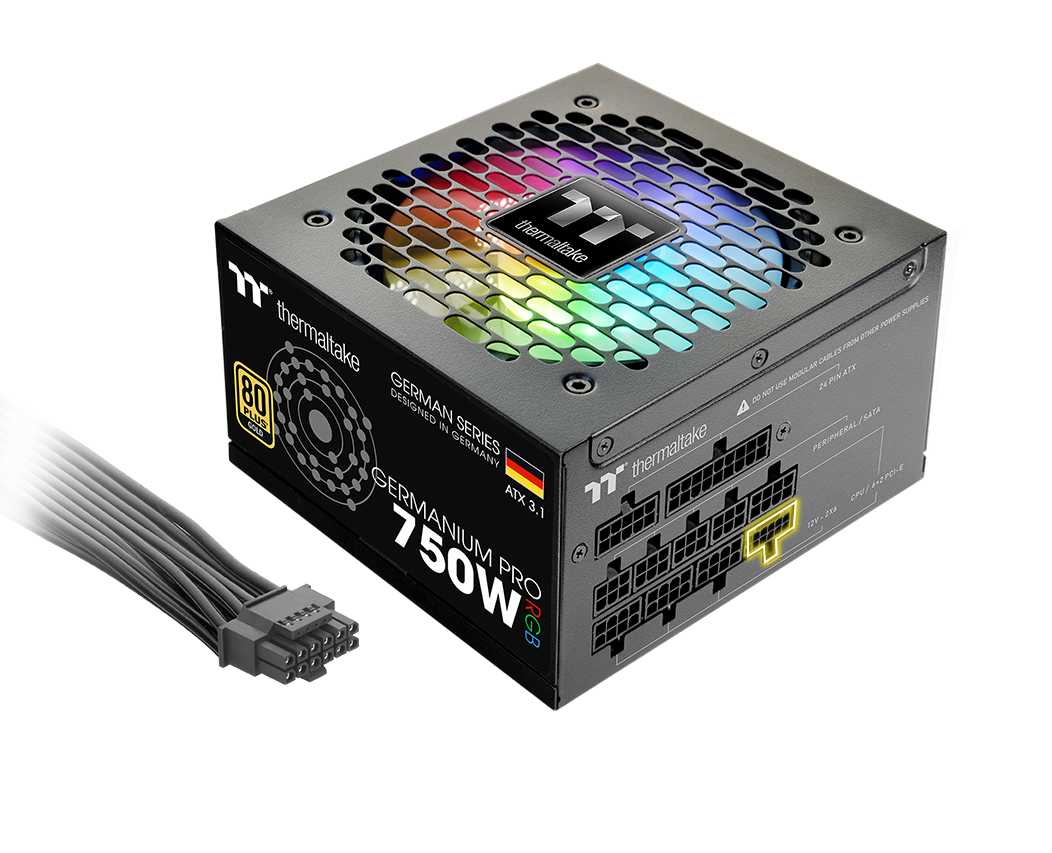

PCIe Gen 5.1 Ready

Germanium Pro RGB 750W comes with a native 12+4pin (12V-2x6) connector to deliver powerful and stable performance, enabling full support for the latest PCIe Gen 5.1 graphics cards.
The wattage marked on the 12V-2x6 connector follows Intel’s recommended design guideline. With the included PCIe Gen 5 cable, the Germanium Pro RGB 750W ensures seamless compatibility with next-generation GPUs.

PCIe 12V-2x6 connector illustration

Note:
1. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
2. Please follow the recommended power requirements from the GPU manufactures before using the PCIe 12V-2x6 cable.

16pin Connector

PCIe Gen 5.1 Ready

Be Smart, Stay Quiet

Featuring an ultra-quiet 120mm hydraulic bearing fan with Smart Zero Fan technology, the Germanium Pro RGB PSU delivers efficient and silent cooling. Fully modular low-profile etched black cables allow users to achieve cleaner builds and optimize airflow inside the chassis.

Be Smart, Stay Quiet

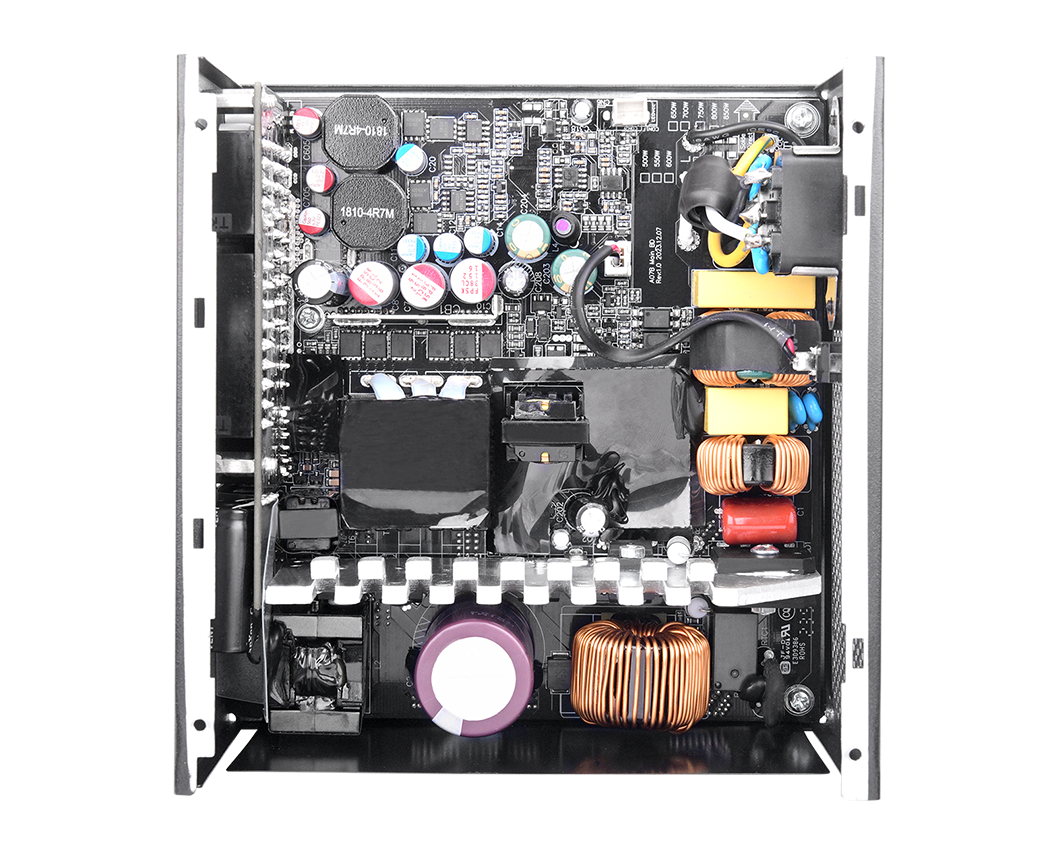

High Amperage Single +12V Rail & High-Class Technologies

The powerful single +12V rail design delivers stable and reliable power for maximum compatibility. Combined with advanced LLC and DC to DC circuit design, it ensures precise electrical output, stable operation, and enhanced voltage regulation.

AC INPUT

Input Voltage: 100-240V～
Input Current: 15 - 10A
Frequency: 50Hz/60Hz
DC OUTPUT +3.3V +5V +12V -12V +5VSB
Max Output Current 20A 20A 62.5A 0.3A 3A
Max Output Power 100W 750W 3.6W 15W
Total Power 750W
High Amperage Single +12V Rail & High-Class Technologies

Built-in industrial grade protection

To protect your hardware, Germanium Pro RGB 750W is built with industry grade protections: OCP (Over Current Protection), OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection).

  • OCP

    Over Current Protection

  • OVP

    Over Voltage Protection

  • UVP

    Under Voltage Protection

  • OPP

    Over Power Protection

  • SCP

    Short Circuit Protection

  • OTP

    Over Temperature Protection

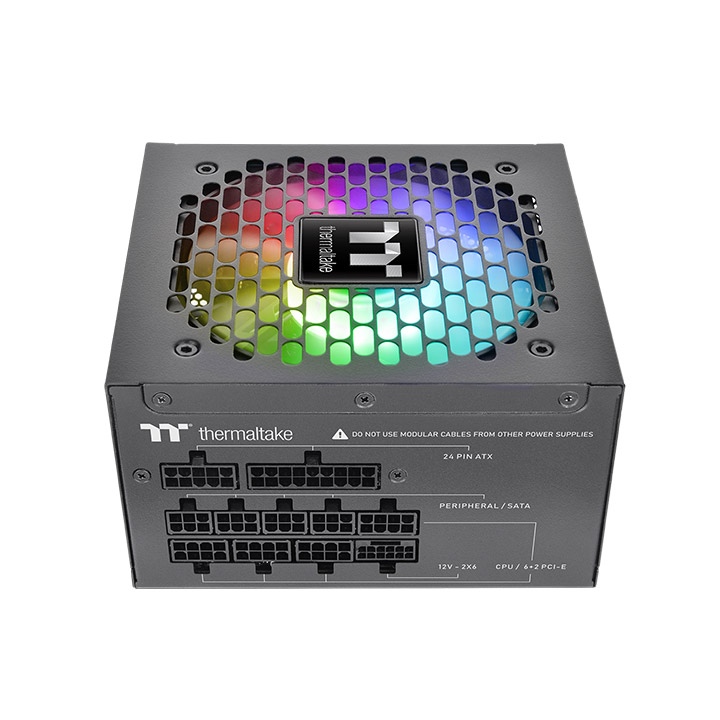

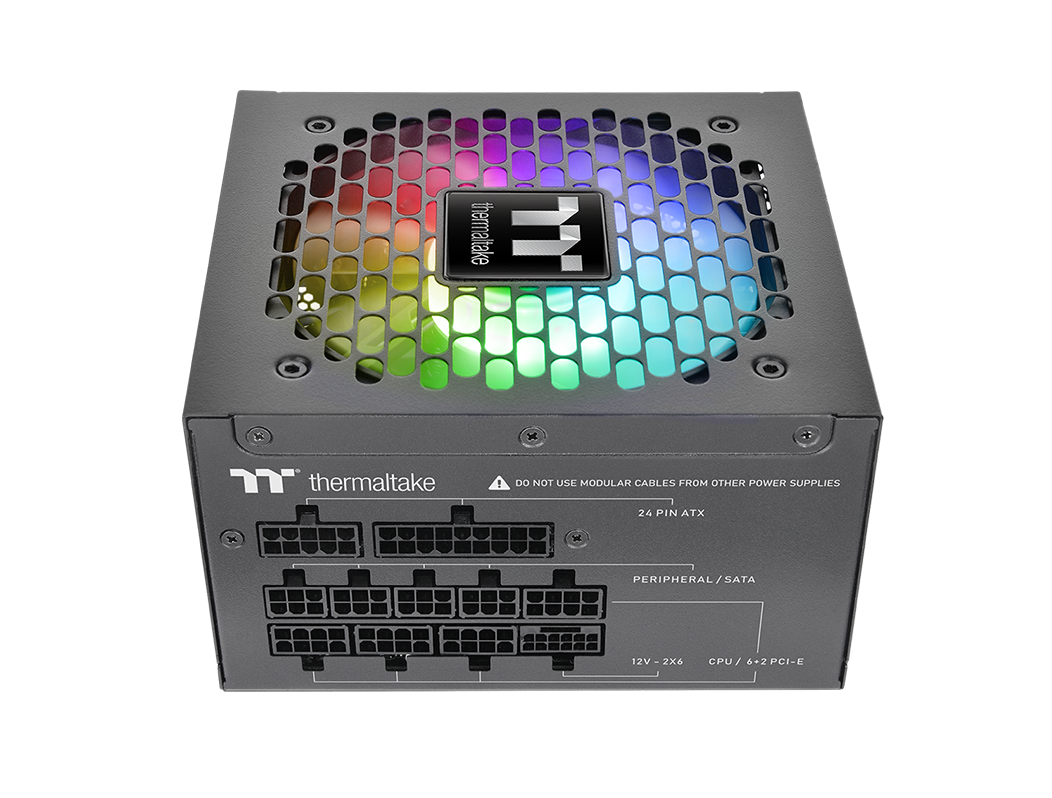

Fully Modular Low-Profile Cables

Fully modular low-profile etched black cables offer users greater flexibility during PSU installation. They help simplify cable management, reduce clutter, and improve airflow inside the chassis.

Connector Type Connector Quantity Cable Quantity Cable Length
Main Power
(20+4Pin)		 X 1 Main Power (20+4Pin) cable illustration X 1 550mm
ATX 12V
(4+4Pin)		 X 2 ATX 12V (4+4Pin) cable illustration X 2 700mm
PCIe
(6+2Pin)		 X 4 PCIe (6+2Pin) cable illustration (single) X 2 600mm+150mm
PCIe
(12+4Pin)
600W		 X 1 PCIe (12+4Pin) 600W cable illustration X 1 600mm
SATA
(5Pin)		 X 6 SATA (5Pin) cable illustration X 2 450mm+150mm+150mm
Peripheral
(4Pin)		 X 4 Peripheral (4Pin) cable illustration X 1 450mm+150mm+150mm+150mm

80 PLUS Gold Certified

80 PLUS Gold certified, the 750W model delivers up to 90% energy efficiency, minimizing power loss and heat generation even under full load.

80 PLUS Gold Certified
More Information
P/N WG0750RE
watts 750W
Model TPD-750AH2FXG-3
Max. Output Capacity 750W
Color Black
Dimension ( W / H / D ) 150mm(W)x86mm(H)x140mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-250 msec
Hold Up Time > 17msec at 80% load
Input Current 10A Max.
Input Frequency Range 50Hz-60Hz
Input Voltage 100-240V～
Operating Temperature 0°C to + 40°C
Operating Humidity 5% to 85%,non-condensing
Storage Temperature -40°C to + 70°C
Storage Humidity 5% to 95%, non-condensing
Cooling System 12cm Hydraulic bearing fan
Efficiency Meet 80 PLUS® Gold at 115Vac input.
MTBF 100,000 hrs minimum
Safety Approval CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK
PCI-E 6+2pin 4
PCIe 12+4pin 1 (600W)
