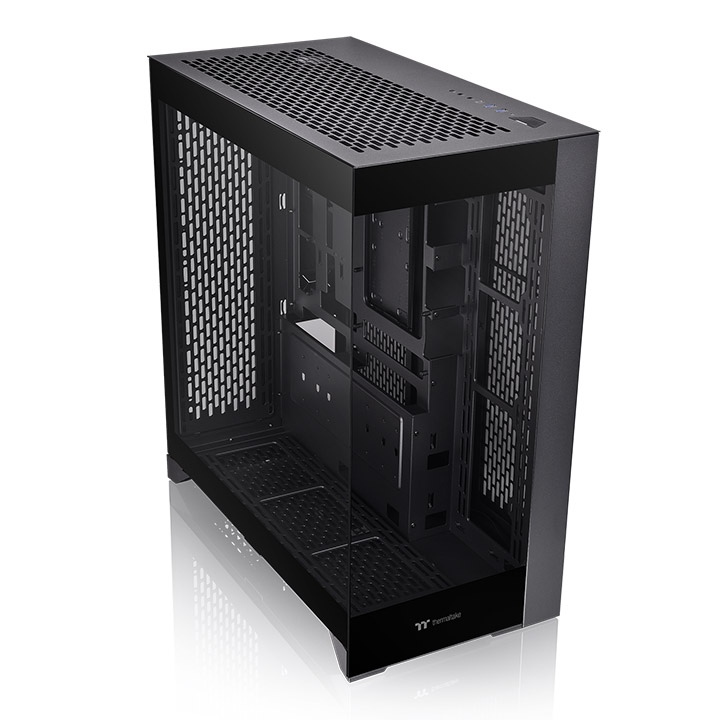

CTE E660 MX Mid Tower Chassis
CTE E660 MX
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/CTEE660MX_B/bgimg_01.jpg)
Design Your Best PC Configuration
The CTE E660 MX supports both ASUS and MSI Hidden-Connector motherboards (ROG MAXIMUS Z790 HERO BTF, ASUS TUF GAMING Z790-BTF WIFI or MSI Z790 PROJECT ZERO), and features a three-way GPU installation option (with a 400mm riser cable included) and an interchangeable dual front panel design. Additionally, the CTE E660 MX offers excellent support on cooling solutions: up to a 420mm AIO radiator can be placed at the front, rear and the M/B side, and up to fourteen 120mm fans or twelve 140mm fans can be installed in the chassis. With both aesthetics and the compatibility, the CTE E660 MX gives users maximum flexibility to customize their setup.
Compatible with Hidden-Connector Motherboards

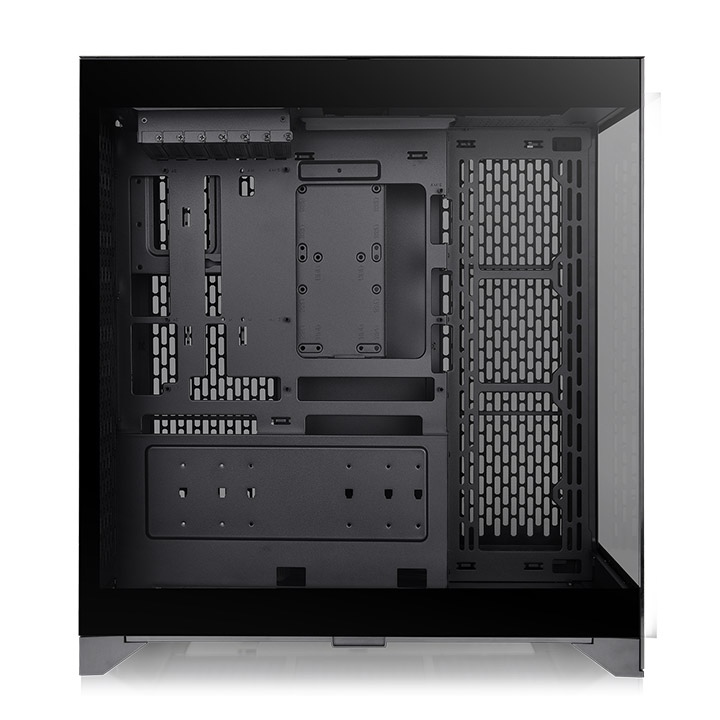

Created for next-generation Hidden-Connector motherboards, the CTE E660 MX features a special design that enables support for both standard motherboards and hidden-connector motherboards from ASUS and MSI.
*Compatible with hidden-connector motherboards:
ROG MAXIMUS Z790 HERO BTF
ASUS TUF GAMING Z790-BTF WIFI
MSI Z790 PROJECT ZERO
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/CTEE660MX_B/bg19_992_2.png)
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/CTEE660MX_B/bg19_992_1.png)
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/CTEE660MX_B/bg19_992.png)
Display It Your Way: Three-way GPU Installation
There are three different ways to mount your GPU:

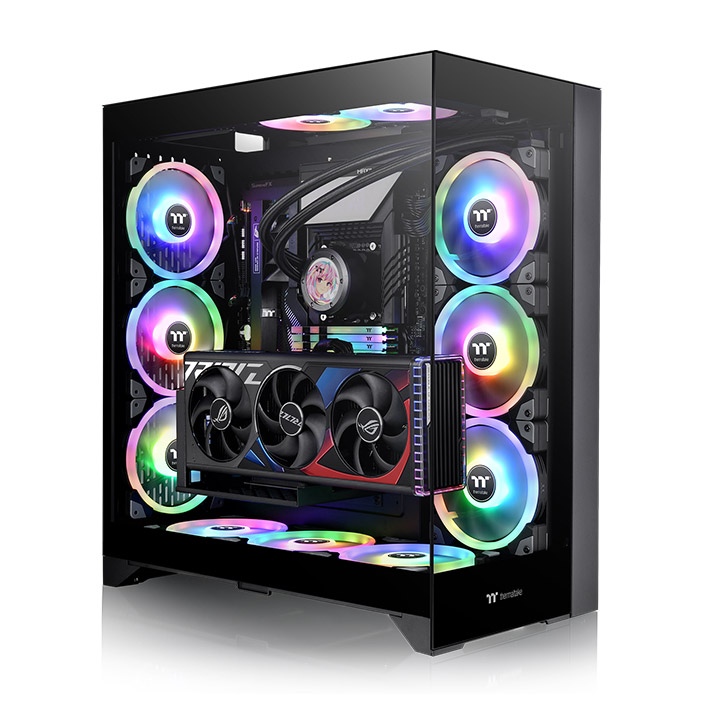

1.Floating GPU: Placing the GPU in the middle of the chassis by using the enclosed floating GPU bracket and pre-configured 400mm long PCI-e 4.0 riser cable
2.Up Right: Hanging the GPU vertically
3.Right Forward: Placing it up-right with the graphics card facing forward to the side panel on the rotational PCI-e slots
Floating GPU
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/CTEE660MX_B/fit_03.png)
Up Right
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/CTEE660MX_B/fit_01.png)
Up Right Forward
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/CTEE660MX_B/fit_02.png)

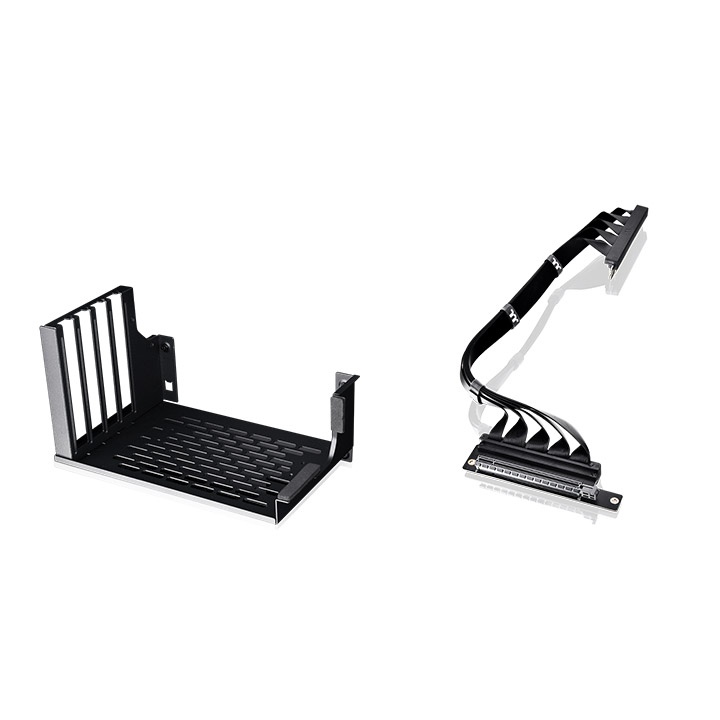

PCI-e 4.0 Riser Cable and Floating GPU Bracket Included
A pre-configured 400mm PCI-e 4.0 riser cable makes it easy to achieve "floating GPU“ and “Up Right Forward” GPU placements. The riser cable complies with PCI-e 4.0 Standards, offering a 16GT/s transfer rate and supporting up to 64 GB/s (bi-directional) data transmission.
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/CTEE660MX_B/bg10_992_3.png)
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/CTEE660MX_B/bg10_992.png)
The image is for reference only.
Maximum Radiator Support

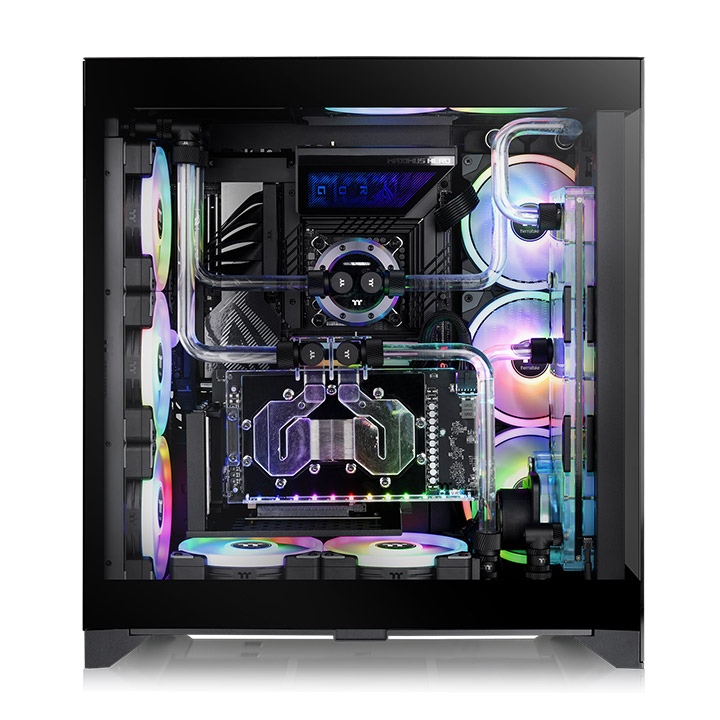

The CTE E660 MX offers multiple mounting locations and plenty of room to create your own configurations. DIY radiators up to 420mm in length can be installed on the front, rear, bottom and M/B side, and for AIO compatibility, up to 420mm/360mm radiators can be installed on the front, rear and M/B side, giving PC enthusiasts plenty of flexibility to create their ideal setup.

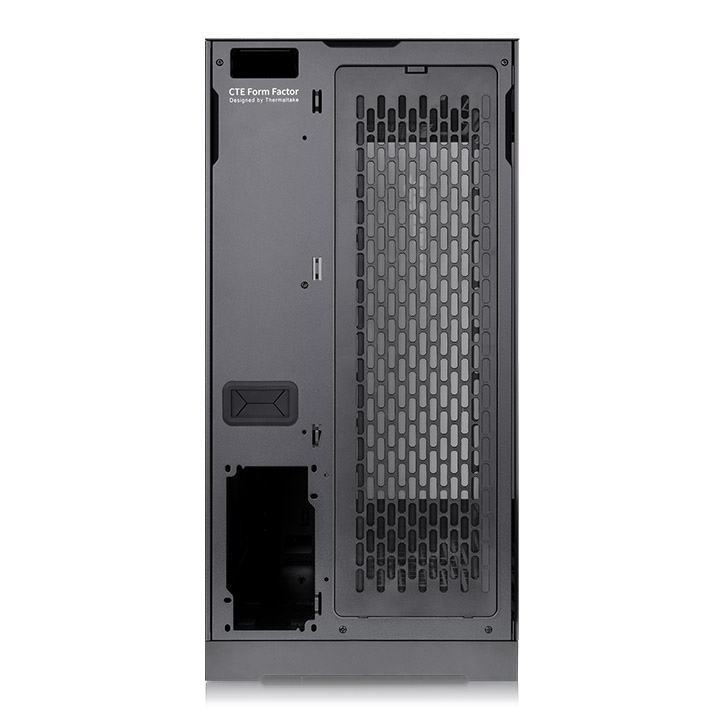

CTE Form Factor
Designed by Thermaltake
The CTE Form Factor Designed by Thermaltake,
stands for Centralized Thermal Efficiency, and is focused around providing high level
thermal performance to critical components. The design utilizes a 90-degree rotation of the
motherboard providing more efficient airflow pathways.
Since the CPU location has been moved much closer to the front panel and the graphics card
moved closer towards the rear panel, independent cold air induction is given for thermal
dissipation of the CPU and graphics card respectively. This overall approach has allowed CTE
to provide better and more efficient intake airflow through the placement of main components
and cooling, as well as optimization to heat extraction from the system.
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/CTEE660MX_B/bg4.jpg)
The image is for reference only.
The CTE E660 MX is a new model of the CTE form factor series, which utilizes Centralized Thermal Efficiency and focuses on providing high levels of thermal performance to critical components.
The design utilizes a 90-degree rotation of the motherboard providing more efficient airflow pathways.
The video is for reference only.
Move Critical Heat Sources (CPU And Graphic Cards) Closer Towards Cool Air
Since the CPU location of the CTE E660 MX has been moved much closer to the front panel and the graphics card moved closer towards the rear panel, independent cold air induction is given for thermal dissipation of the CPU and graphics card respectively.
The video is for reference only.
Active Cooling for More Efficient Intake Airflow
This overall approach has allowed CTE E660 MX to provide better and more efficient intake airflow through the placement of main components and cooling, as well as optimization to heat extraction from the system.
The video is for reference only.
All your dream cooling components can fit!
The CTE E660 MX is designed with enormous fan and cooler installation capacity: up to fourteen 120mm fans or twelve 140mm fans, and 360mm/420mm AIO coolers at the front, rear and the M/B side. Moreover, equipped fan brackets at the front and bottom, and the installation spots at the top, rear, and M/B side ensures easy installation of all your desired cooling components.
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/CTEE660MX_B/bg9_992_1.png)
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/CTEE660MX_B/bg9_992_2.png)
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/CTEE660MX_B/bg9_992_3.png)
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/CTEE660MX_B/bg9_992_4.png)
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/CTEE660MX_B/bg9_992.png)
Excellent Hardware Support & Cooling Solutions
The CTE E660 MX has excellent expandability, allowing you to build the most high-end system you can dream of. It can support up to an E-ATX (12”x10.5”) motherboard (including the latest Hidden-Connector motherboards) , a CPU cooler with a maximum height of 166mm, VGA clearance up to 443.8mm in length without a radiator, a power supply with a length of up to 220mm, and up to two 2.5” SSD or three 3.5” HDD. Optimized for excellent cooling capabilities, the CTE E660 MX can house up to fourteen 120mm fans or twelve 140mm fans, and 360mm/420mm AIO coolers at the front, rear and M/B side, allowing users to build their desired high-end system with many options.
Everything You Need Is Located In One Place
Two USB 3.0 ports, one USB 3.2 Gen 2 Type-C, and HD Audio ports are placed on the top panel to grant direct access when needed.
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/CTEE660MX_B/bg17_992.png)
Perfect Dust Protection
There are fine removable filters at the top, front, bottom, rear and right side of the chassis to provide excellent protection against dust, and they are easily removable for cleaning.
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/CTEE660MX_B/bg16_992_1.png)
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/CTEE660MX_B/bg16_992_2.png)
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/CTEE660MX_B/bg16_992_3.png)
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/CTEE660MX_B/bg16_992_5.png)
![](https://thermaltake.azureedge.net/pub/media/wysiwyg/key3/img/CTEE660MX_B/bg16_992.png)
Radiator Support List
All-in-One Cooling Compatibility List
120mm | 240mm | 360mm | 140mm | 280mm | 420mm | |
---|---|---|---|---|---|---|
Front | ● | ● | ● | ● | ● | ● |
Top | ● | ● | - | - | - | - |
Rear | ● | ● | ● | ● | ● | ● |
Right (M/B Side) |
● | ● | ● | ● | ● | ● |
Bottom | - | - | - | - | - | - |
Custom Liquid Cooling Compatibility List
120mm | 240mm | 360mm | 140mm | 280mm | 420mm | |
---|---|---|---|---|---|---|
Front | ● | ● | ● | ● | ● | ● |
Top | ● | ● | - | - | - | - |
Rear | ● | ● | ● | ● | ● | ● |
Right (M/B Side) |
● | ● | ● | ● | ● | ● |
Bottom | ● | ● | ● | ● | ● | ● |
Fan Support List
Fan Support List
120mm | 140mm | |
---|---|---|
Front | 3 | 3 |
Top | 2 | - |
Right | 3 | 3 |
Rear (M/B Side) |
3 | 3 |
Bottom | 3 | 3 |
P/N | CA-1Y3-00M1WN-01 |
---|---|
Series | CTE |
Case Type | Mid Tower |
Dimension (H x W x D) | 558.5 x 270 x 513mm (21.99 x 10.63 x 20.2 inch) |
Net Weight | 15.85 kg / 34.94 lbs. |
Side Panel | 4mm Tempered Glass x 2 |
Color | Black |
Material | SPCC |
Cooling System | - |
Drive Bays | 3 x 3.5”, 1 x 2.5” or 2 x 3.5”, 2 x 2.5” |
Expansion Slots | 7 |
Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 10.5” (E-ATX) |
I/O Port | USB 3.0 x 2, Type-c x1, HD Audio x 1 |
PSU | Standard PS2 PSU (optional) |
Fan Support | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm ,2x 140mm, 1 x 140mm Top: 2 x 120mm, 1 x 120mm Right (M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm ,2x 140mm, 1 x 140mm Rear: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm ,2x 140mm, 1 x 140mm Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm ,2x 140mm, 1 x 140mm |
Radiator Support | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm Top: 1 x 240mm, 1 x 120mm Right (M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm Rear: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm Bottom (DIY only): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm |
Clearance | CPU cooler max height: 166mm VGA max length: 415mm (with radiator) 443.8mm (without radiator) PSU max length: 220mm |
