CTE C700 Air Mid Tower Chassis
CTE Form Factor
Designed by Thermaltake
The CTE Form Factor Designed by Thermaltake, stands for Centralized Thermal Efficiency, and is focused around providing high level thermal performance to critical components. The design utilizes a 90-degree rotation of the motherboard providing more efficient airflow pathways.
Since the CPU location has been moved much closer to the front panel and the graphics card moved closer towards the rear panel, independent cold air induction is given for thermal dissipation of the CPU and graphics card respectively. This overall approach has allowed CTE to provide better and more efficient intake airflow through the placement of main components and cooling, as well as optimization to heat extraction from the system.
The image is for reference only.
The CTE C700 is a new model of the CTE form factor series, which utilizes Centralized Thermal Efficiency and focuses on providing high levels of thermal performance to critical components.
The design utilizes a 90-degree rotation of the motherboard providing more efficient airflow pathways.
The video is for reference only.
Move Critical Heat Sources (CPU And Graphic Cards) Closer Towards Cool Air
Since the CPU location of the CTE C700 has been moved much closer to the front panel and the graphics card moved closer towards the rear panel, independent cold air induction is given for thermal dissipation of the CPU and graphics card respectively.
The video is for reference only.
Active Cooling for More Efficient Intake Airflow
This overall approach has allowed CTE C700 to provide better and more efficient intake airflow through the placement of main components and cooling, as well as optimization to heat extraction from the system.
The video is for reference only.
A Perfect Balance of Aesthetics and Functionality

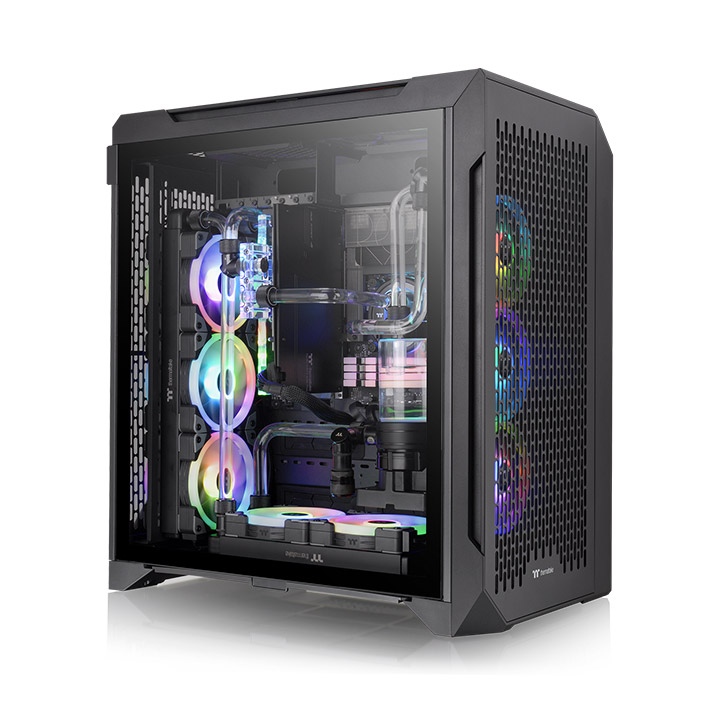

The CTE C700 Air, a specially designed E-ATX mid tower chassis from the new CTE form factor series, was engineered to provide optimal thermal efficiency and maximum airflow to ensure that critical components of your build are provided with adequate cooling. To achieve this the CTE C700 Air can support up to a 420mm AIO radiator not only at the front but also at the rear of the case. It comes with three 140mm CT140 fans pre-installed and it can support up to a 420mm AIO radiator at the front and at the rear of the chassis. Its dual-chamber design allows users to showcase key components and provides ample space for superior cooling solutions, with the ability to accommodate up to twelve 120mm fans (eleven 140mm fans) inside the case thanks to the front, bottom, rear and right fan brackets, as well as the top fan vent. It also features many nice details such as two different PCI-E slots, removable filters, a pump and reservoir bracket and Velcro straps for easy cable management. Whether you are a PC enthusiast or looking for a custom liquid cooling case, get ready to be amazed by the CTE C700 Air!
Maximum Radiator Support
The CTE C700 offers multiple mounting locations and plenty of room to create your own configurations. DIY radiators up to 360mm in length can be installed on the front, rear and bottom, and for AIO compatibility, up to 420mm/360mm radiators can be installed on the front and rear, giving PC enthusiasts plenty of flexibility to create their ideal setup.
The image is for reference only.
All Your Dream Cooling Components Can Fit!
The CTE C700 has enormous fan and cooler installation capacity: up to twelve 120mm fans (eleven140mm fans) and 360mm/420mm AIO coolers at the front and the rear. Moreover, equipped fan brackets at the front, rear, bottom and right side, and the installation spot at the top ensure easy installation of all your desired cooling components.
Rear Fan Bracket
Front Fan Bracket
Top Fan Vent
Right Fan Bracket
Bottom Fan Bracket
Blow Your World Away with Three Pre-installed 140mm CT140 Fans
CTE C700 Air mid tower Chassis features three 140mm PWM Fans at the front, top and rear. The CT140 fan are the best-performing case fans among all the case fans in Thermaltake's collection so far.
Unify Your Fans with Your Build!
Thermaltake launches brand-new CT series fans, allowing users to choose from black or white, RGB or non-RGB, to match whatever color scheme you have.
We've Tested Everything, So You Don’t Have To
At Thermaltake, we always stress test our products under harsh conditions to ensure product quality. The CTE C700 Air Mid Tower Chassis products were tested at 100% full load for 30 minutes, with the most high-end CPU, GPU, and motherboard at the time of test, while paring with a consumer-style setup, allowing us to test how the chassis performs under real-world situations.
Test System
- Chassis：CTE C700 Air Snow
- Motherboard：ASUS ROG MAXIMUS Z790 APEX
- CPU：Intel® Core™ i9-13900K Processor (TDP 253W)
- GPU：ASUS ROG Strix GeForce RTX® 4090 OC 24GB GDDR6X
- RAM：TOUGHRAM Z-ONE RGB D5(16G x 2)
- SSD：Seagate SSD 120G
- PSU：Toughpower GF3 1200W - TT Premium Edition
- CPU Cooler：TOUGHLIQUID Ultra 420 AIO Liquid Cooler
- FANs：
AIO:TOUGHFAN 140mm x 3 (2000rpm)
Chassis: CT 140mm x 7 (1500 rpm)
(Top x 2 , Rear x 3, Bottom x 2 )
CPU & GPU Thermal Stress Test
CTE C700 Air
Massive Airflow & Incredible Performance
Thermal images taken during thermal testing. Thanks to its CTE form factor design and three pre-installed CT140 PC Cooling Fans, we were able to ensure that the CTE C700 Air has massive airflow, guaranteeing amazing cooling performance that keeps the internal temperature low and stable while using the most high-end components.
Idle
Full Load
Display It Your Way
Equipped with two different PCI-E slots, CTE C700 Air gives you the option to mount your graphics card either horizontally or vertically, creating plenty of flexible space for your system. If you choose to install your graphics card vertically, there is an additional riser cable bracket allows for both 90 degree or 180 degree riser cable installation.
The image is for reference only.
Opportunities For High-End Expansion
The CTE C700 Air offers excellent expandability, allowing you to build the most high-end system you can dream of. It can support up to an E-ATX (12”x13”) motherboard, a CPU cooler with a maximum height of 190mm, graphics card clearance up to 410mm in length without a radiator, a power supply with a length of up to 220mm, and up to six 2.5” SSD or seven 3.5” HDD. Optimized for excellent cooling capabilities, the CTE C700 Air can accommodate up to twelve 120mm fans or eleven 140mm fans, and 360mm/420mm AIO coolers at the front and the rear, providing PC enthusiasts with many options and flexibility to organize their configuration.
- Dimensions
- Fan Capacity - 1
- Fan Capacity - 2
- All-in-One Compatibility
- Custom Liquid Cooling Compatibility
-
CPU Cooler
Max height 190mm
-
Motherboard
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),12” x 9.6” (ATX), 12” x 13” (E-ATX)
-
PSU
Max length
220mm
-
VGA
Length limitation
327mm (with radiator)
410mm (without radiator)
Perfect Dust Protection
There are fine removable filters at the top, front, bottom, rear and right side of the chassis to provide excellent protection against dust, and they are easily removable for cleaning.
Everything You Need Is Located In One Place
Two USB 3.0 ports, one USB 3.2 Gen 2 Type-C, and HD Audio ports are placed on the top panel to grant direct access when needed.
Radiator Support List
All-in-One Compatibility List
| 120mm | 240mm | 360mm | 140mm | 280mm | 420mm | |
|---|---|---|---|---|---|---|
| Front | ● | ● | ● | ● | ● | ● |
| Right | - | - | - | - | - | - |
| Rear | ● | ● | ● | ● | ● | ● |
| Bottom | - | - | - | - | - | - |
Custom Liquid Cooling Compatibility List
| 120mm | 240mm | 360mm | 140mm | 280mm | |
|---|---|---|---|---|---|
| Front | ● | ● | ● | ● | ● |
| Top | - | - | - | - | - |
| Rear | ● | ● | ● | ● | ● |
| Bottom | ● | ● | ● | ● | ● |
Fan Support List
Fan Support List
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Front | 3 | 3 | 2 |
| Top | 2 | 2 | - |
| Right | 1 | 1 | - |
| Rear | 3 | 3 | - |
| Bottom | 3 | 2 | - |
| P/N | CA-1X7-00F1WN-00 |
|---|---|
| Series | CTE |
| Case Type | Mid Tower |
| Dimension (H x W x D) | 566.5 x 327.6 x 505.5 mm (22.3 x 12.9 x 19.9 inch) |
| Net Weight | 15.6 kg / 34.39 lbs. |
| Side Panel | 4mm Tempered Glass x 1 |
| Color | Black |
| Material | SPCC / ABS |
| Cooling System | Front(intake): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1 Top(exhaust): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1 Rear(intake): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1 |
| Expansion Slots | 7 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm 2 x 200mm, 1 x 200mm Top: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right: 1 x 120mm, 1 x 140mm Rear: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm |
| Radiator Support | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm Rear: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm Bottom: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm |
| Clearance | CPU cooler max height: 190mm VGA max length: 327mm (With radiator) 410mm (Without radiator) PSU max length: 220mm |
