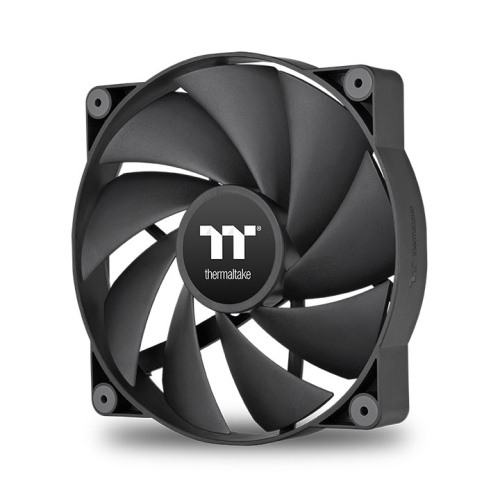

CT200 PC Cooling Fan (Single Fan Pack)
Unify Your Look with Our New Chassis
Have you ever felt troubled seeing nice pre-installed fans in the chassis and found out they don’t come in individual packages?
CT Series Fans allow you to pair up your fans without switching out any pre-installed fans granting freedom to unify your display within your chassis. More chassis pre-installed with the CT Series fans are on their way!
Detailed Craftsmanship Pushes Through Limits
After numerous research, tests, and modifications, we finally tuned our CT series fan blades to meet our expectations and beyond their limits. These nine fan blade structured fans can provide a 1.92 mm-H2O static pressure and an airflow of 131.6 CFM while maintaining its noise level at 27.2 dB-A, allowing you to enjoy these well-balanced performance fans under a friendly budget.
Less Clutter with Cable-Integrated Daisy-Chain Design
The new cable-integrated daisy-chain design allows the fans to be directly connected, so it minimizes demands of 4-pin PWM ports on your motherboard and shortens the cable length between the fans. We’ve also included a 900mm PWM cable for you to easily manage your cables while assembling your build.
A little Surprise for Extra Security
CT Series Fans are equipped with round anti-vibration rubber pads on each of the fan’s corners. They are designed to be stable and dampen the fan’s vibration, allowing the fans to spin at a higher speeds under certain noise levels.
| P/N | CL-F177-PL20BL-A |
|---|---|
| Fan Dimension | 200 x 200 x 30 mm |
| Started Voltage | 6 V |
| Fan Rated Voltage | 12 V |
| Rated Current | 0.16 A |
| Power Input | 1.92W |
| Fan Speed | PWM 500~900 R.P.M |
| Static Pressure | 1.92 mm-H2O |
| Max Air Flow | 131.6 CFM |
| Noise | 27.2 dB-A |
| Bearing Type | Hydraulic Bearing |
| Life Expectation | 40,000 hrs,25℃ |
| Connector | 4 Pin - PWM |
| Other | PWM Cable x 1 |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
CT200 PC Cooling Fan Manual
- User Manual
- 2024-10-04
