CT120 EX ARGB Sync PC Cooling Fan (3-Fan Pack)

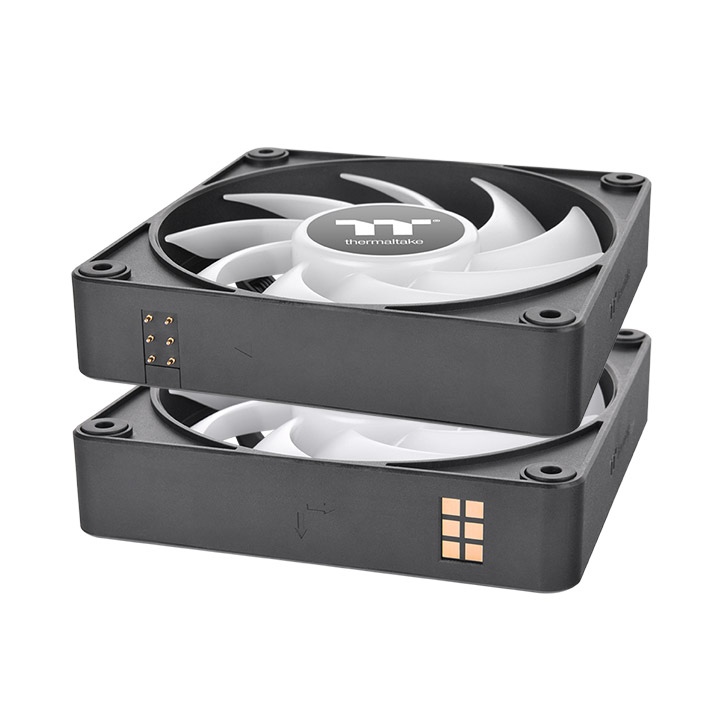

Steady Connection with MagForce 2.0
Evolved from SWAFAN EX’s Magnetic Force Design, the new MagForce 2.0 has the Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential faulty alignment no matter you are daisy-chaining fans together or connecting fans with cable, further boosting the installation efficiency and streamlining the building experience.
Remarkably Improved Performance
After extensive research and testing, the CT120 EX ARGB Sync can generate 68 CFM of airflow and 2.95 mm-H2O static pressure while maintaining a 28.5 dBA noise level, pushing ARGB fans to their limits.
Solid Structure for Better Performance
The new CT Series fan frames are crafted to be steady and
robust so the fan won’t deform easily. We have also modified the exterior design to allow
the fans to fit the chassis or radiator even better, so there won’t be gaps for air to slip
through.
A little Surprise for Extra Security
CT Series Fans are equipped with round anti-vibration rubber pads on each of the fan’s corners. They are designed to be stable and dampen the fan’s vibration, allowing the fans to spin at a higher speeds under certain noise levels.
Spectacular Lighting Effects
Featuring 9 addressable LEDs for users to build up
spectacular lighting effects through motherboard sync software, providing great coverage of
16.8 million uniform colors. You can create stunning lighting effects through your
motherboard software to customize your ideal lighting effects. The CT Series ARGB Fans now
support ASUS, MSI, GIGABYTE, BIOSTAR, and ASROCK sync software.
Note: This product requires motherboard sync for ARGB lighting effects
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
-
Aura Addressable Header
ASUS -
Digital Pin Header
GIGABYTE -
JRAINBOW Header
MSI -
Addressable RGB LED Header
ASRock
| Category | Caution |
|---|---|
| Chassis, ARGB Fan, ARGB AIO |
|
| RGB Memory, VGA Waterblock, Distro Plate |
|
| P/N | CL-F181-PL12SW-A |
|---|---|
| Fan Dimension | 120 x 120 x 25 mm |
| Started Voltage | 5 V |
| Rated Current | 0.19 A & 0.32A (one fan) |
| Rated Voltage | 12 V & 5V |
| Power Input | 2.28 W & 1.6W (one fan) |
| Fan Speed | PWM 500~2000 R.P.M |
| Max. Air Pressure | 2.95 mm-H2O |
| Max Air Flow | 68 CFM |
| Noise | 28.5 dB-A |
| Bearing Type | Hydraulic Bearing |
| Life Expectation | 40,000 hrs,25℃ |
| Connector | 2510 - 4 PIN PWM 5V ARGB header - 3 PIN |
| Included ltems | 15.3 |
| Other | Fan x 3 Cable x 3 |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
CT120 140 EX ARGB Sync Manual
- 2024-02-20
