  • Ceres 330 TG ARGB Snow Mid Tower Chassis
Ceres 330 TG ARGB Snow Mid Tower Chassis Ceres 330 TG ARGB Snow Mid Tower Chassis Ceres 330 TG ARGB Snow Mid Tower Chassis Ceres 330 TG ARGB Snow Mid Tower Chassis Ceres 330 TG ARGB Snow Mid Tower Chassis Ceres 330 TG ARGB Snow Mid Tower Chassis
Ceres 330 TG ARGB Snow Mid Tower Chassis

Ceres 330 TG ARGB Snow Mid Tower Chassis

In stock
P/N
CA-1Y2-00M6WN-01
€126.90 (included VAT)
Ceres 330 TG ARGB Snow Mid Tower Chassis is an ATX case that supports the latest Hidden-Connector motherboards (ASUS BTF series, MSI PROJECT ZERO series and GIGABYTE PROJECT STEALTH series) and comes with two CT140 ARGB Sync PC Cooling Fans pre-installed at the front and one CT140 PC Cooling Fan pre-installed at the rear. More than 55% of its panels are perforated to provide a large amount of airflow and it supports up to a 360mm radiator at the front and a 280mm radiator at the top.
Compatible with the Latest Hidden-Connector Motherboards
Ceres 330 TG ARGB Snow Mid Tower Chassis is an ATX case that supports the latest Hidden-Connector motherboards and comes with two CT140 ARGB Sync PC Cooling Fans pre-installed at the front and one CT140 PC Cooling Fan pre-installed at the rear. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. More than 55% of its panels are perforated to provide a large amount of airflow. Besides, up to five 140mm fans or seven 120mm fans can be installed in the chassis, and one 360mm radiator can be placed at the front and up to one 280mm radiator can be placed at the top of the chassis to provide countless hardware options.

  • The image is for reference only.
    •
Compatible with Hidden-Connector Motherboards

Created for next-generation motherboards, the Ceres 330 Snow features a special design that enables support for both standard motherboards and hidden-connector motherboards. With a hidden-connector motherboard, you can easily achieve outstanding cable management by placing messy cables on the back side. Ultimately allowing the front side to achieve greater airflow, with room for a large amount of air intakes and exhausts generated by the Ceres series.


*Compatible with hidden-connector motherboards:
ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series

  • The image is for reference only.
    •
Sleek Look: Same Color Scheme
The Ceres 330 unifies the overall color from exterior to interior elements to elevate aesthetics. Now, the color of the front frame is the same as the main color of the body. Upon closer inspection, the inner accessories of the Ceres 330 Snow, grommets, and PCI-e slots have been changed into white as well as the screws are designed in silver, creating a pure and sleek look.

Built for Massive Airflow
More than 55% of its panels are perforated

With plenty of perforated cutouts, the Ceres 330 TG ARGB Snow is designed with excellent cooling performance.

Supports up to a 360mm Radiator at the Front and a 280mm at the Top


Our Ceres 330 provides a lot of possibilities for cooling components. Users can choose to place a 360mm radiator at the front and a 280mm at the top.

  • The image is for reference only.
    •
Two CT140 ARGB Sync PC Cooling Fans White and One CT140 PC Cooling Fan White Pre-installed

Ceres 330 TG ARGB Snow features two 140mm ARGB PWM fans White at the front, and one 140mm PWM fan White at the rear. The LED lighting effects can be manipulated with motherboard supported software. Users can create an amazing RGB lighting show while enjoying extreme cooling performance at the same time.

Unify Your Fans with Your Build!

Thermaltake launches brand-new CT series fans, allowing users to choose from black or white, RGB or non-RGB, to match whatever color scheme you have.

Visually Pleasing, Totally Interactive

Maximize your Ceres 330’s visual effects by upgrading it with our optimal LCD Panel Kit or 3.9'' LCD Screen Kit

The 3.9” LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the TT RGB Plus 2.0 software. It also allows you to interact with the cooling components that feature the same LCD displays. The latest version includes weather mode and time mode for users to expand the usage of our LCD displays.

Ceres 330 & Ceres 330 Snow LCD Panel Kit
Ceres 330 Hydrangea Blue 3.9 inch LCD Screen Kit

  • The image is for reference only.
    •

Tempered Glass Side Panel

The 4mm tempered glass panel on the left side offers stunning views and also allows users to fully display and admire all components in their full RGB glory.

Display It Your Way

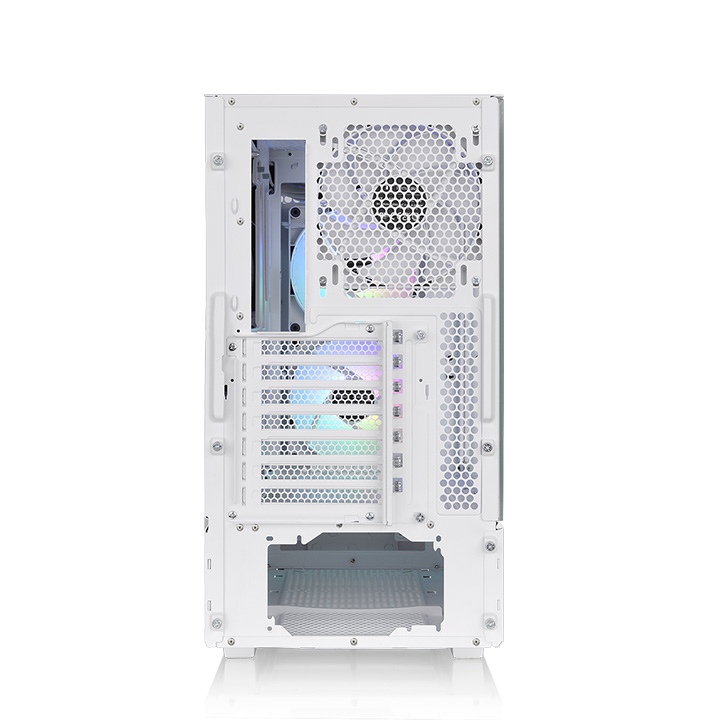

Rotational PCI-E slots give you the option of mounting your graphics card either horizontally or vertically, providing plenty of flexible space for your system. If you choose to install your graphics card vertically, there is a space for the riser cable standoffs, allowing for a 90-degree riser cable installation.

  • The image is for reference only.
    •

Air Intake and Exhaust

The cooling performance of the Ceres 330 TG ARGB Snow is remarkable thanks to two CT140 ARGB Sync PC Cooling Fans White pre-installed at the front and one CT140 PC Cooling Fan White pre-installed at the rear. Besides that, more than 55% of its panels are perforated, providing massive airflow through its perforated cutouts.

  • The image is for reference only.
    •

Perfect Dust Protection

There are fine removable filters at the top, front, bottom, left and right side of the chassis to provide excellent protection against dirt, and they are easily removable for cleaning.

Opportunities For High-End Expansion
The Ceres 330 TG ARGB Snow Mid Tower chassis has good expandability. It can support a CPU cooler with a maximum height of 185mm, GPU placement of up to 370mm in length (without radiator), a power supply up to 220mm in length. Optimized for excellent cooling performance, the case comes with two CT140 ARGB Sync PC Cooling Fans White pre-installed at the front and one CT140 PC Cooling Fan White pre-installed at the rear; you can choose to install two 140mm fans at the front and on top, or three 120mm fans at the front and on top. For radiator compatibility, it can support up to 360mm at the front, giving more options for high-end expansions!
  • 120mm
  • 140mm
  • 120mm
  • 140mm
  • 240mm
  • 280mm
  • 360mm


Handy I/O Ports

Two USB 3.0, one USB 3.2 Gen 2 Type C and HD Audio ports are placed on the top of the front panel to grant direct access when needed.

All-in-One Compatibility List

All-in-One Compatibility List
  120mm 240mm 360mm 140mm 280mm 420mm
Front ● ● ● ● ● -
Top ● ● - ● ● -
Rear ● - - - - -

Fan Support List

Fan Support List
  120mm 140mm 200mm
Front 3 2 -
Top 3 2 -
Rear 1 1 -

Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

Category Caution
Chassis, ARGB Fan, ARGB AIO
  • The motherboard signal connector only supports a 5V header.
  • Ensure your motherboard software is the latest version.
RGB Memory, VGA Waterblock, Distro Plate
  • This product can only be used with either the TT RGB PLUS software or the dedicated motherboard software. Having more than two applications open may cause conflicts.
  • The motherboard signal connector only supports a 5V header.
  • Ensure your motherboard software is the latest version.
More Information
P/N CA-1Y2-00M6WN-01
Series Ceres
Model Ceres 330 TG ARGB snow
Case Type Mid Tower
Dimension (H x W x D) 475 x 245 x 463 mm (18.7 x 9.65 x 18.23 inch)
Net Weight 7.8 kg / 17.2 lbs.
Side Panel 4mm Tempered Glass x 1
Color White
Material SPCC
Cooling System Front(intake):
140 x 140 x 25 mm CT140 ARGB white fan (1500rpm, 30.5 dBA) x 2

Rear(exhaust):
140 x 140 x 25 mm CT140 white fan (1500rpm, 30.5 dBA) x 1
Drive Bays 1 x 3.5”, 2 x 2.5’’ or 3 x 2.5”
Expansion Slots 7 (Rotatable Patented Design)
Motherboards 6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX),
12" x 9.6" (ATX), 12" x 13" (E-ATX)
I/O Port USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
Fan Support Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm Top: 3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm Rear: 1 x 120mm, 1 x 140mm
Radiator Support Front:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm

Top:
1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm Rear: 1 x 120mm
Clearance CPU cooler max height: 185mm

VGA max length:
340mm (with radiator)
370mm (without radiator)

PSU max length: 220mm
