GERMAN SERIES BERLIN 750W

GERMAN SERIES BERLIN 750W

In stock
P/N
W0750RE
€68.90 (included VAT)
The BERLIN 750W is 80 PLUS® 230V EU certified, compliant with ATX 3.1 specifications, and equipped with a native 12V-2x6 connector.

Power Up Next Generation Hardware

The BERLIN 750W is fully compatible with ATX 3.1 specifications and 80 PLUS® 230V EU certified, offering exceptional stability, durability, and reliability. Its native PCIe 12V-2x6 (12+4 pin) modular interface efficiently powers PCIe 12+4 pin graphics cards.

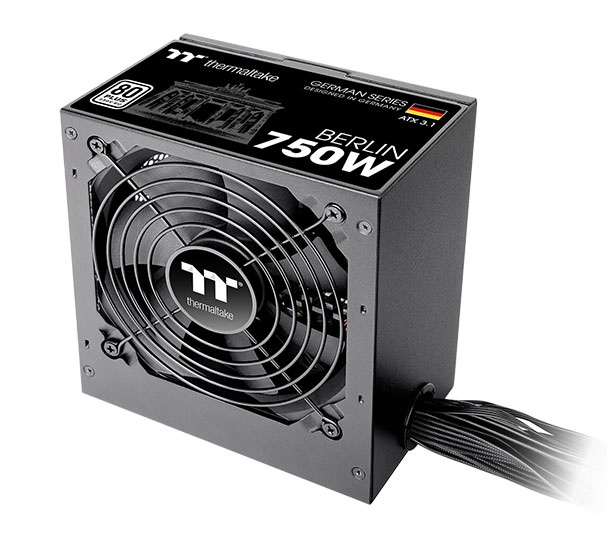

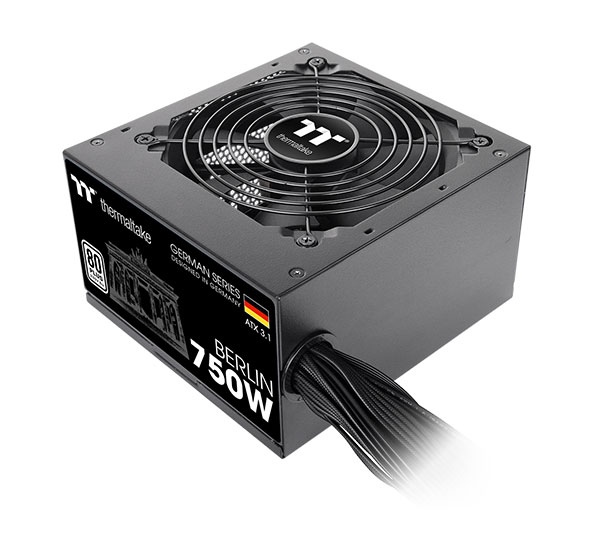

Image of BERLIN 750W Power Supply Unit compatible with ATX 3.1 and PCIe 12+4 pin interface

Fully Compatible with ATX 3.1 Standards

The BERLIN 750W is fully compatible with ATX 3.1 Specifications which supports up to 200% power excursion, reaches 60% efficiency at low load, and complies with required power supply timing standards.

ATX 3.1

ATX 2.0

Total power excursion

2X
1.3X
2X
Total Power Excursion
3X
GPU Power Excursion
Diagram showing BERLIN 750W power supply supporting up to 200% power excursion and GPU power excursion

PCIe Gen 5.1 Ready

The BERLIN 750W comes with a PCIe 12V-2x6 connector to offer powerful and stable performance, allowing the PSU to natively run next-generation GPUs.

The wattage marked on the PCIe 12+4-pin cable connector represents the recommended wattage (Ref. Intel design guideline).

PCIe 12+4 pin connector icon

Note:
1. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
2. Please follow the recommended power requirements from the GPU manufacturers before using the PCIe 12+4pin cable.

12+4pin Connector

BERLIN 750W power supply with PCIe 12+4pin connector supporting next-generation GPUs

Ultra Quiet 120mm Fan

The BERLIN 750W features an ultra-quiet 120mm cooling fan, providing excellent airflow with exceptionally low noise.

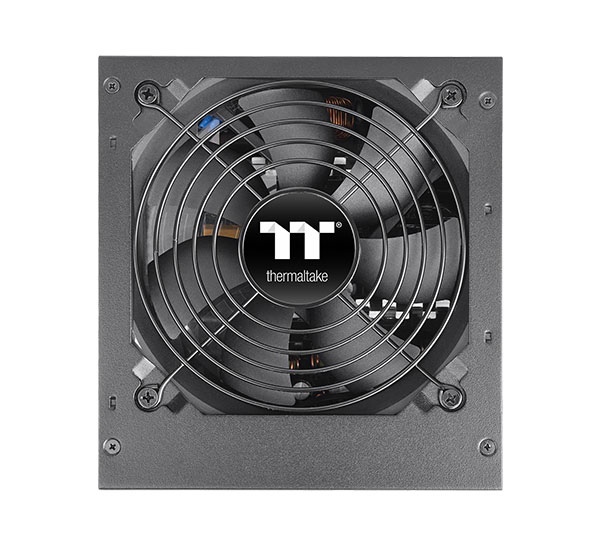

BERLIN 750W power supply unit with ultra-quiet 120mm fan providing excellent airflow and low noise

High Amperage Single +12V Rail & High-Class Technologies

Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.

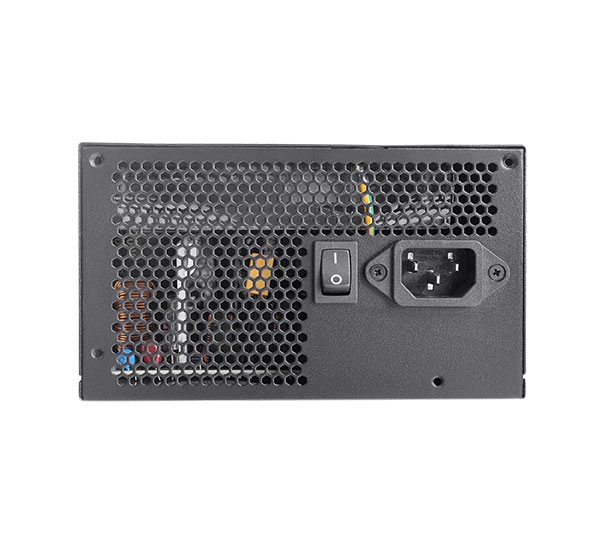

Power input and output specifications of BERLIN 750W PSU

AC INPUT

Input Voltage: 100 - 240V~
Input Current: 6A
Frequency: 50Hz-60Hz

DC OUTPUT

+3.3V

+5V

+12V

-12V

+5VSB

Max Output Current

18A

18A

62.5A

0.3A

3A

Max Output Power

100W

750W

3.6W

15W

Total Power

750W

Fully Modular Low-Profile Cables

Offers cable selection for users while powering the system at an advantageous voltage. Low-profile cables make cable management easier, reduce clutter, and increase airflow inside the chassis.

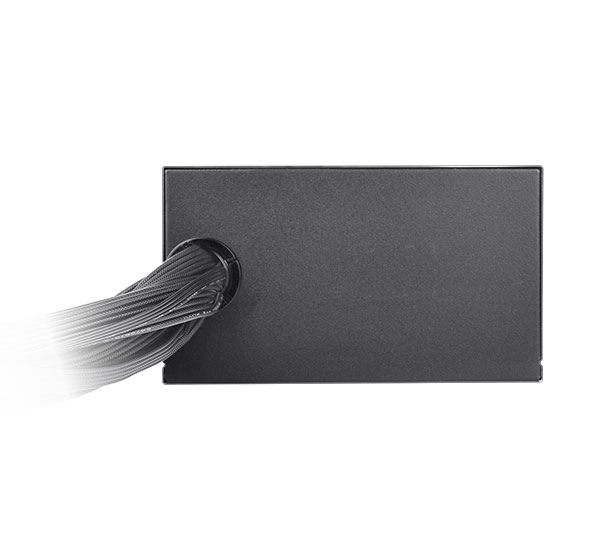

BERLIN 750W PSU featuring modular low-profile cables
Connector types and specifications for BERLIN 750W PSU
Connector Type Connector Quantity Cable Quantity Cable Length
Main Power
(24Pin)
X 1 Main Power 24Pin Cable X 1 600mm
ATX 12V
(4+4Pin)
X 2 ATX 12V (4+4Pin) Cable X 1 650mm+150mm
PCIe
(6+2Pin)
X 2 PCIe 6+2Pin Cable X 1 500mm+150mm
PCIe
(12+4Pin)
600W
X 1 PCIe 12+4Pin 600W Cable X 1 600mm
SATA
(5Pin)
X 4 SATA 5Pin Cable X 1 500mm+150mm+150mm+150mm
Peripheral(4Pin) X 4 Peripheral 4Pin Cable X 1 500mm+150mm+150mm+150mm

Built-in Industrial Grade Protection

To protect the hardware, the BERLIN 750W is built with industry-grade protections: OCP (Over Current Protection), OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), OTP (Over Temperature Protection).

  • OCP

    Over Current Protection

  • OVP

    Over Voltage Protection

  • UVP

    Under Voltage Protection

  • OPP

    Over Power Protection

  • SCP

    Short Circuit Protection

  • OTP

    Over Temperature Protection

More Information
P/N W0750RE
watts 750W
Model TR3S-750AH2NLW
Max. Output Capacity 750W
Color Black
Dimension ( W / H / D ) 150mm(W)x86mm(H)x140mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-150 msec
Hold Up Time > 17msec at 80% load
Input Current 6A
Input Frequency Range 50Hz/60Hz
Input Voltage 200-240V~
Operating Temperature 5°C to + 40°C
Operating Humidity 20% to 85%,non-condensing
Storage Temperature -40°C to + 55°C
Storage Humidity 10% to 95%, non-condensing
Cooling System 12cm FDB Fan
Efficiency 80 PLUS® 230V EU Certified.
MTBF 100,000 hrs minimum
Safety Approval CB/CE/TUV/LVD/UKCA/RCM
PCI-E 6+2pin 2
PCIe 12+4pin 1(600W)
Protection OCP/OVP/UVP/OPP/OTP/SCP
