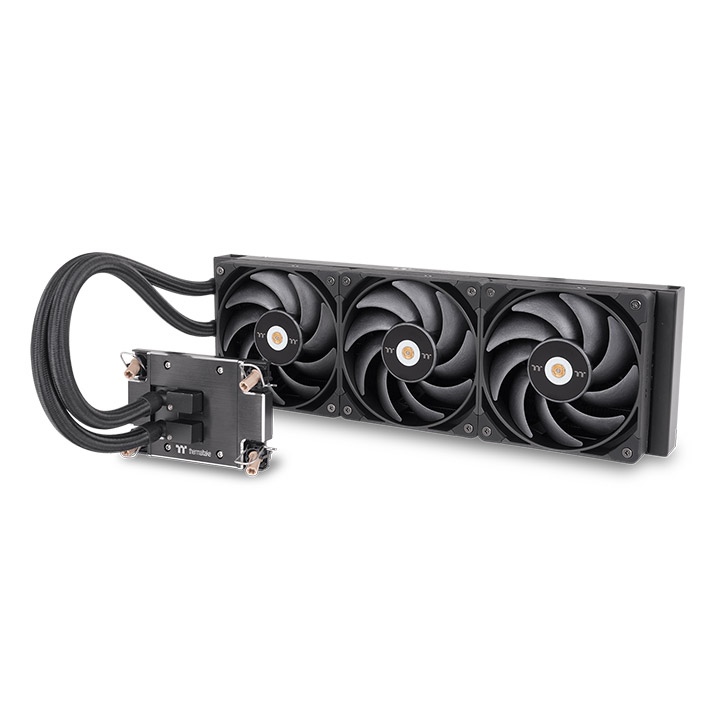

AW420 AIO Liquid Cooler
AW420 AIO Liquid Cooler
Ready for Workstation Cooling

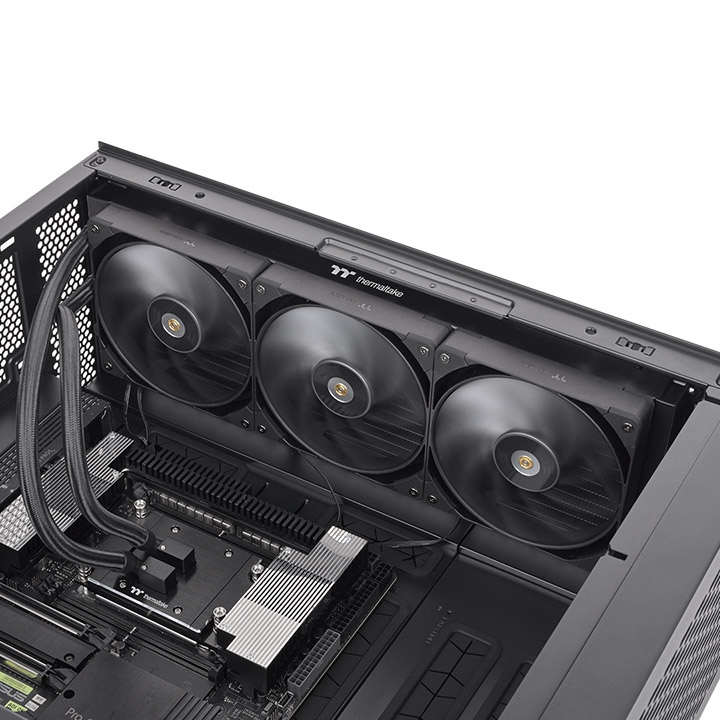

Thermaltake Workstation Ecosystem
Build a powerful workstation with the AW AIO Liquid Cooler Series, engineered to keep your system running smoothly under intensive tasks. Pair it with Thermaltake’s new AX Series Chassis, featuring excellent airflow and expandability, to create a stable and optimized setup for professional applications.

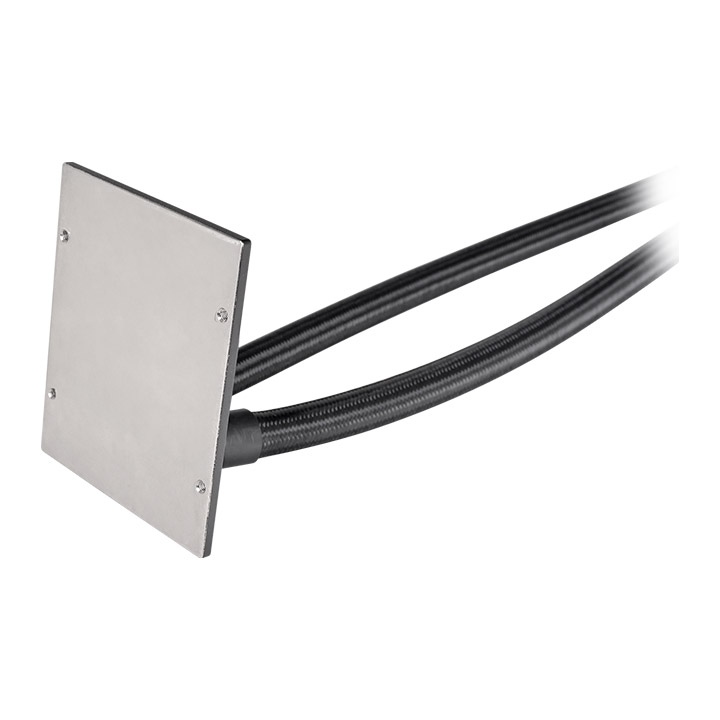

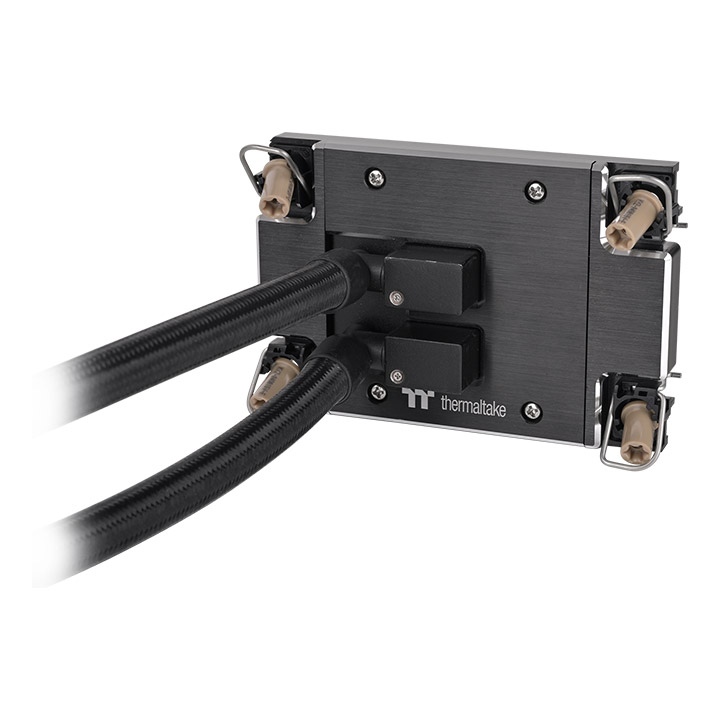

Nickel-Plated Copper Water Block in Large Size
The water block is designed with an expanded structure to maximize heat dissipation and ensure full CPU coverage. Built with nickel-plated copper and with a copper-based active cooling surface, it offers exceptional cooling efficiency and durability for workstation systems.

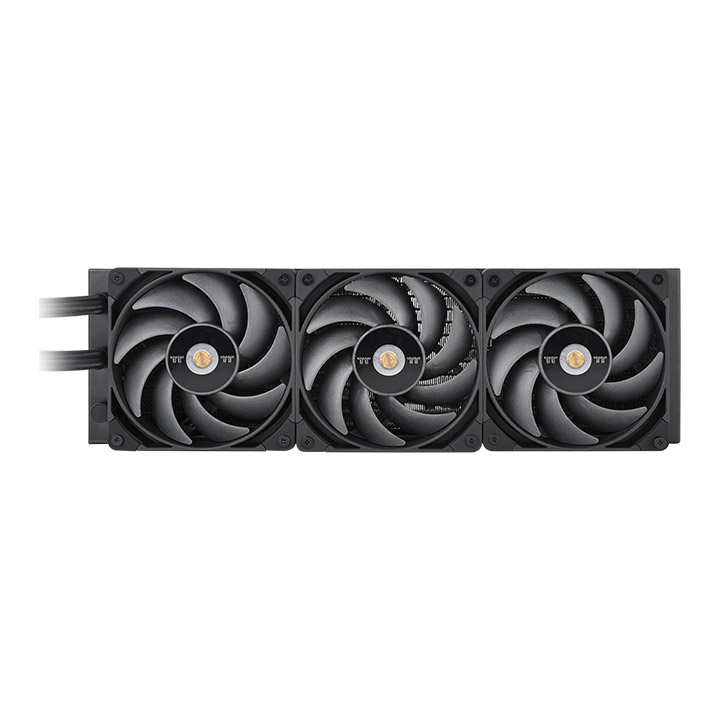

High Static Pressure with TOUGHFAN Pro
The AW420 AIO Liquid Cooler is equipped with three TOUGHFAN 14 Pro fans, featuring an advanced blade design for outstanding airflow and static pressure. With a performance of 119.6 CFM airflow and 3.57 mm-H2O static pressure, while maintaining 31.6 dB-A noise level, these fans offer superior cooling efficiency.
For those looking to maintain consistency across their build, the TOUGHFAN Pro fans are also available for purchase individually.

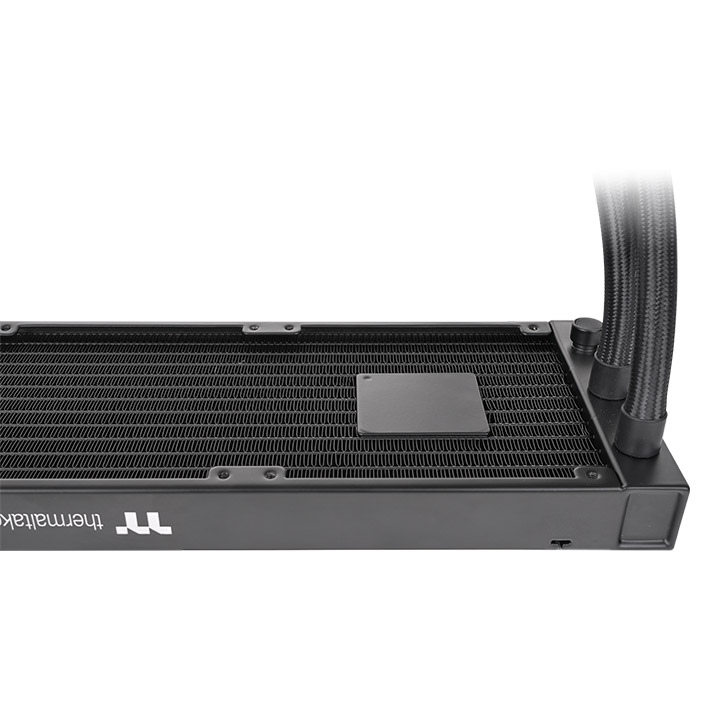

Enhanced Radiator with a Compact Design
The AW AIO Liquid Cooler Series has a 27mm slim radiator with a thickened 20mm copper chamber, ensuring the same easy installation but with even better cooling performance.
Stable and Quiet Cooling
The high-quality pump maintains steady water circulation, keeping the copper plate consistently cool. Featuring a three-phase, six-pole motor integrated into the radiator, it minimizes pump noise while delivering efficient cooling performance.
Sleek All-Black Design
The AW AIO Liquid Cooler Series features an all-black aesthetic, delivering a modern and sophisticated look. Designed to blend style and performance, making it an ideal choice for enthusiasts seeking both visual appeal and cooling efficiency.
| P/N | CL-W445-PL14BL-A |
|---|---|
| Pump | Pump Speed : 4000 RPM Rated Voltage : 12 V Rated Current : 0.3 A Power Input : 3.6 W Connector : 2510- 3 Pin |
| Water Block | Material : Copper |
| Fan | Dimension : 140 x 140 x 25 mm Fan Speed : PWM 500~2000 R.P.M Connector : 2510- 4 Pin Started Voltage : 6V Rated Voltage : 12V Rated Current : 0.36A (one fan) Power Input : 4.32W (one fan) Air Flow : 119.6CFM (one fan) Air Pressure : 3.57 mm-H2O (one fan) Noise Level : 31.6 dB-A (one fan) |
| Tube | Length : 460mm Material : Rubber |
| Radiator | Dimension : 456 x 138.5 x 27 mm Material : Aluminum |
| Compatibility | CPU Socket: Intel LGA4677 AMD sTR5/SP6 |
| TDP | 625W |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
AW360/420 AIO Liquid Cooler Manual
- 2025-02-19
