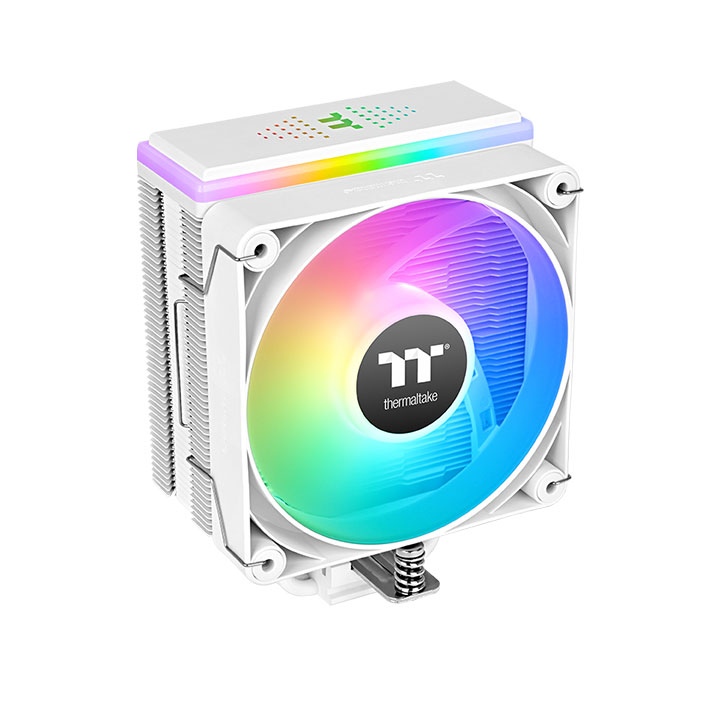

ASTRIA 200 ARGB Lighting CPU Cooler - White
Shine Like the Stars
The design on the top cap, with its default flowing RGB lighting set up, depicts the imagery of a meteor shower, giving the Air Cooler Series a glorious new look.
Light Them Up

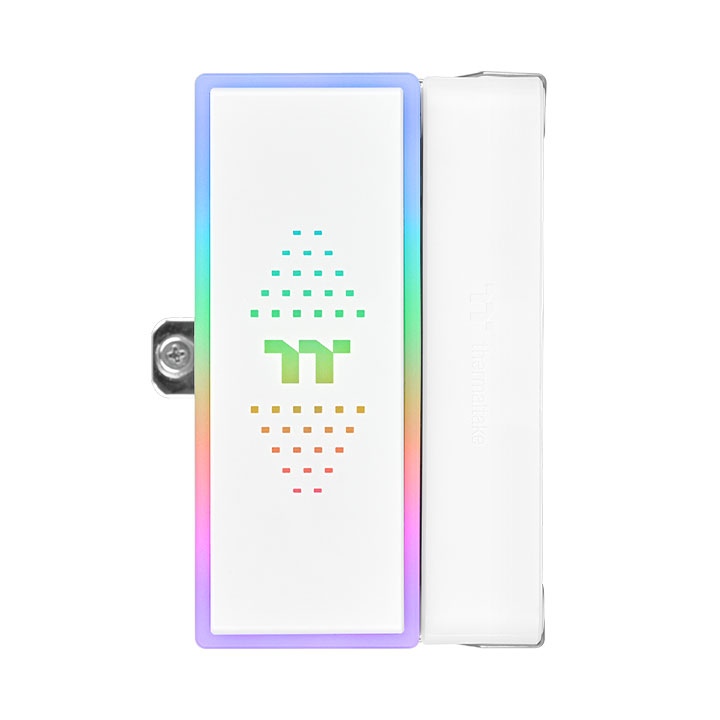

Featuring 18 LEDs in the top cap, with an additional 9 LEDs on the 120mm high airflow ARGB fan, totaling 27 LEDs for spectacular lighting effects controlled by motherboard lighting software.
Accommodate New CPU Needs

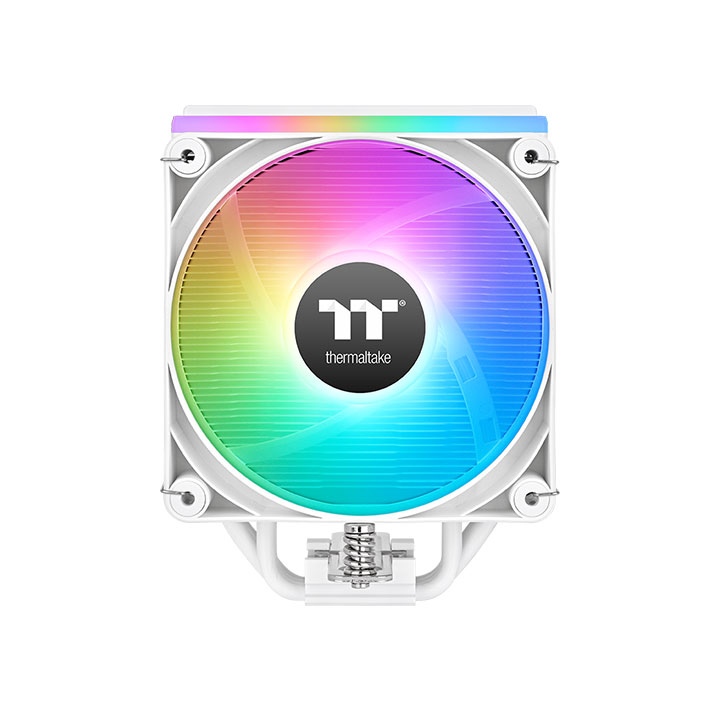

The 120mm high airflow ARGB fan provides an airflow of 65 CFM and a static pressure of 2.56 mm-H2O, while maintaining a noise level of 26.8 dBA. With the redesigned fin stack to increase airflow, the ASTRIA 200 ARGB White can provide 210W TDP of cooling power, raising the standard for ordinary CPU coolers.
The Ultimate Cooling Solution

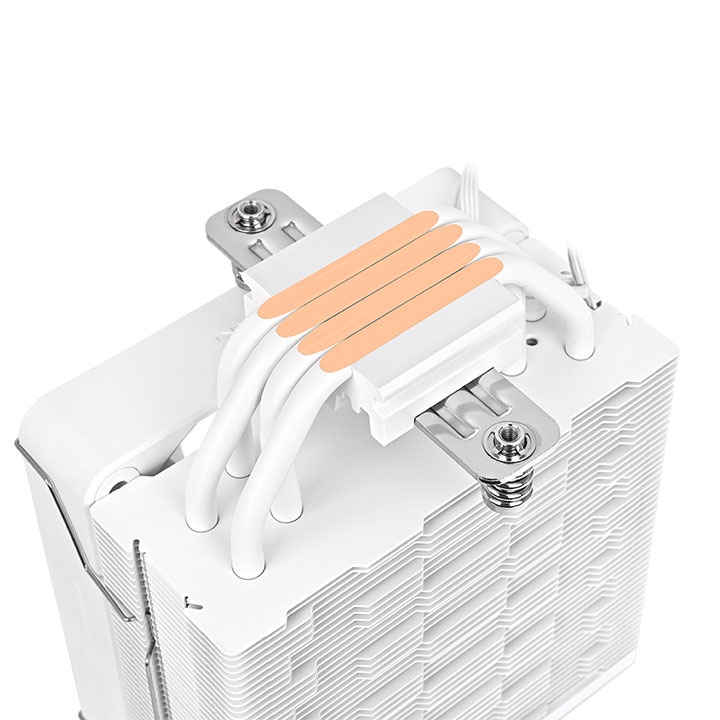

Features four Ø6mm U-shaped copper heat pipes in white that directly contact the CPU, providing fast and efficient heat transfer from the heat source, which results in a higher heat dissipation capacity within a single-tower design.
Flexible Choice of Pairing Components

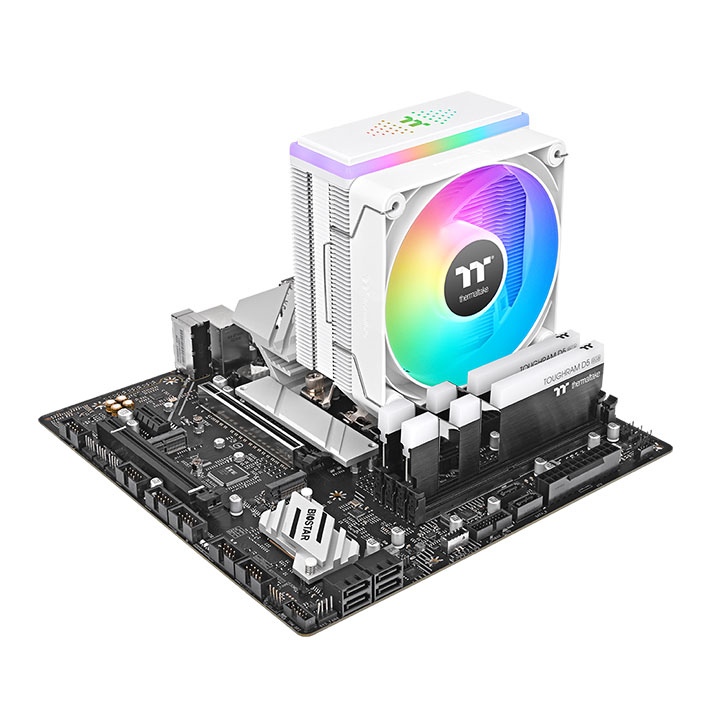

The new ASTRIA 200 ARGB White heat pipe and fin stack construction were designed for exceptional RAM compatibility, enabling you to pair with the RAM of your choice.
Universal Socket Compatibility
ASTRIA Series comes with universal brackets for Intel and AMD CPUs, including the latest LGA1851 and AM5 CPU sockets.
Intel: LGA 2066 / 2011 / 1851 / 1700 / 1200 / 1156 / 1155 / 1151 / 1150
AMD: AM5 / AM4
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
-
Aura Addressable Header
ASUS -
Digital Pin Header
GIGABYTE -
JRAINBOW Header
MSI -
Addressable RGB LED Header
ASRock
| Category | Caution |
|---|---|
| Chassis, ARGB Fan, ARGB AIO |
|
| RGB Memory, VGA Waterblock, Distro Plate |
|
| P/N | CL-P137-AL12SW-A |
|---|---|
| Compatibility | Intel：LGA 2066/2011/1851/1700/1200/1156/1155/1151/1150 AMD：AM5/AM4 (CPU Socket) |
| Dimensions | 124 x 93 x 160 mm ( L x W x H) |
| Heatsink Material | Aluminum Fins & Copper Heatpipes |
| Heatpipe | Φ6mm x 4 pcs |
| Fan Dimension | 120 x 120 x 25 mm ( L x W x H) |
| Fan quantity | 1pcs |
| Fan Speed | PWM 500 ~ 1800 RPM |
| Rated Voltage | LED : 5V Fan : 12V & 5V |
| Power Input | LED : 3.25 W Fan : 1.8W & 1.55W |
| Air Flow | 65.0 CFM |
| Static Pressure | 2.56 mm-H2O |
| Acoustical Noise | 26.8 dBA |
| Life time/Fan Life time | 40,000 hours |
| pin connect | LED : 5V ARGB Header Fan : 5V ARGB Header 2510 - 4Pin |
| Cooling Power | 210 W |
| Pin Material | 0 |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
ASTRIA 200 White Manual
- 2024-11-14
